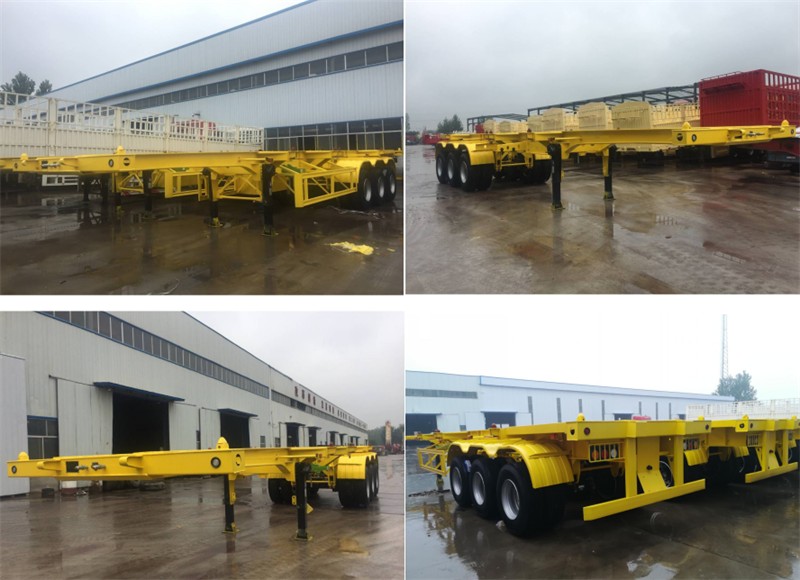

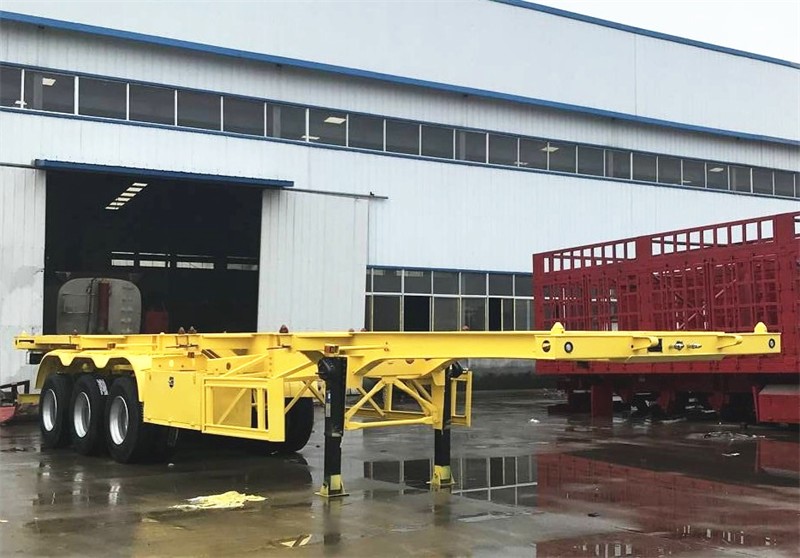

3 Axles 40ft Skeleton Trailer Chassis
Specification
| Dimension and Weight |
| Overall Dimension（mm） | 12500x2500x1650mm |
| Wheelbase | 7,500mm+1,310mm+1,310mm |
| Payload | 40,000kg |
| Tare weight | 6,500kg |
| G.V.W.R. | 46,500kg |
| Function | transport 1x20ft, 2x20ft, 1x40ft container |
| Running System |
| Main beam | height of the beam is 500mm, upper plate is 14mm, down plat is 16mm, middle plate is 8mm. |
| Side beam | 16# |
| Axle | 3x13Ton ZY brand |
| Axle Number | Three |
| Tire | 12R22.5, 12 pcs. Taitong brand |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| Suspension system | Mechanical Suspension |
| Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
| Electrical System | Chinese standard 24V lighting system |
| Brake system | Dual line pneumatic brake, no ABS |
| Brake air chamber | 6 units T30/30 Double brake chambers |
| Emergency relay valve | Standard |
| Diamond plate | 4mm |
| Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing Gear | Yahua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location |
| Accessories |
| Tool box | 1pcs, One crank and one shaft head wrench |
| Mud guard | Steel mud guard and front mudguard |
| Spare wheel carriers | 2 pcs |
| Bumper | Rear bumper with adjustable height |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core electric cable protected by PVC conduit on main frame |
| Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed |
| Packing | Nude, Polish with wax before shipping |
Quotation

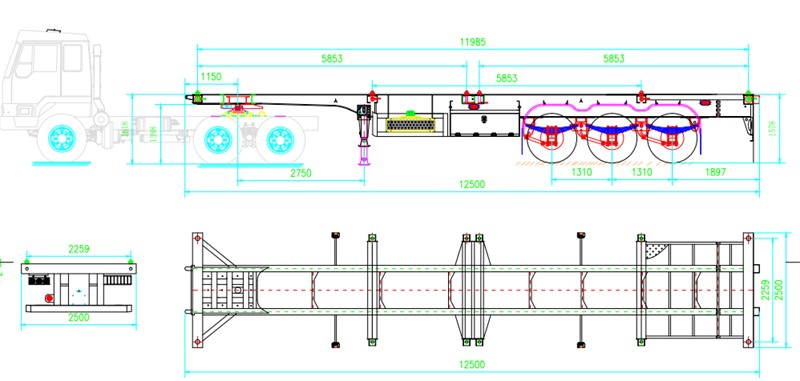

Drawing for the chassis trailer

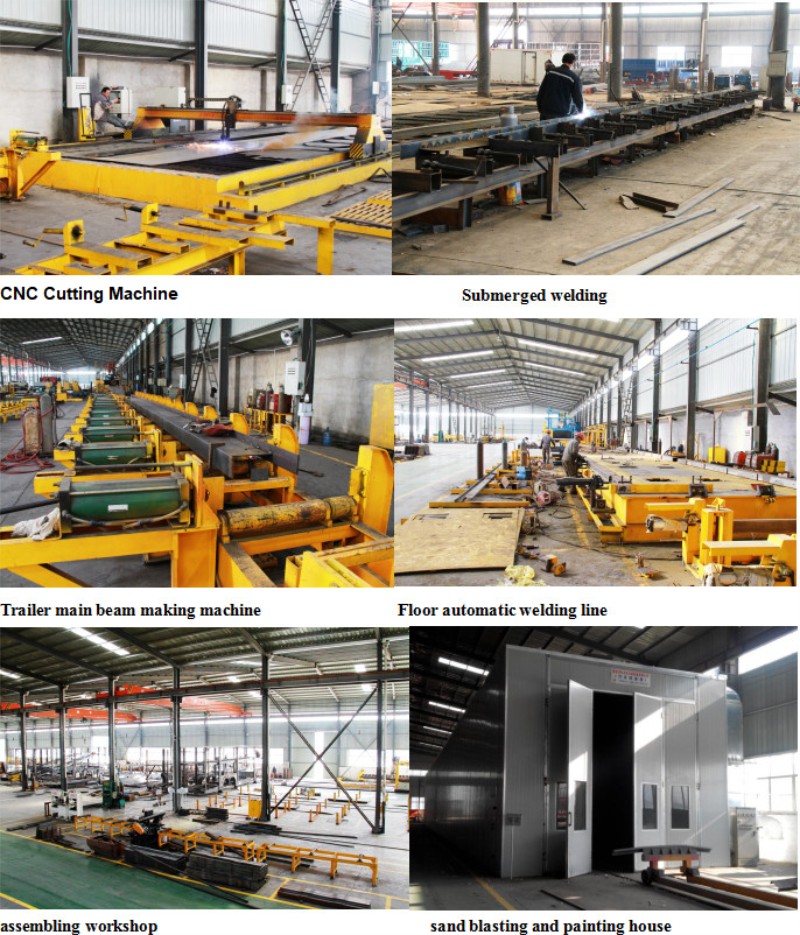

Our Advanced Production Equipments

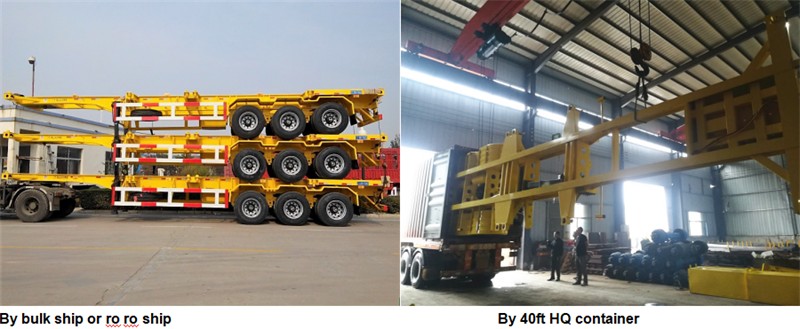

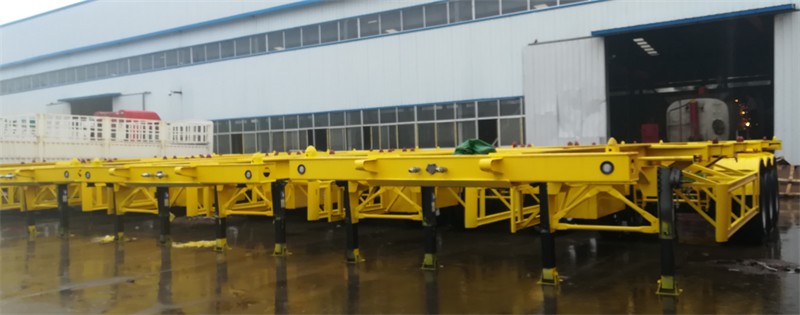

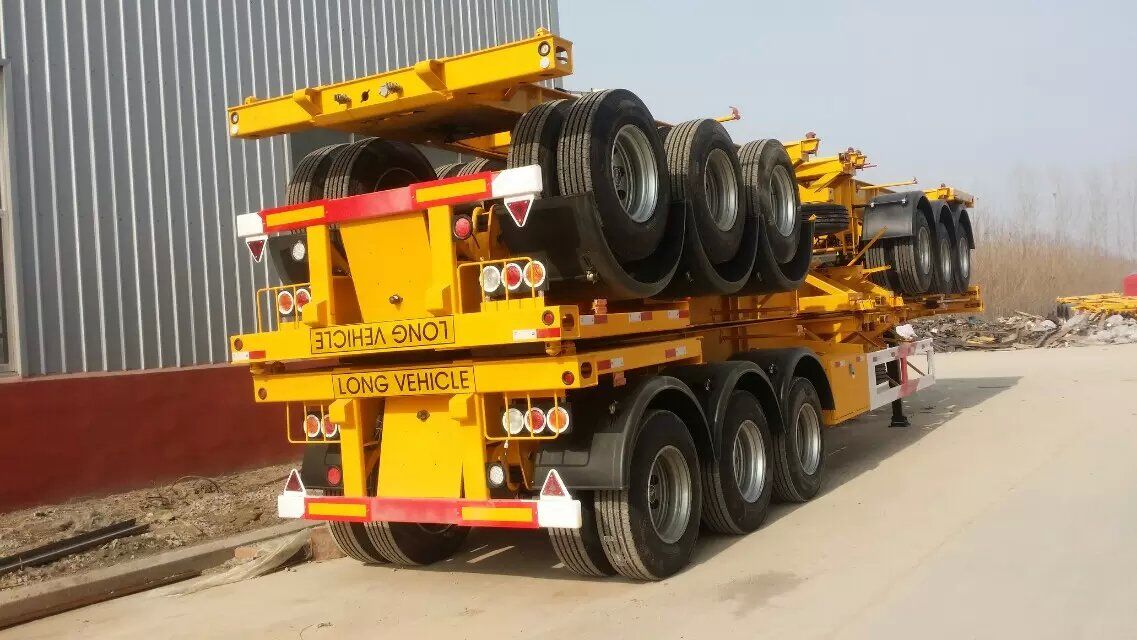

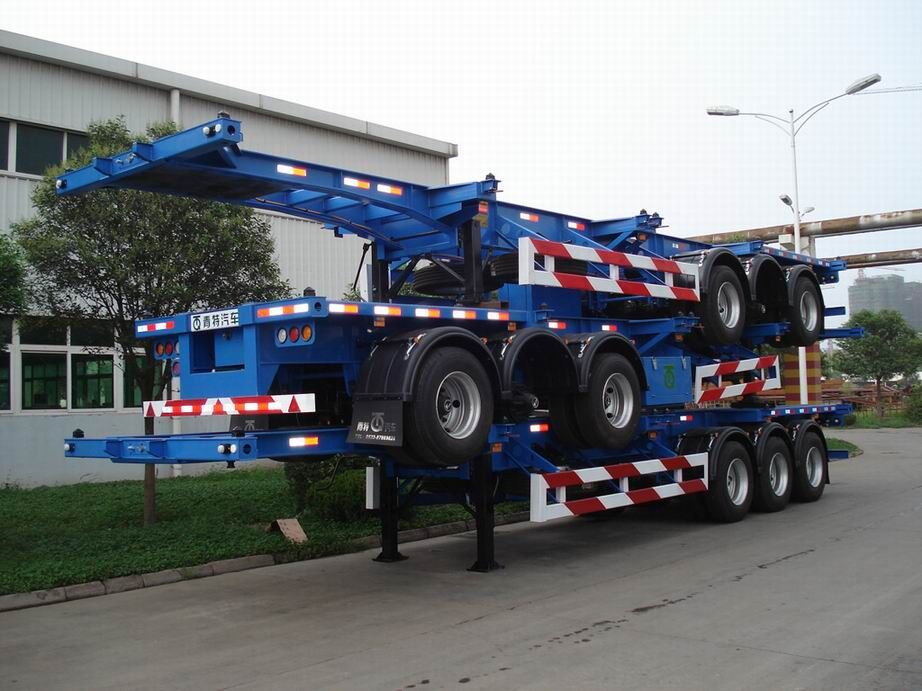

Shipment of the trailer chassis
