Specification |
|

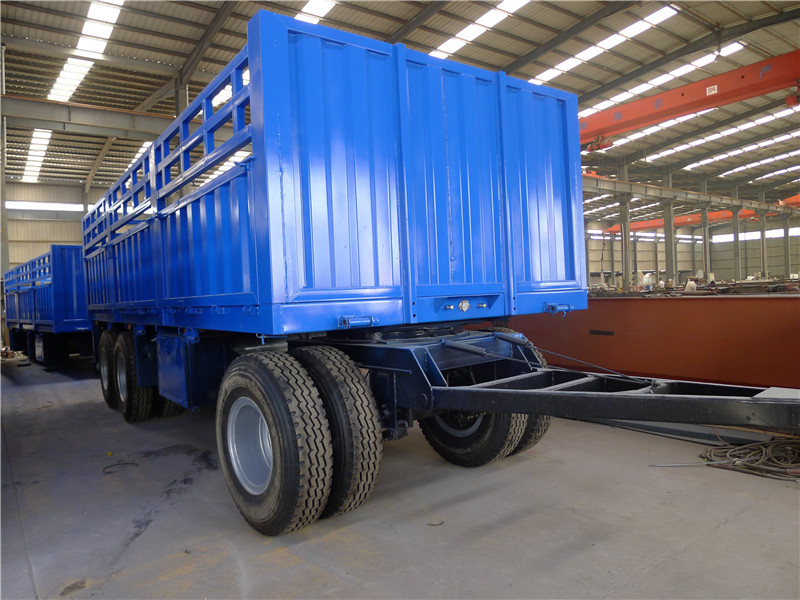

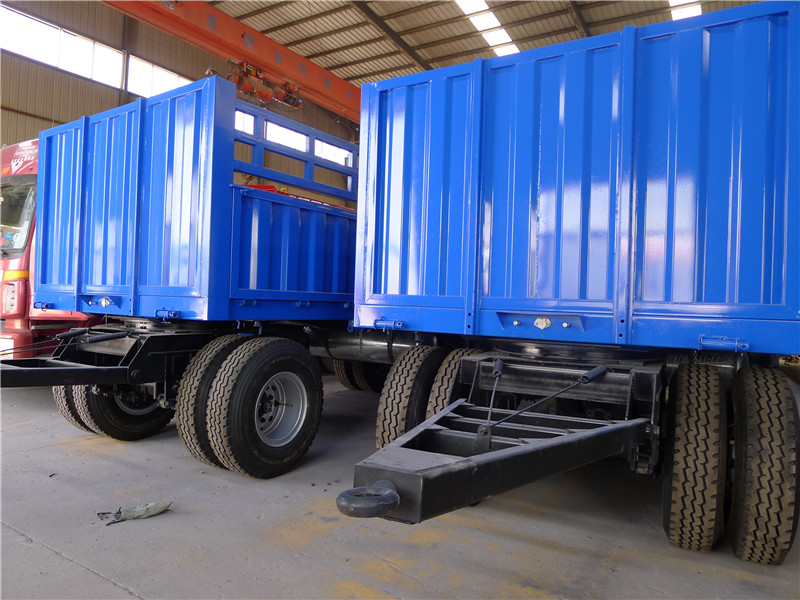

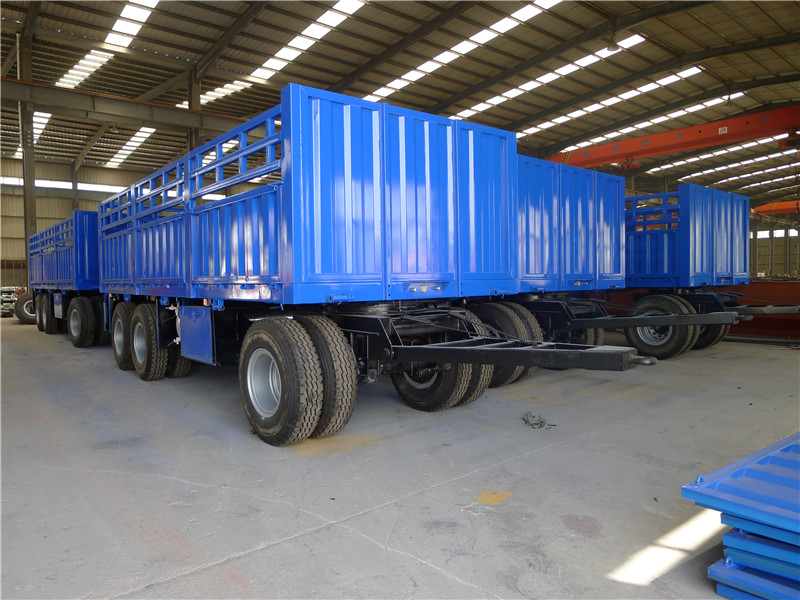

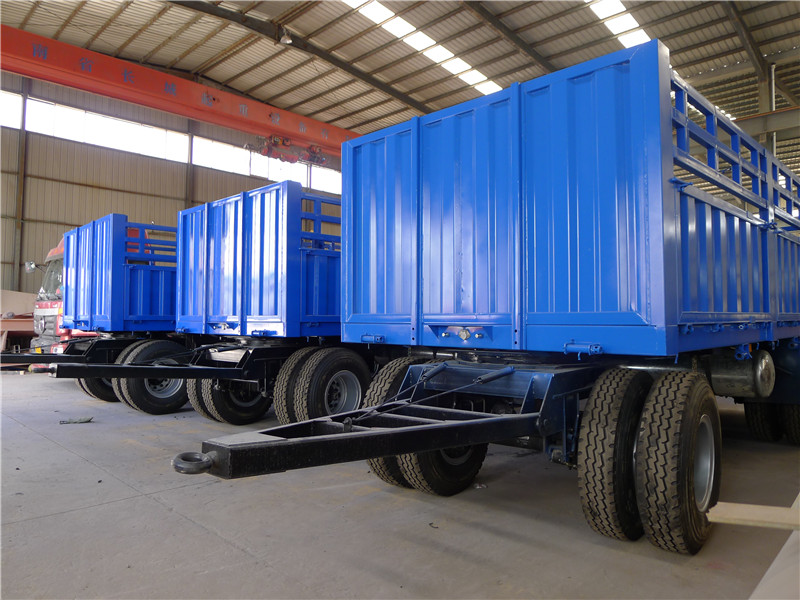

Name | 3 Axle Full Trailer with Side Wall |
Overall dimension | 7000×2500×1800mm |
Axle brand and number | 13T Fuwa 3units |
Turntable | 360º |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm. |
Tyre and quantity | 12R22.5 12pieces |
Hook | Triangle type, strong |
Platform plate | 3mm Checkered steel plate |
Brake system | Dual Line braking system ,none ABS. |
Brake air chamber | Four double and two single chamber |
Electrical system | 24V,7 pin socket,One set 6-core standard Cable |
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
Tool box | 1 set |
Spare tire carrier | 2 sets |
Painting | Optional |
Packing | Polish with wax before shipping |
