3 axle flatbed container Semi Trailer
| Main Dimensions |
| Trailer Model | 3 Axle flatbed Container Semi Trailer |
| Model Number | SCD9400 |
| Function | Carry 40ft or 2*20ft container or other stuff |
| Overall Dimension(Lx W x H)(mm) | 12500mm*2500mm*1600mm |
| Tare Weight(KG) | 6350kg |
| Loading Weight( KG) | 40000kg |
| Total Weight(KG) | 46350kg |
| Axle Brand | 3*13TON Axle FUWA Brand |
| Axle Number | Three |
| Wheelbase(mm) | 7450+1310+1310 |
| Suspension system | Mechanical Leaf Spring Suspension |
| Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
| The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
| Side beam | Q235 16# channel steel |
| Platform plate | 3mm Diamond plate |
| Container Twist Locker | 12pcs container lock |
| Tire Type and quantity | 12R22.5 12units |
| Rim | 9.00-22.5 |
| Traction Pin | 2” or 3.5” |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Landing Gear | 28ton single action supporting legs |
| Brake system | Dual Line braking system |
| Brake air chamber | Six double chamber |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core standard Cable. |
| Packing and Shipping |
| Painting | Color as customer’s requirement |
| Packing | Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint |
| Delivery way | Transfer to Qingdao/Tianjin Port, and carry by container, ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
| Production time | 30 days to finish production after receive deposit |

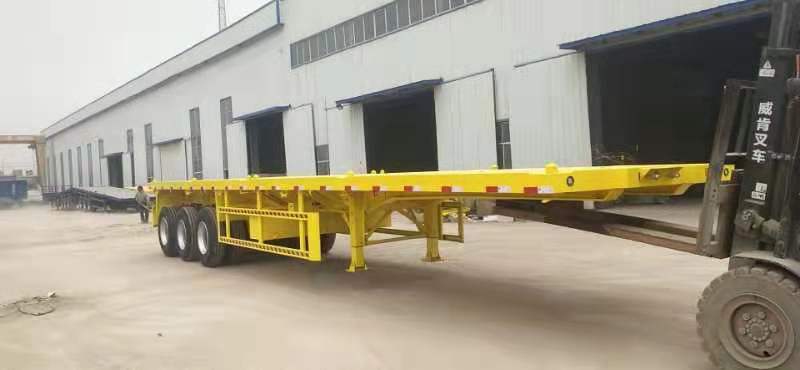

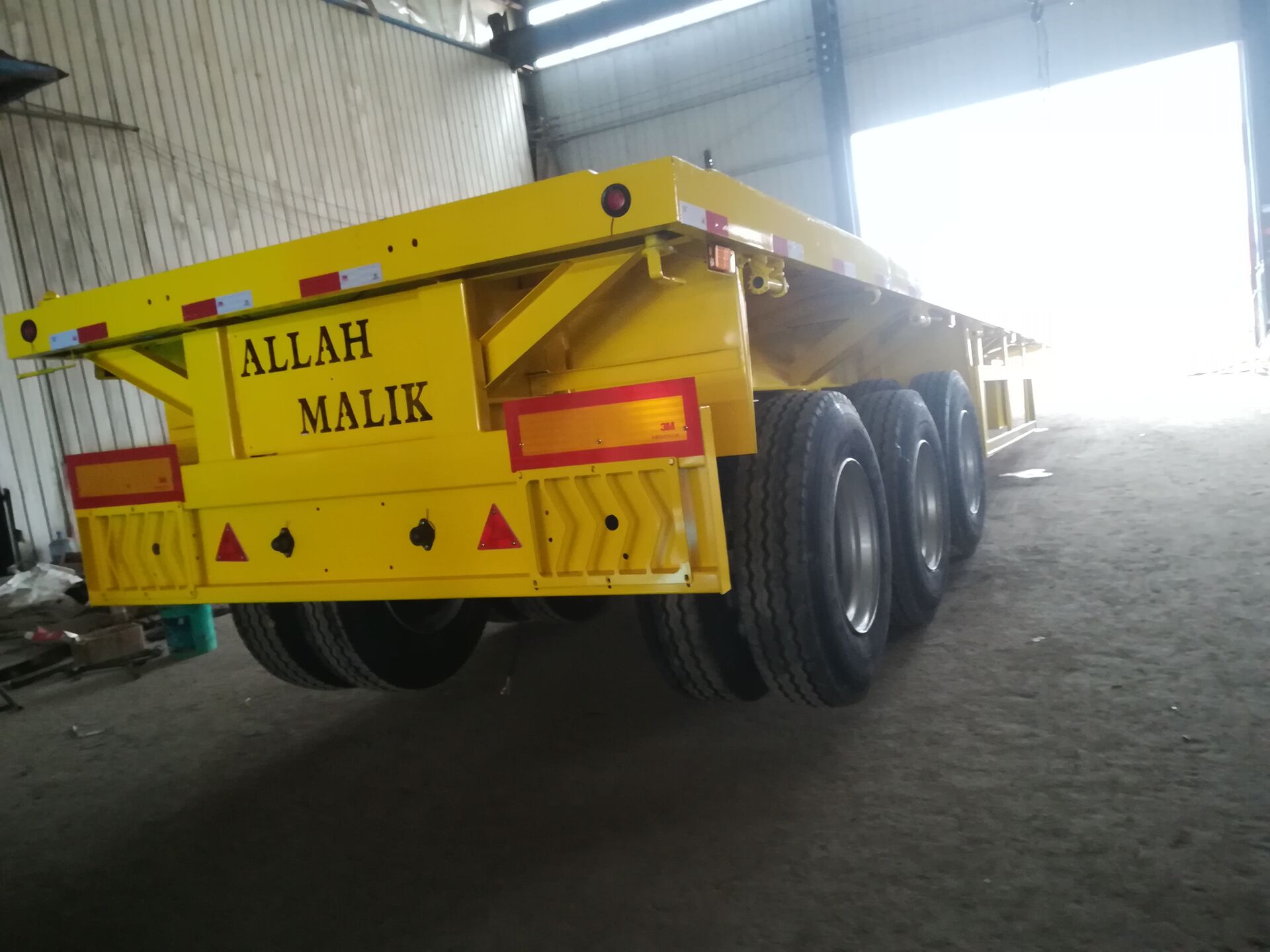

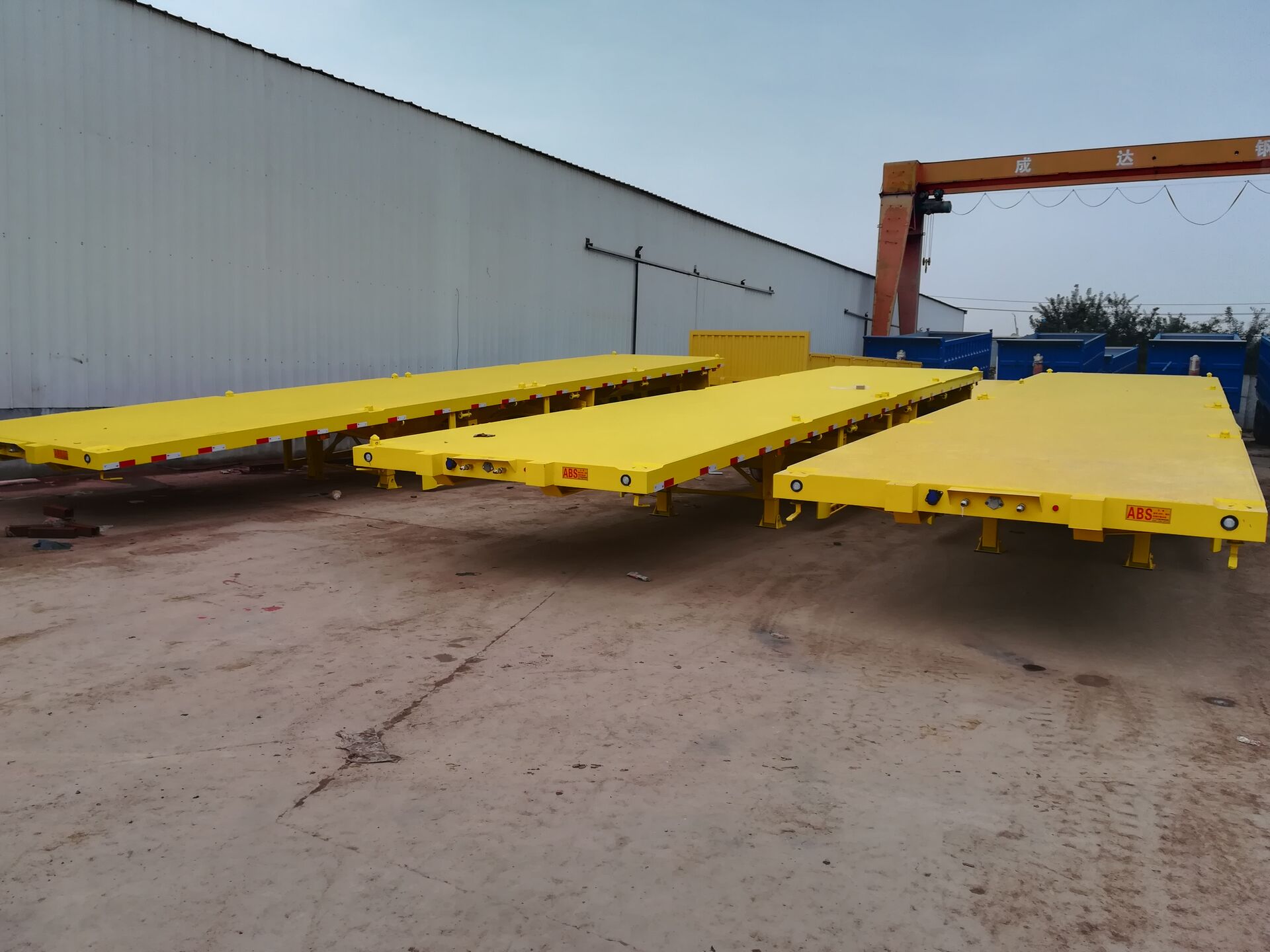

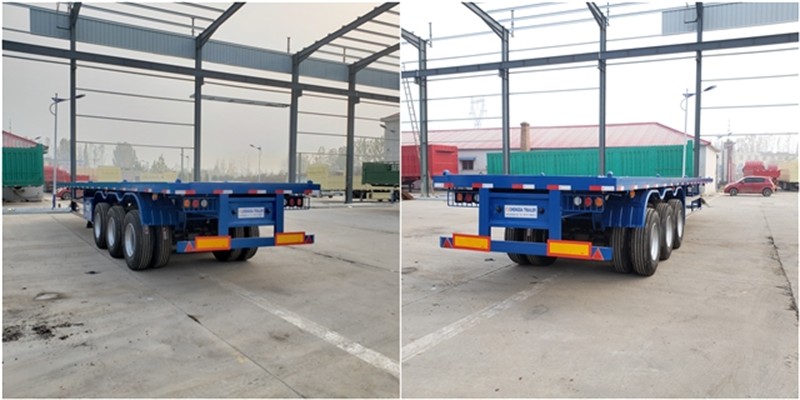

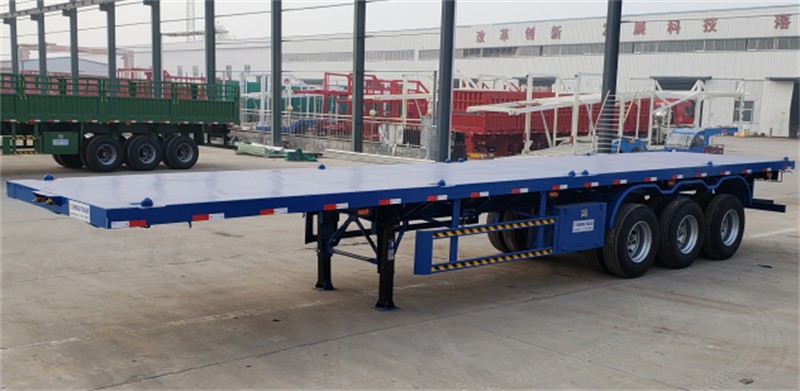

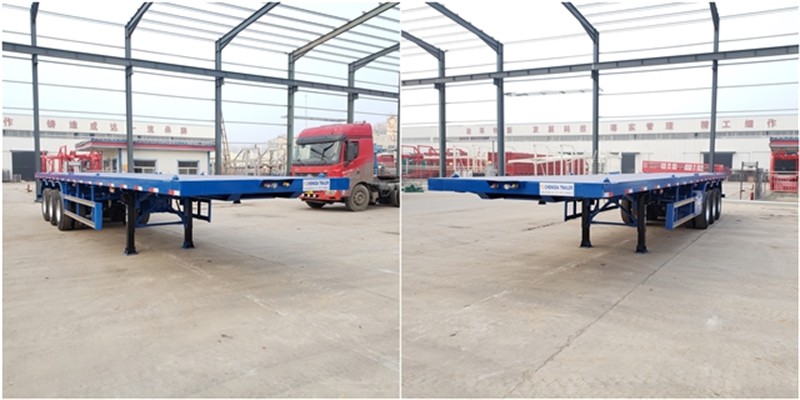

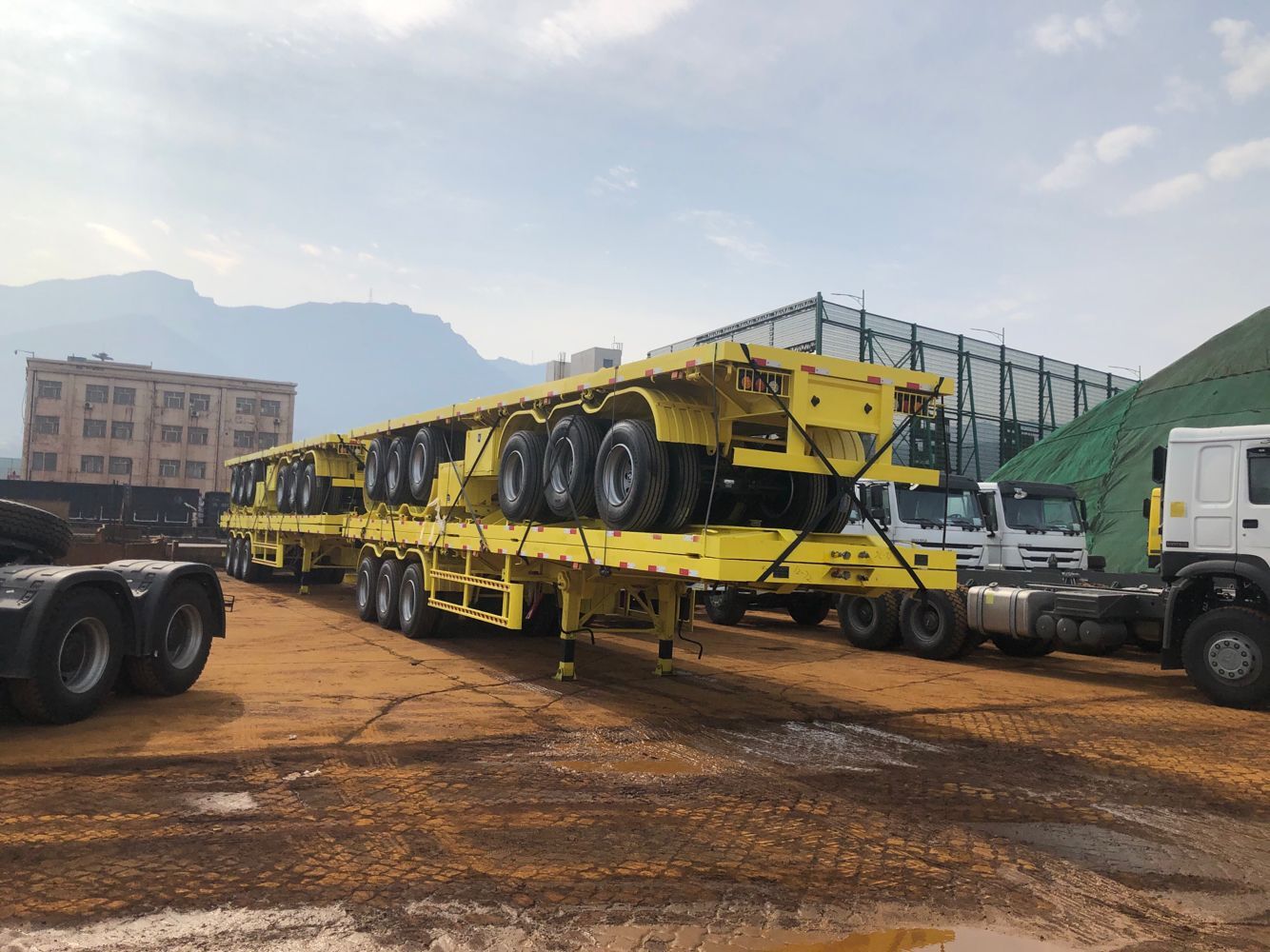

More view of the flatbed semi trailer

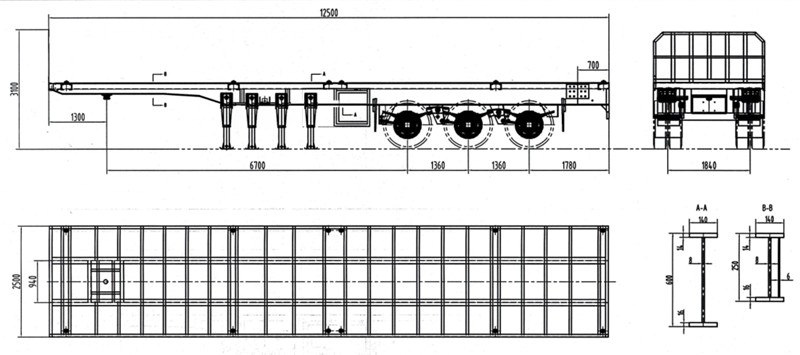

Drawing for the flatbed semi trailer

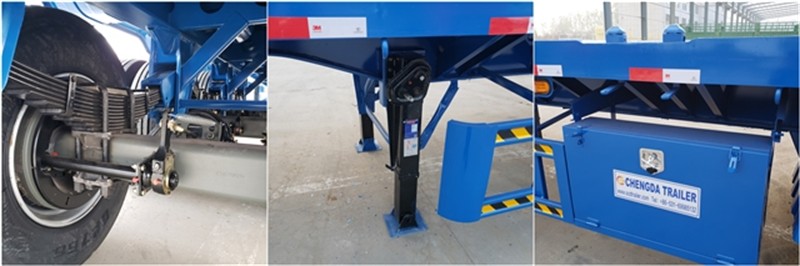

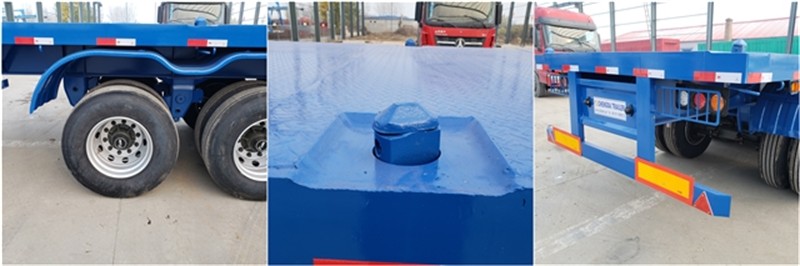

More Details Pictures

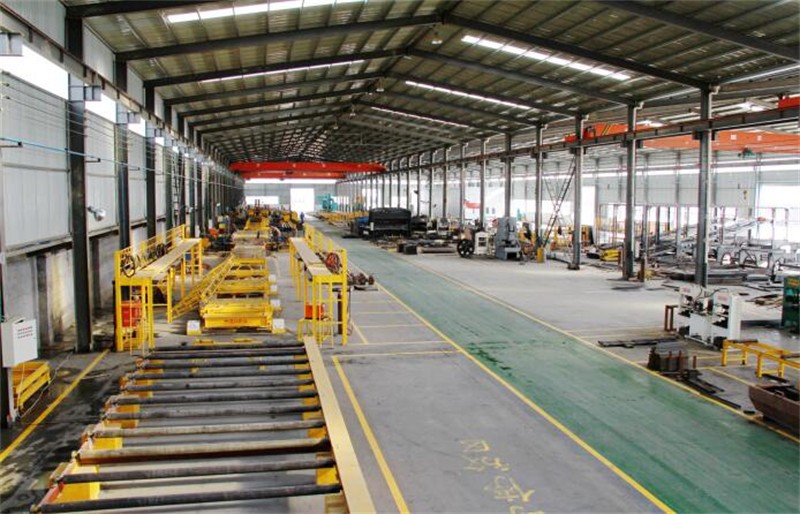

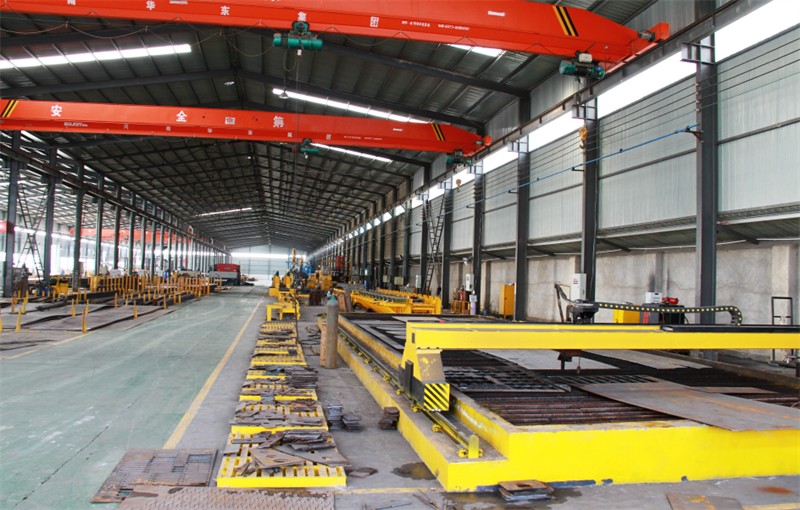

Workshop

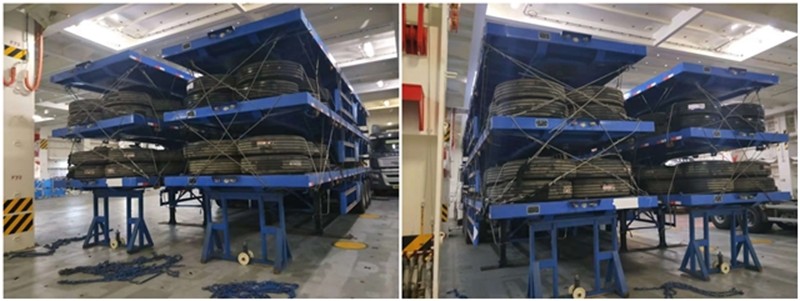

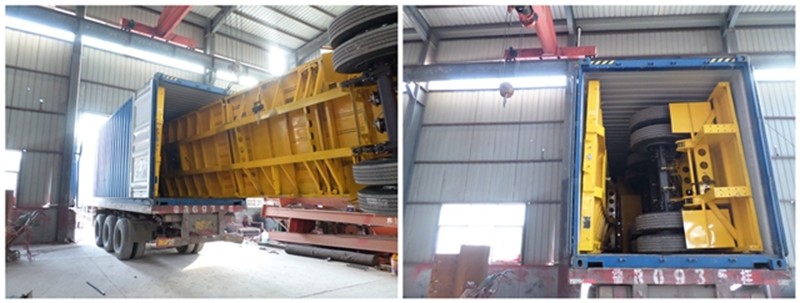

Shipping by Container
For the flatbed semi trailer cut the rear part then put inside 40ftHQ container which can save a lot of freight, this method is very popular for transport the flatbed trailer but when you receive the trailer you need to welded them together so if you choose this method need to confirm whether you can arrange welded them after the container arrived.

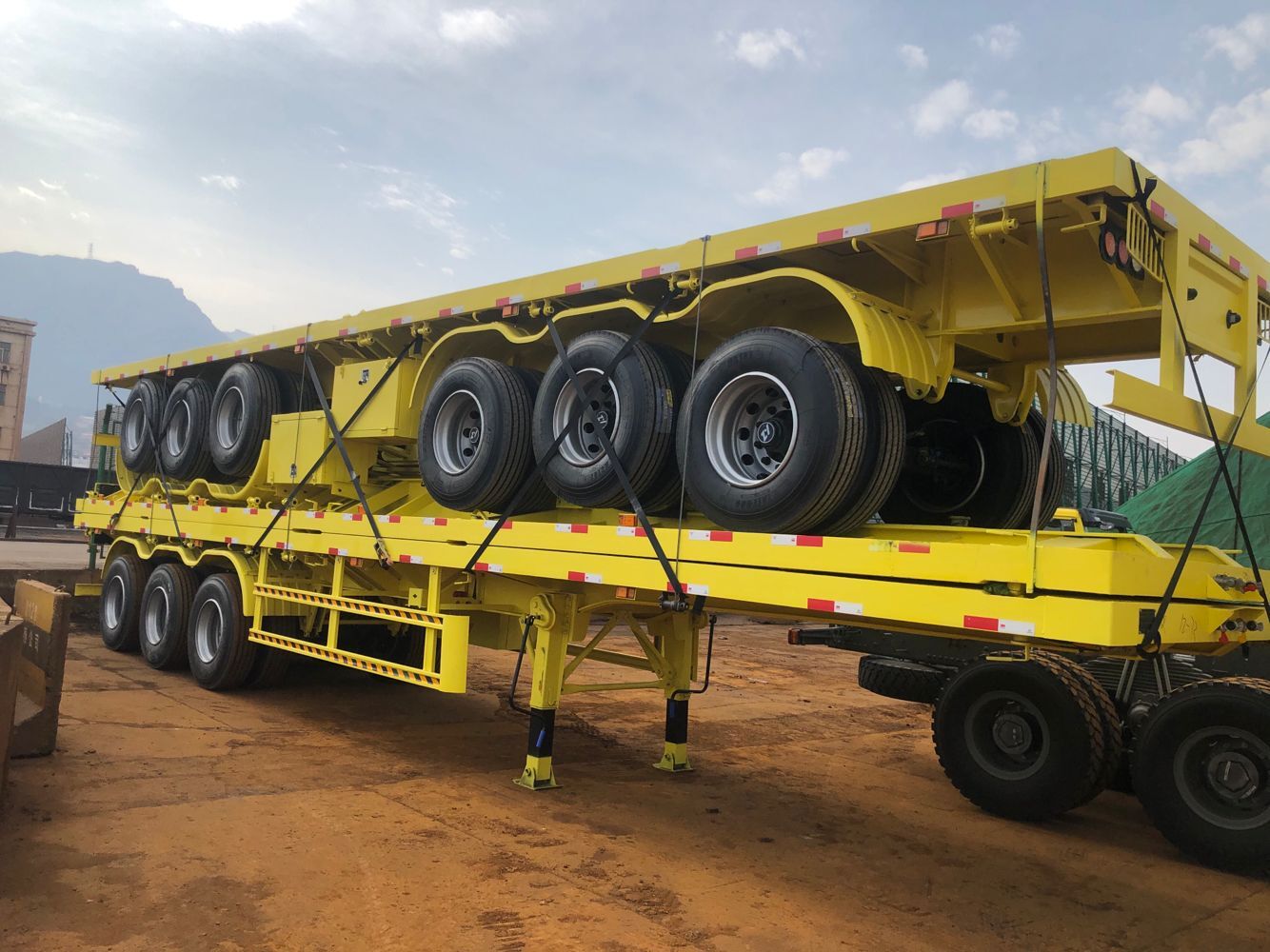

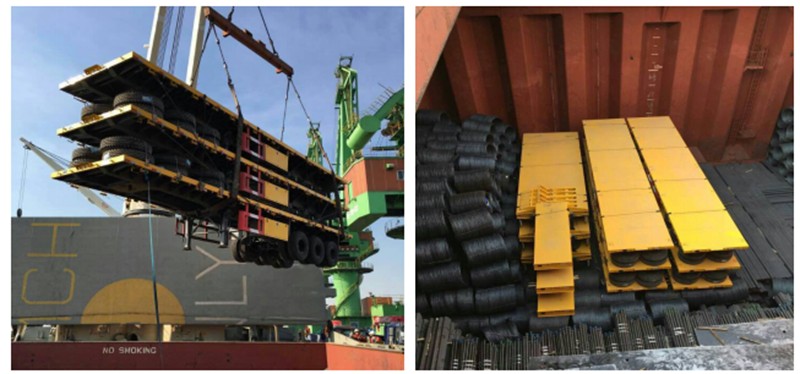

Bulk packing and shipment

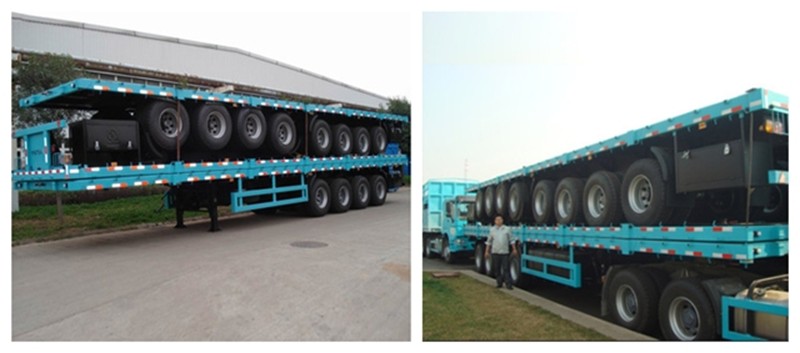

6 units to customer by Ro-Ro shipment
3 units to customer
