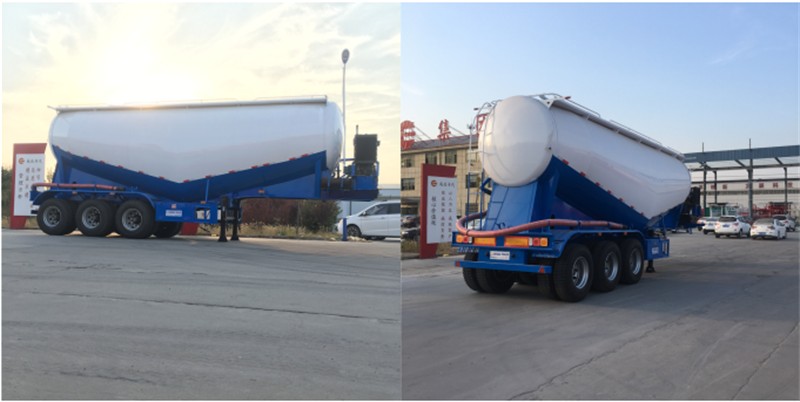

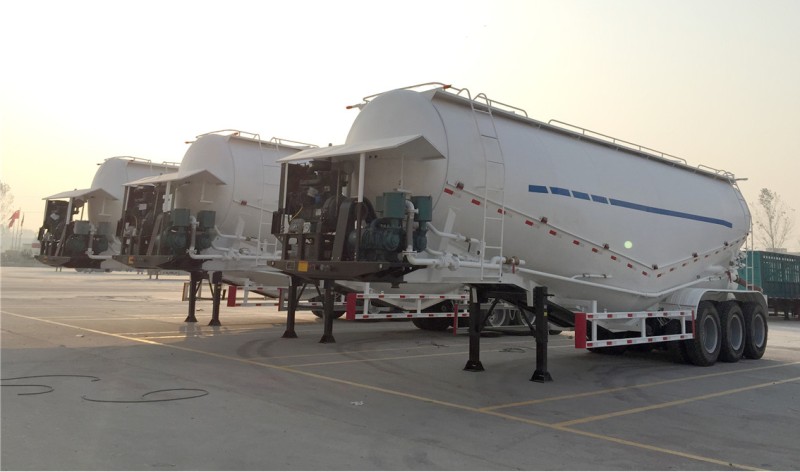

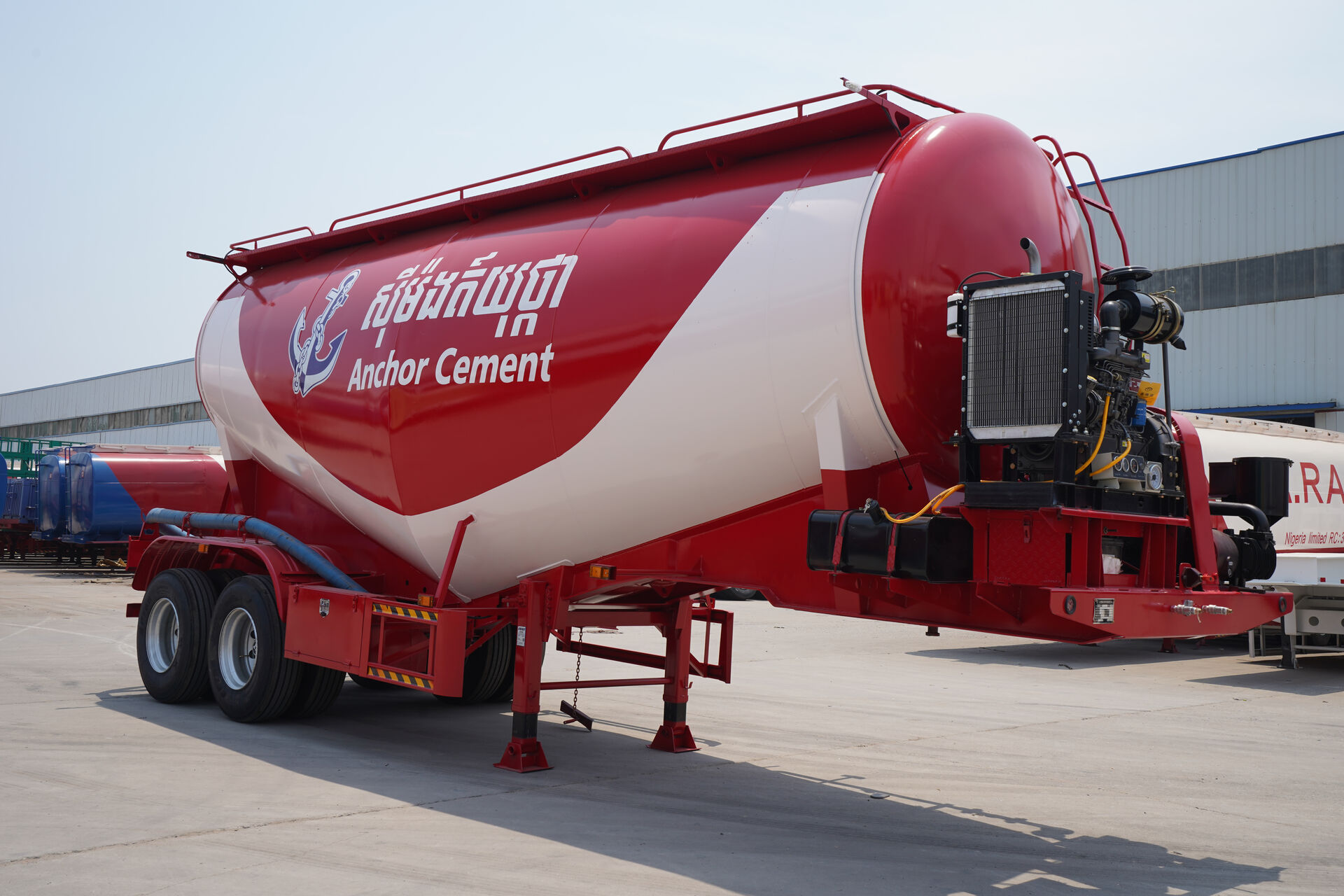

50ton 40m3 Bulk Cement Semi Trailer
Specification
| Trailer Model | 40 M3 BULK CEMENT SEMI TRAILER |
| Overall Dimension(Lx W x H)（mm） | 10200x2500x3950mm |
| Function | transport bulk powder |
| Loading Weight( KG) | 50000 |
| Thickness(mm) | Tank body: Q235 5mm carbon steel End plate: Q235 5mm carbon steel |

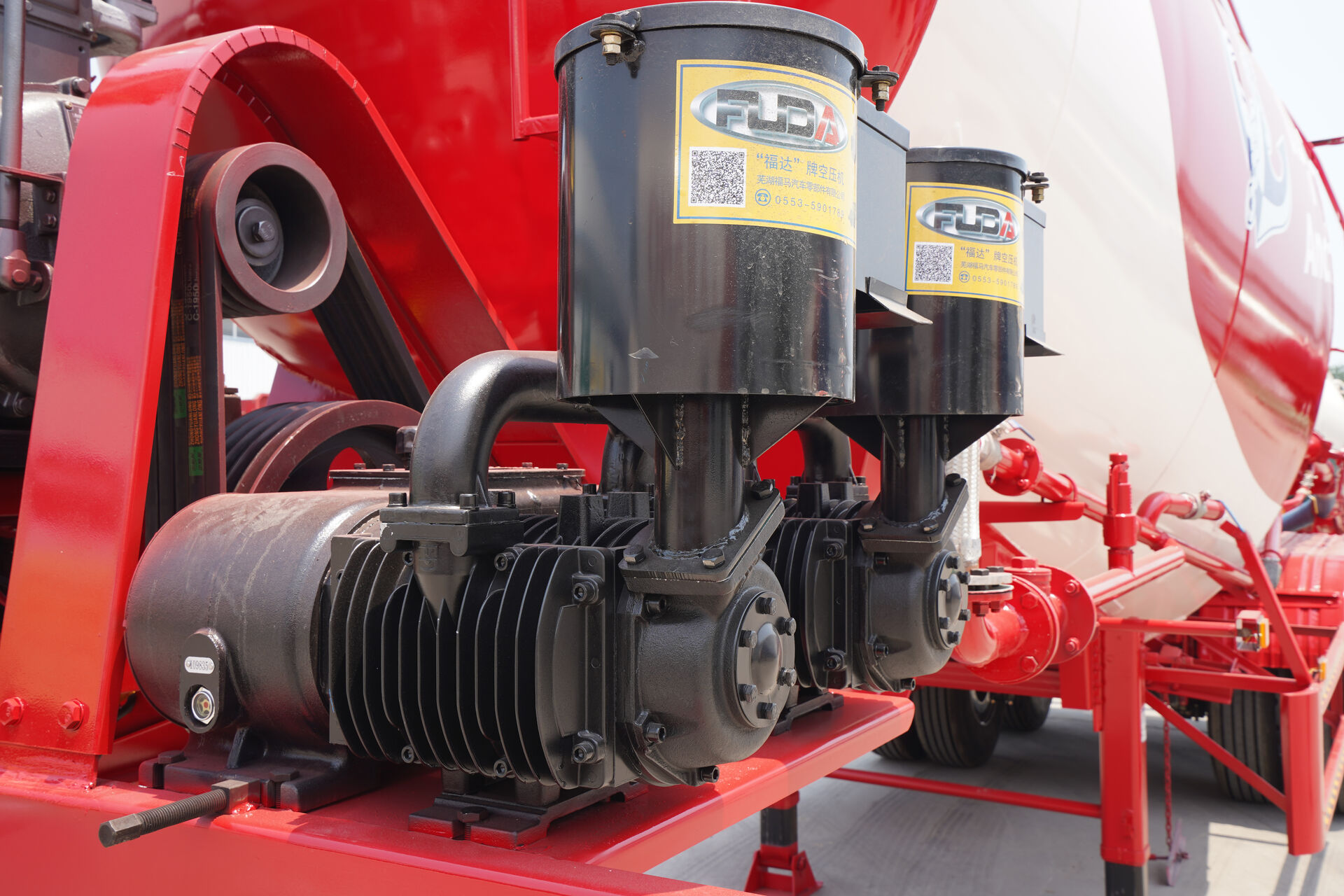

| Air compressor | 12m3/minute Bohai brand |

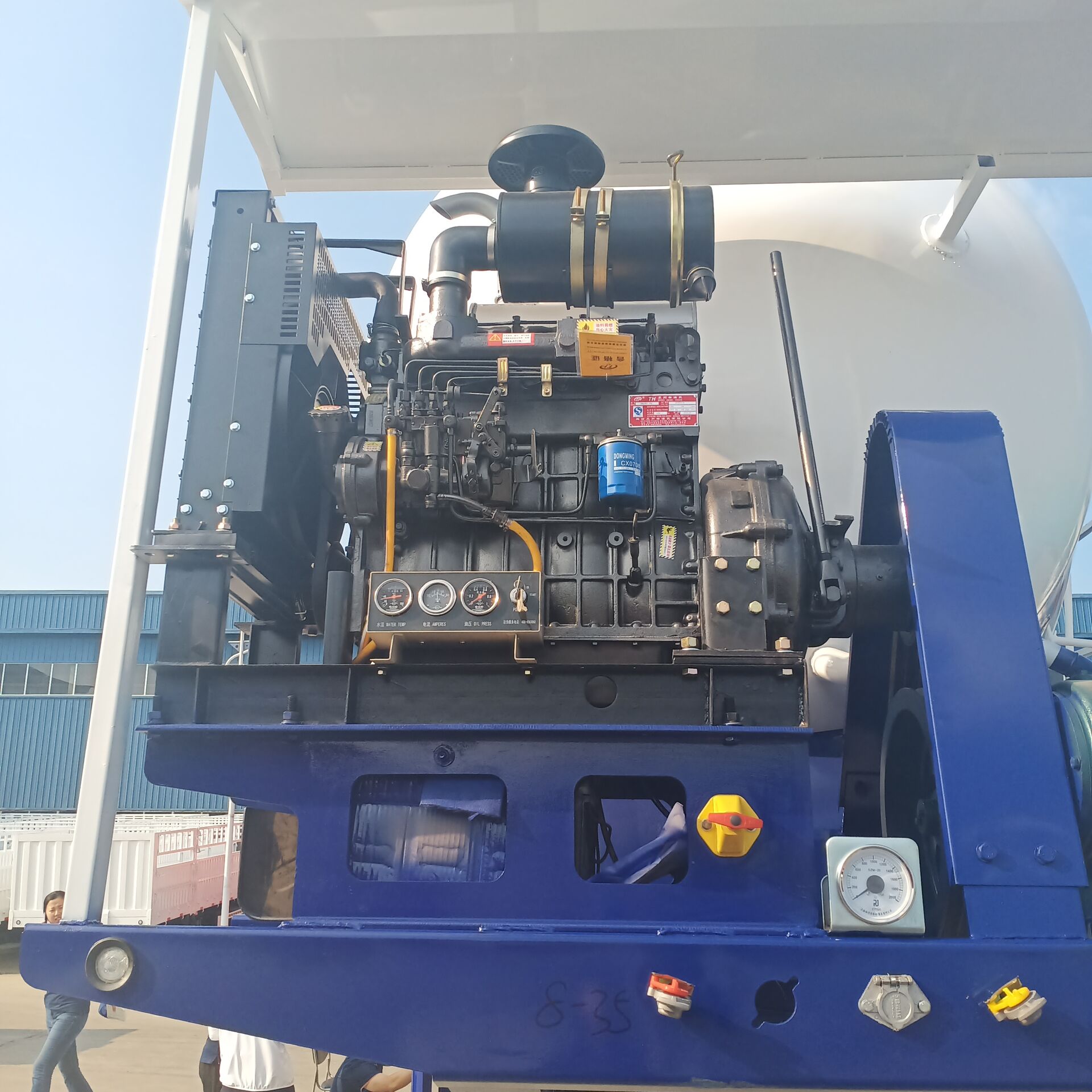

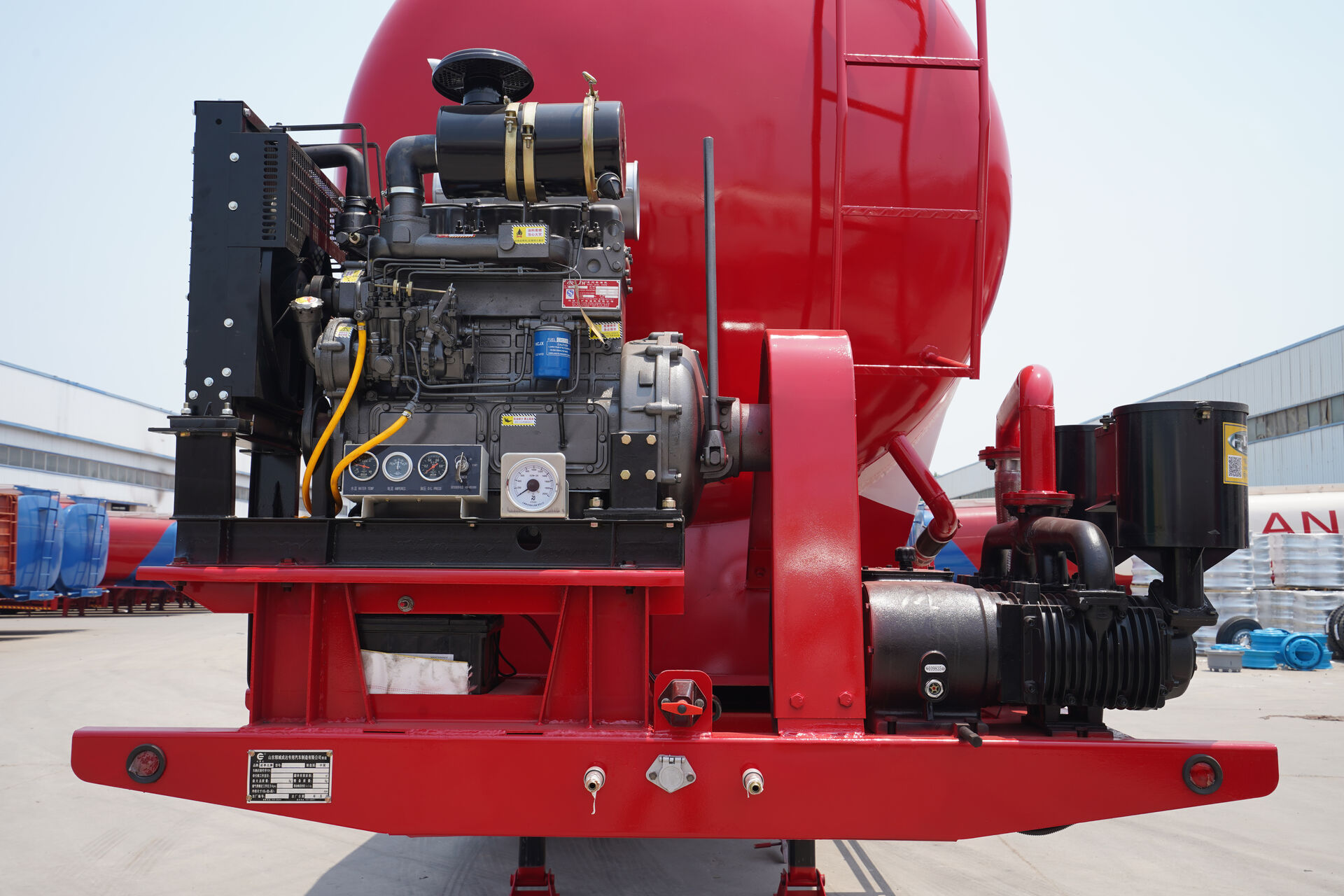

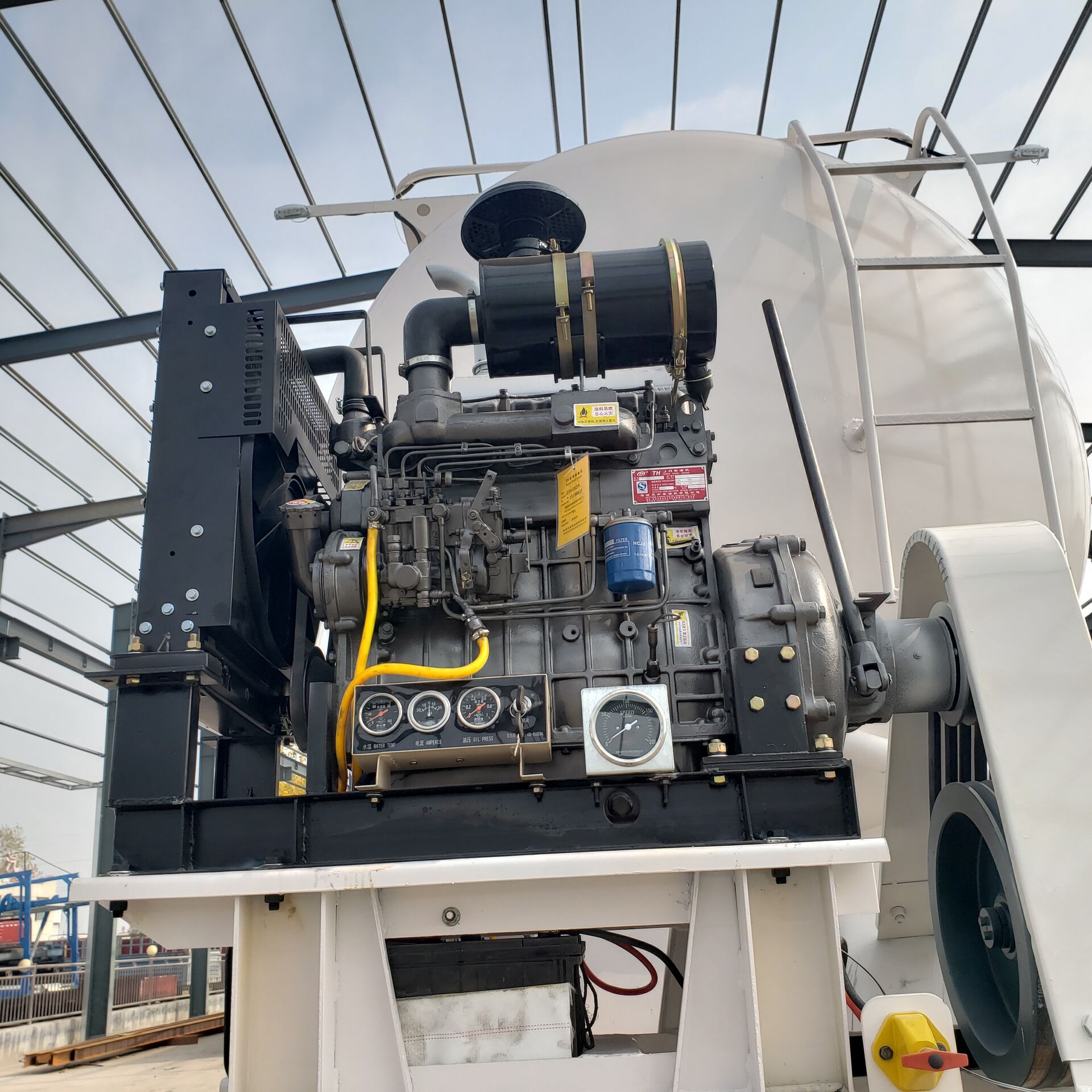

| Engine | Diesel engine: Weichai Tianhe 4102 |
| Compartment | 1 inner fluidized bed: air bag |

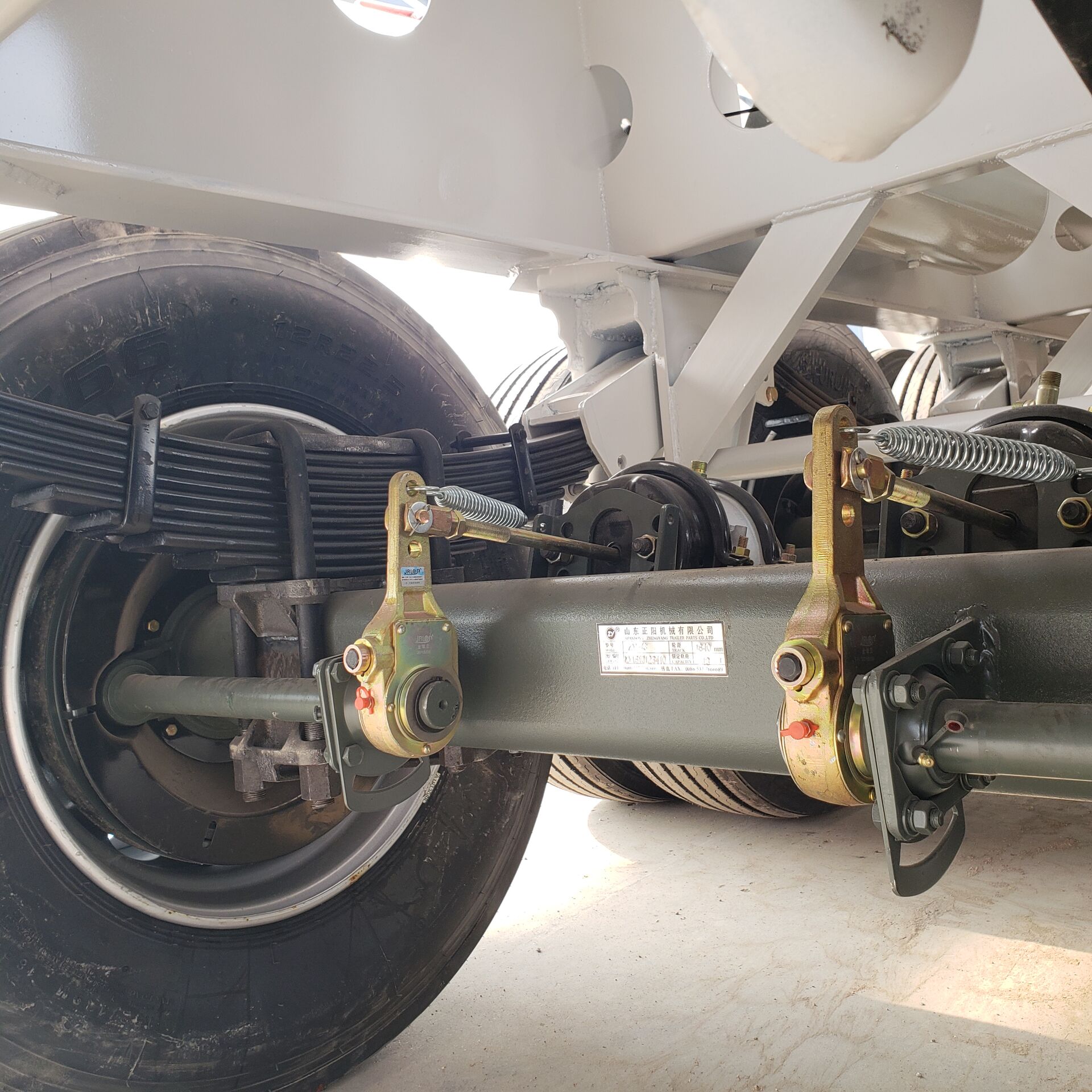

| Axle | 3x13Ton, ZY brand |
| Suspension system | Mechanical leaf spring suspension |
| Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
| Manhole cover | 500mm manhole cover. 2 sets |
| Discharge valve | 4〞butterfly valve |
| Discharge pipe | 4〞 |
| Landing Gear | 28Ton, double speed,Yahua brand |
| Tire | 12R22.5, Taitong brand 12units |
| Traction Pin | 2” or 3.5” bolts in, changable |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Side guard | According to customer’s requirement |
| Brake system | Dual Line braking system |
| Emergency valve | WABCO |
| Brake air chamber | Six big double air chambers |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core standard Cable. |
| Painting | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. |
| Packing | Polish with wax before shipping |

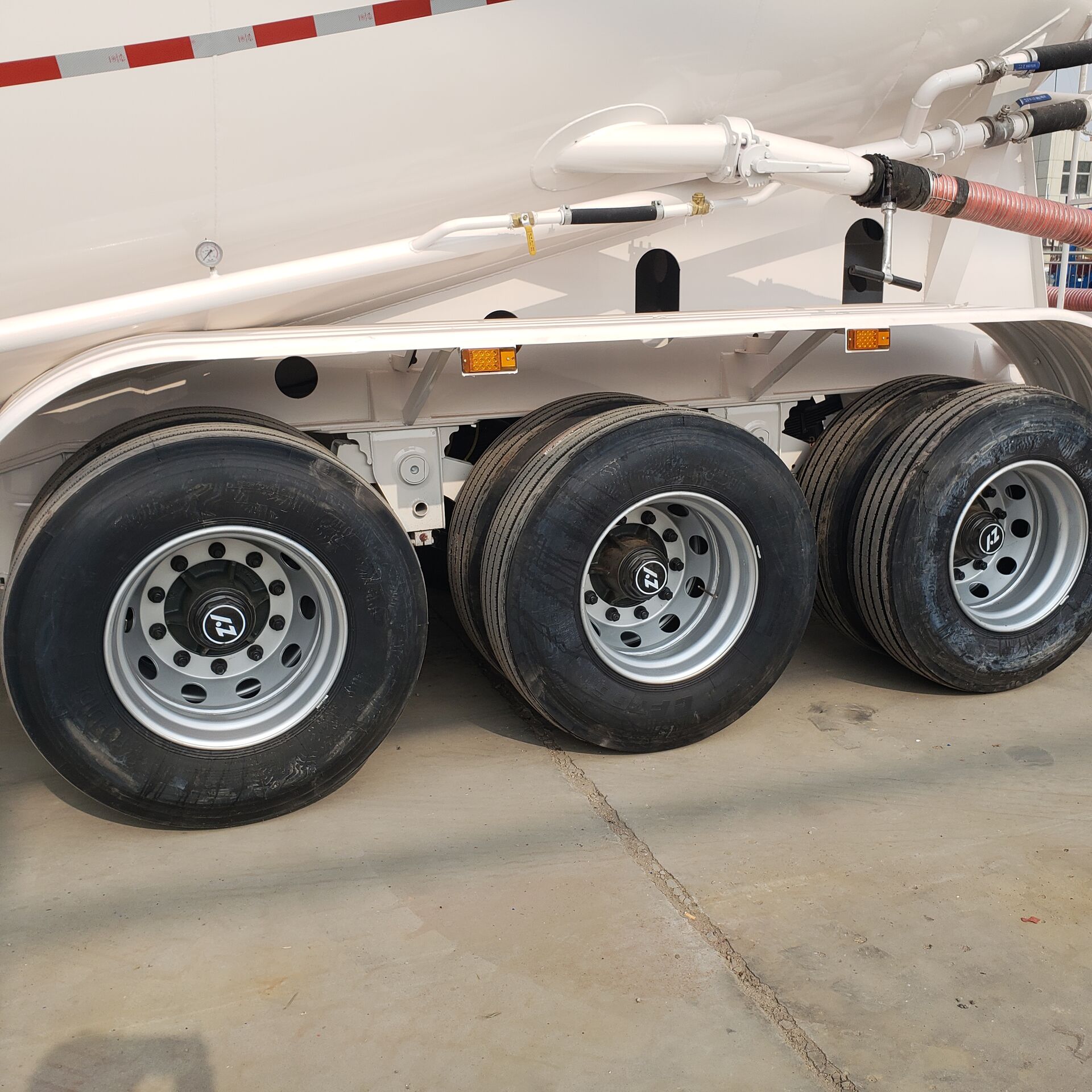

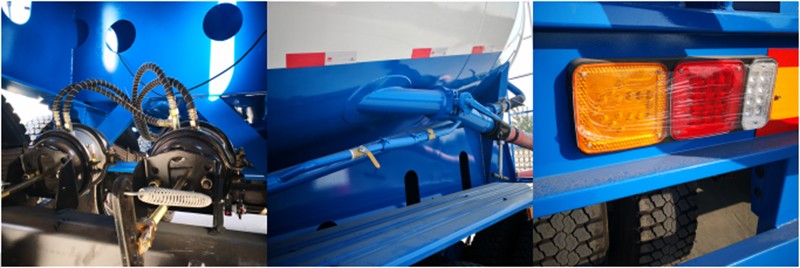

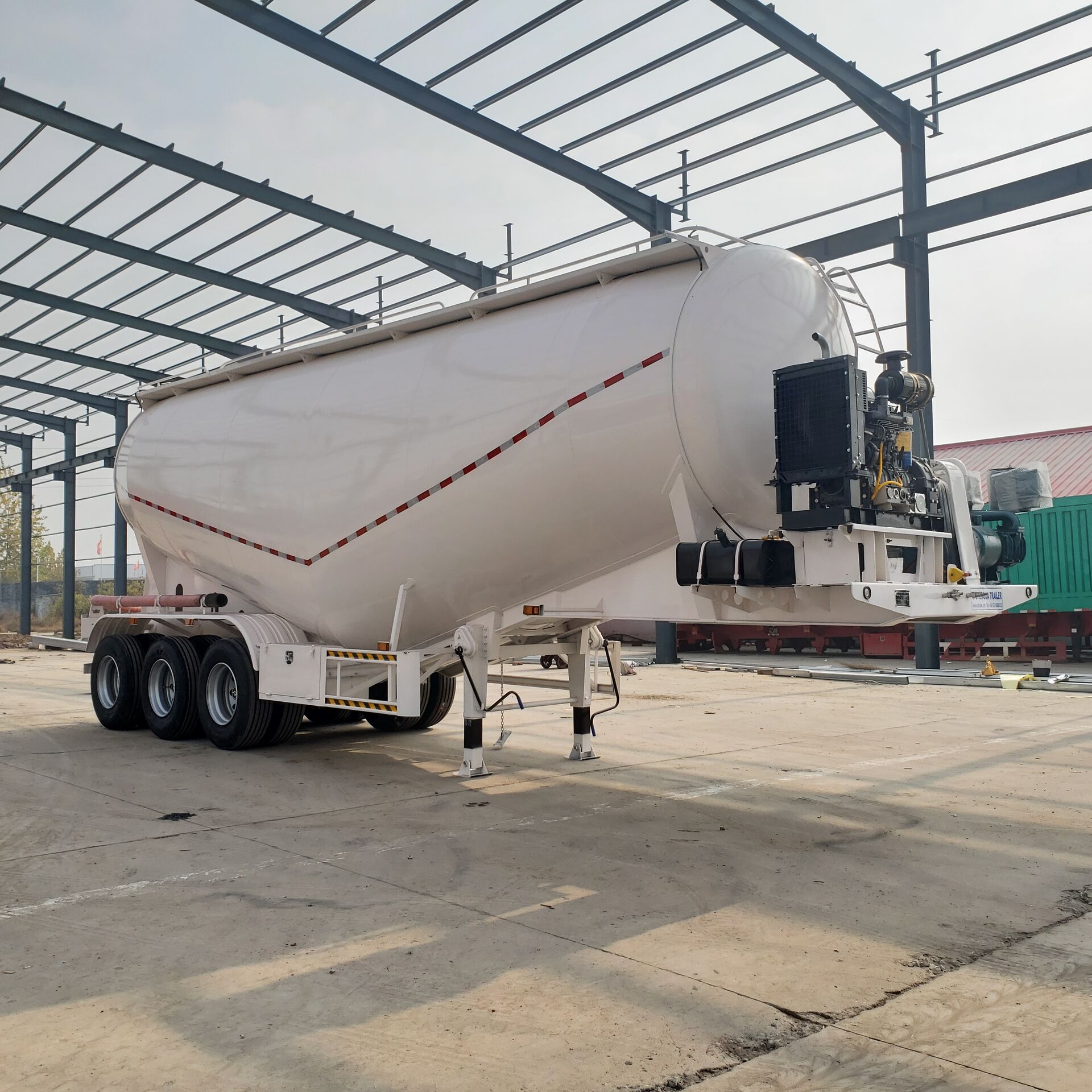

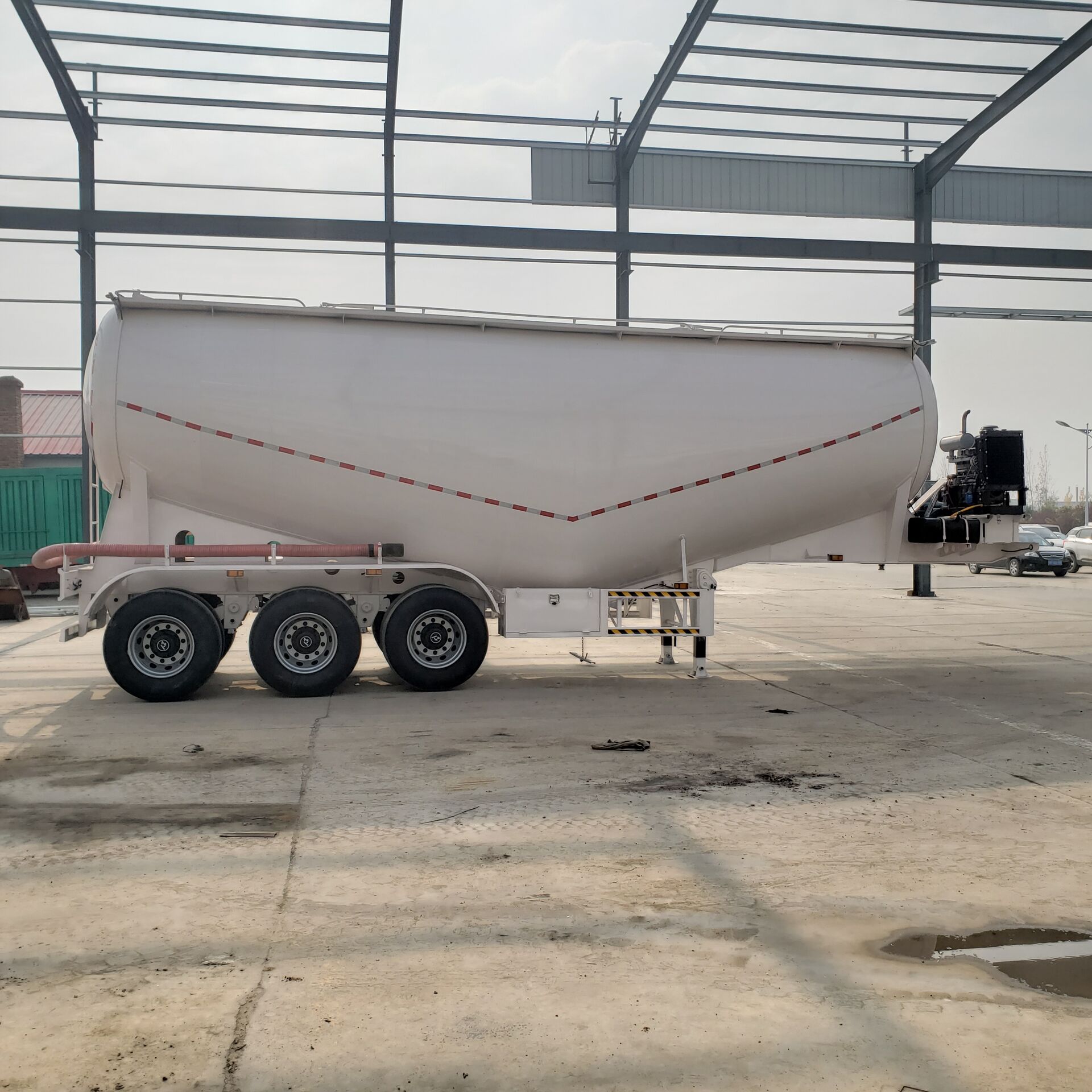

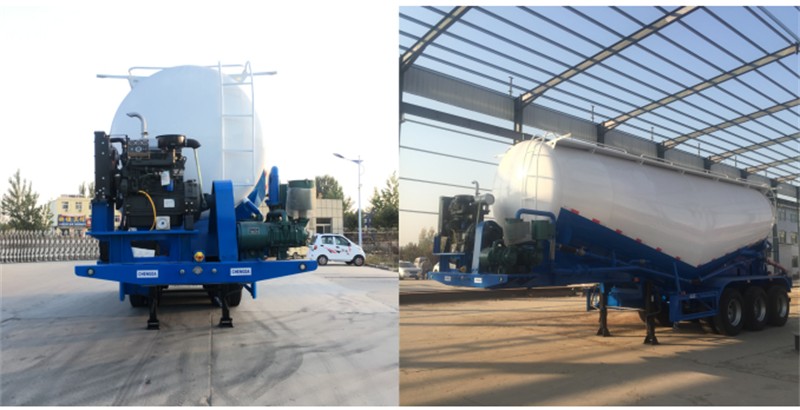

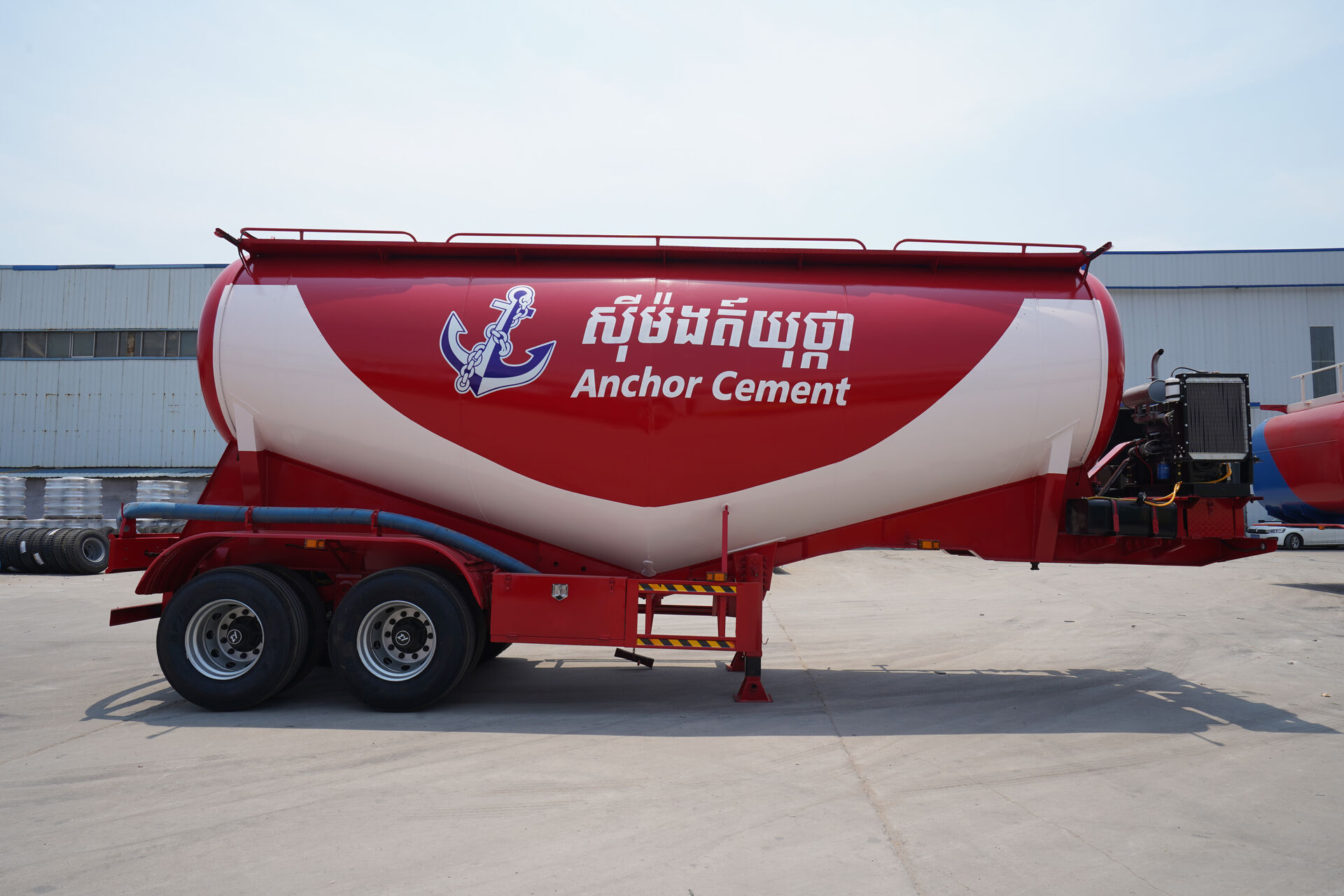

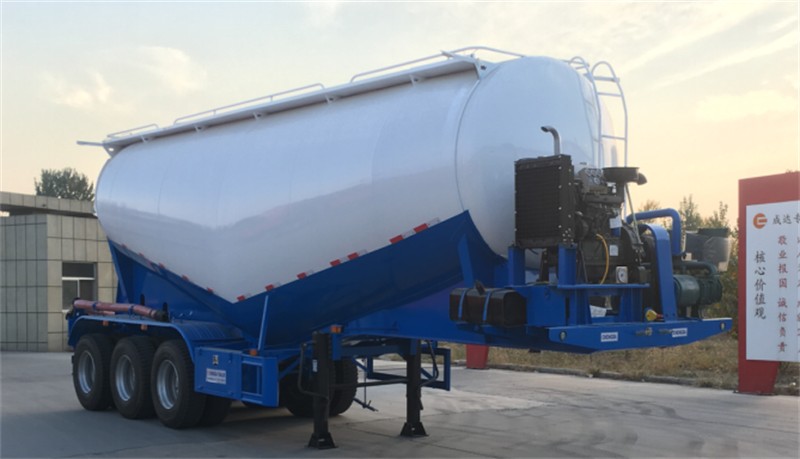

More pictures

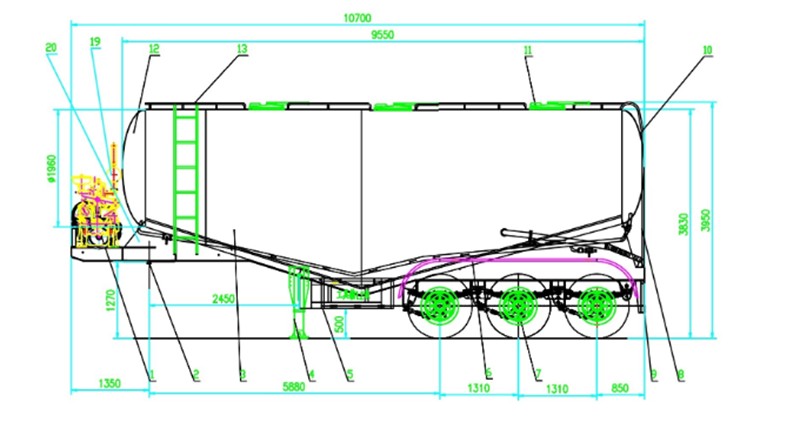

Drawing
Shipment method

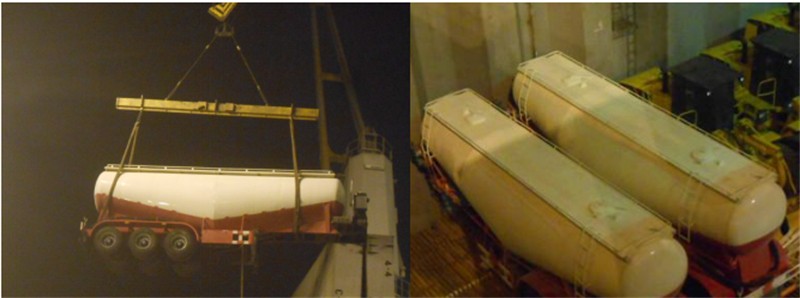

Shipment method: the cement tank trailer can be shipped by bulk ship, roro ship and flat rack container. if the tank is smaller than 25cbm , can be disassembled and put into container. We will use tarpaulin to cover and protect the machinery before shipment.
1.Bulk shipment

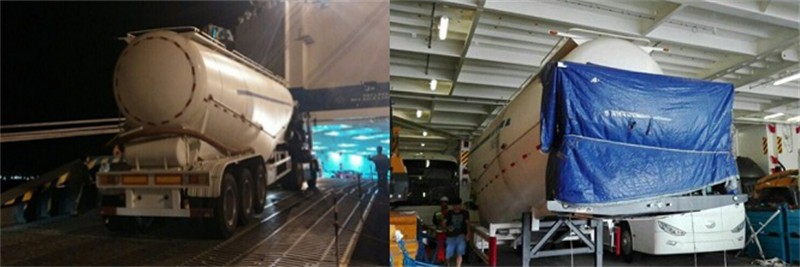

2.Roro shipment

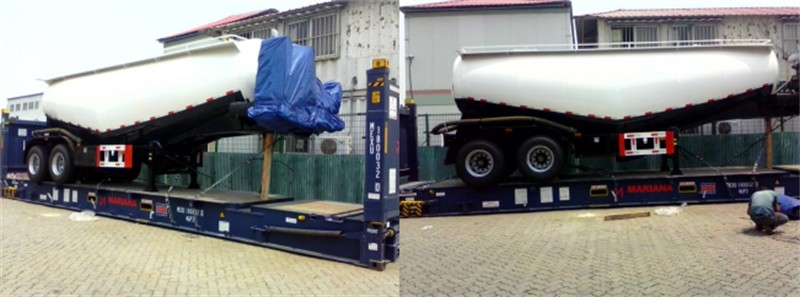

3.Flat rack shipment

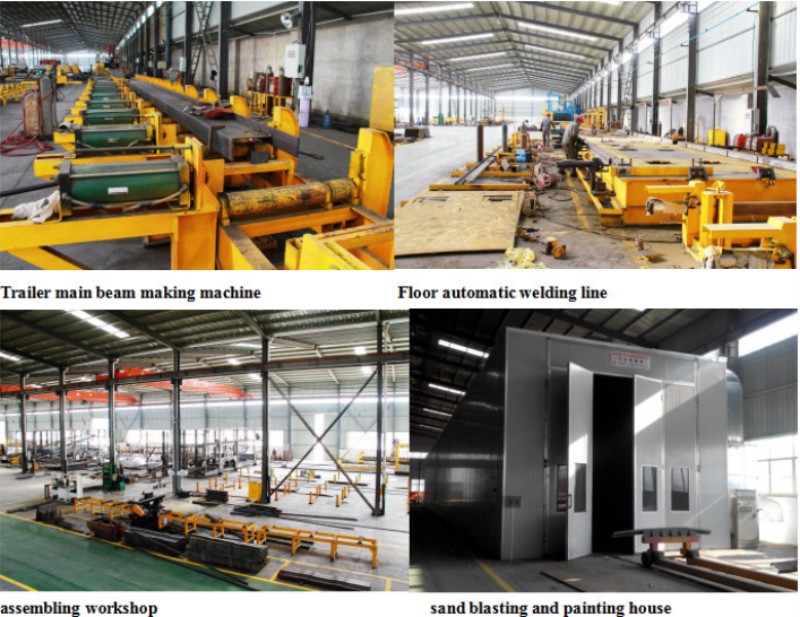

Factory and workshop

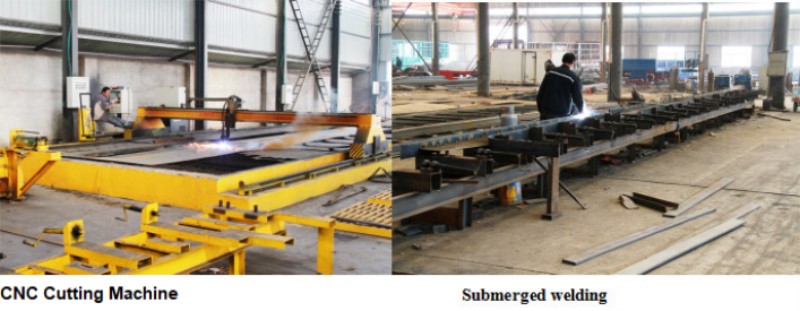

Our Advanced Production Equipments

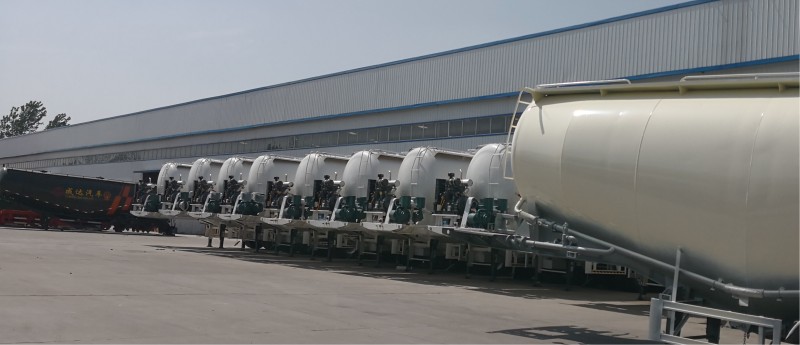

Similar trucks we have manufactured and exported
1.14units of 35cbm cement tank trailers for Cote D’ivoire
2.3units of 55cbm cement tank trailers for DUBAI,UAE

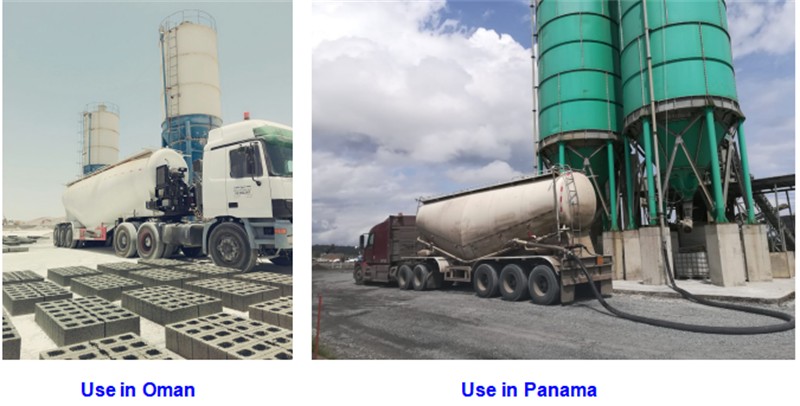

Customers put our cement tank trailers into use

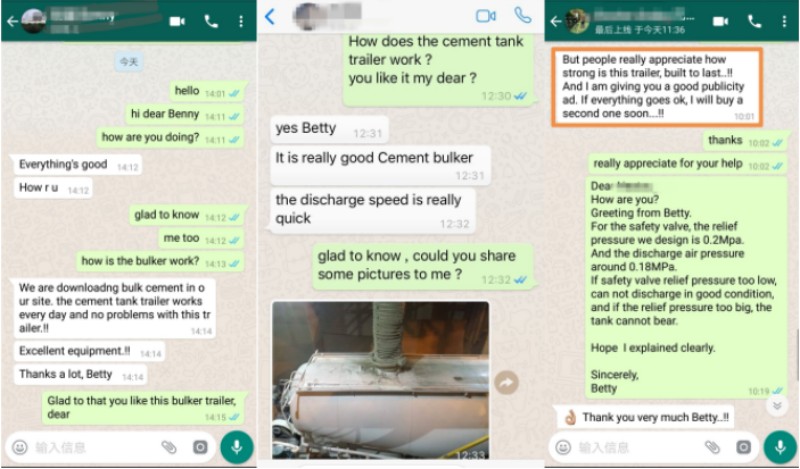

Customers’ comments
