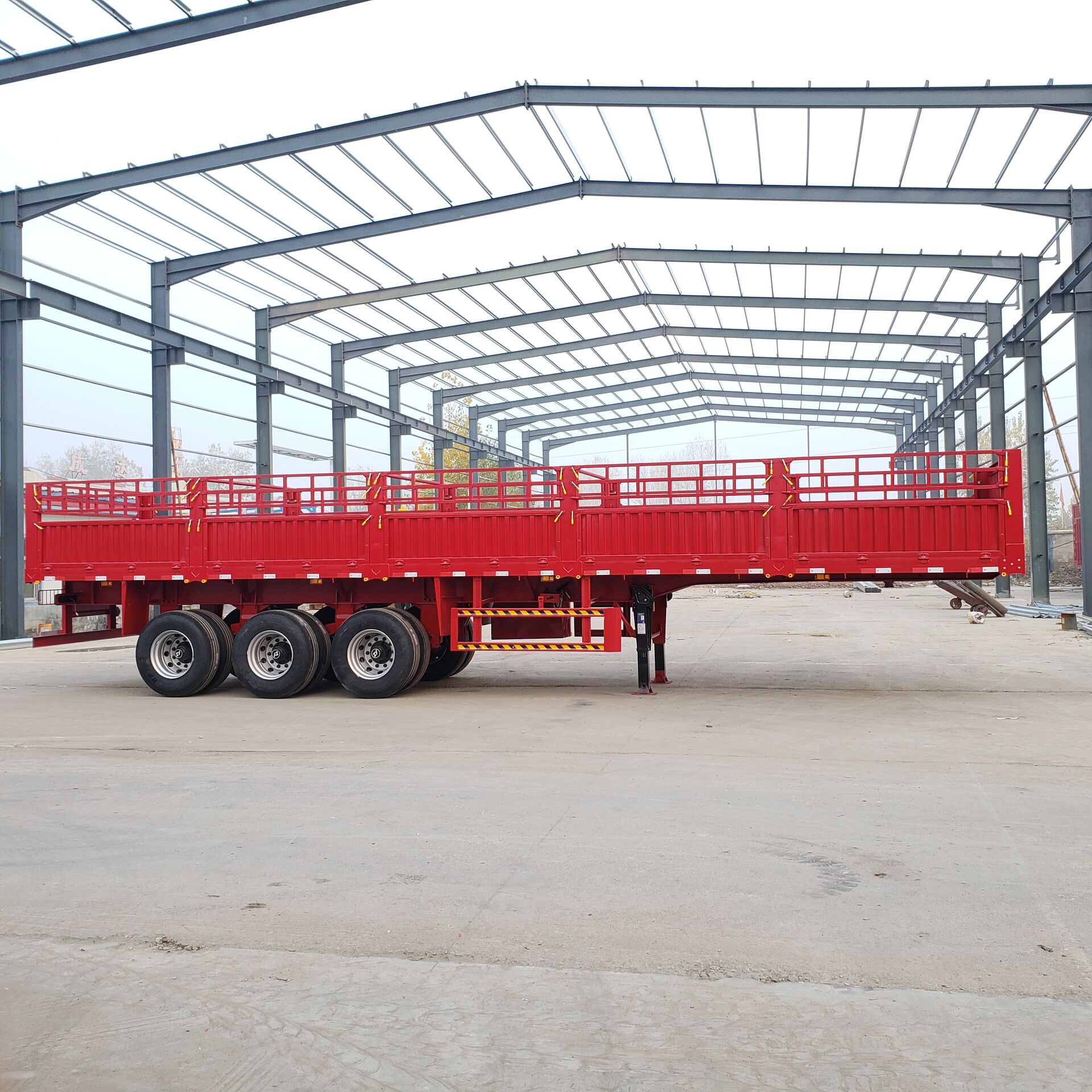

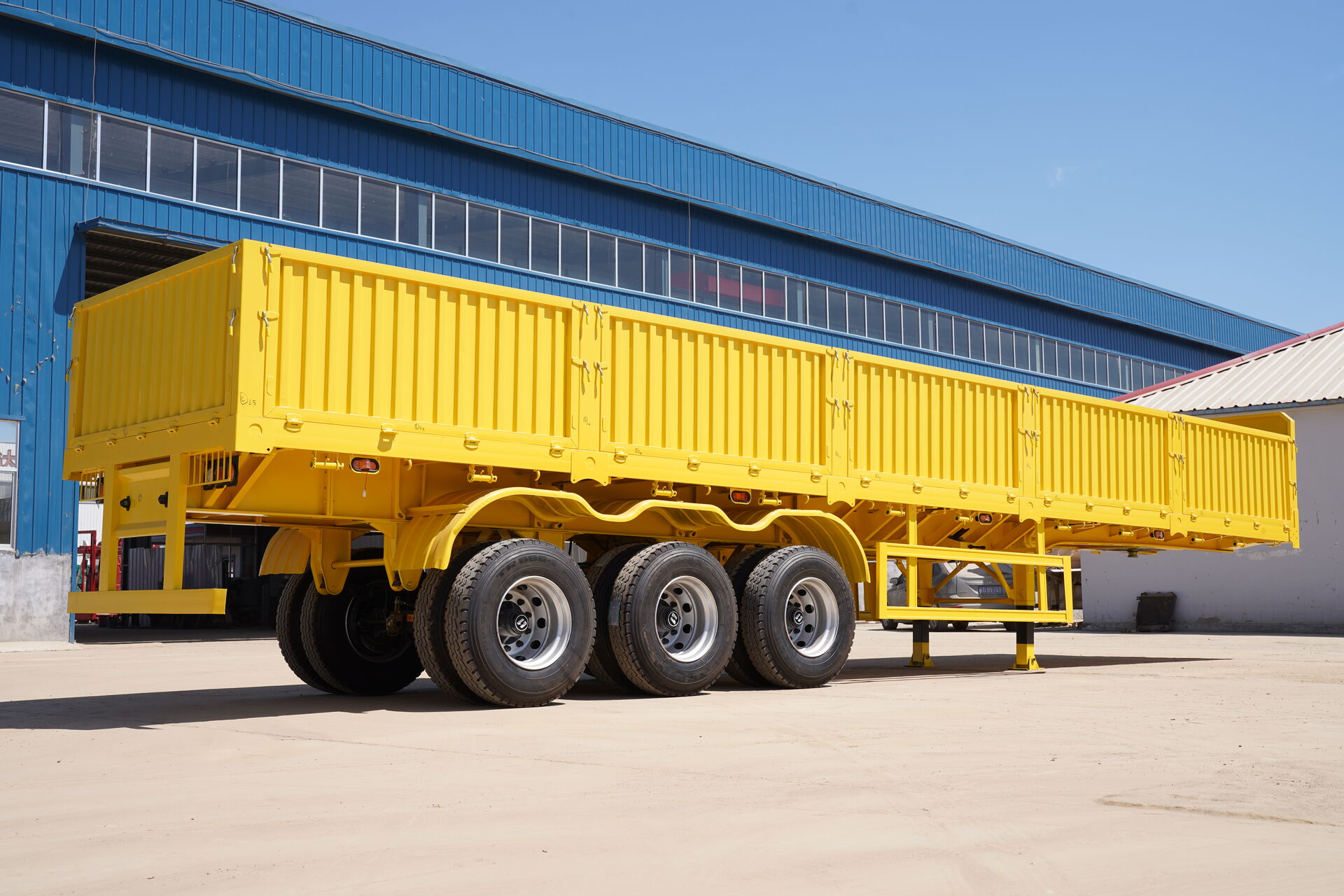

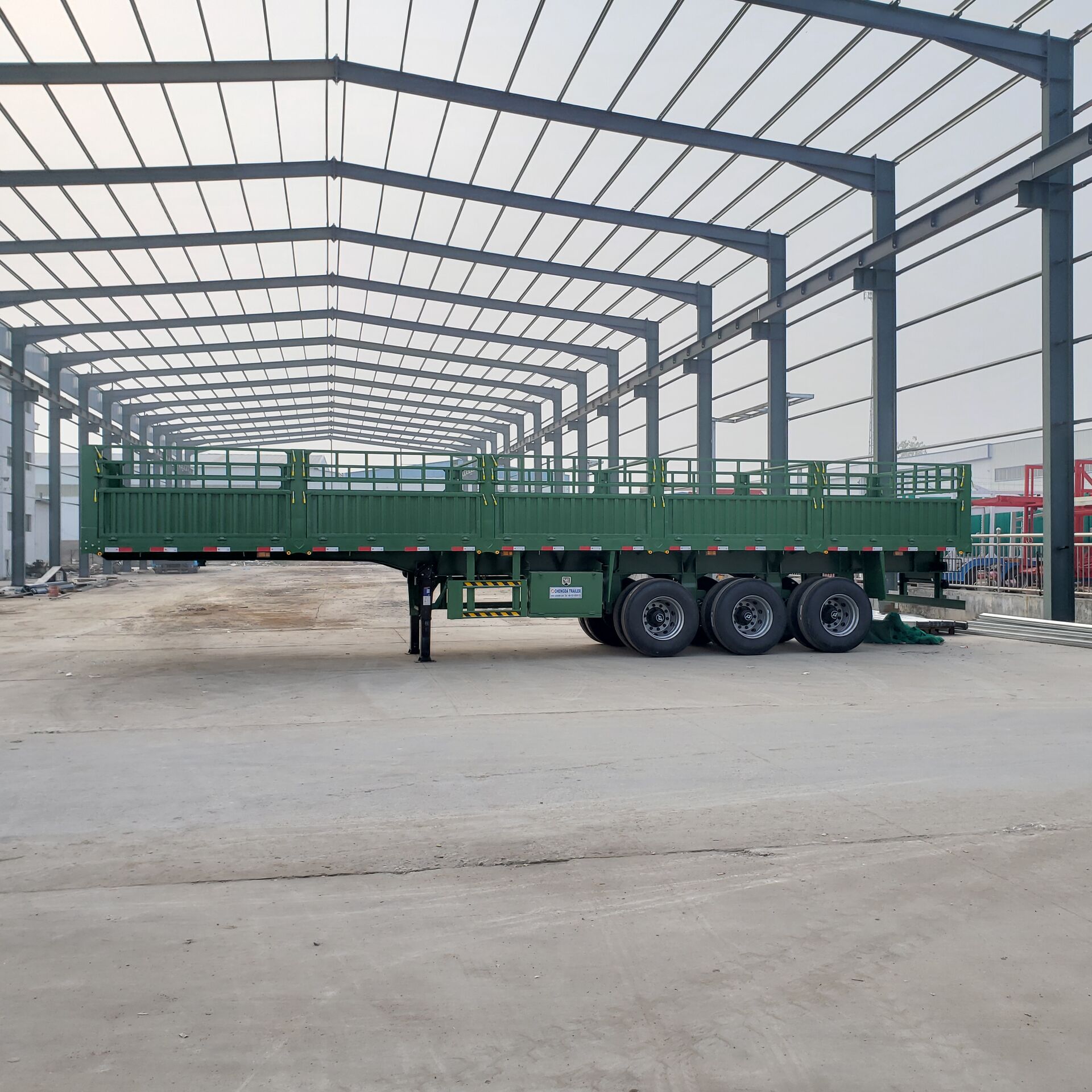

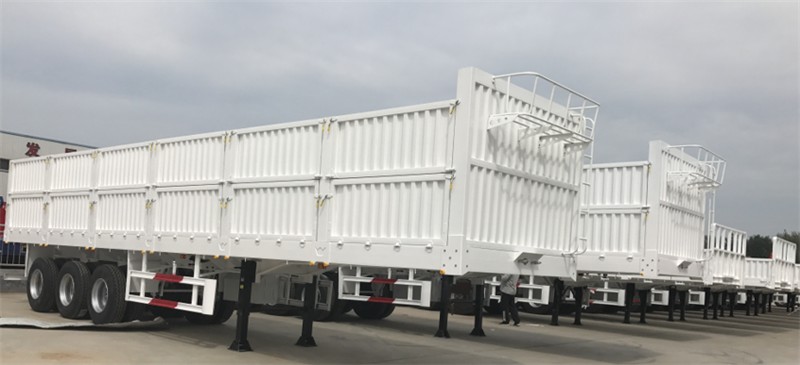

3 axle side wall cargo Semi Trailer
| Dimension and Weight: |
| Overall Dimension(Lx W x H)(mm) | 12500*2500*2550 |
| Cargo box dimension (Lx W x H)(mm) | 12000X2300X600 |
| Tare Weight(KG) | 6550 |
| Loading Weight( KG) | 50000 |
| Total Weight(KG) | 56350 |
| Chassis and Running System: |
| Axle Brand | 13Ton, Fuwa brand option one hundred fifty thousand Kilometers no need maintenance |
| Axle Number | Three |
| Wheelbase(mm) | 7450+1310+1310 |
| Suspension system | Mechanical Leaf Spring Suspension |
| Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
| The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
| Side beam | Q235 16# channel steel |
| Platform plate | 3mm Diamond plate |
| Tire | 12R22.5, 12 pcs. Taitong brand |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| Electrical System | Chinese standard 24V lighting system |
| Brake system: | Dual line pneumatic brake, SAE hose and connector,no ABS |
| Brake air chamber | 6 units T30/30 spring brake chambers |
| Emergency relay valve | Wabco relay valve |
| Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing Gear | Zhenhua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location |
| Accessories: |
| Tool box | 1pcs, One crank and one shaft head wrench |
| Mud guard | Steel mud guard and front mudguard |
| Spare wheel carriers | 2 pcs |
| bumper | Rear bumper with adjustable height |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core electric cable protected by PVC conduit on main frame |
| Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed |
| Packing | Nude, Polish with wax before shipping |

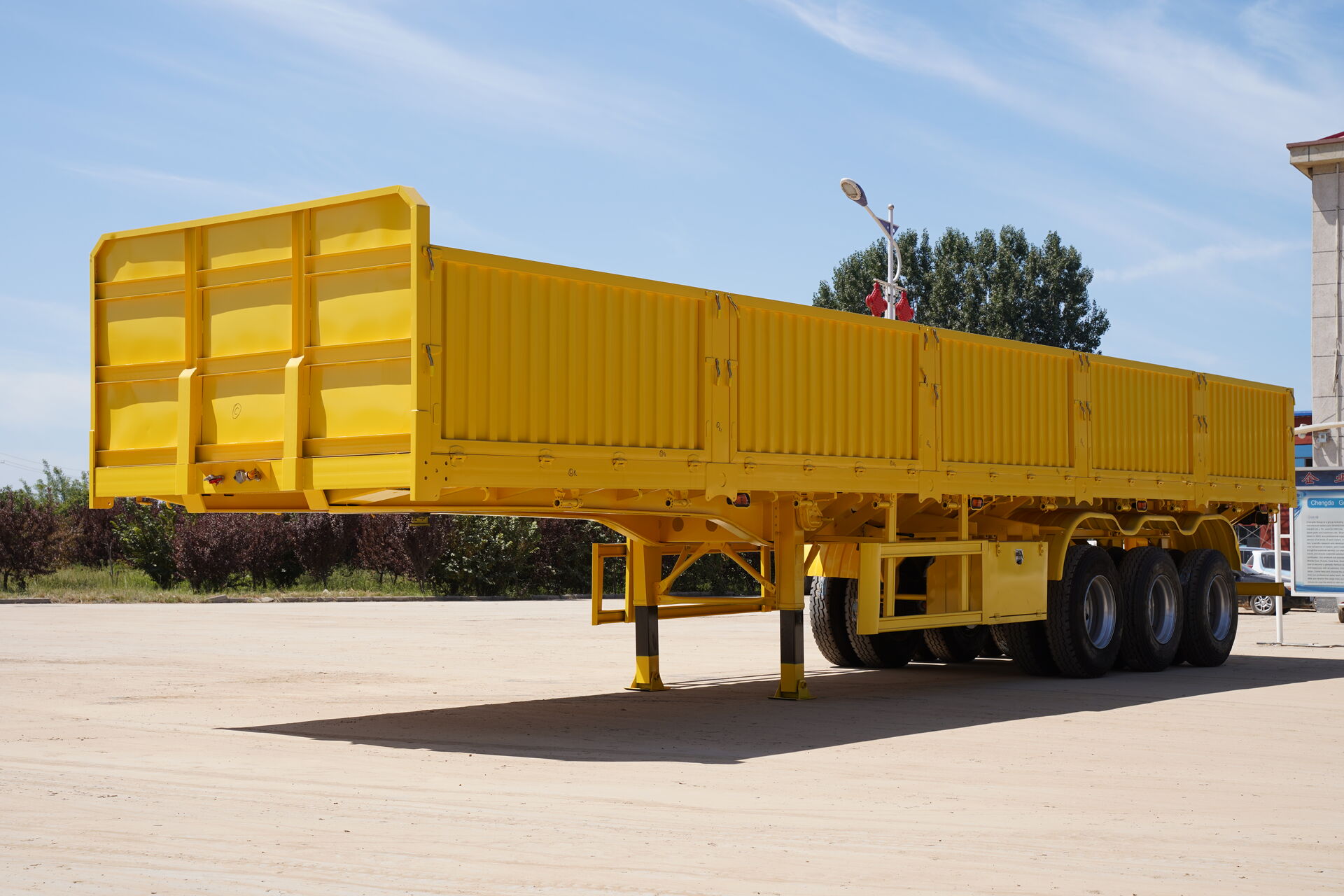

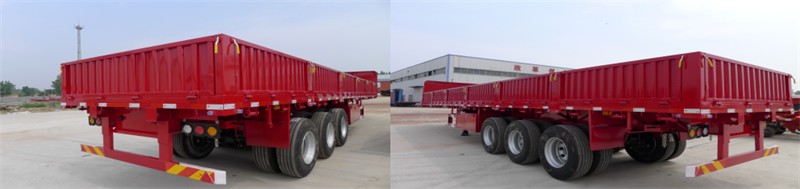

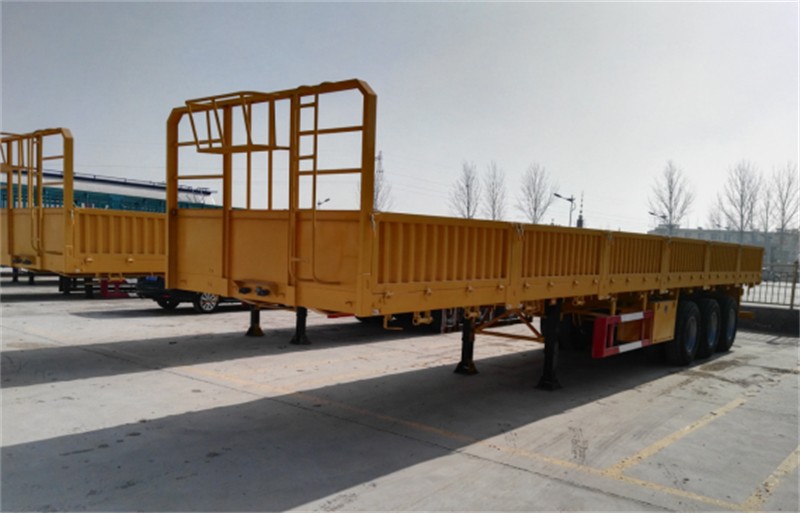

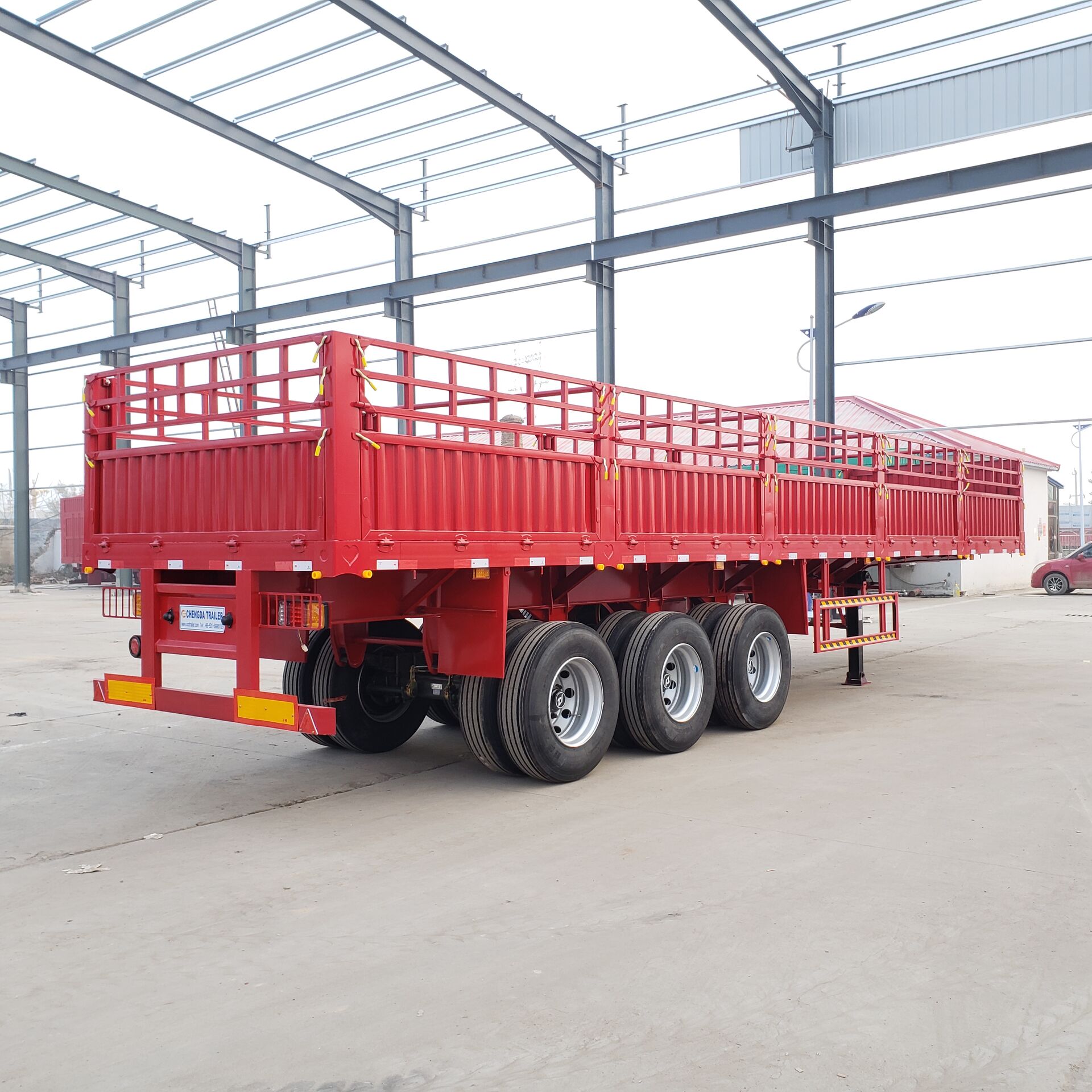

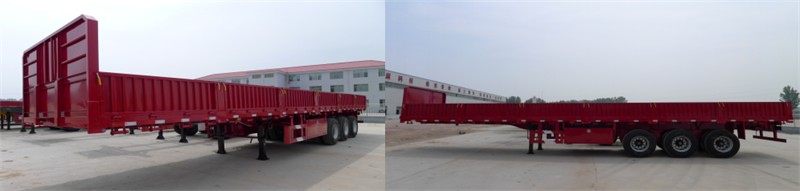

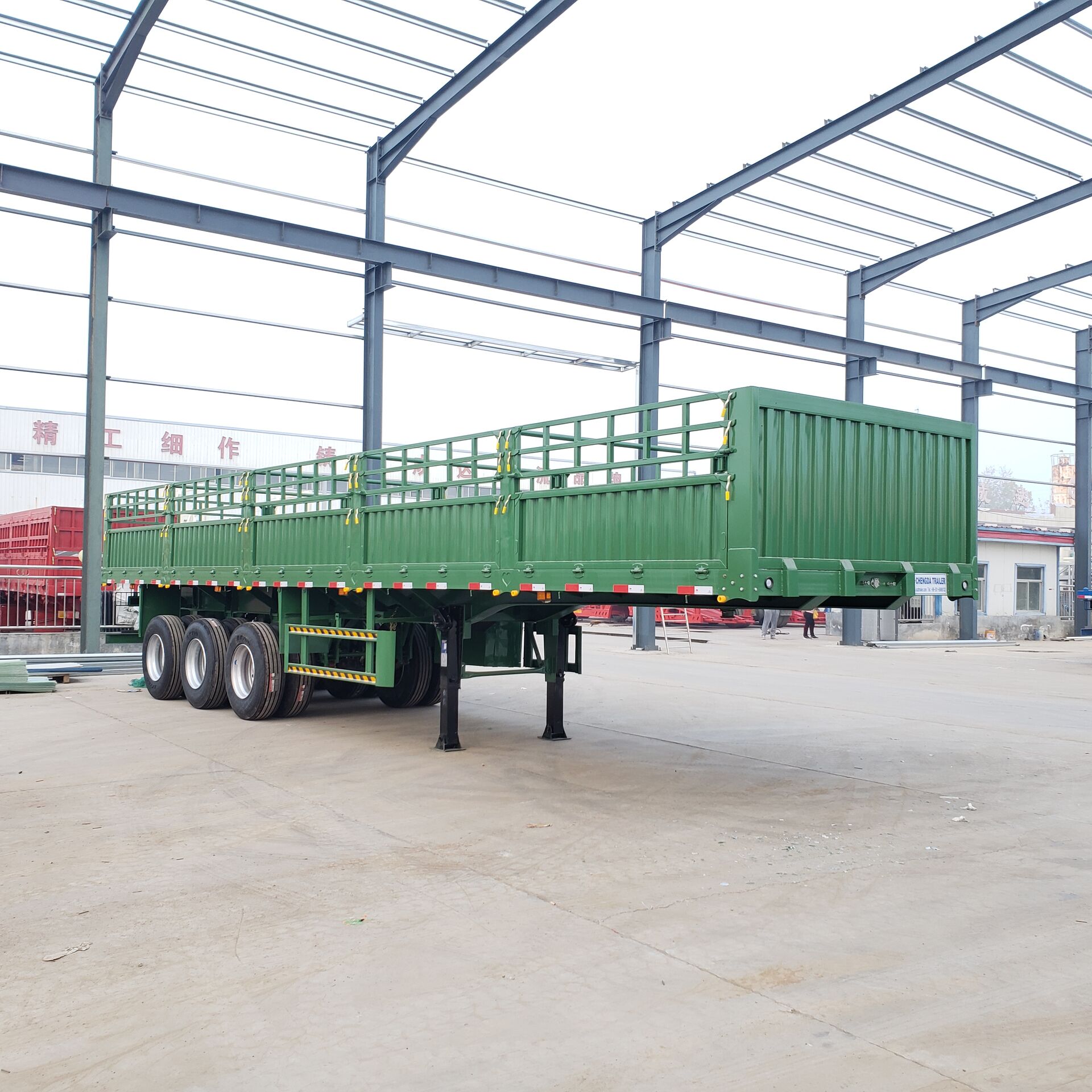

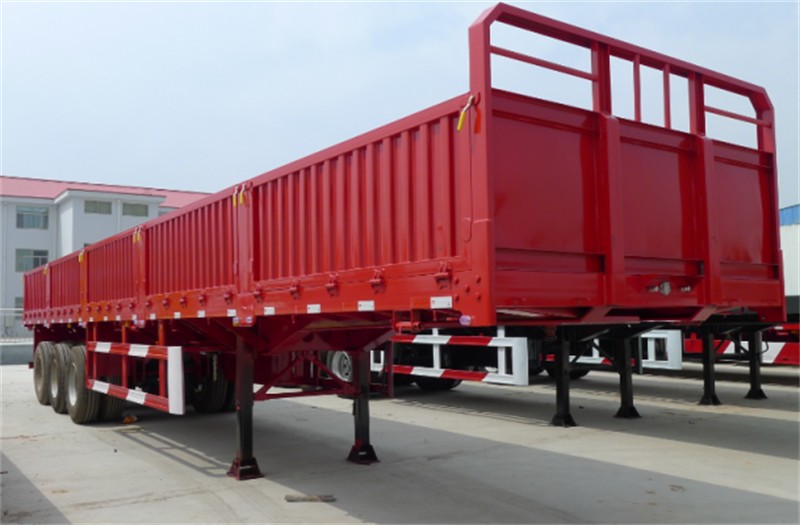

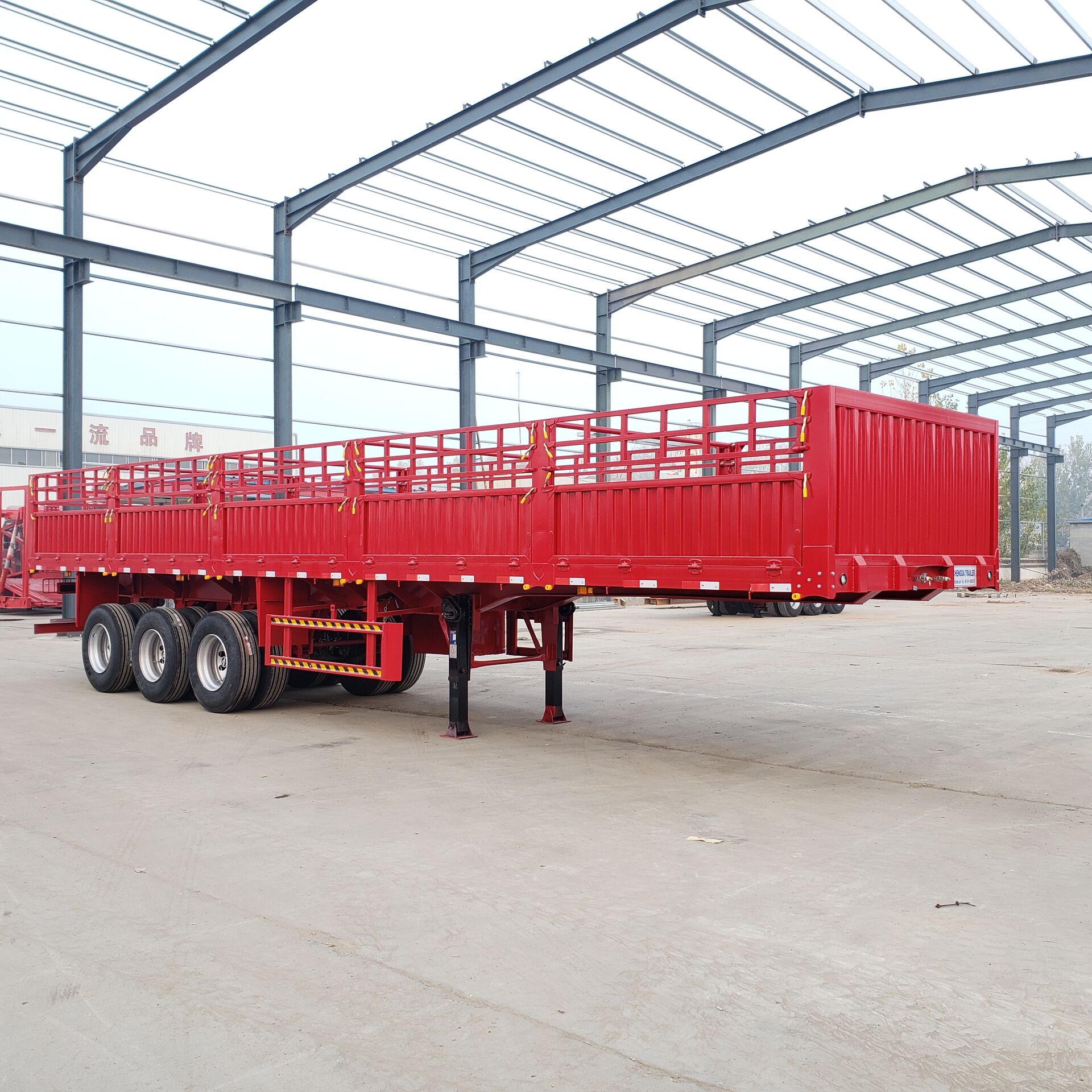

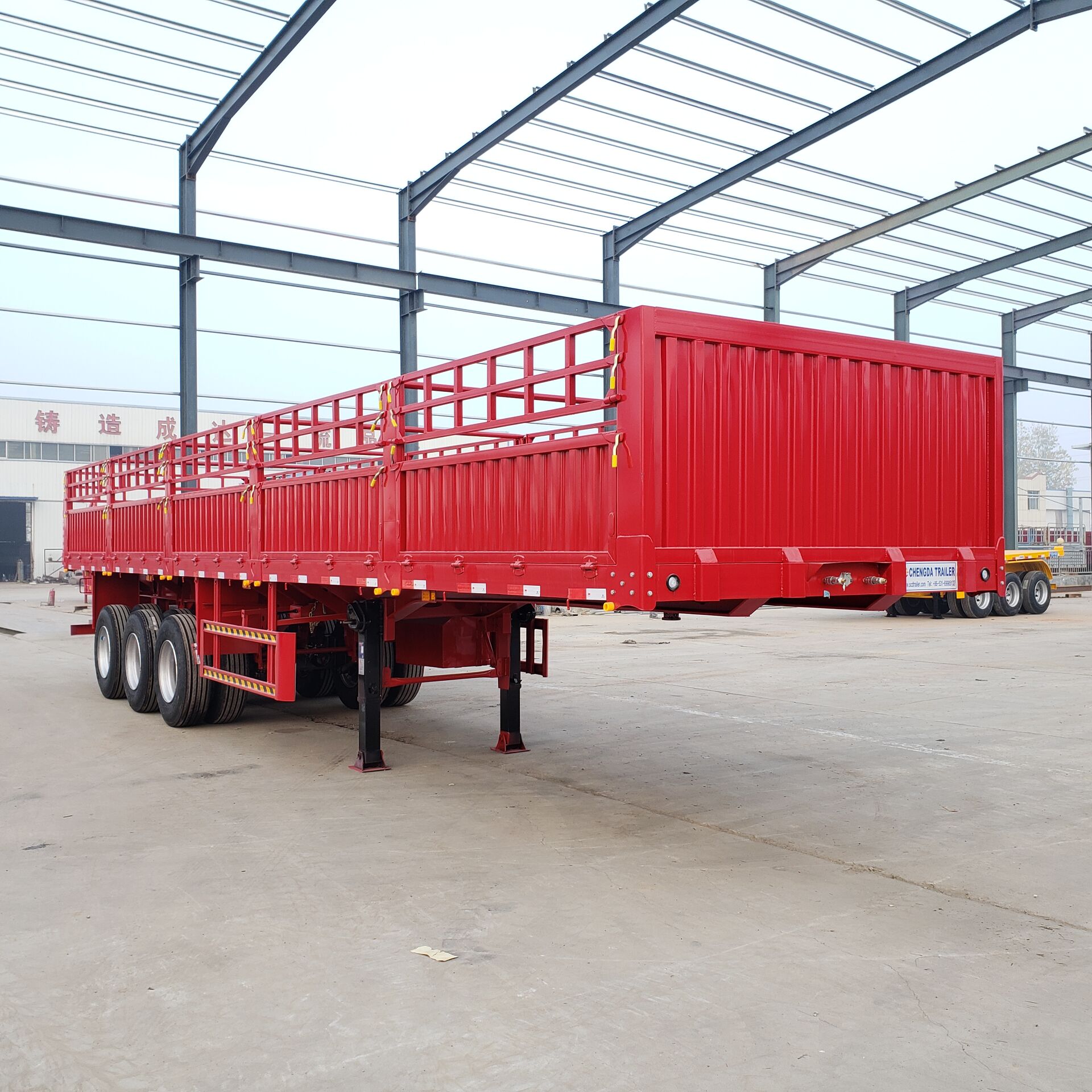

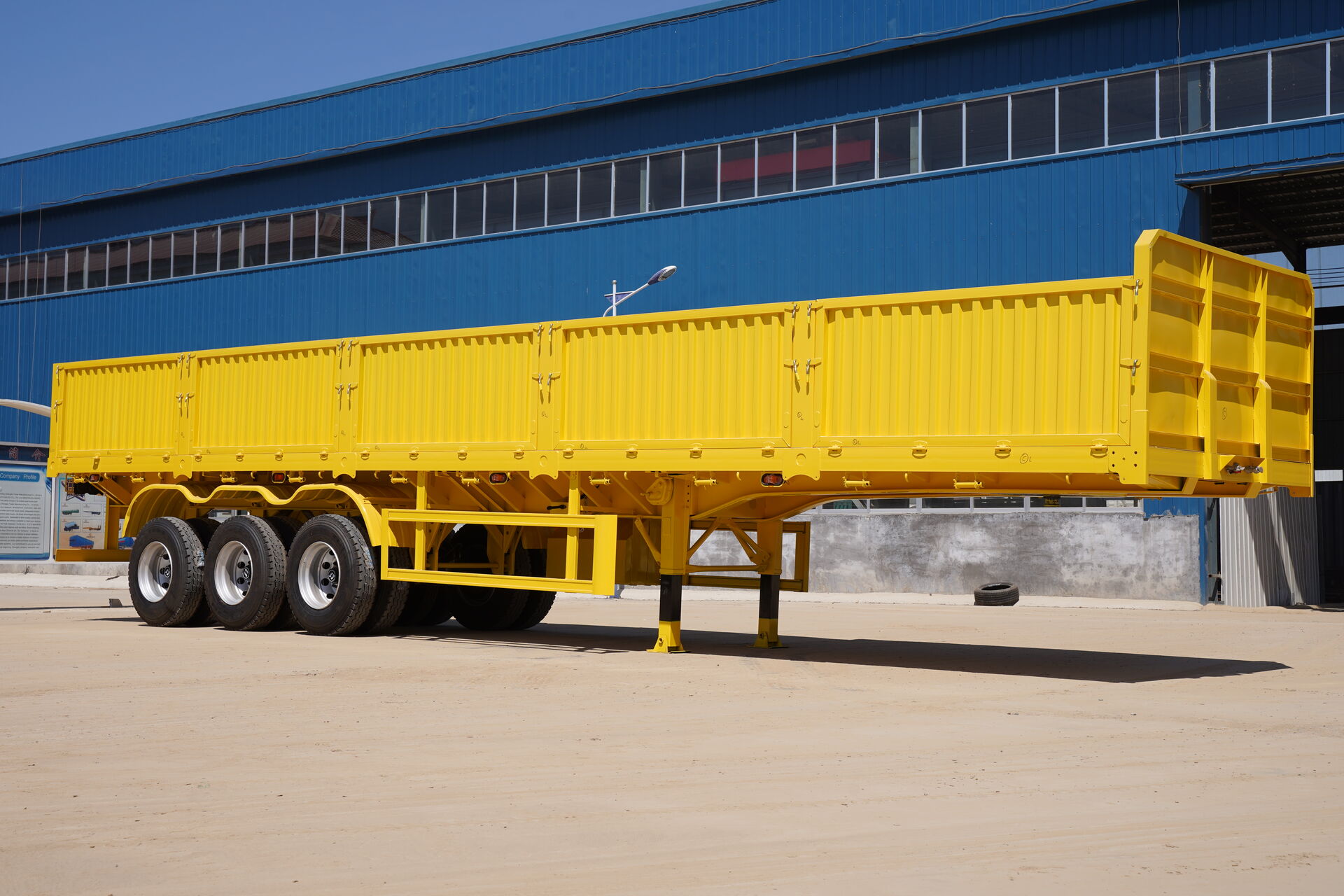

More view of the fuel tanker trailer

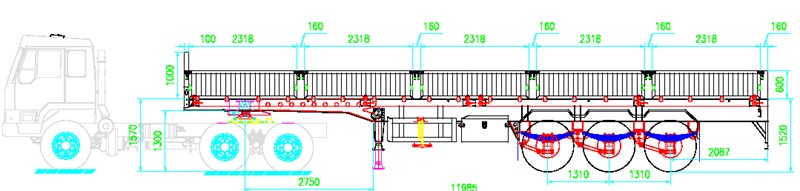

Drawing

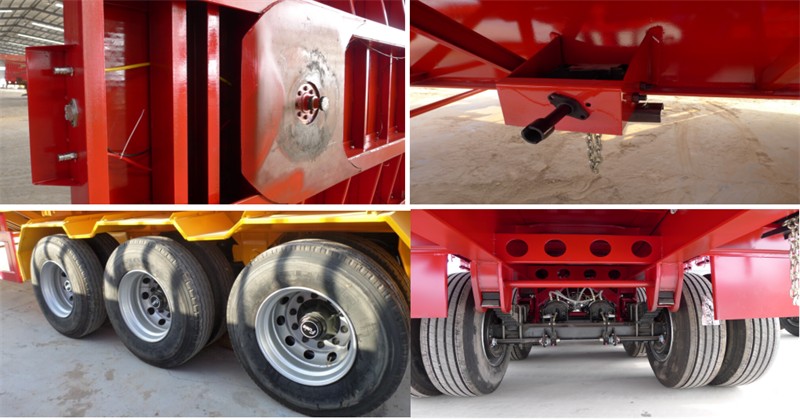

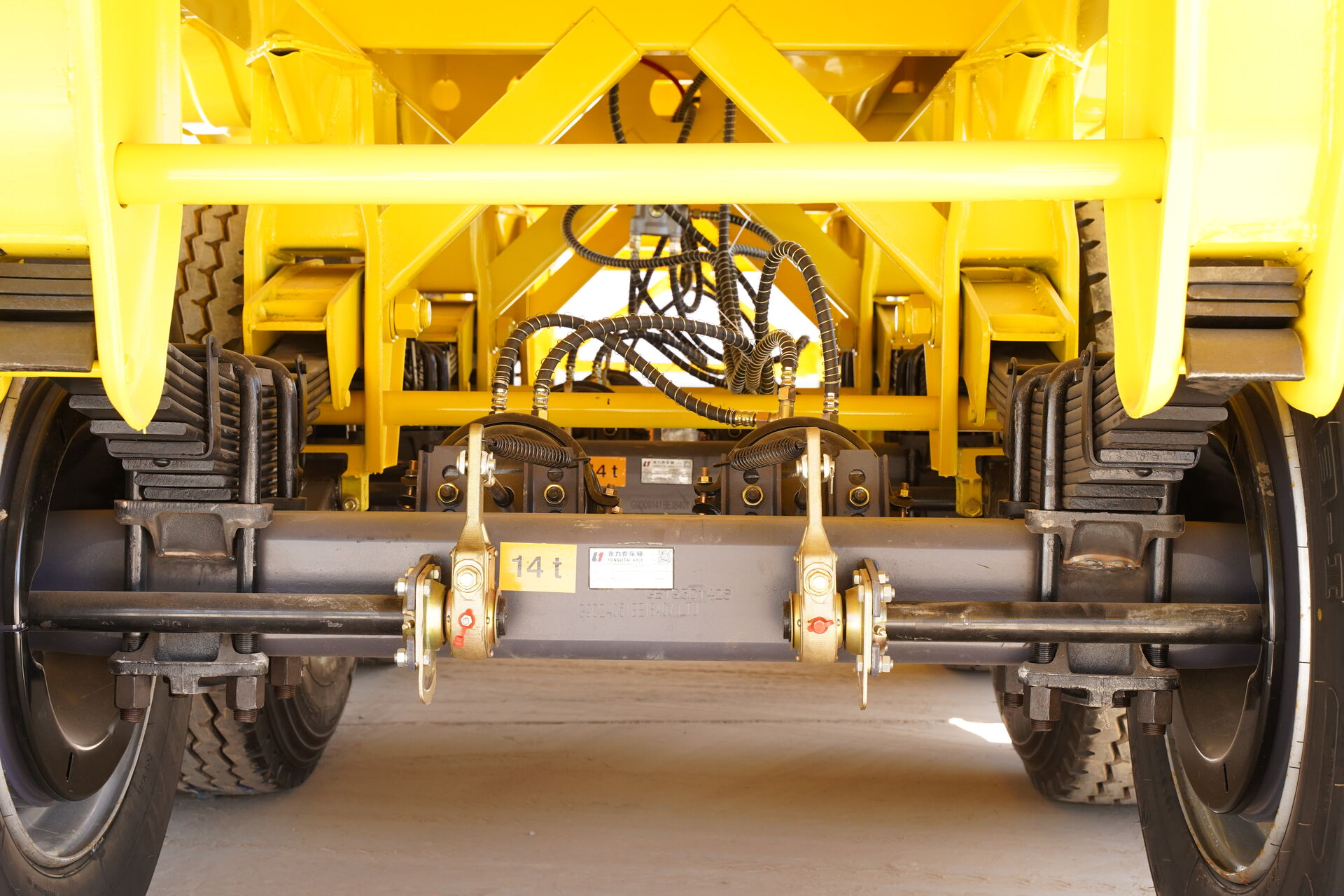

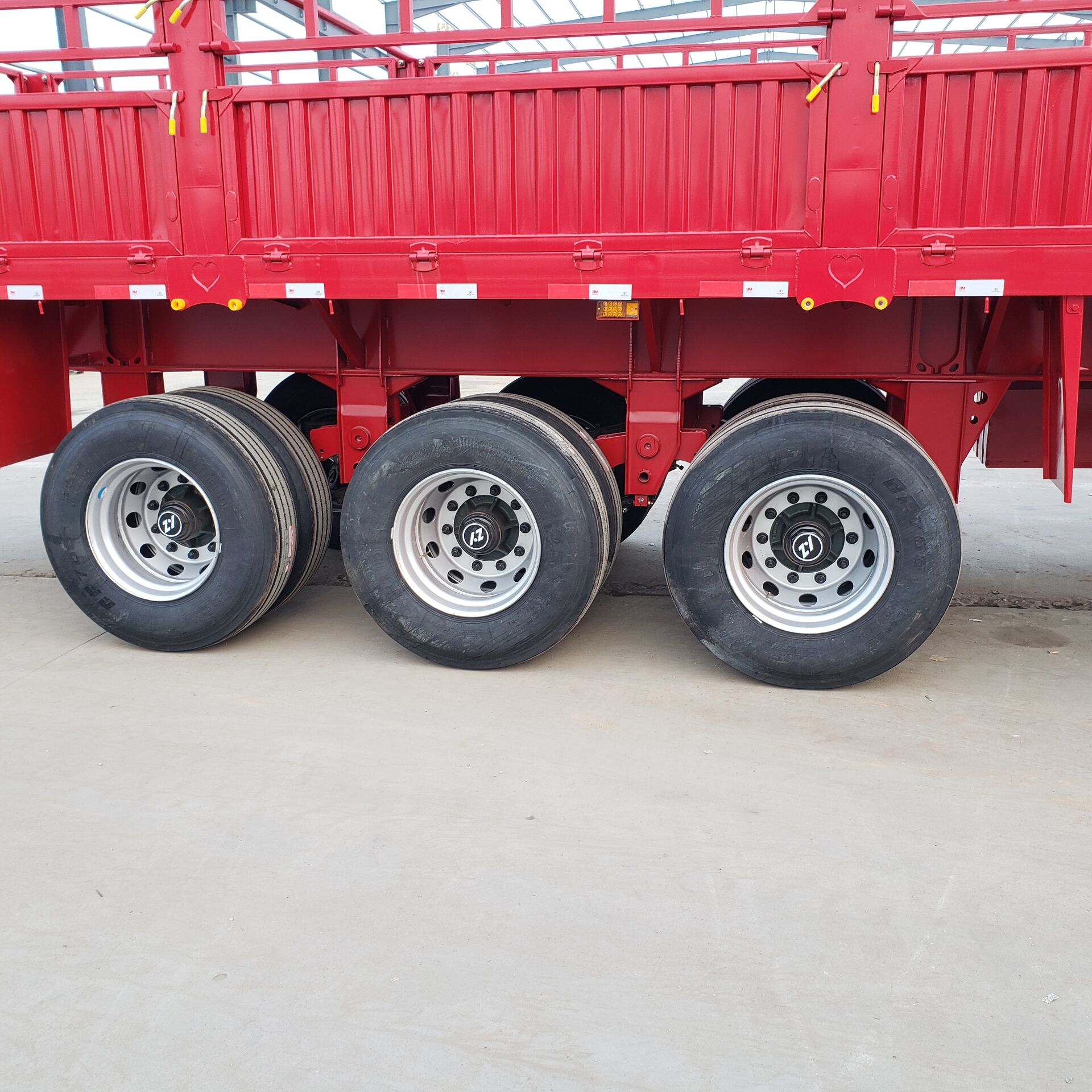

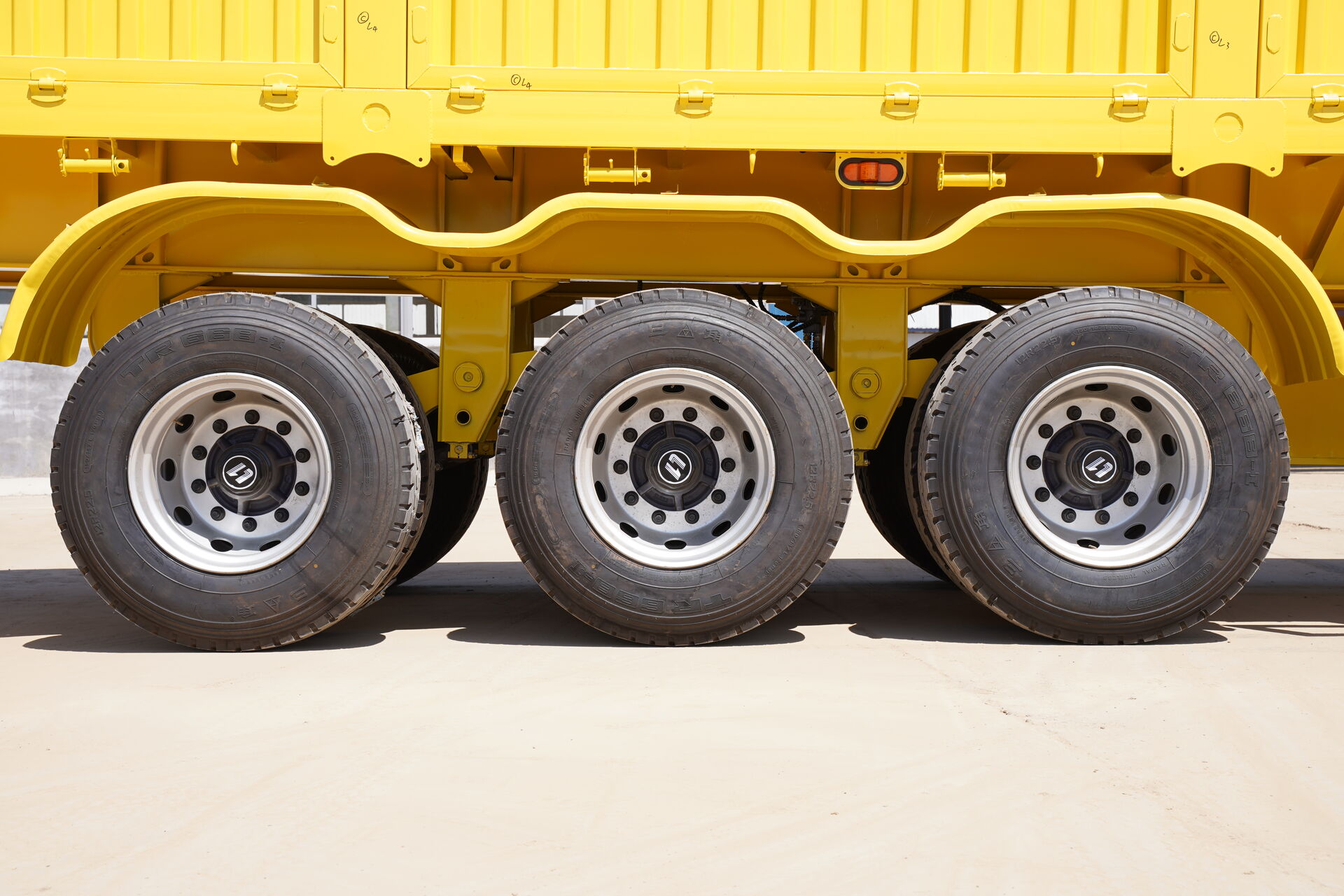

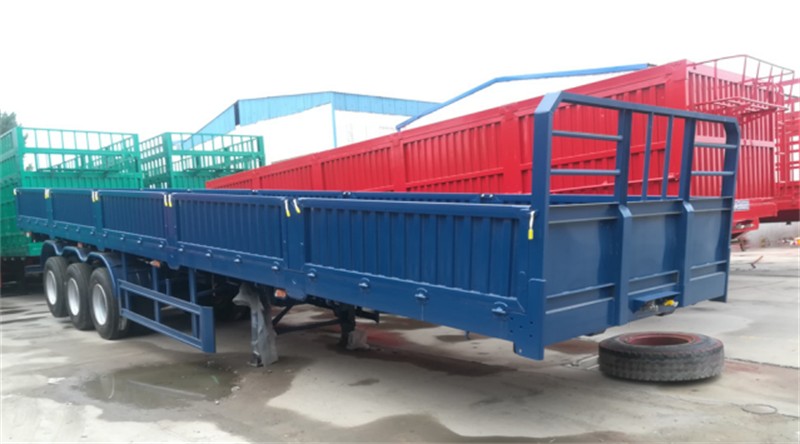

More details of the side wall trailer

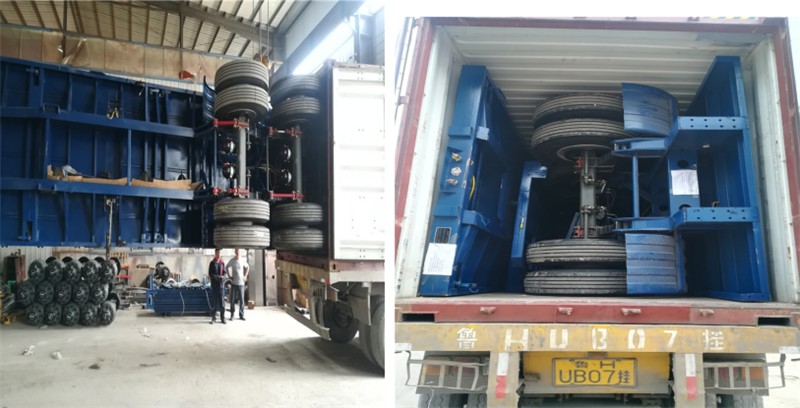

Shipping by container
For the side wall semi trailer cut the rear part then put inside 40ftHQ container which can save a lot of freight, this method is very popular for transport the side wall trailer but when you receive the trailer you need to welded them together so if you choose this method need to confirm whether you can arrange welded them after the container arrived.

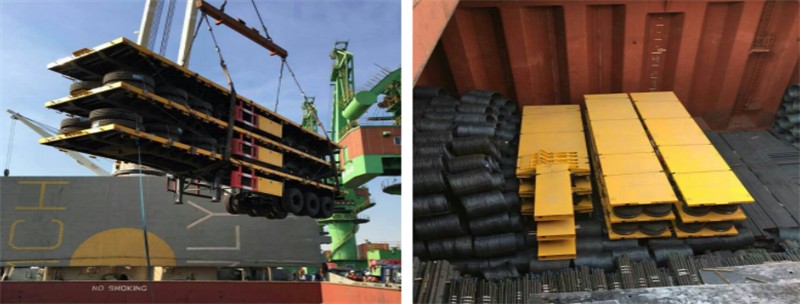

Shipping by bulk or roro ship
Certificate
4 units of side wall trailer exported to Guinea
10 units of side wall trailer exported to Philippine
12 units of high side wall trailer exported to Tanzania
