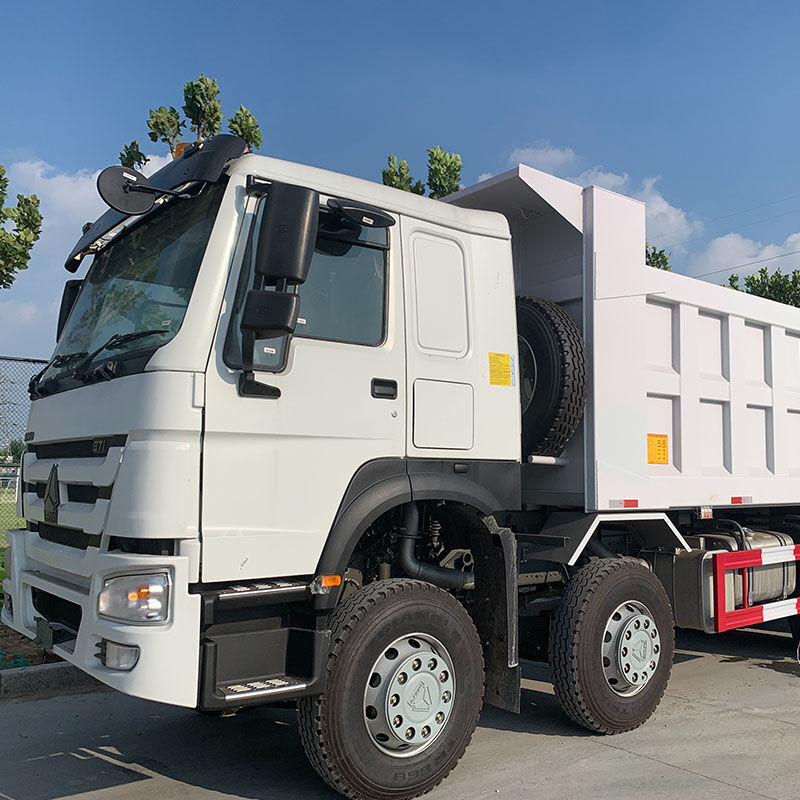

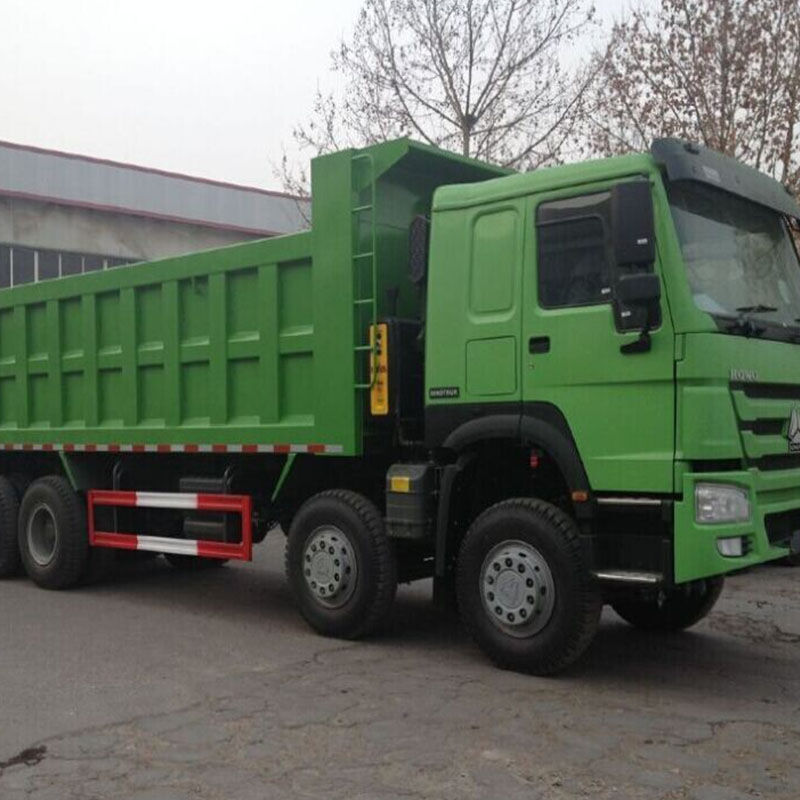

Howo 8x4 dump truck-SINOTRUK



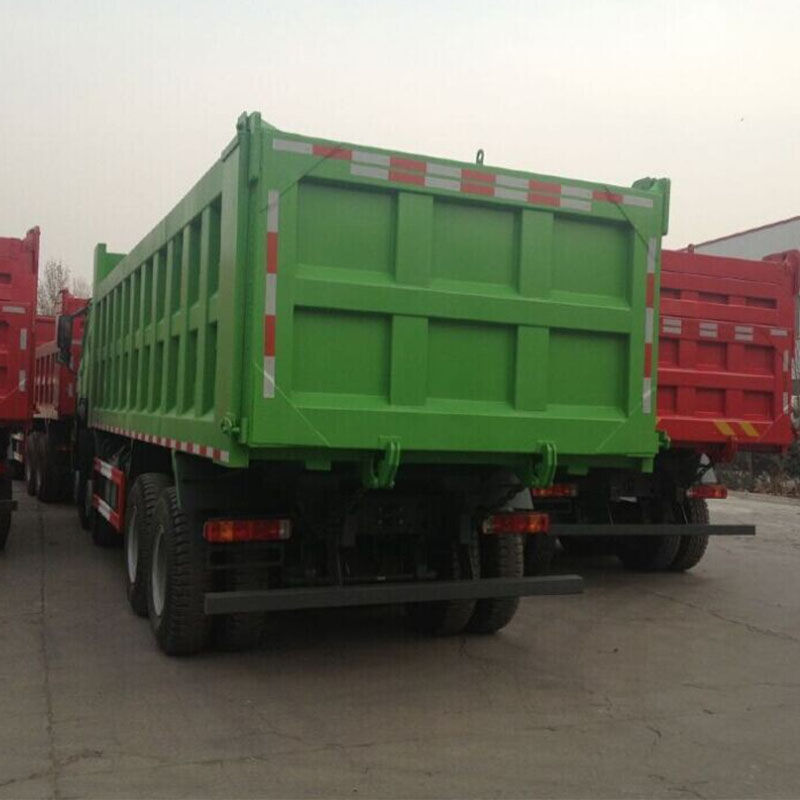

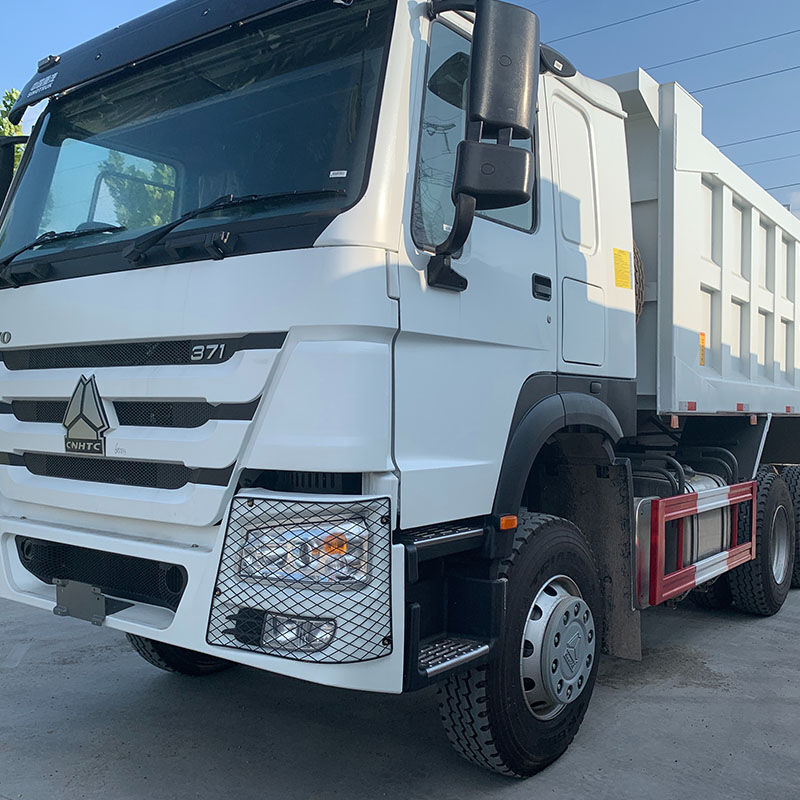

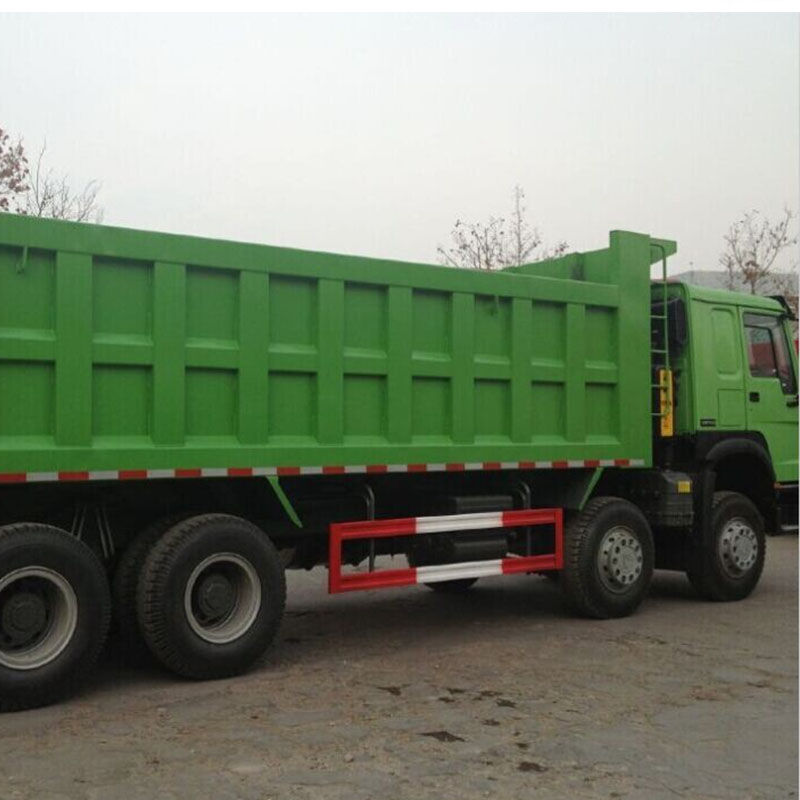

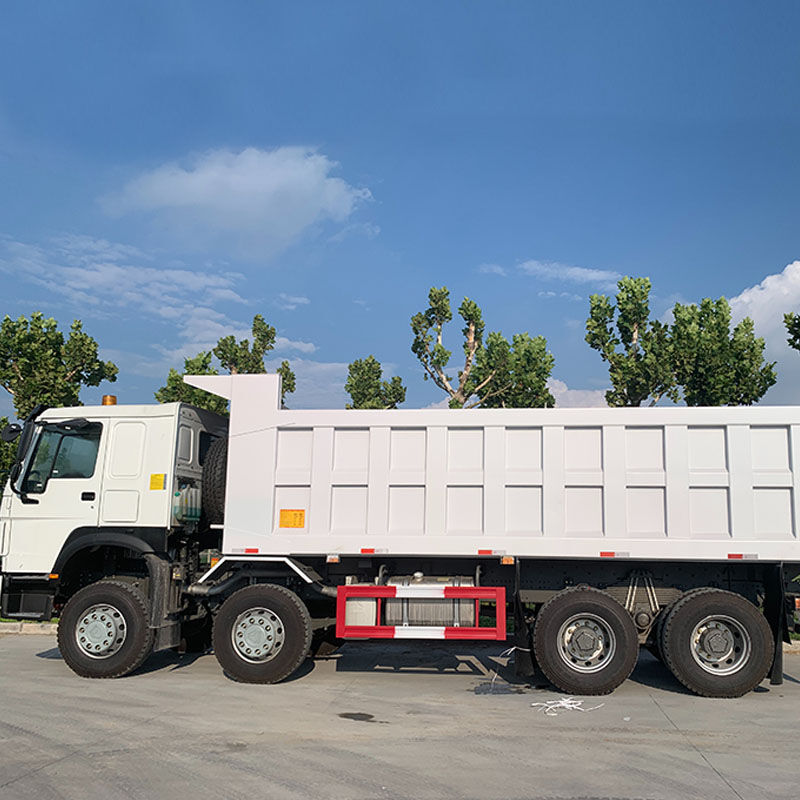

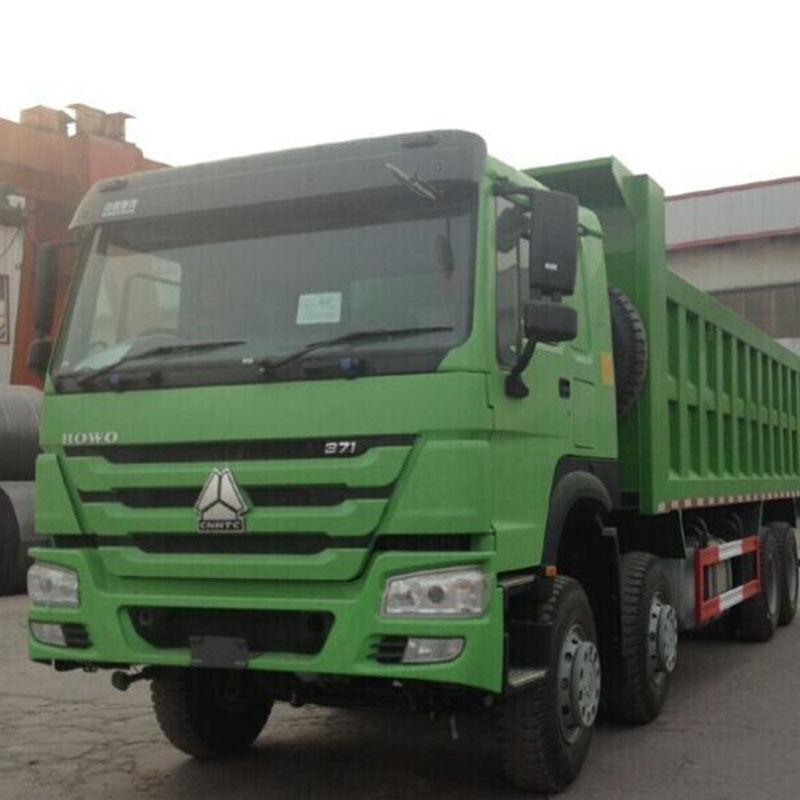

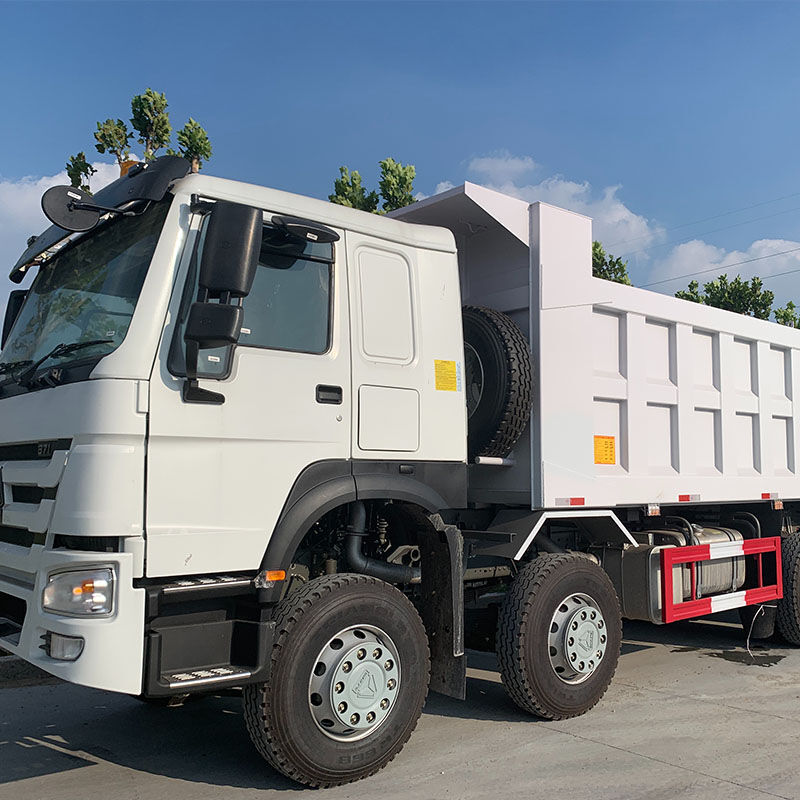

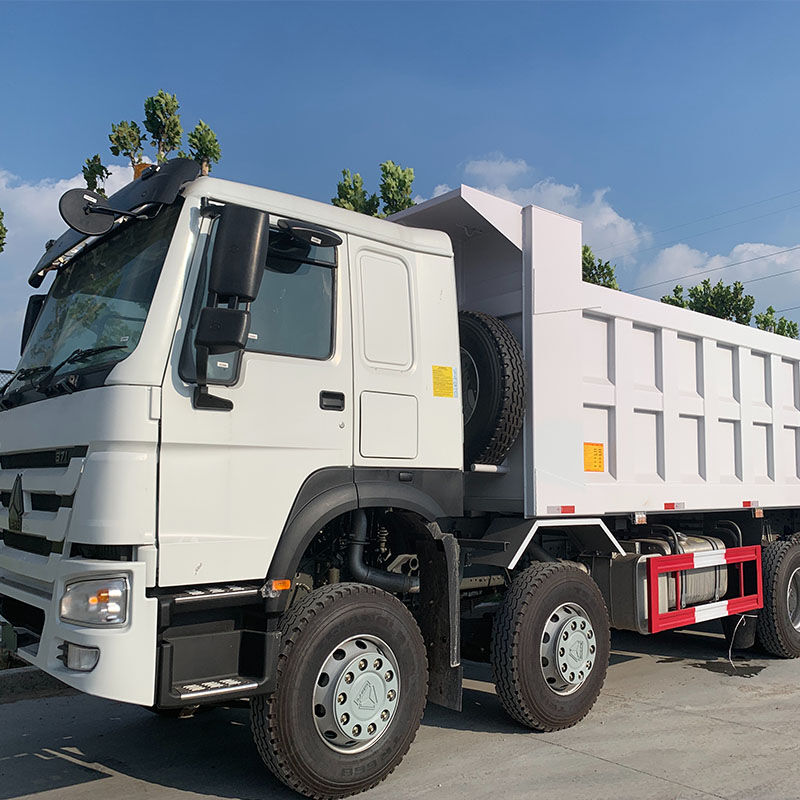

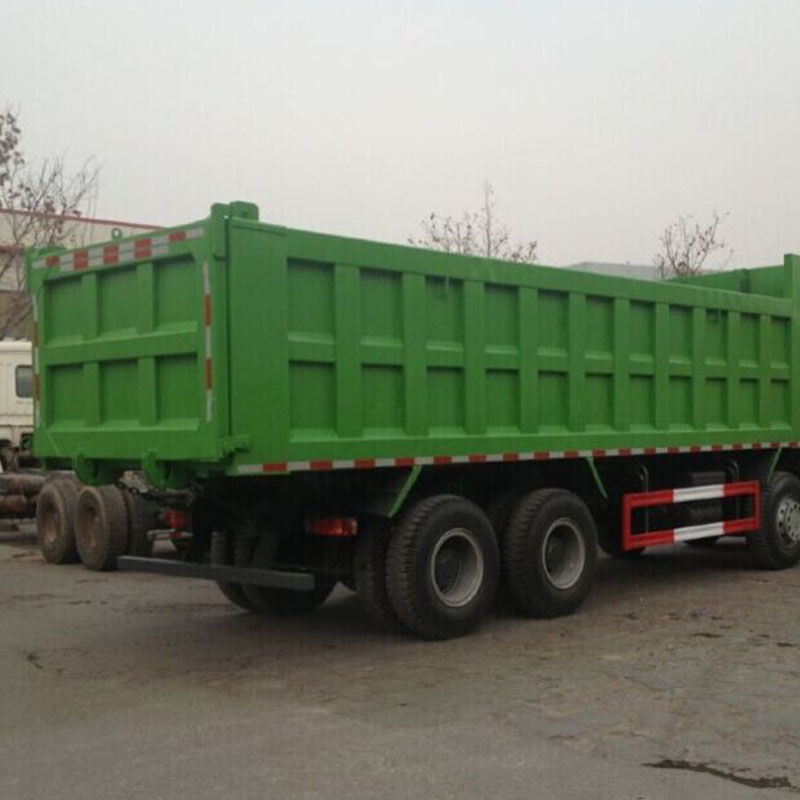

Howo 8x4 dump truck

Product Introduction

Basic Information
Truck Model	ZZ3317N4267		Truck Brand	SINOTRUCK-HOWO
Driving Type	LHD		Driving Type	8x4
Dimension (LxWxH)	11050x2496x3450 mm		Curb Weight (KG)	12280
Cargo Body Size (LxWxH)	8000x2300x1500 mm		Load Weight (KG)	40000
Cargo Body Thickness	Bottom:8mm		Wheel Base	Rear Wheel Base:1830/1830mm
	Side:6mm			Front Wheel Base:2022/2041mm
Lift Type Of Carriage	Middle Lifting		Overhang	Front:1500/1975
Max Speed (Km/h)	75			Rear:1500/2095
Engine
Model	WD 615.47,water-cooled，four strokes，6 cylinders in line with water cooling，directly injection		Brand	SINOTRUCK HOWO
Emission	Euro II		Horse Power	371 (Kw/rpm)
Fuel Type	Diesel		Number of Cylinders	6
Chassis
Axle	Front HF 9,Steering with double T-cross section beam		Rear HC 16,Pressed axle housing, central double reduction with differential locks between axles and wheels
Spring	11/11/12		Number of Axle	3
Transmission	HW19710,10 forwards and 2 reverse		Tire	12.00R20 Radial tires
Fuel Taker Capacity	300 L		Tire Quantity	12+1 spare
Fuel Consumption	20-40 L/100 km		Rear Axle Ratio	5.45
Truck Head
Cab	HW76 cab,one slpper with air-condition		Brand	SINOTRUCK HOWO
Electrical System	Battery	2x12V/165 Ah	Brake System	Service Brake	Dual circuit compressed air brake
	Alternator	28V-1500Kw		Parking Brake	Spring energy,compressed air operating on rear wheels
	Starter	7.5Kw/24V		Auxiliary Brake	Engine exhaust brake
Steering System	ZF8118 Hydraulic steering with power assistance		Color	Optional
