Specification
| Truck Model | ZZ3257N3647P1 |
| Truck Brand | HOWO A7 |
| Driving Style | Left Hand Driving |
| Dimension(Lx W x H)（unloaded）（mm） | 8265x2496x3490 |
| Cargo body size (L*W*H, mm) (mm) | 5400x2300x1500mm 18.63m3 |
| Cargo thickness(mm) | Bottom:8mm, Side:6mm |
| Lift type of Carriage | Middle lifting system |
| Approaching angle/Departure angle（°） | 20/26 |
| Overhang(front/rear) (mm) | 1540/1750 |
| Wheel base (mm) | 3625+1350 |
| Max speed（km/h） | 78 |
| Curb weight（kg） | 12270 |
| Loading Weight（kg） | 30,000 |
| Fuel tanker capacity（L） | 300 |
| Clutch | Single-plate dry clutch Φ430mm |
| Engine Model | Fuel type | Diesel |
| Horse Power, max（kw/rpm） | 371HP |
| Emission | EURO II |
| Model | WD615.47，water-cooled，four strokes，6 cylinders in line with water cooling , electric injection |
| Transmission | Model | HW19710, 10 forwards and 2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | Model | ZF8118 hydraulic steering with power assistance |
| Front axle | HF9 , Steering with double T-cross section beam |
| Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels |
| Color | Optional (White ,Red ,yellow ) |
| Tyre | 12.00R20 radial tires, 10+1pcs |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Cab | A7- W , single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |

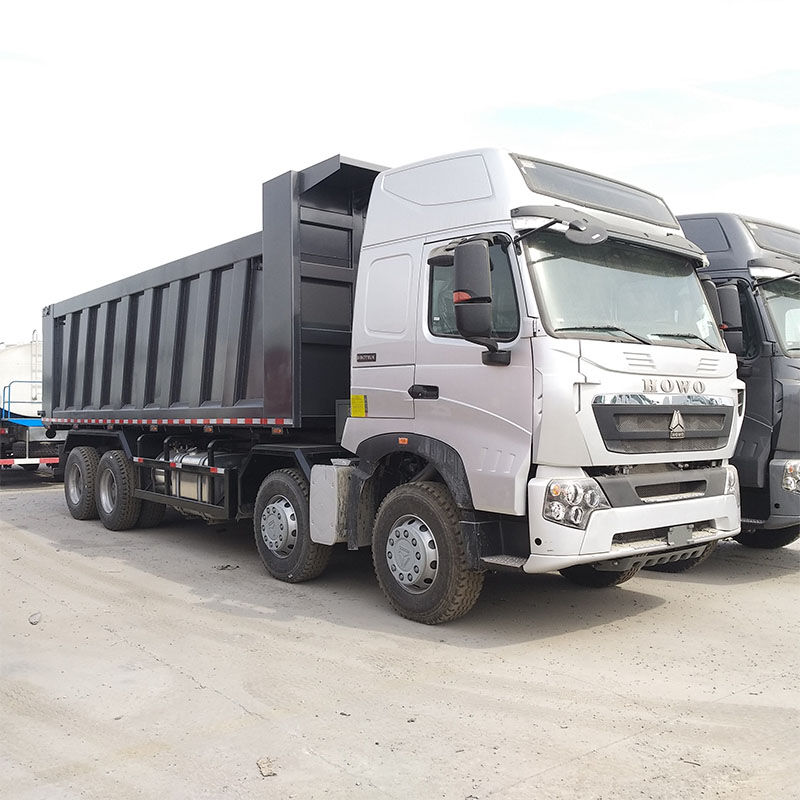

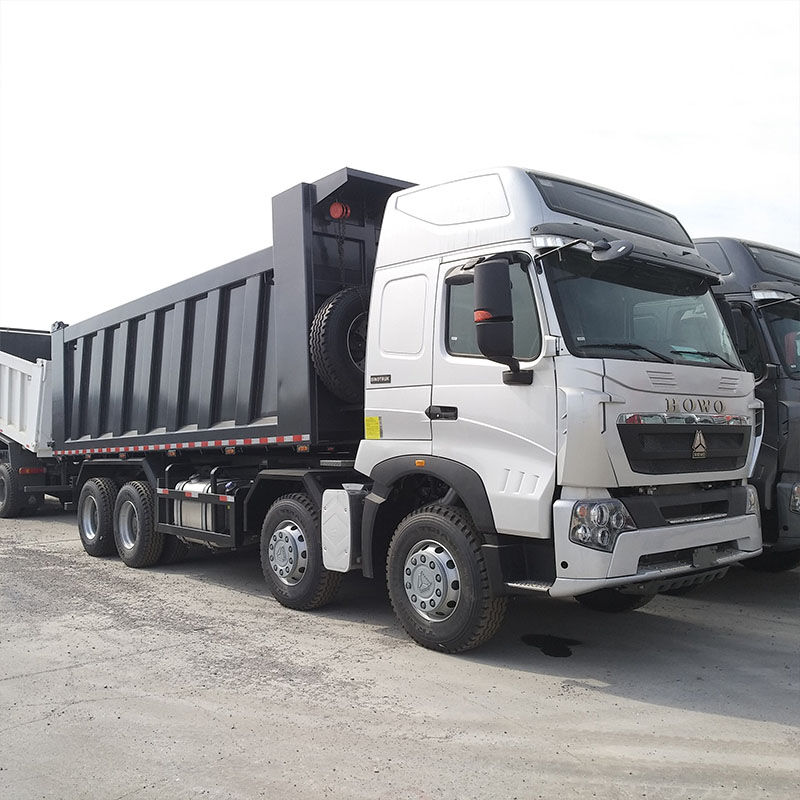

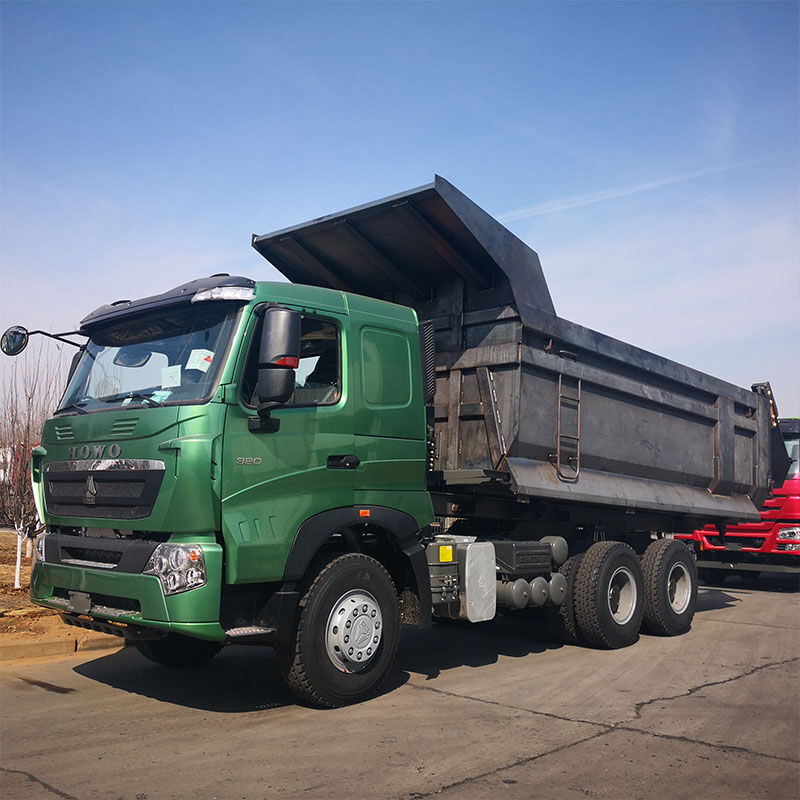

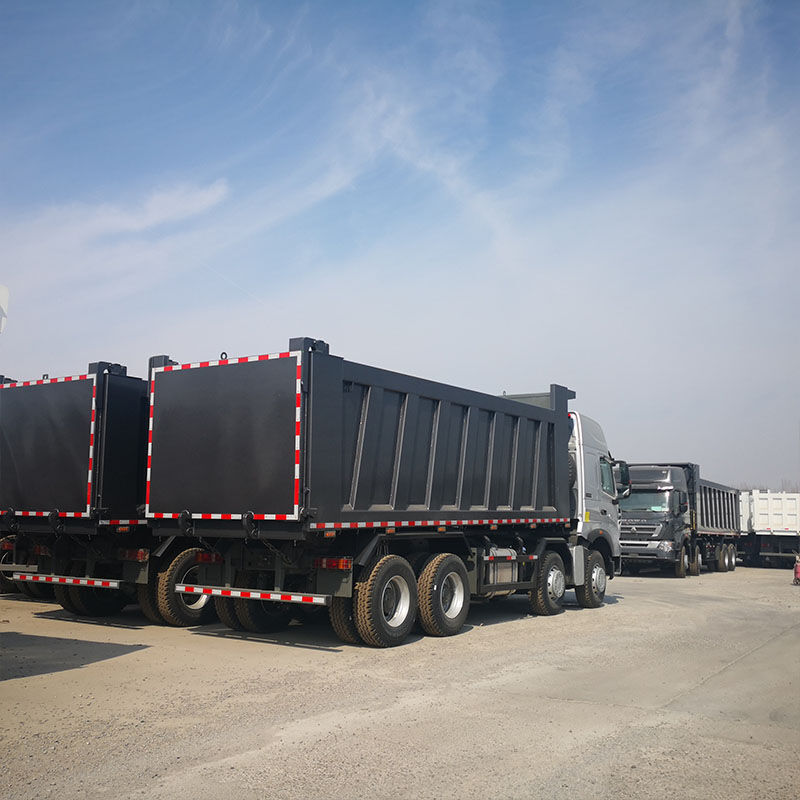

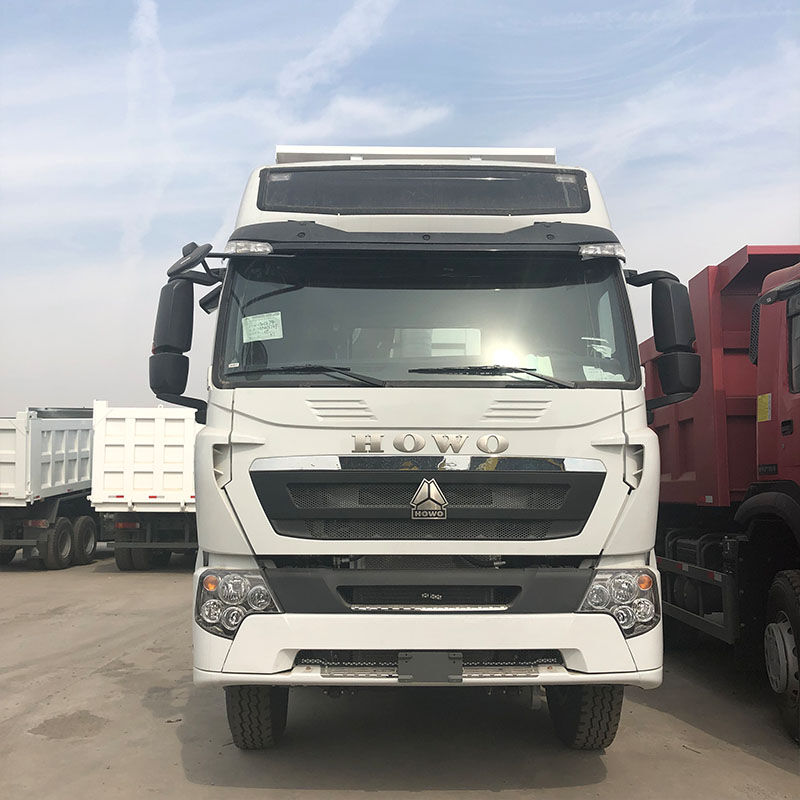

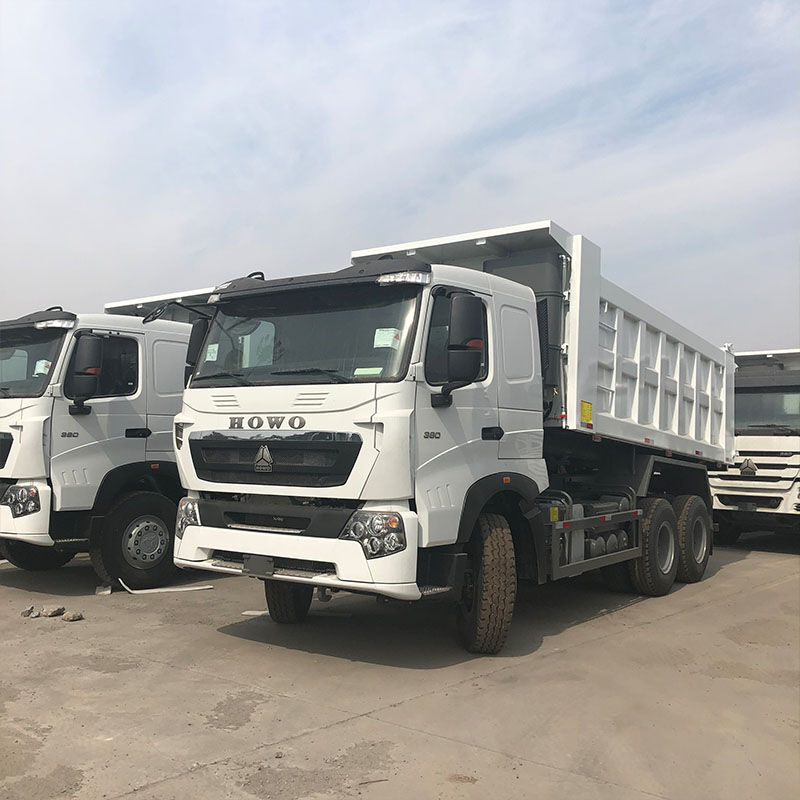

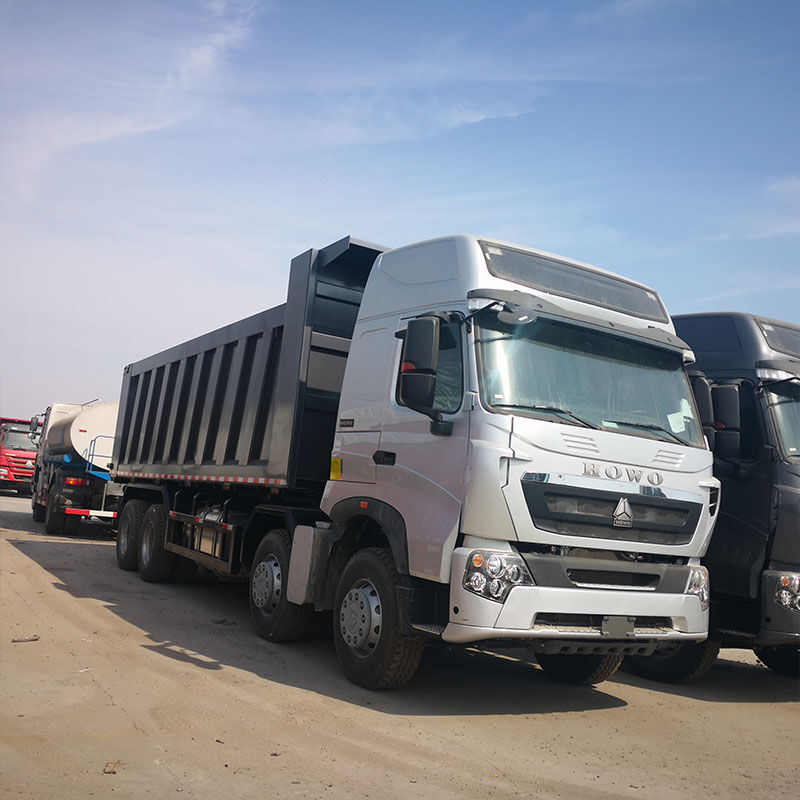

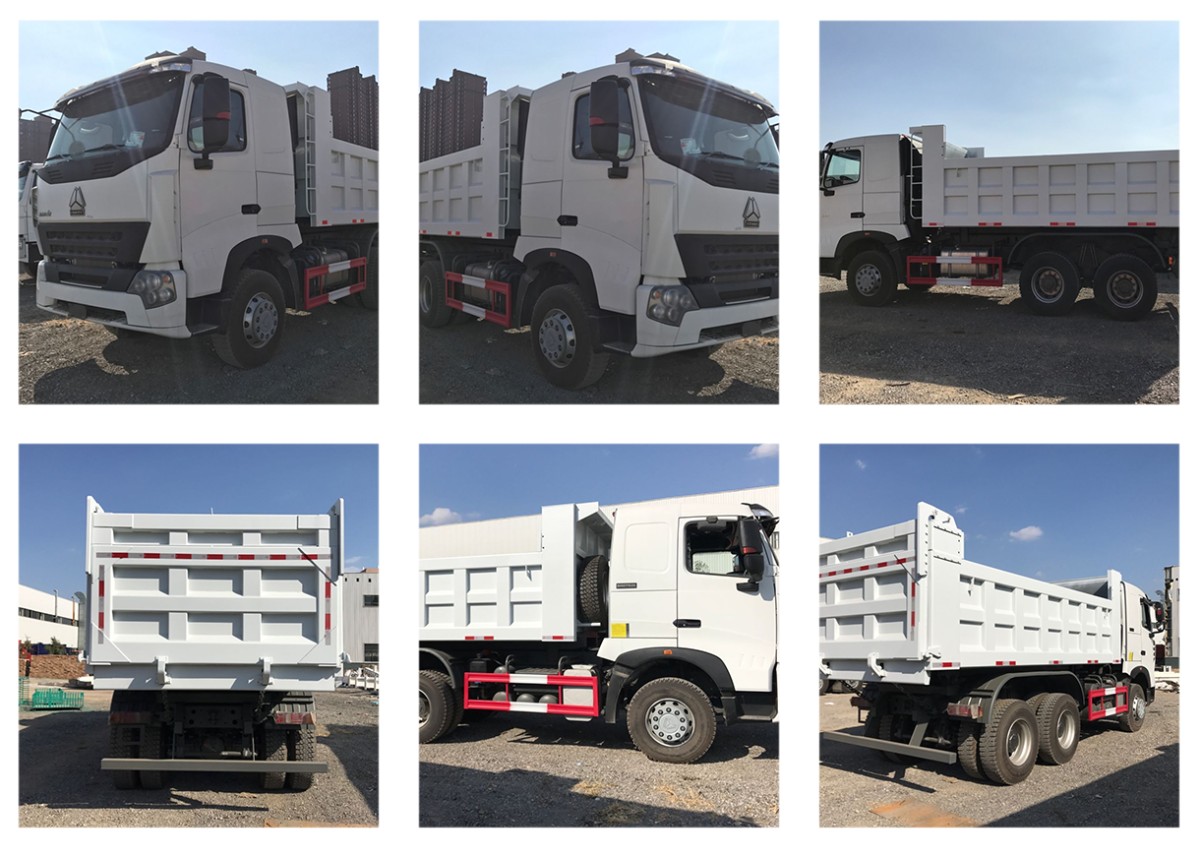

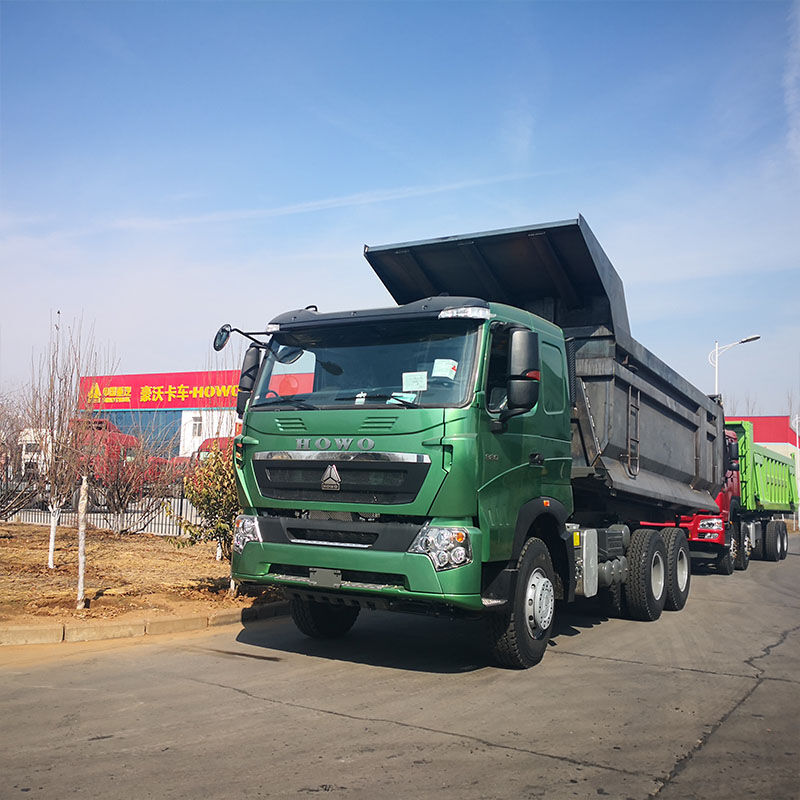

More pictures of A7 dump truck

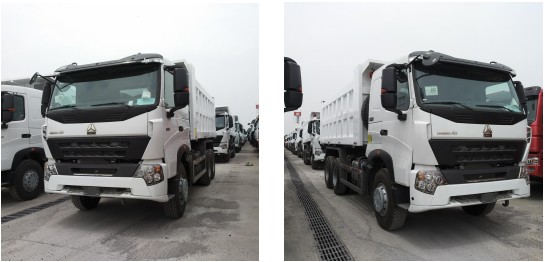

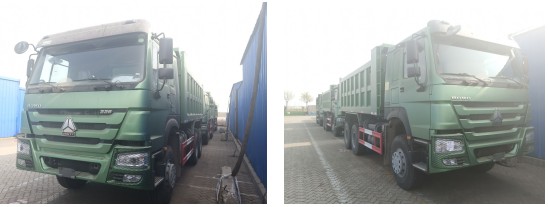

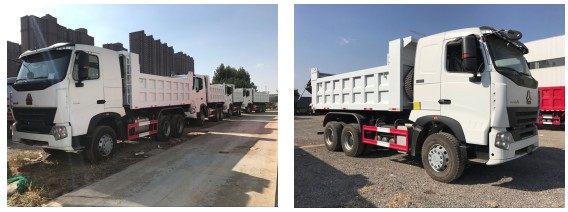

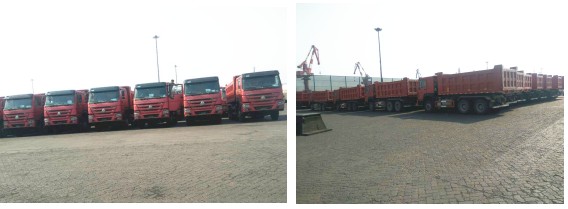

Similar trucks we have manufactured and exported
6 units Howo dump truck to Senegal
10 units A7 dump truck to The Philippines
10 units A7 dump truck to Nigeria
30 units Howo dump truck to Ethiopia

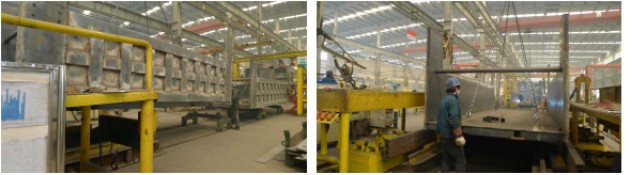

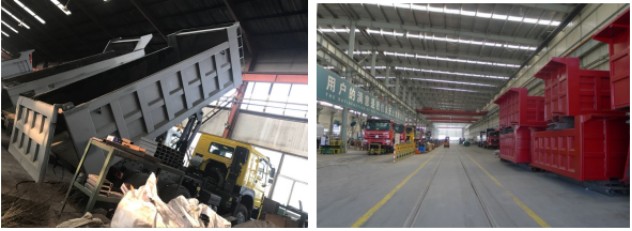

Our factory production line

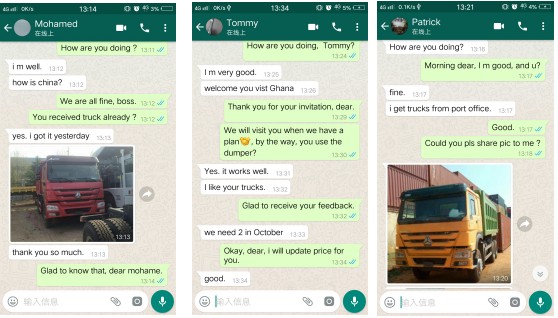

Our customers like our trucks very much,here are the comments

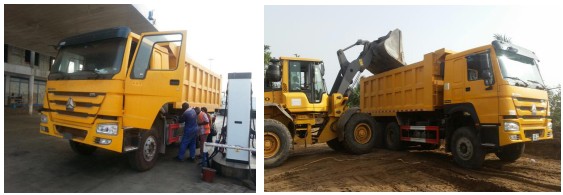

Customer put truck into use
Howo 371hp dump truck use in Ghana.
Customer visit us
Welcome to your visiting !
