Product Introduction
Quotation Sheet | ||||
Description of good | Quantity | FOB Price | CIF Price | Valid Time |

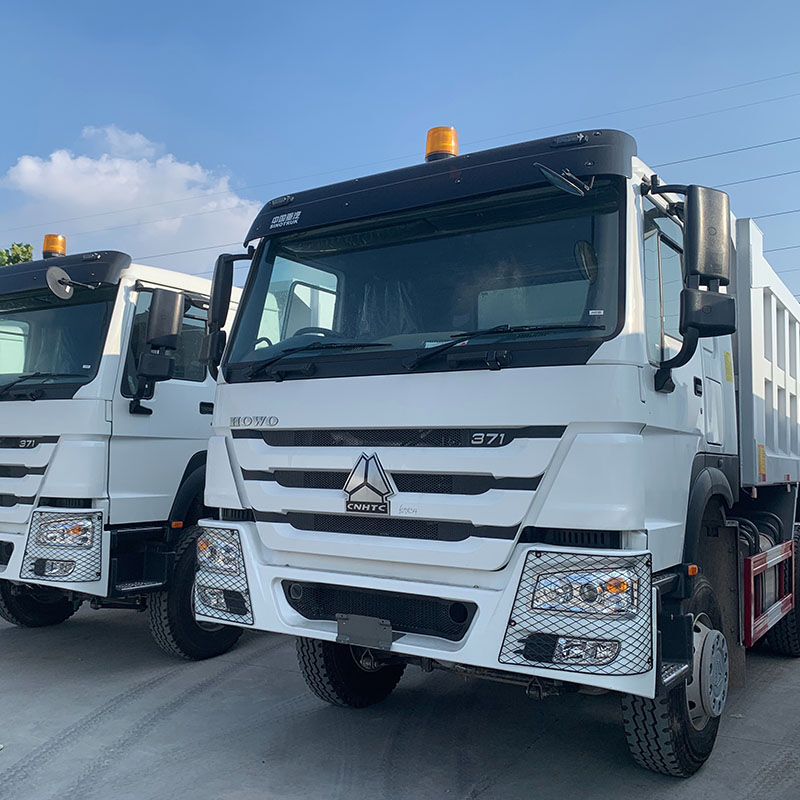

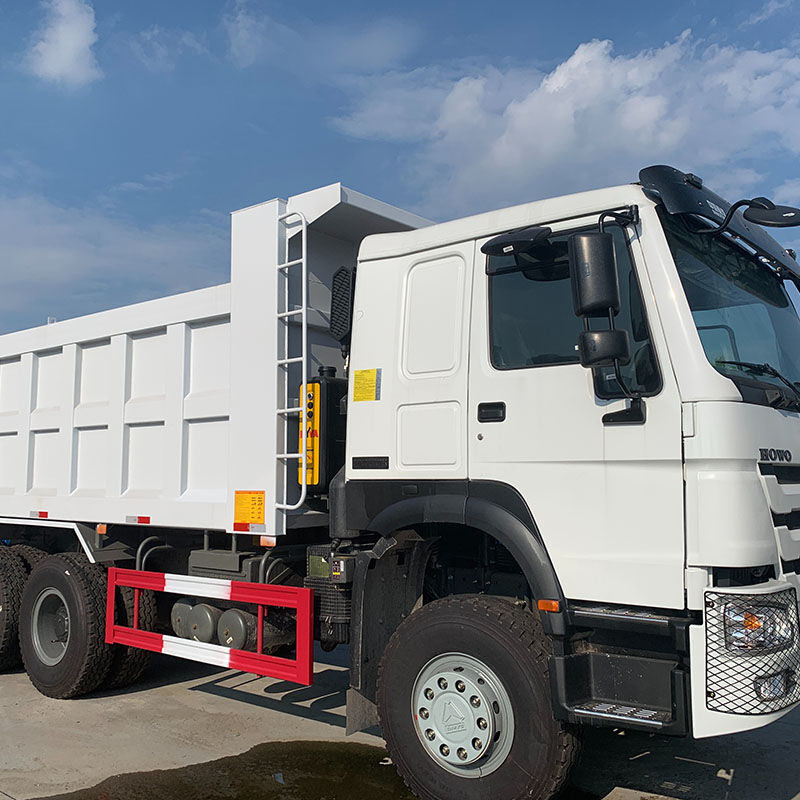

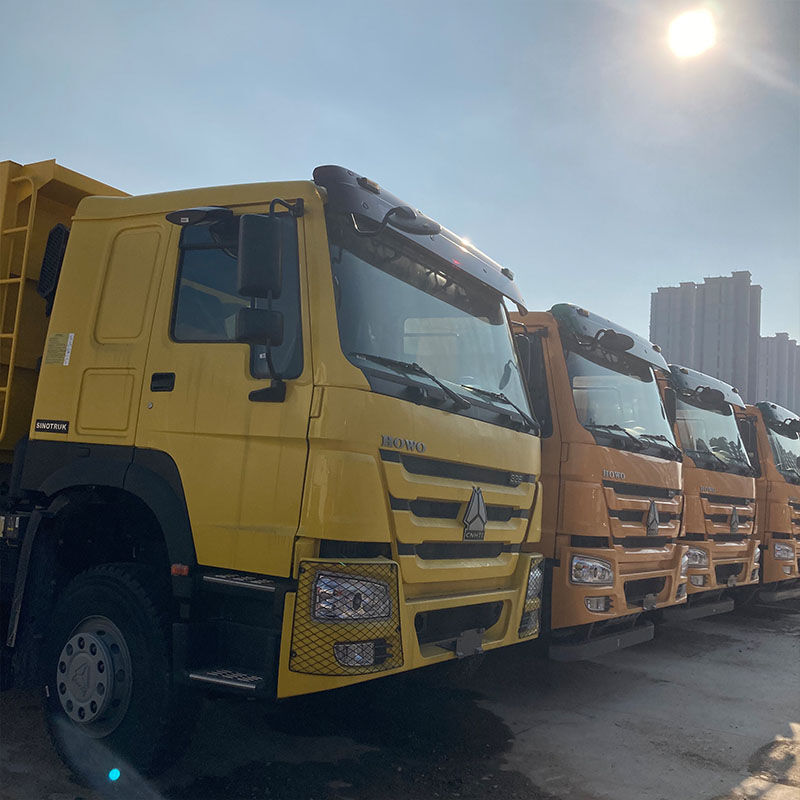

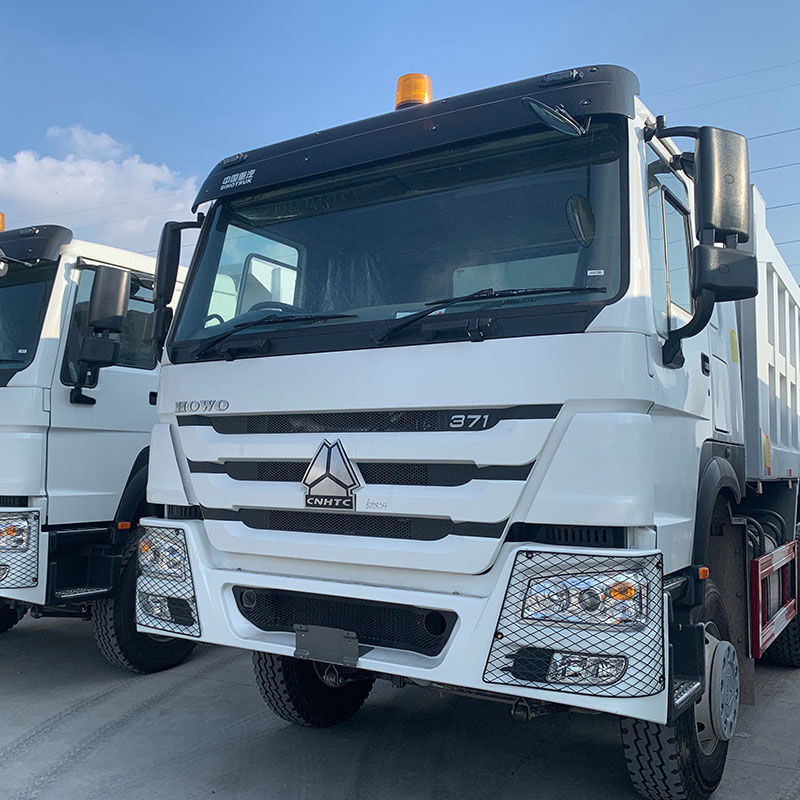

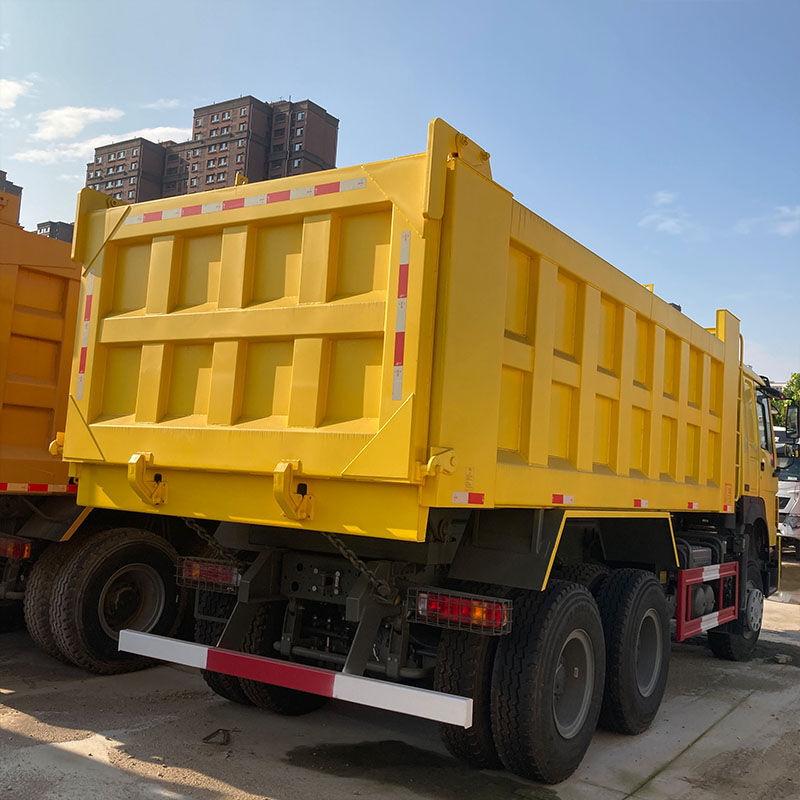

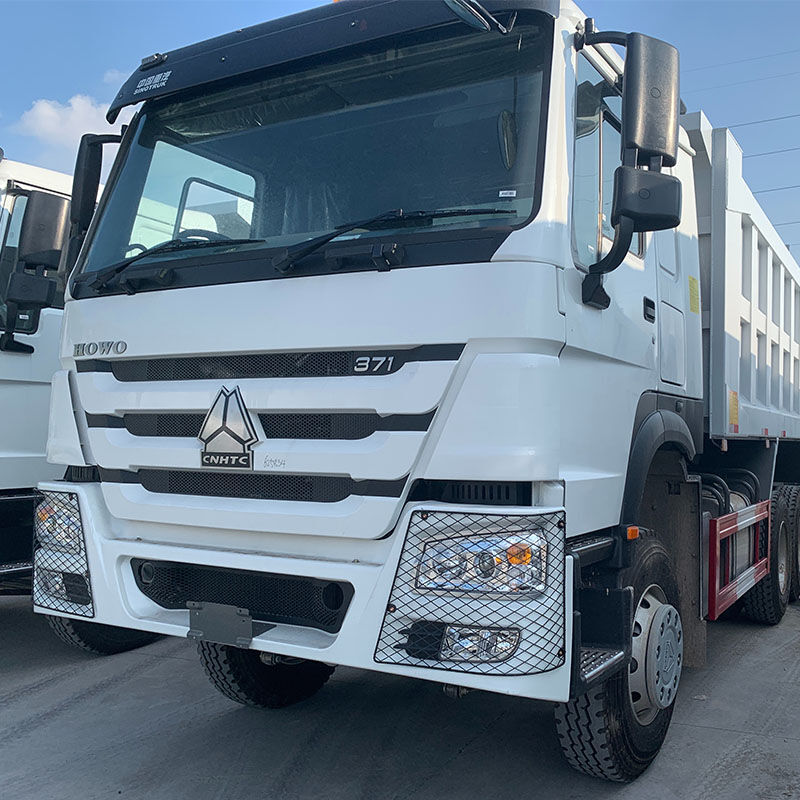

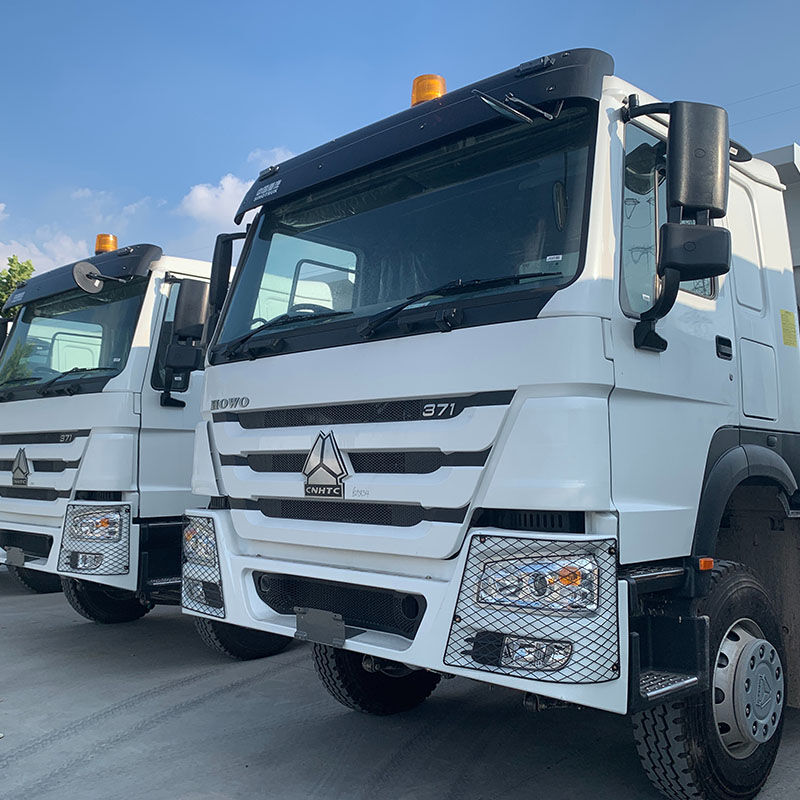

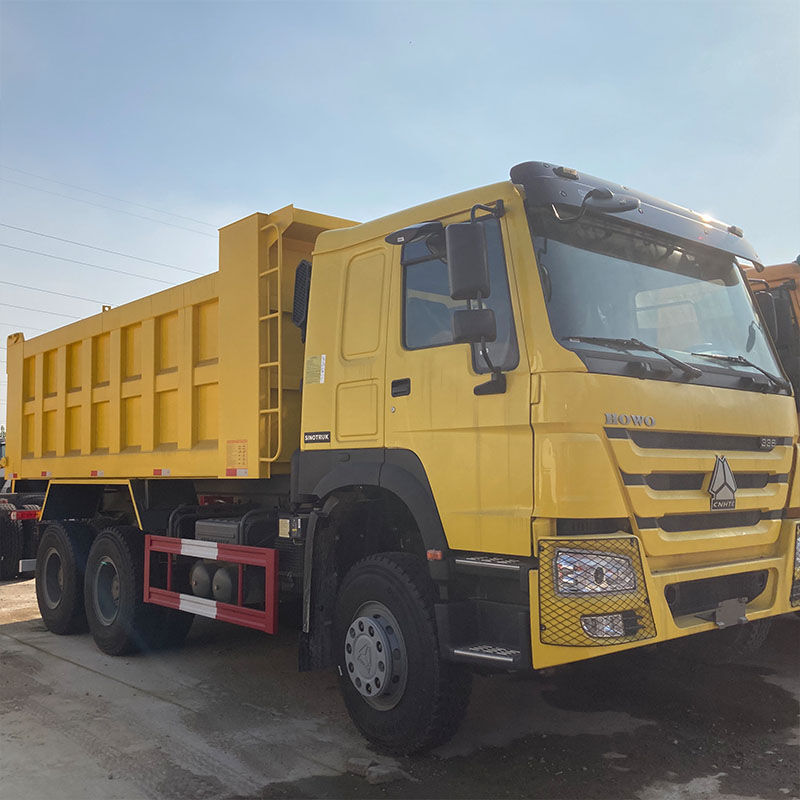

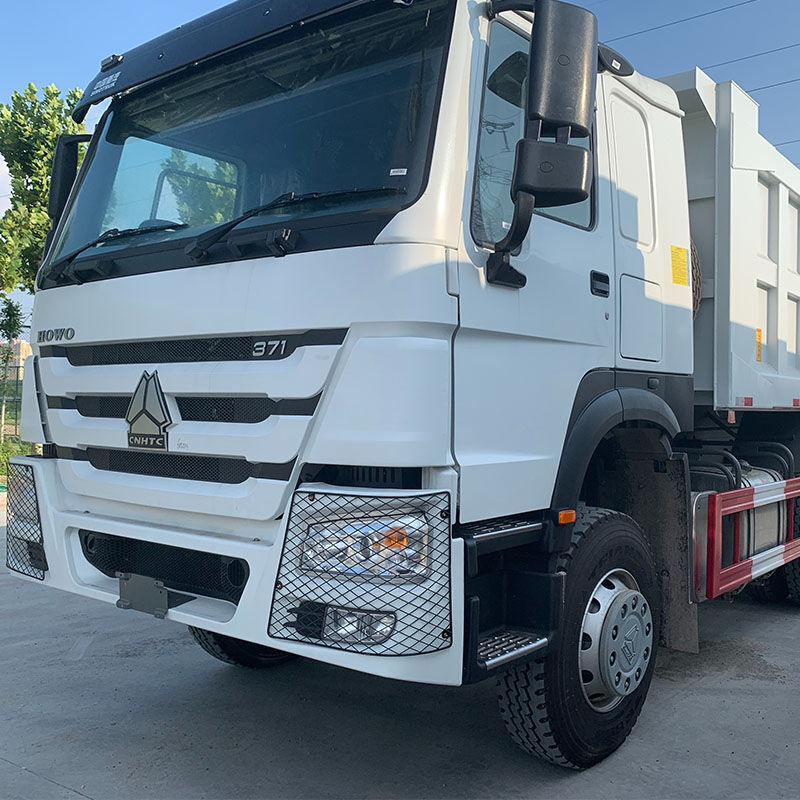

6x4 371 HP Dump Truck | 1 | 38500 USD | 43500 USD | 30th Dec 2018 |
Terms and Conditions | ||||
Delivery time | 35 working days after received the deposit | |||
Payment Term | 30% payment in advance ,70% balance should be made before loading | |||
Warranty | 12 Month or 50000 Miles | |||
Loading port | Tianjin/Qingdao | |||
Destination port | ||||
Contact Person | Seller :SINOTRUCK HOWO SALES CO., LTD. Manufacture : Sinotruck Sale Manager :Alan Contact:1825311298 Email : alan@sinotrucksales.com Quote date : 2018-12-18 Valid Time : 2018-12-30 |
TECH PARAMETERS
Model | ZZ3257N3847C |
Gross Weight (Kg) | 25000 |
Curb Weight (Kg) | 12420 |
Engine | Brand: Sinotruk |
HOWO76 cab, single sleeper with air conditioner,forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds,laminated windscreen withcasted-inradioaerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension 6.Hand Braking valve7. Semitrailer Hand Braking Valve8.Transmission Handdle9.Rocker Switch10.Ashtray11.A/C Control Panel12.Cigarette Lighter | |
Transmission | Model : HW19710 10 forwards and 2 reverse + HW50 PTORatio of Every Gear 1 2 3456789101R2RTorqueWeight14.210.627.85.874.383.262.41.81.341.0013.913.181900363 KG |
Steering Gear | ZF8118,German ZF Hydraulic Steering with Power Assistance |
Clutch | Single Plate 430 diaphragm Spring Clutch |
Number of Axle | 3 |
Front Axle | HF9Howo Drum Brake front axle Capacity 90000KGS Steering with double T-cross section beam |
Driving Axle | HC16,Pressed axle housing, central double reduction with differential locks between axles and wheels Ratio:5.73Loading Capacity: 16000 KGS |
Front/Rear Track (mm) | 2200/1830 |
Overhang(front/rear) (mm) | 1500/1739 |
Wheel base (mm) | 3825+1350 |
Max speed(km/h) | 78 |
Maximum gradeability (%) | 40 |
Approach/departure Angle | 19/26 |
Minimum turning circle (m) | 20 |
Fuel Tank | 300L |
Van Dimension | 5400x2300x1500 18.6 CBMThickness : floor 8MM / Side 6MM Ventral Tipper Hydraulic Lifting |
Suspension | Steer Axle : Parabolic spring with shock absorber and stabilizerDrive Axle :Parabolic spring with divided balance shaft and stabilizer |
Electric System | Battery :2X12V/165AhAlternator :28V-1500kwStarter :7.5Kw/24V |
Braking System | Service brake:Dual circuit compressed air brake Parking brake:spring energy, compressed air operating on rear wheels Auxiliary brake:Engine exhaust brake |
Color | Standard : Red, yellow,Green,White,Blue,BlackOptional :As you like |
Overall Dimension(L xW xH MM) | 8500X2496X3450 |
Options | ABS, Electrical Tilting Cab |

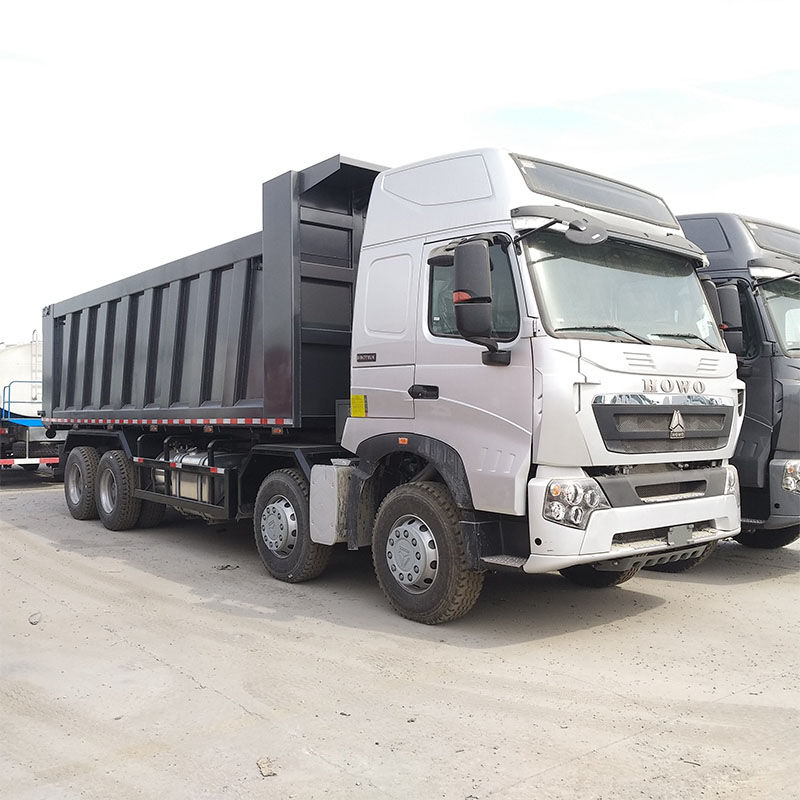

TRUCK SHOW
SINOTRUK -- THE CRADLE OF CHINESE HEAVY-DUTY TRUCK
CHASSIS MANUFACTURE
BOX ASSEMBLE
ADVANTAGES
SHIPMENT WAYS
3 units to Congo By Ro-ro Ship
2 units to Ghana By Bulk ship
EXPORT RECORD
