SPECIFICATION Of 371HP 10m3 6x4 wheeler Concrete Mixer Truck

Chassis model	ZZ1257N3841W (Overall dimension: 8560x2496x3800mm)
Engine	WD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.
Cabin	HW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.
Clutch	∮430 diaphragm spring clutch, hydraulic control air power assisted.
Transmission	HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m
Drive Axle	HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.
Front Axle	HF9, 9ton, drum brake
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO
	Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer
	Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel
	Fuel tank: 300 L capacity, with locking fuel cap
Steering	ZF8118, hydraulic steering with power assistance, LHD
Brake system	Service brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.
Tyre	12.00R20 Radial plus one spare tyre (11 units)
Mixing Tank	Effective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm
Other Specification	With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor

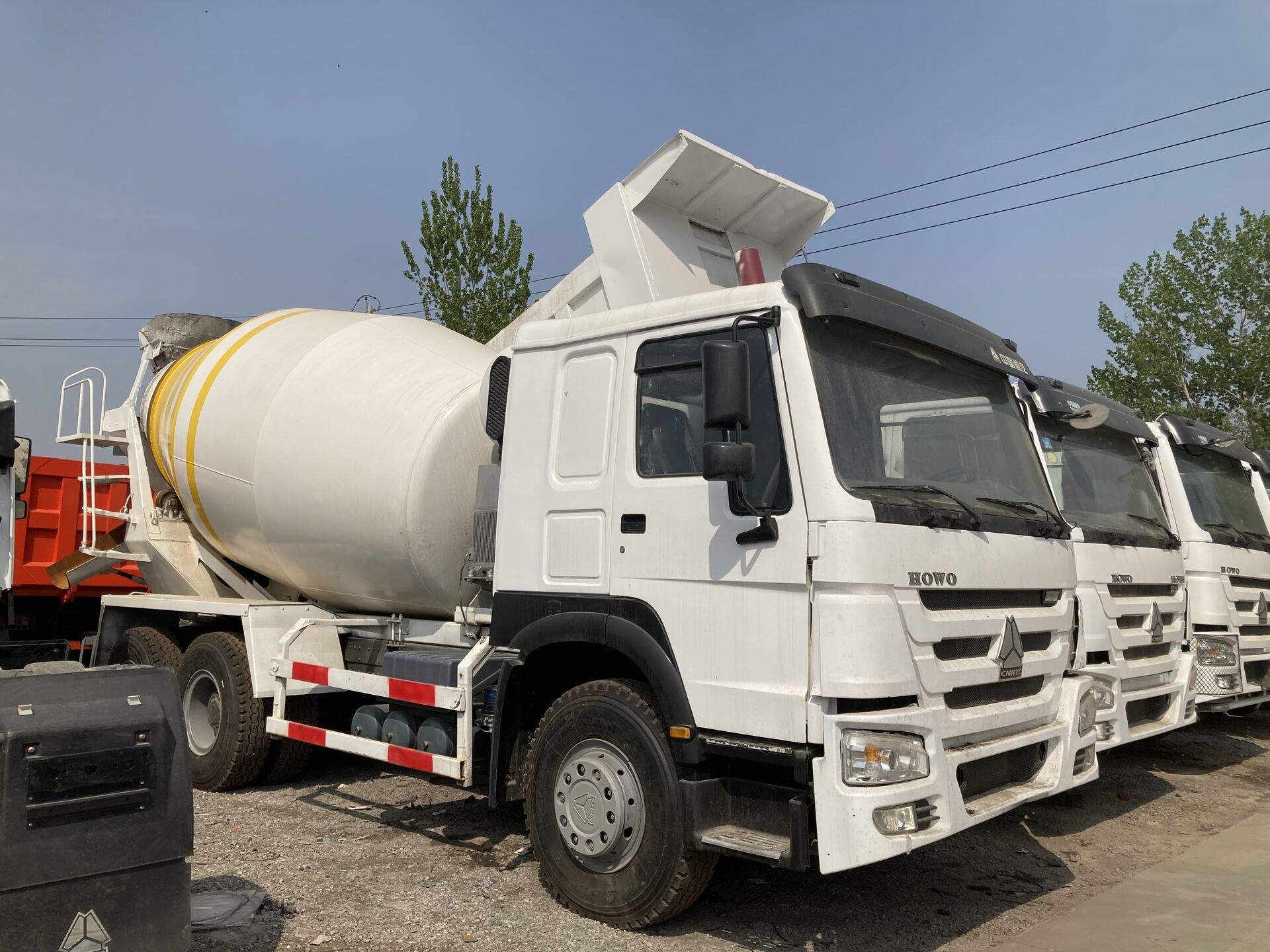

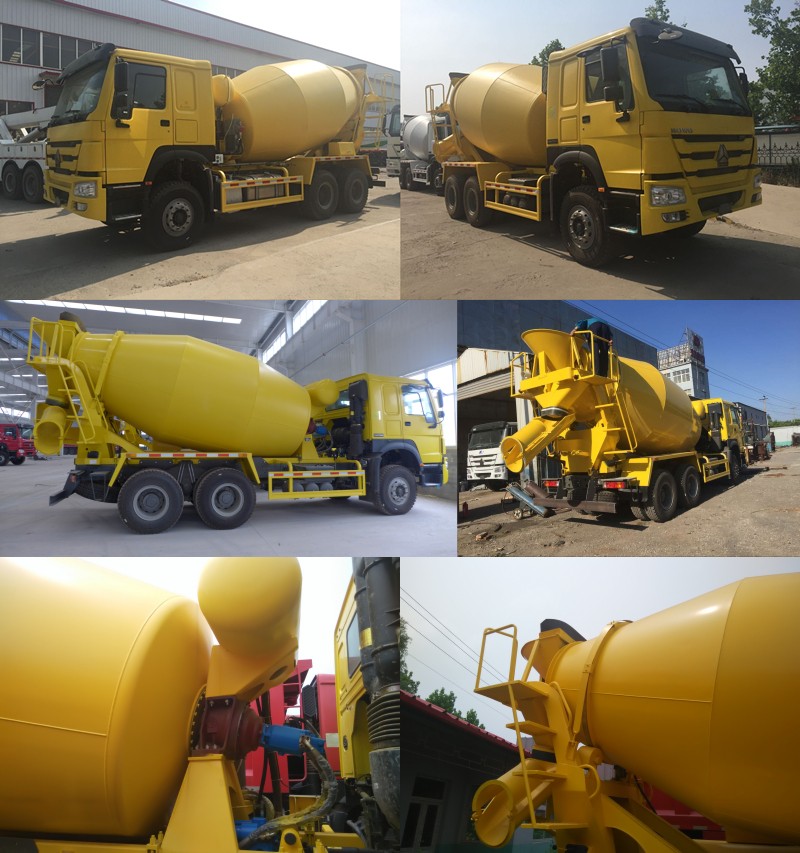

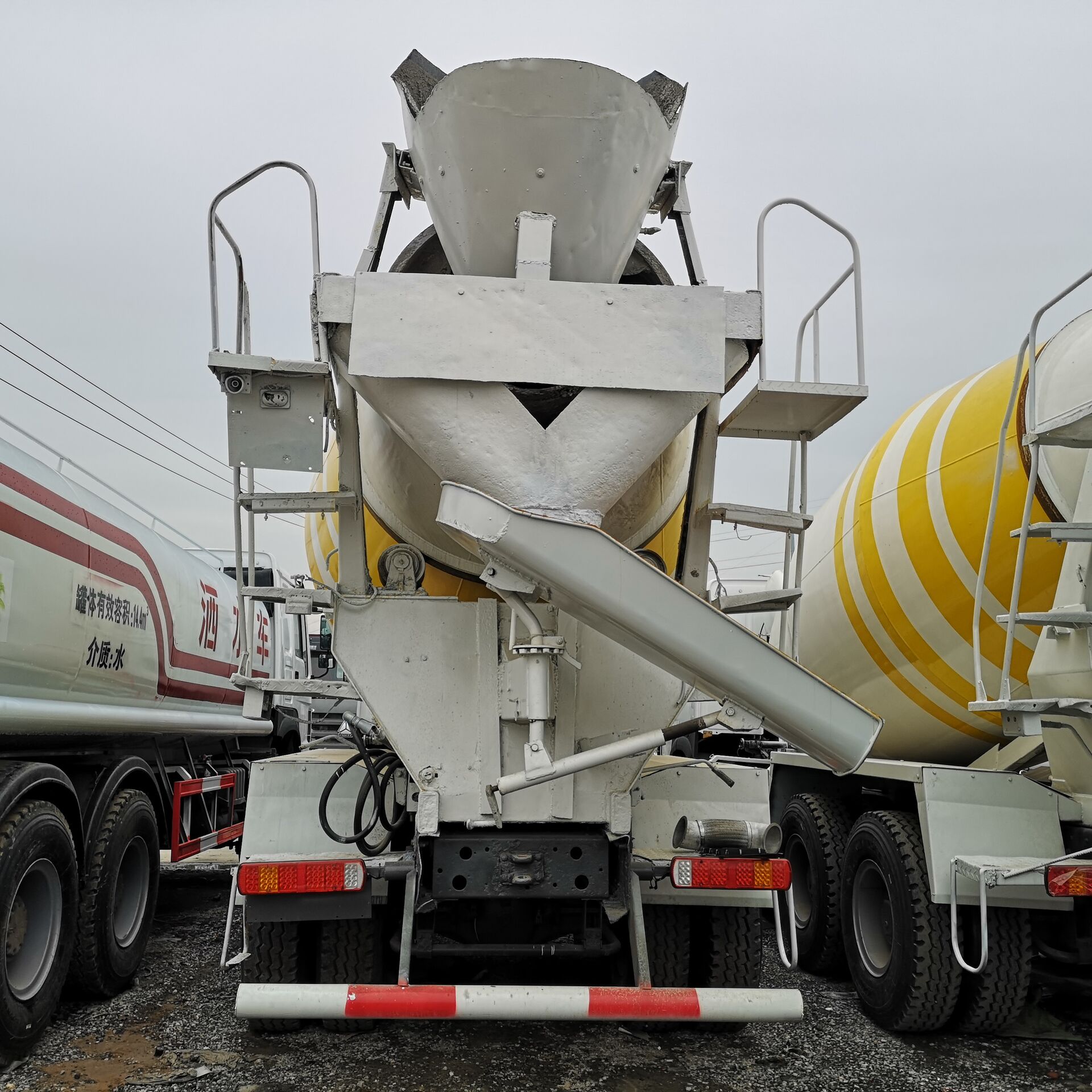

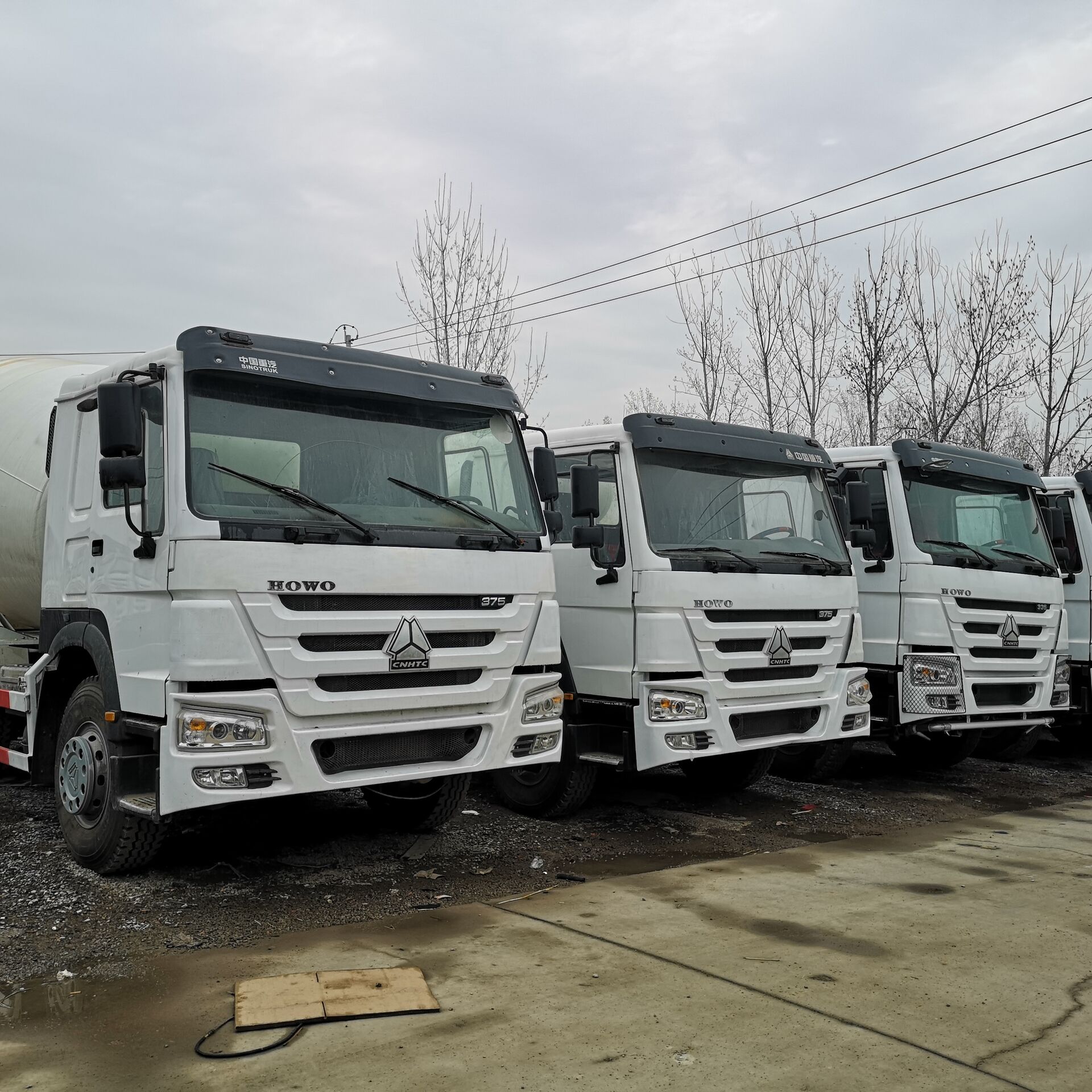

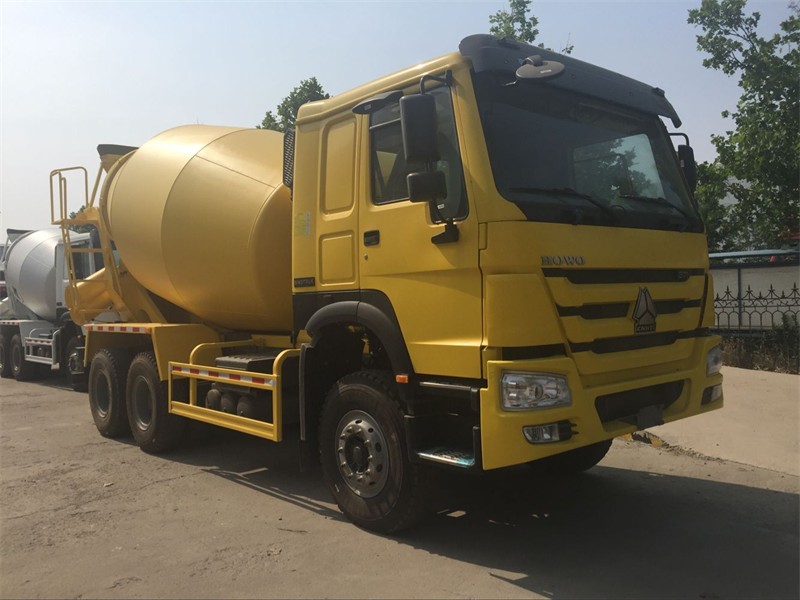

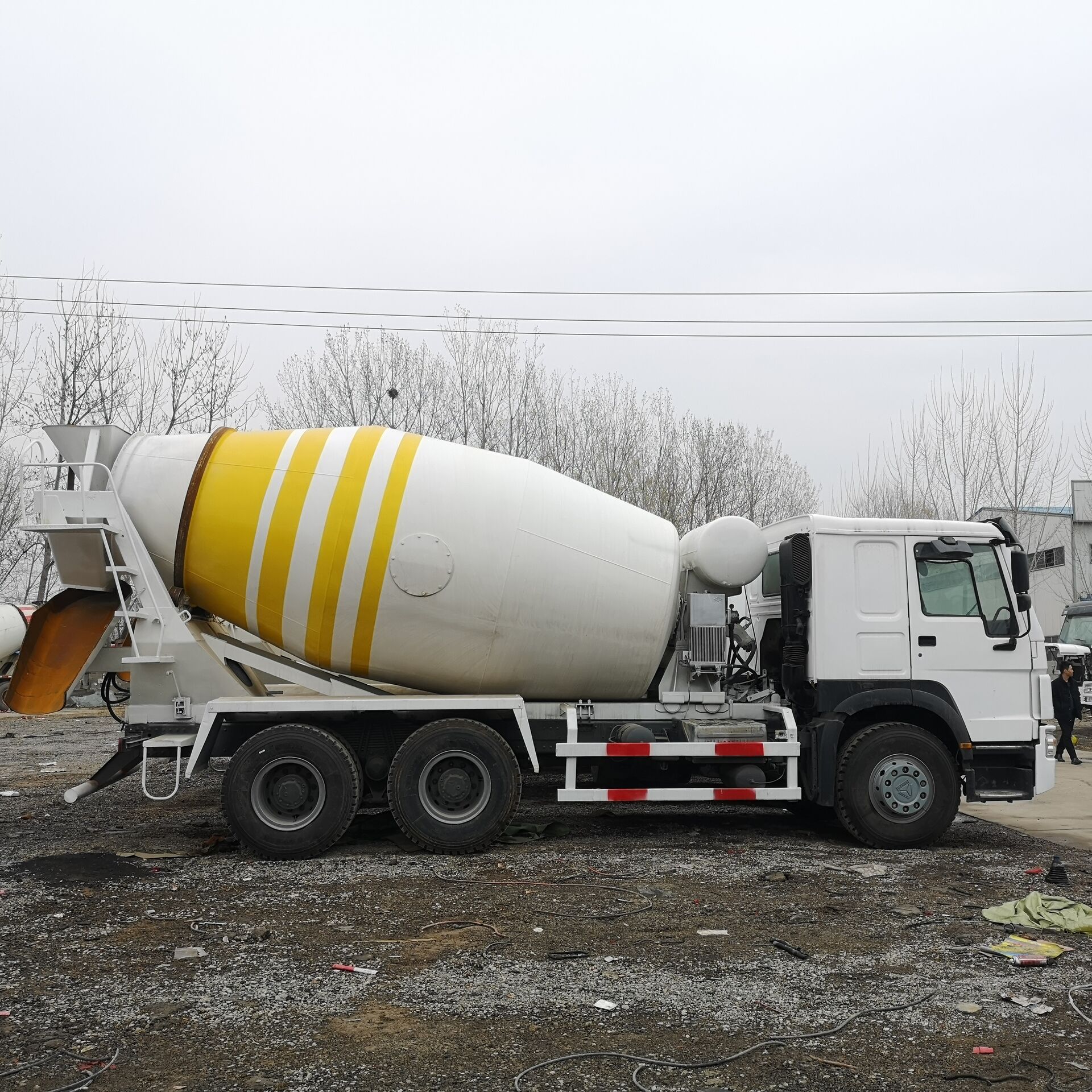

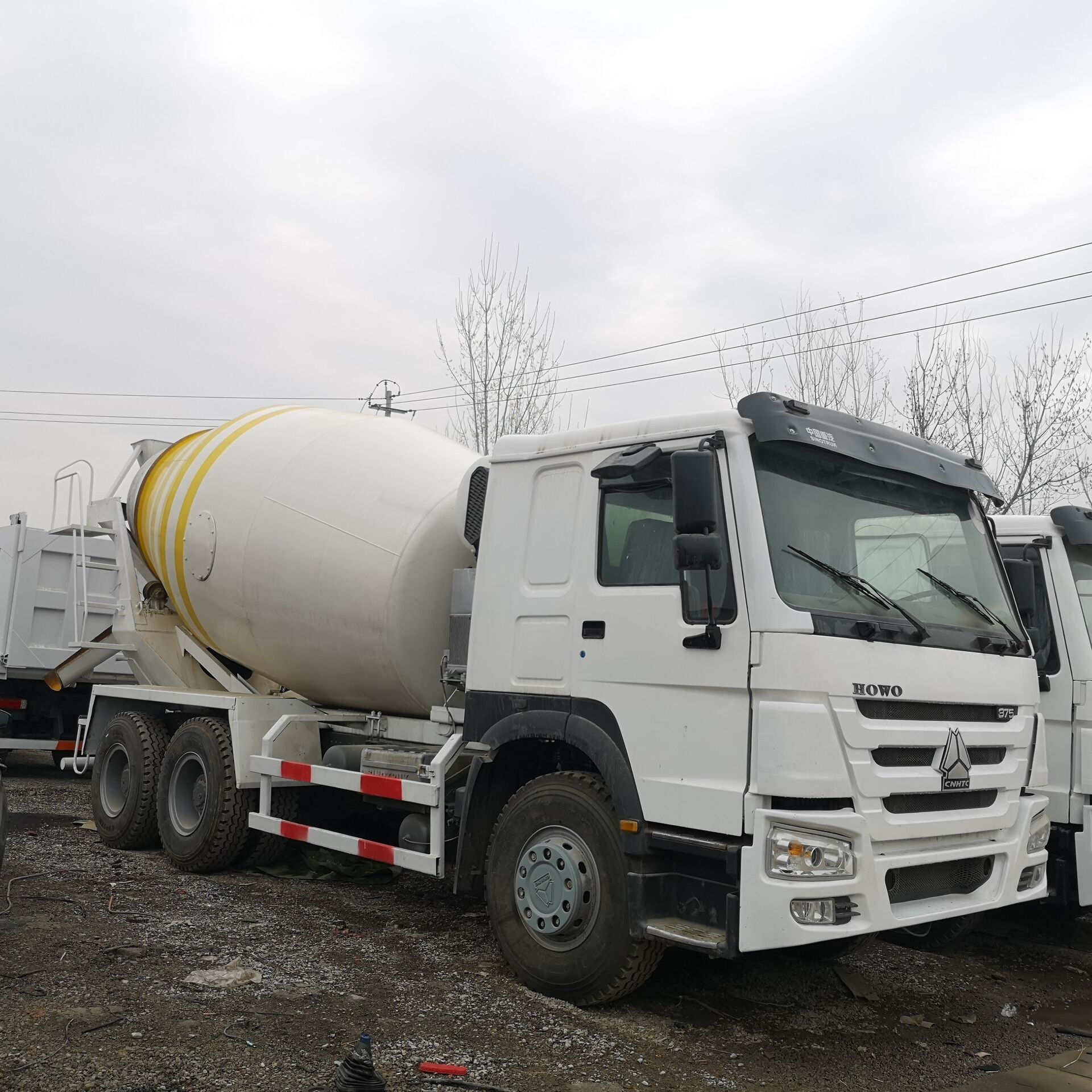

There are our pictures for your reference only.

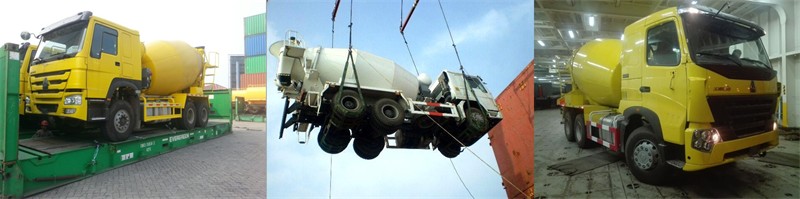

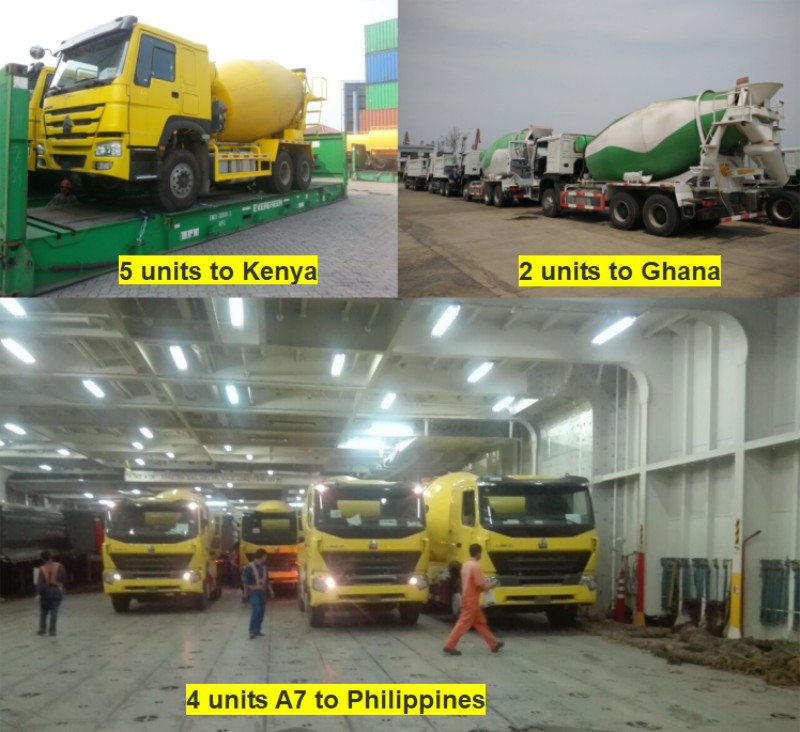

Shipping by flat rack      by bulk cargo ship       by roro ship

Mixer truck exported to Various companies.
