| Model | ZZ3257N3847C |
| Gross Weight (Kg) | 25000 |
| Curb Weight (Kg) | 12420 |

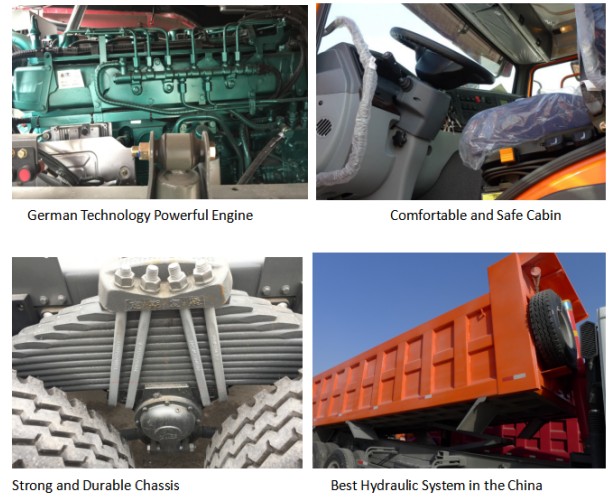

Engine
| Brand: Sinotruk
Diesel engine: 4-stroke direct injection
Diesel engine model: WD615.47 371
HP Euro II emission standard, 6-cylinder water-cooled,
Direct injection cylinder bore x stroke: 126mmx130mm
Maximum output: 371HP at 2200rmp
Displacement: 9.726LFuel: Diesel |

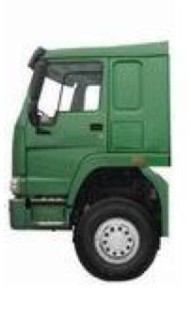

Cabin

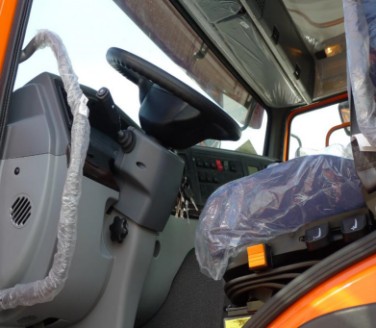

| HOWO76 cab, single sleeper with air conditioner,forward control,55ºhydraulically tiltable to the front,
2- arm windscreen wiper system with three speeds,laminated windscreen withcasted-inradioaerial, hydraulically damped adjustable driver’s

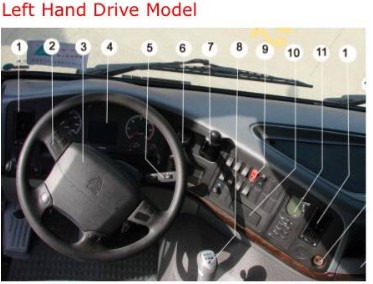

seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension 1.Warm wind 2.Horn Button3.Sterring Wheel4.combination Instrument5 Cruise Swith 6.Hand Braking valve7. Semitrailer Hand Braking Valve8.Transmission Handdle9.Rocker Switch10.Ashtray11.A/C Control Panel12.Cigarette Lighter
|
| Transmission | Model : HW19710 10 forwards and 2 reverse + HW50 PTORatio of Every Gear 1 2 3456789101R2RTorqueWeight14.210.627.85.874.383.262.41.81.341.0013.913.181900363 KG |
| Steering Gear | ZF8118,German ZF Hydraulic Steering with Power Assistance |
Clutch
| Single Plate 430 diaphragm Spring Clutch |
| Number of Axle | 3 |
Front Axle
| HF9Howo Drum Brake front axle Capacity 90000KGS Steering with double T-cross section beam |
Driving Axle
| HC16,Pressed axle housing, central double reduction with differential locks between axles and wheels Ratio：5.73Loading Capacity: 16000 KGS |
| Front/Rear Track (mm) | 2200/1830 |
| Overhang(front/rear) (mm) | 1500/1739 |
| Wheel base (mm) | 3825+1350 |
| Max speed（km/h） | 78 |
| Maximum gradeability (%) | 40 |
| Approach/departure Angle | 19/26 |
| Minimum turning circle (m) | 20 |
| Fuel Tank | 300L |

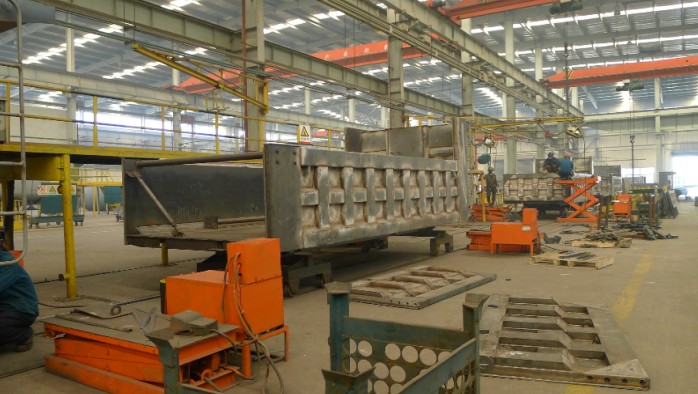

| Van Dimension | 5400x2300x1500 18.6 CBMThickness : floor 8MM / Side 6MM Ventral Tipper Hydraulic Lifting |
| Suspension | Steer Axle : Parabolic spring with shock absorber and stabilizerDrive Axle :Parabolic spring with divided balance shaft and stabilizer |
| Electric System | Battery :2X12V/165AhAlternator :28V-1500kwStarter :7.5Kw/24V |
| Braking System | Service brake:Dual circuit compressed air brake Parking brake:spring energy, compressed air operating on rear wheels Auxiliary brake:Engine exhaust brake |
| Color | Standard : Red, yellow,Green,White,Blue,BlackOptional :As you like |
| Overall Dimension(L xW xH MM) | 8500X2496X3450 |
| Options | ABS, Electrical Tilting Cab |
1.Warm wind 2.Horn Button3.Sterring Wheel4.combination Instrument5 Cruise Swith
