Specification
Truck Model | ZZ4257V3249W (Right Hand Drive) |
Dimension(Lx W xH)(mm) | 6800x2496x2958 |
Approaching angle/Departure angle(°) | 16/70 |
Overhang(front/rear) (mm) | 1500/700,725 |
Wheel base (mm) | 3200+1400,3225+1350 |
Max speed(km/h) | 102 |
Curb weight(kg) | 11930 |
Loading Weight(kg) | 40000 |
Engine(Steyr technology, made in China) | Model | D12.42,water-cooled,four Strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
Fuel type | Diesel |
Horse Power,max | 420HP |
Emission | EURO2 |
Fuel tanker capacity(L) | 400 |
Transmission | Model | HW19710 |
Brake system | Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels |
Steering system | Model | ZF8118 |
Front axle | HF9 |
Rear axle | HC16 |
Color | Red, can be optional |
Tyre | 1200R20 11pics |
Electrical system | Battery | 2X12V/165Ah |
Alternator | 28V-1500kw |
Starter | 7.5Kw/24V |
Cab | HW76,(one sleeping, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |

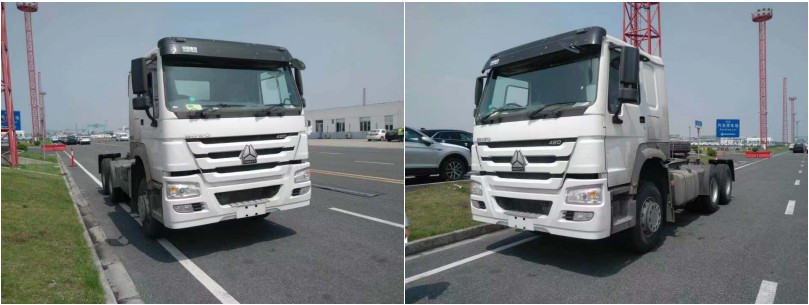

1/ Truck details:
![图片42.png 图片42.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_302,limit_0)
2-1/ By bulk shipment
2-2/ By roro shipment
![图片44.png 图片44.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_201,limit_0)
2-3/ By flat rack shipment
![3.jpg 3.jpg](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_433,limit_0)
3/ Our factory production line
![图片36.png 图片36.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_598,limit_0)
4/ Our customers like our trucks very much,here are the comments
![图片37.png 图片37.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_381,limit_0)
5/ Customers put our cement tank trailers into use
![图片38.png 图片38.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_323,limit_0)
6-1/ 22 trucks to Tanzania
![图片39.png 图片39.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_205,limit_0)
6-2/ 20 trucks to Mauritania
![图片40.png 图片40.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_201,limit_0)
6-3/ 10 trucks to Nigeria
![图片41.png 图片41.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_198,limit_0)
