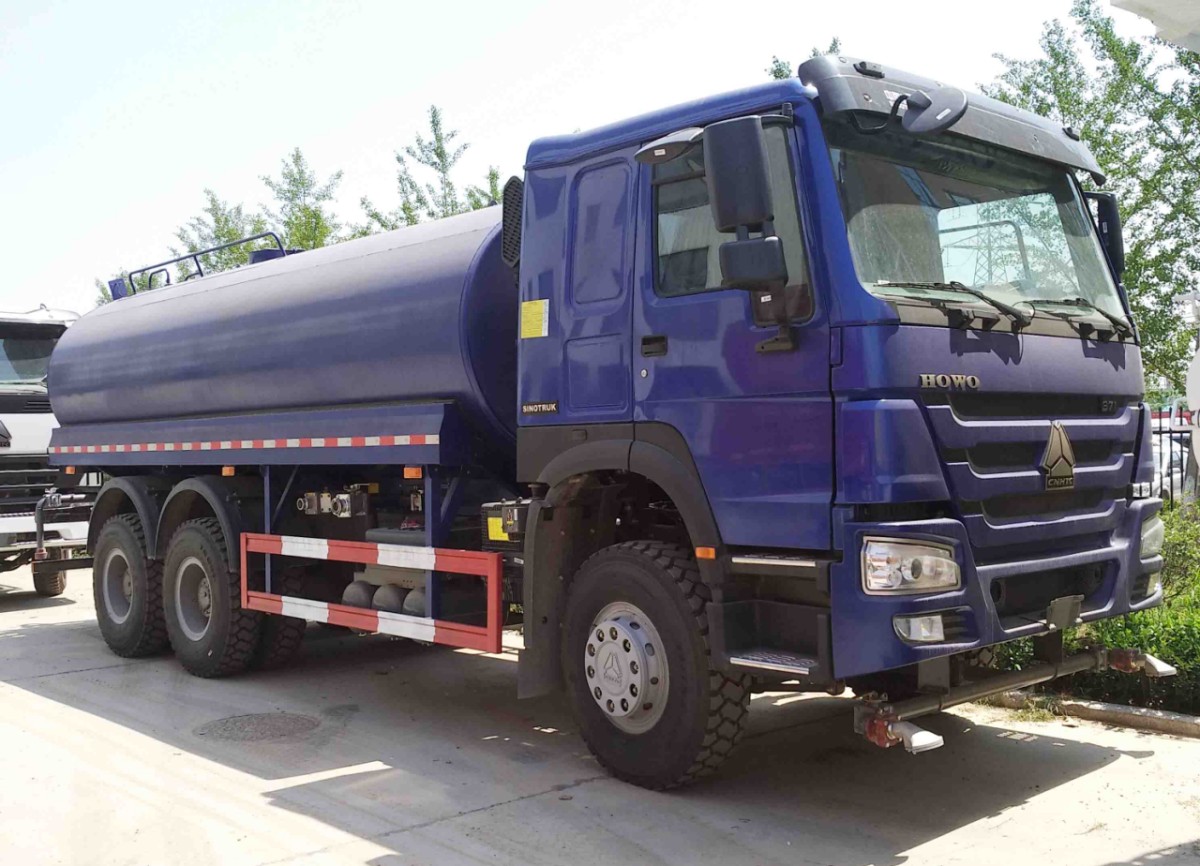

HOWO 6x4 water sprinkle truck
| Truck Model | ZZ1257N4347A1 |
| Truck Brand | SINOTRUK –HOWO |
| Driving Style | Left Hand Driving |
| Tank body volume | 20M3 |
| Approaching angle/Departure angle（°） | 19/26 |
| Overhang(front/rear) (mm) | 1500/1739 |
| Wheel base (mm) | 4350+1350(mm) |
| Max speed（km/h） | 75 |
| Maximum gradeability (%) | 40 |
| Minimum ground clearance(mm) | 314 |
| Minimum turning circle (m) | 20 |
| Curb weight（kg） | 12290 |
| Loading Weight（kg） | 25000 |
| Fuel tanker capacity（L） | 300 |
| Fuel consumption(L/km) | 28L/100 km |
| Clutch | Single-plate dry clutch Φ430mm |
| Engine Model(Steyr technology, made in China) | Fuel type | Diesel |
| Horse Power, max（kw/rpm） | 336HP |
| Emission | EURO II |
| Model | WD engine 4 Stroke Direct Injection Diesel |
| Bore | 126mm |
| Stroke | 130mm |
| Compression ratio | 29.8hp/l |
| Specific fuel consumption | 195g/kwh |
| Transmission | Model | HW19710 |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | Model | ZF8098 Hydraulic Steering with power assistance. |
| Front axle | HF7, Steering with double T-cross section beam |
| Rear axle | ST16, Pressed axle housing, central double reduction with differential locks between axles and wheels REAR AXLE RATIO: 5.73 |
| Color | Optional (White ,Red ,yellow ) |
| Tyre | 295/80R22.5 x 11pcs(with one spare tyre) |

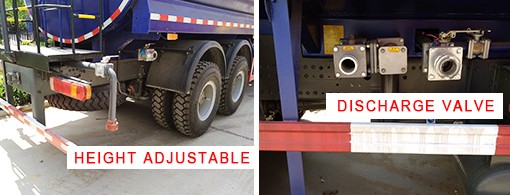

| Ground Clearance | Ground Clearance of front spray nozzle: 470mm; |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Cab | HW76, single sleeper with air conditionerall-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |

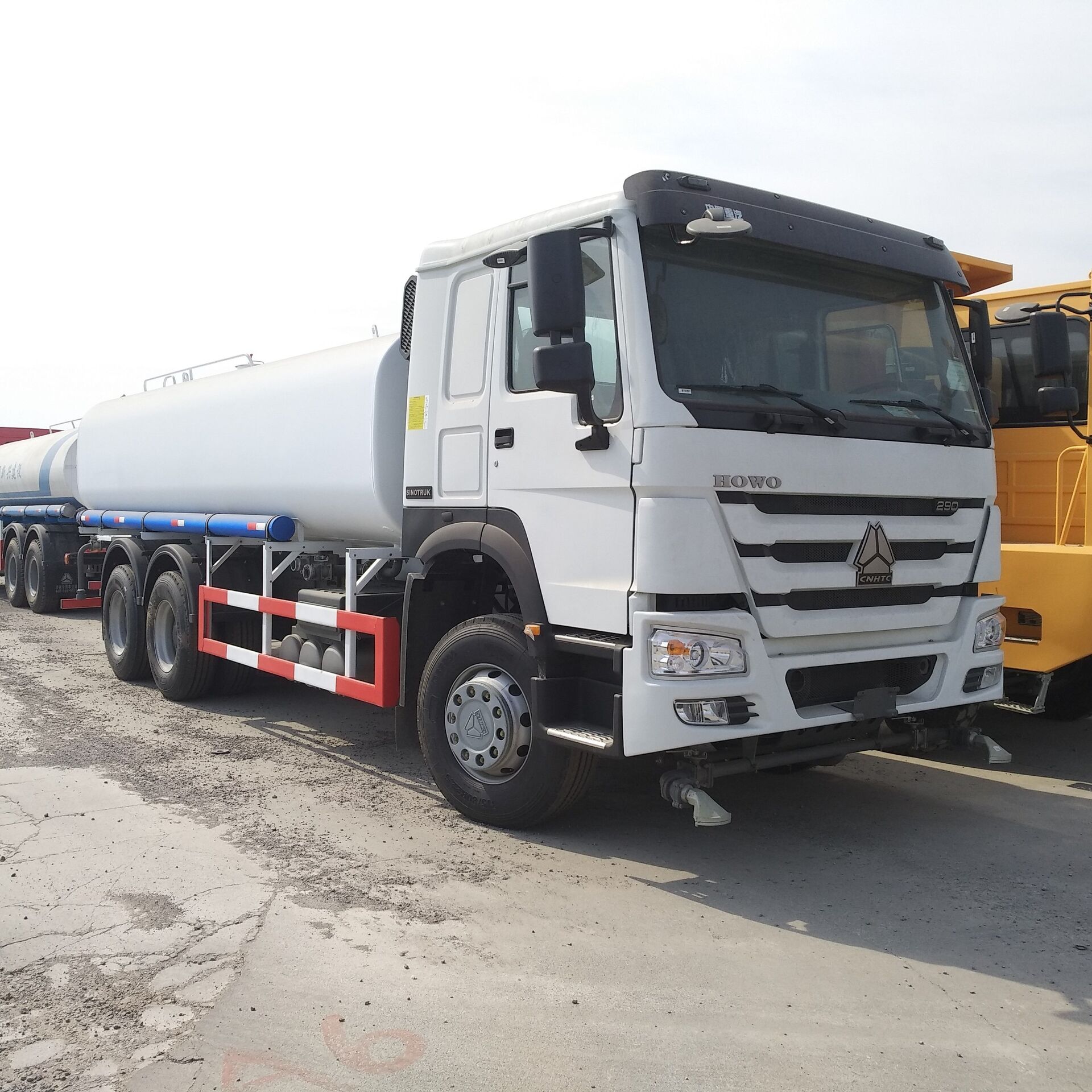

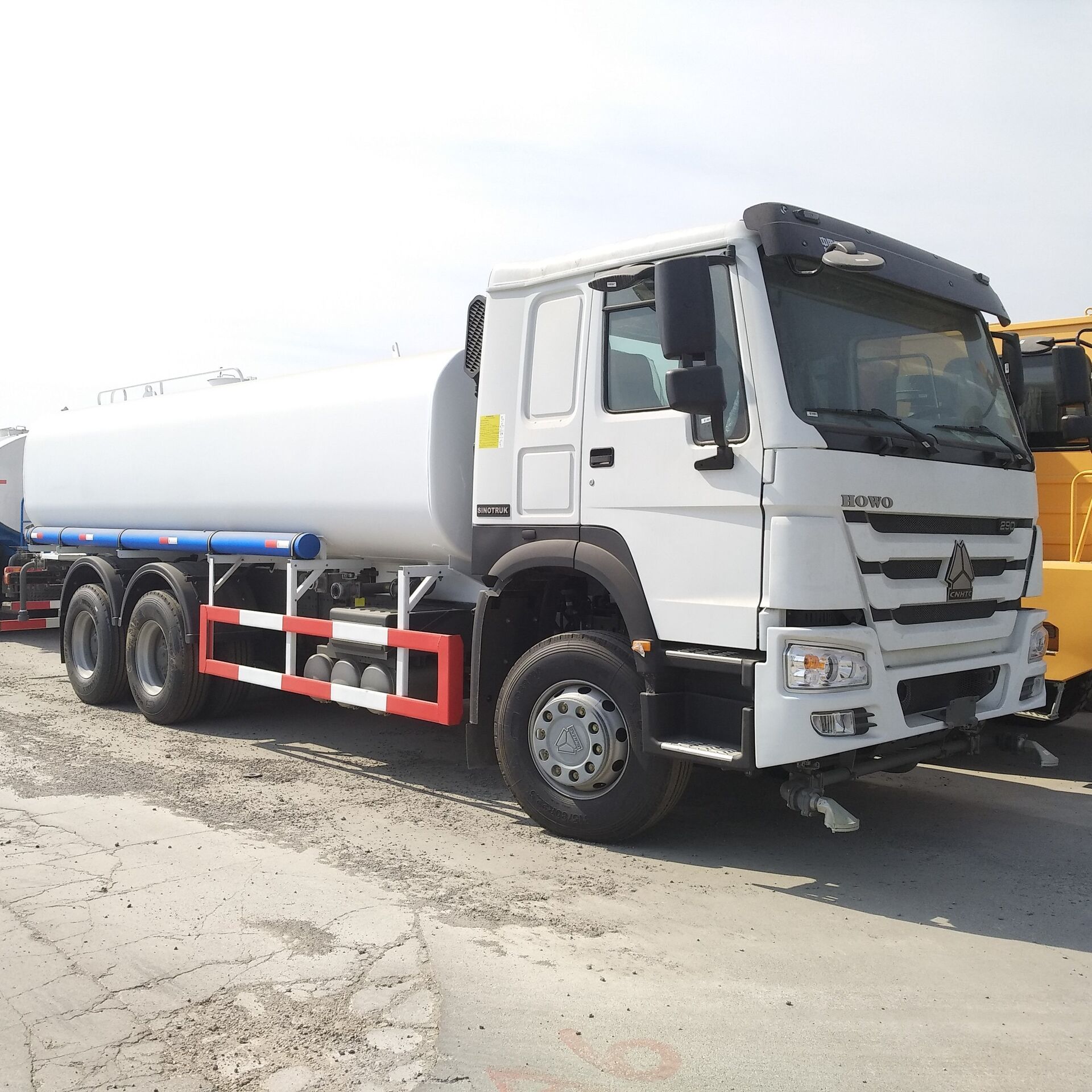

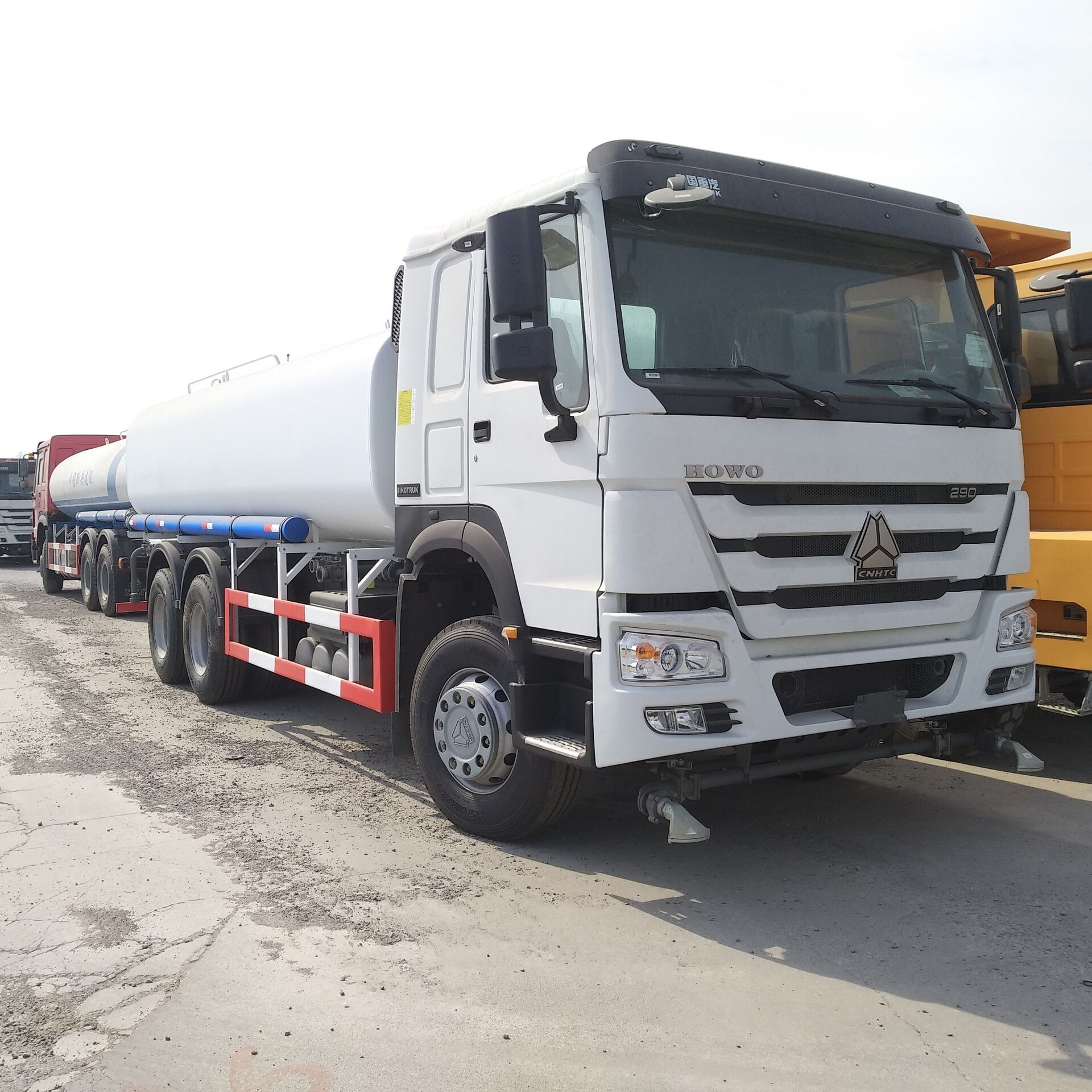

Water tank truck
