Product Introduction


SPECIFICATION Of 371HP 10m3 6x4 wheeler Concrete Mixer Truck



Chassis modelZZ1257N3841W (Overall dimension: 8560x2496x3800mm)
EngineWD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.
CabinHW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.
Clutch∮430 diaphragm spring clutch, hydraulic control air power assisted.
TransmissionHW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m
Drive AxleHC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.
Front AxleHF9, 9ton, drum brake
ChassisFrame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO

Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer

Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel

Fuel tank: 300 L capacity, with locking fuel cap
SteeringZF8118, hydraulic steering with power assistance, LHD
Brake systemService brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.
Tyre12.00R20 Radial plus one spare tyre (11 units)
Mixing TankEffective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm

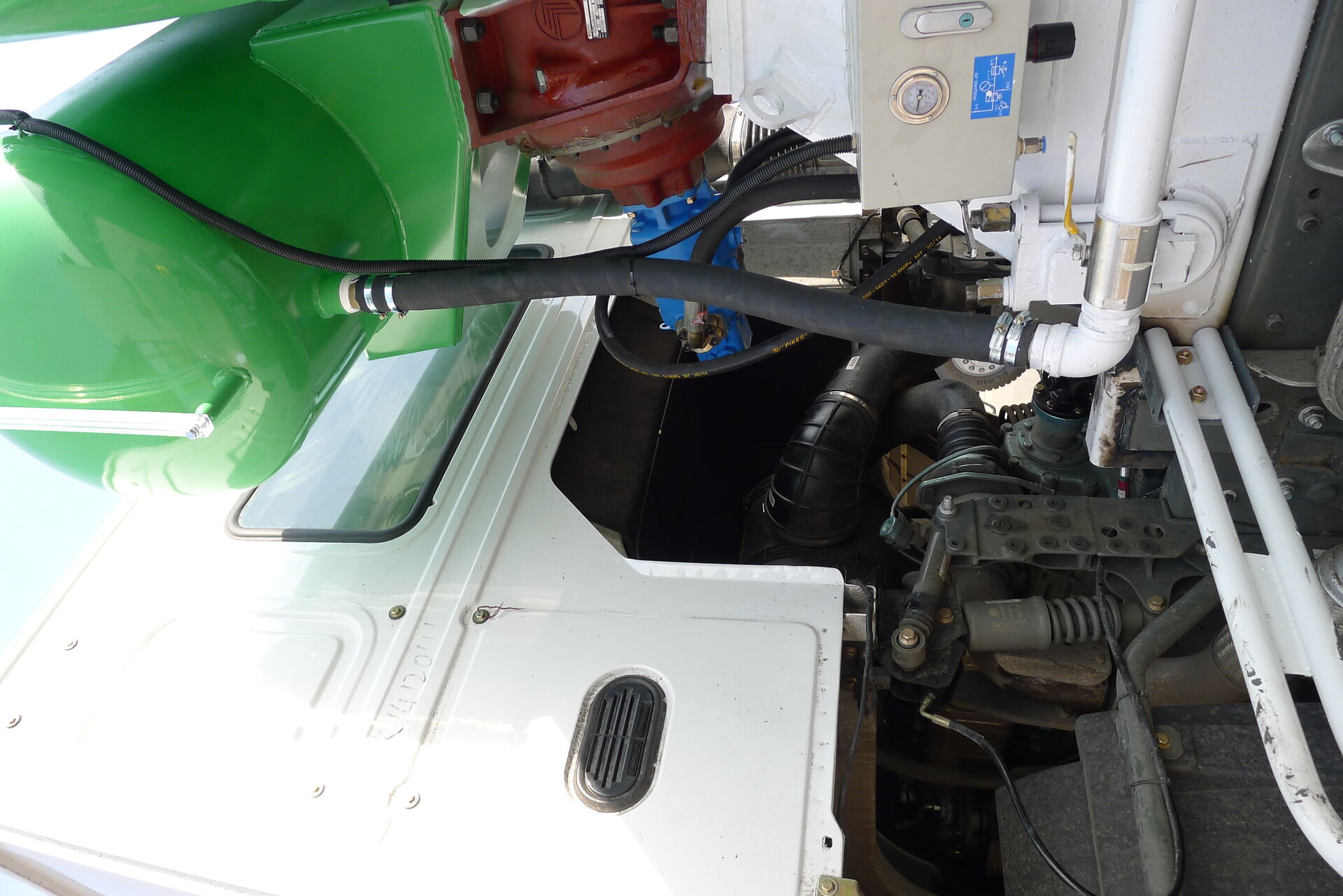

Other SpecificationWith Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor

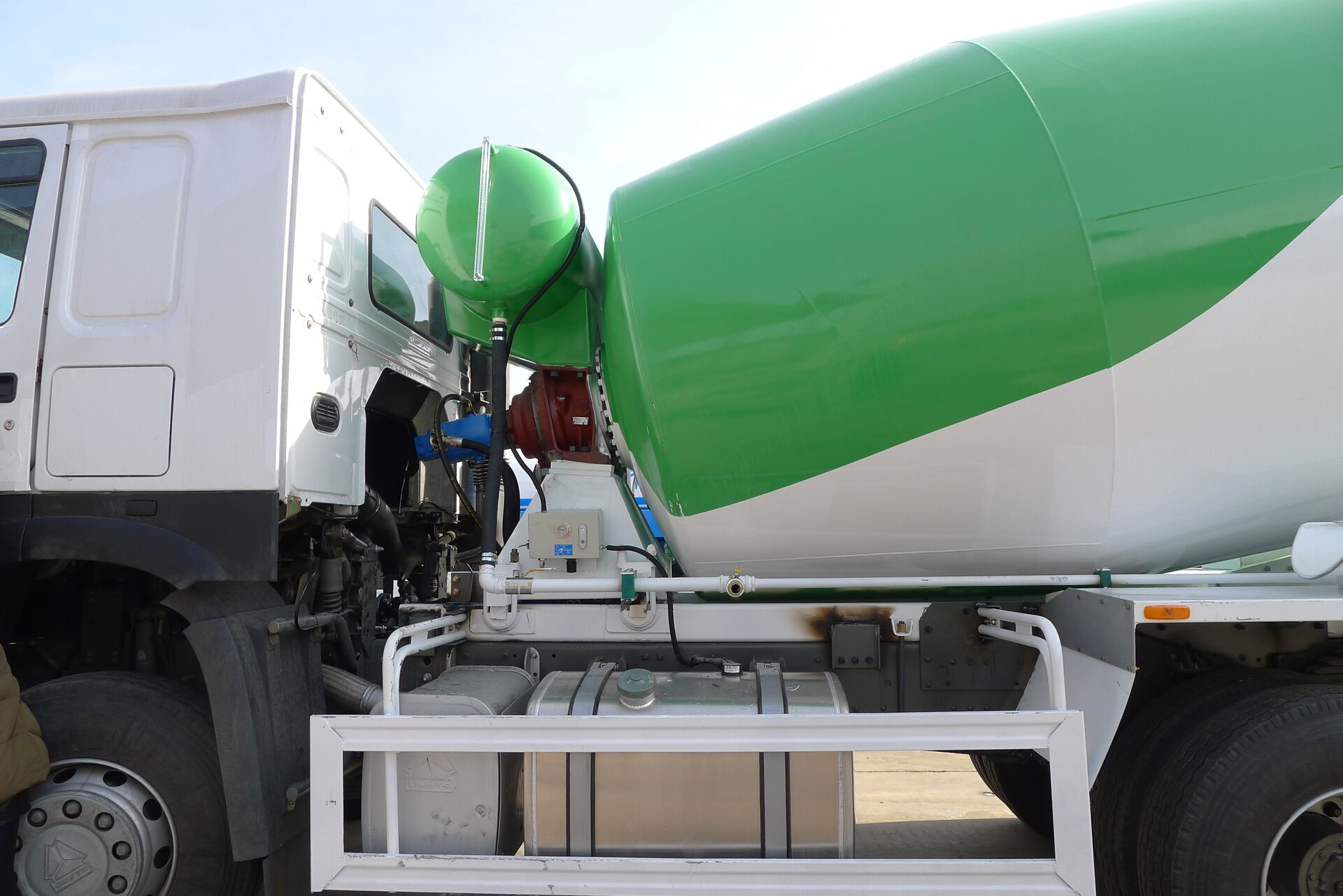

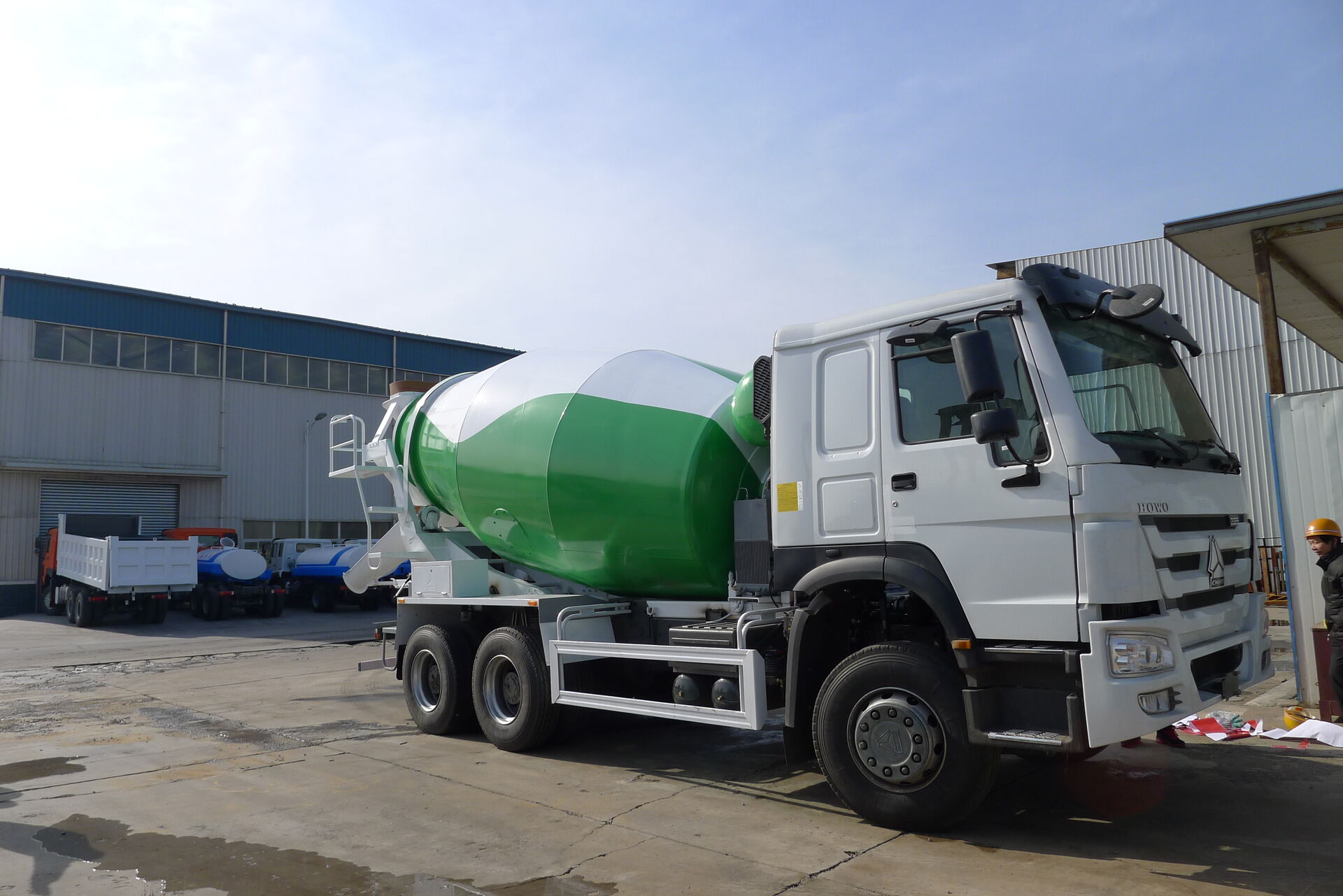

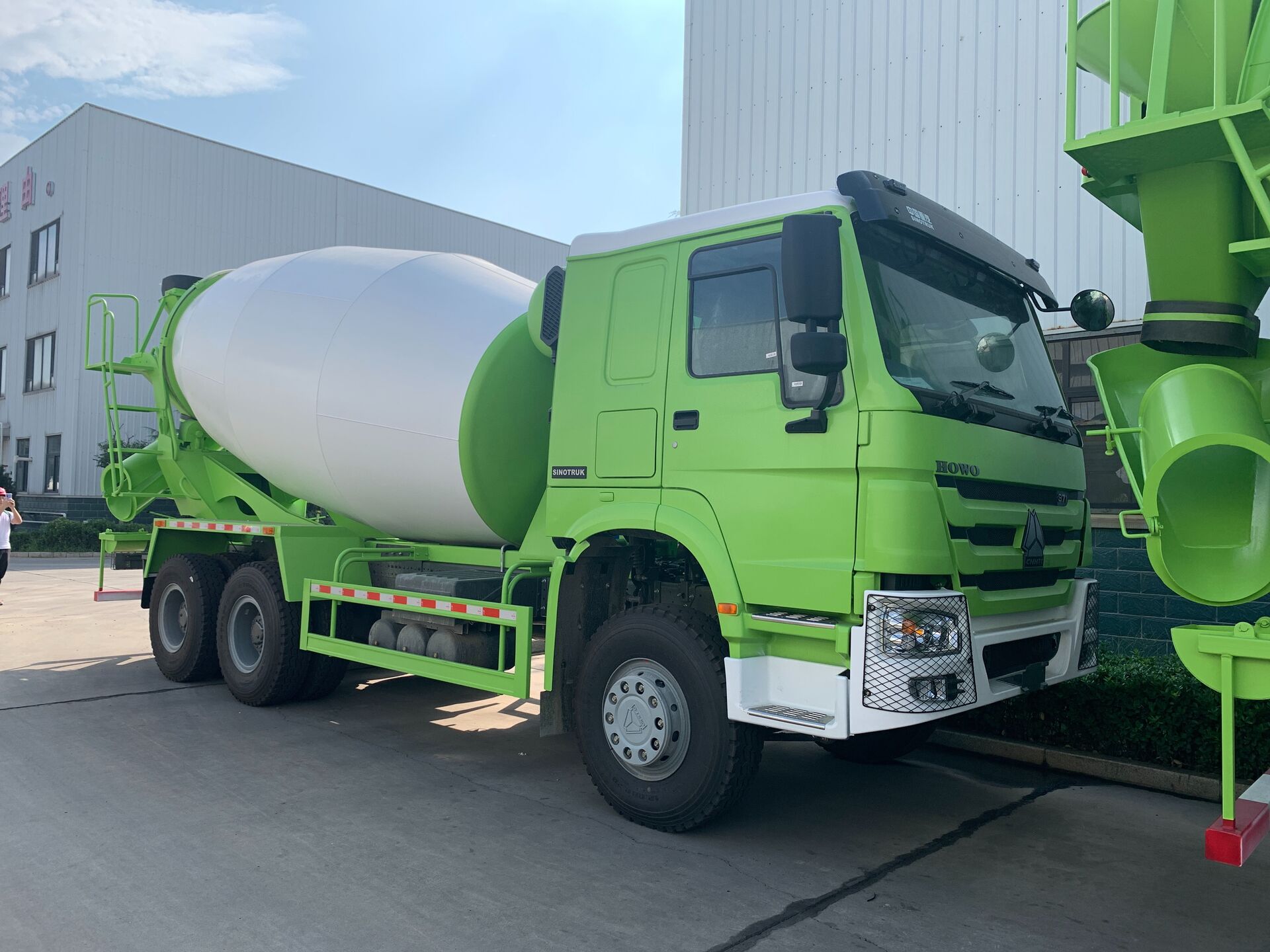

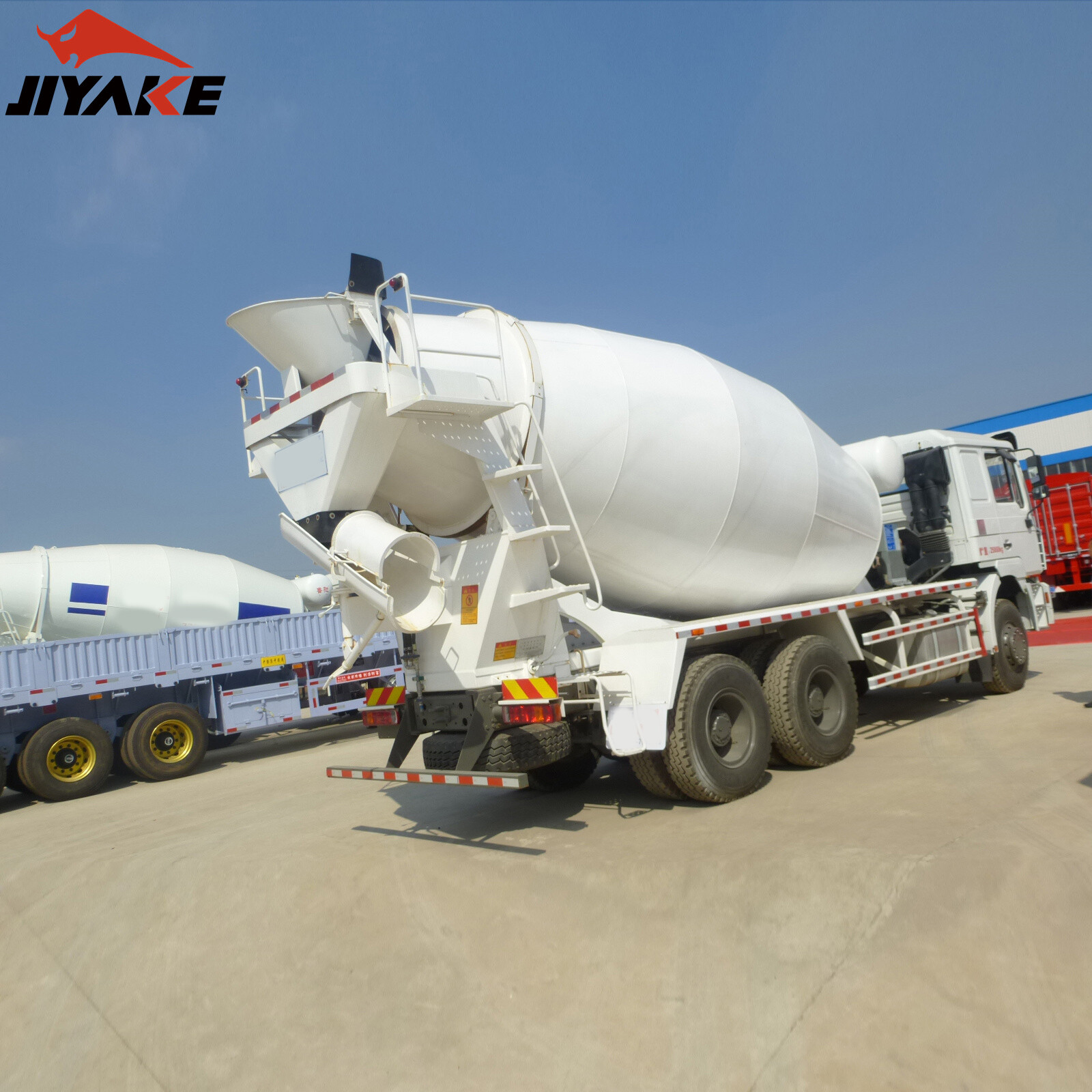

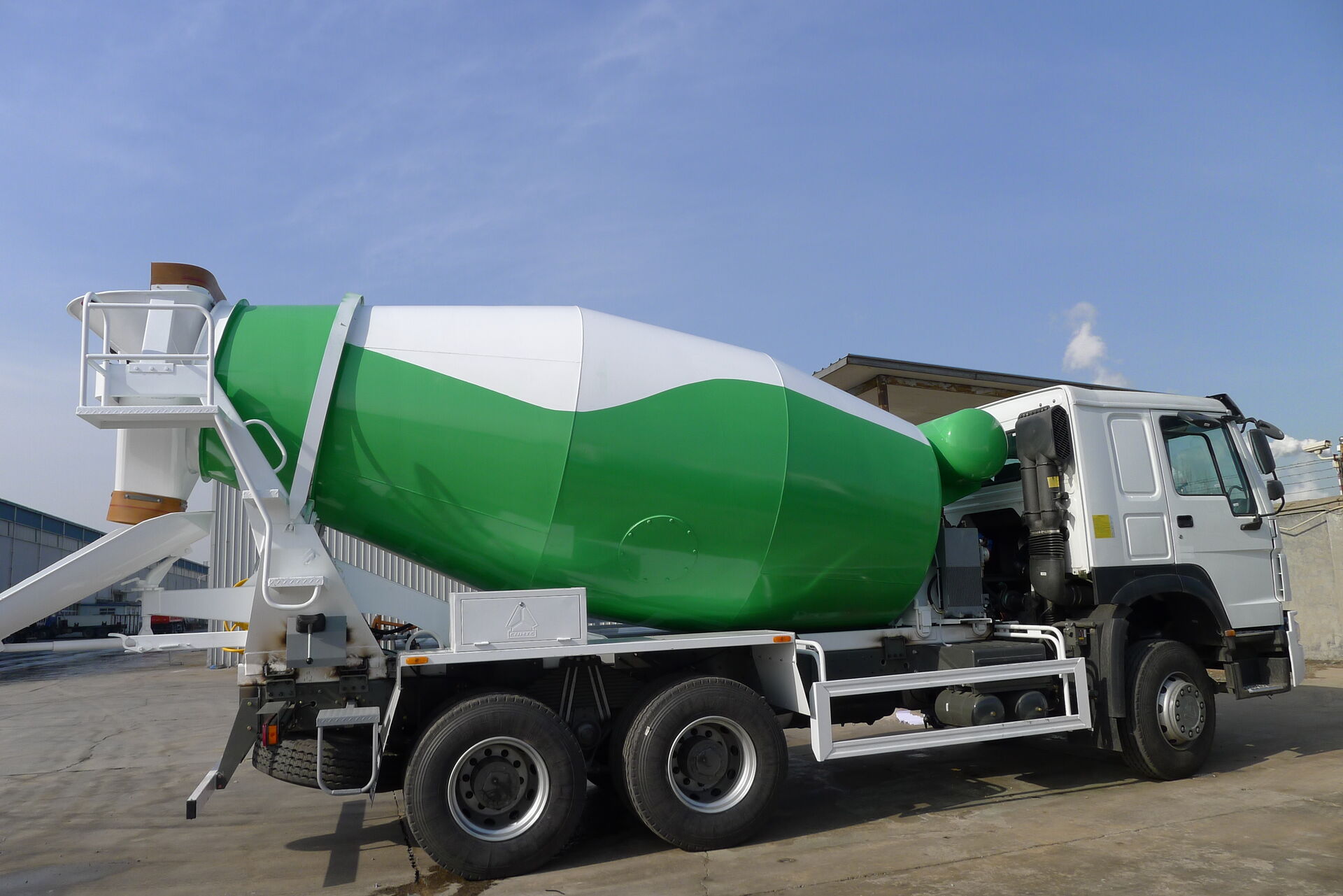

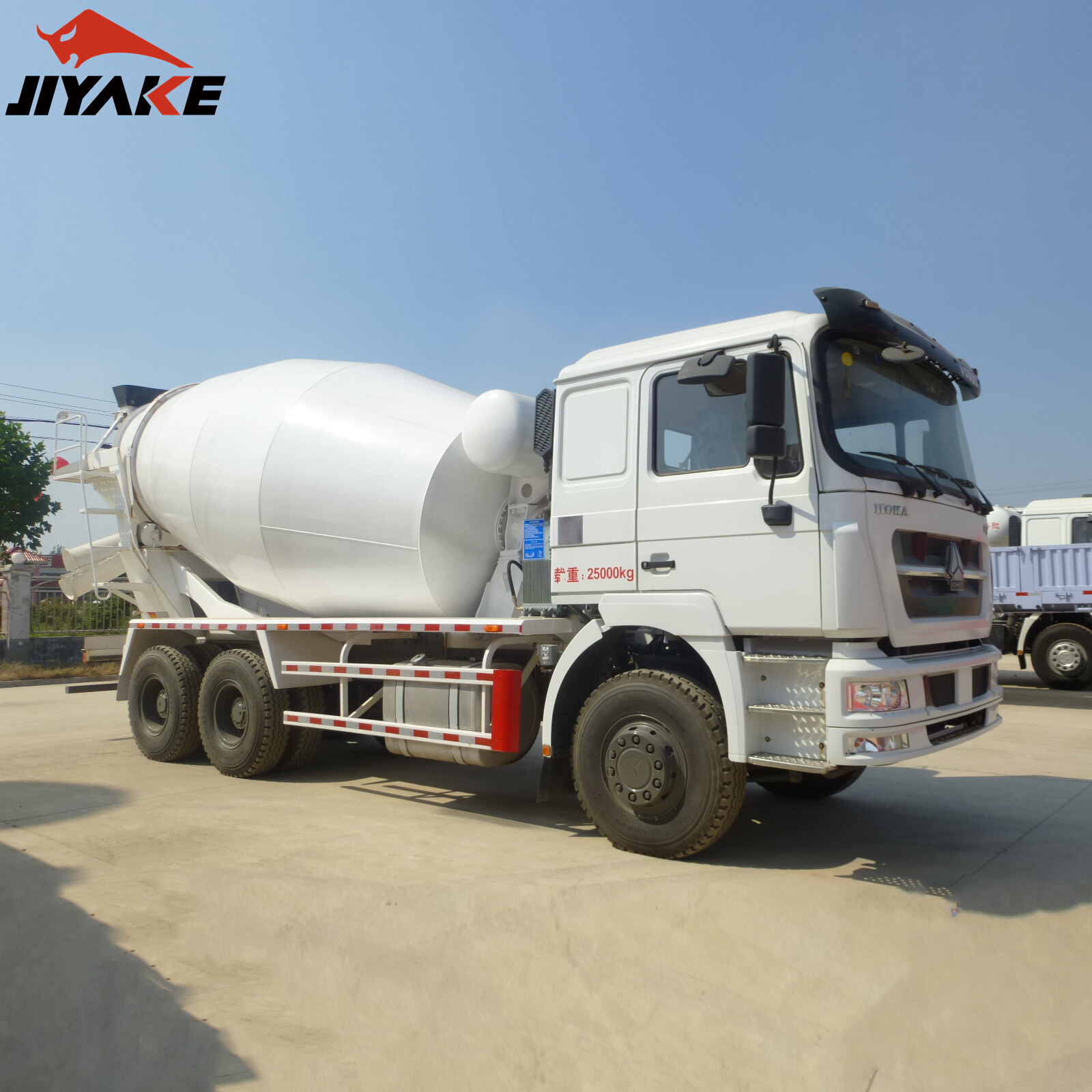

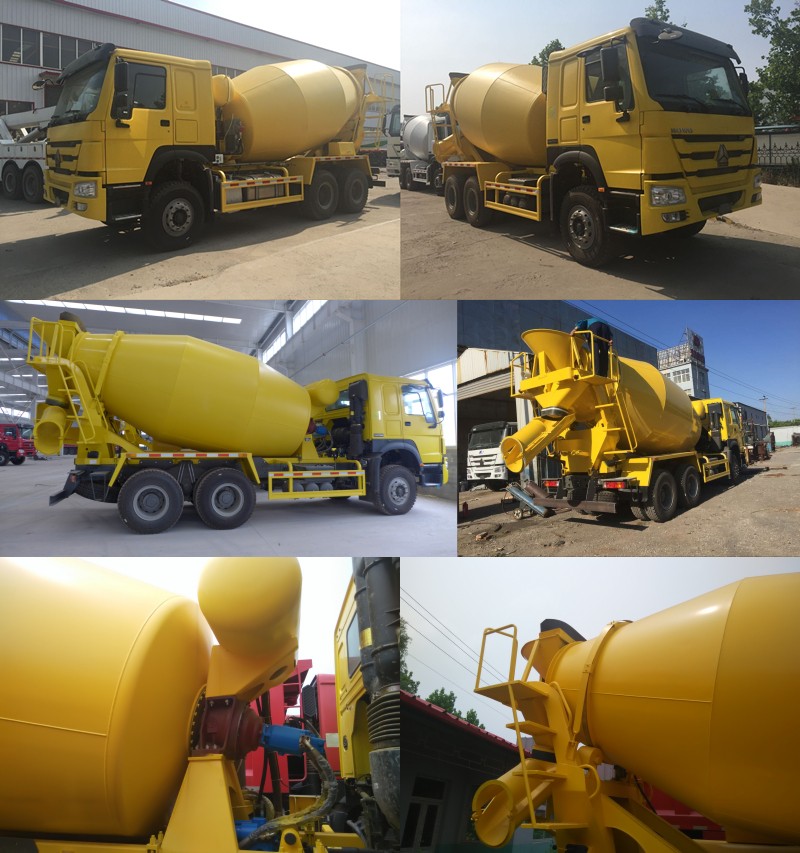

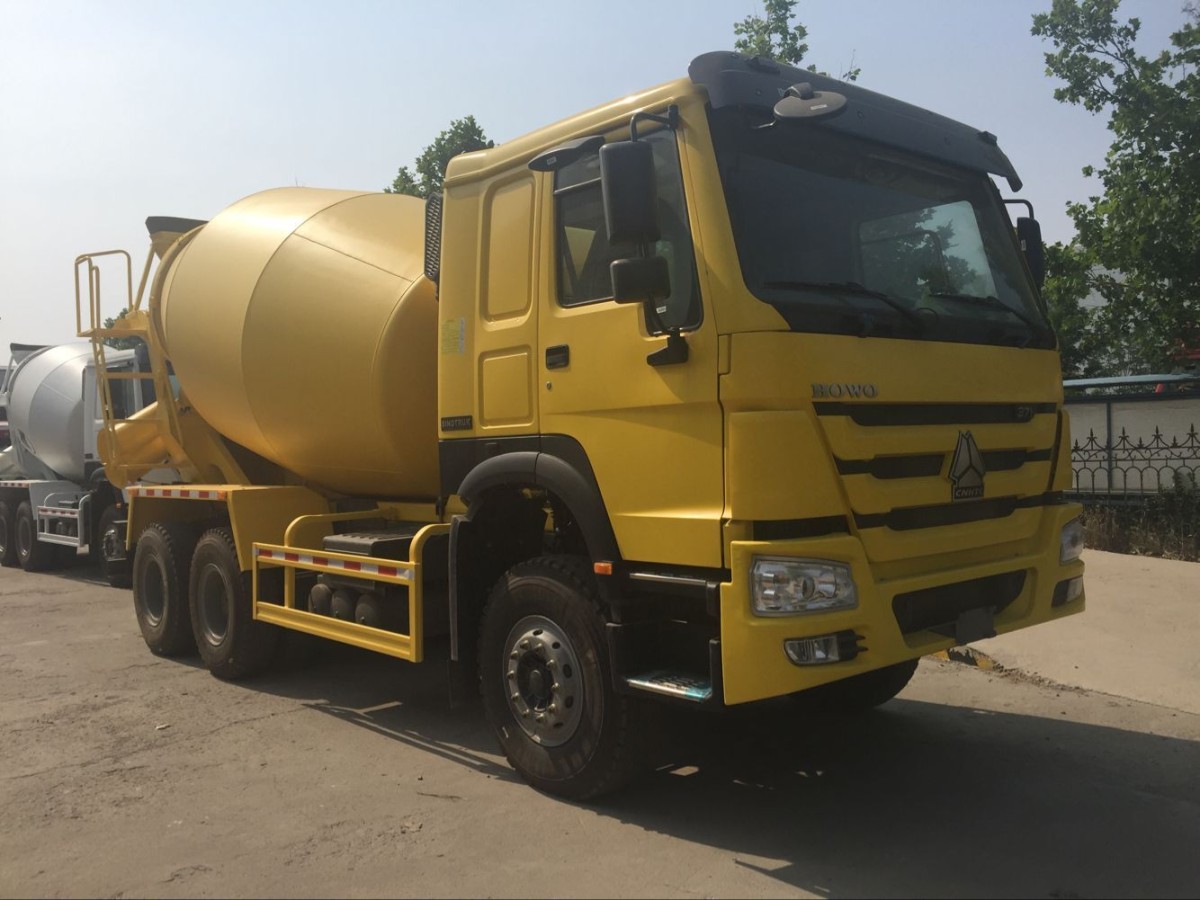

There are our pictures for your reference only.

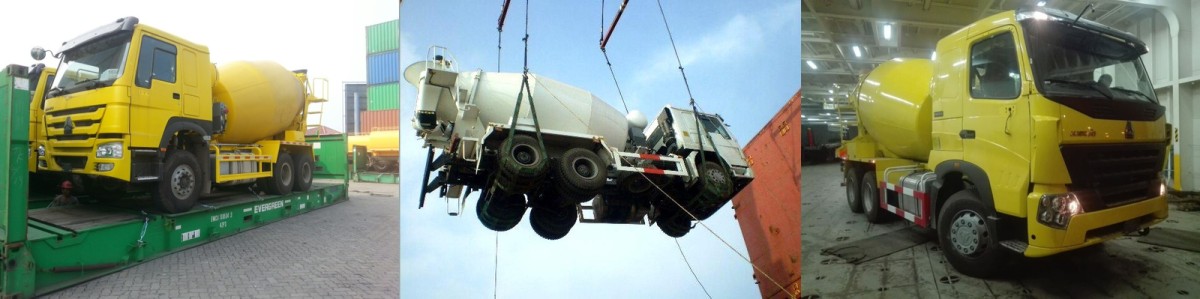

    Shipping by flat rack           by bulk cargo ship            by roro ship

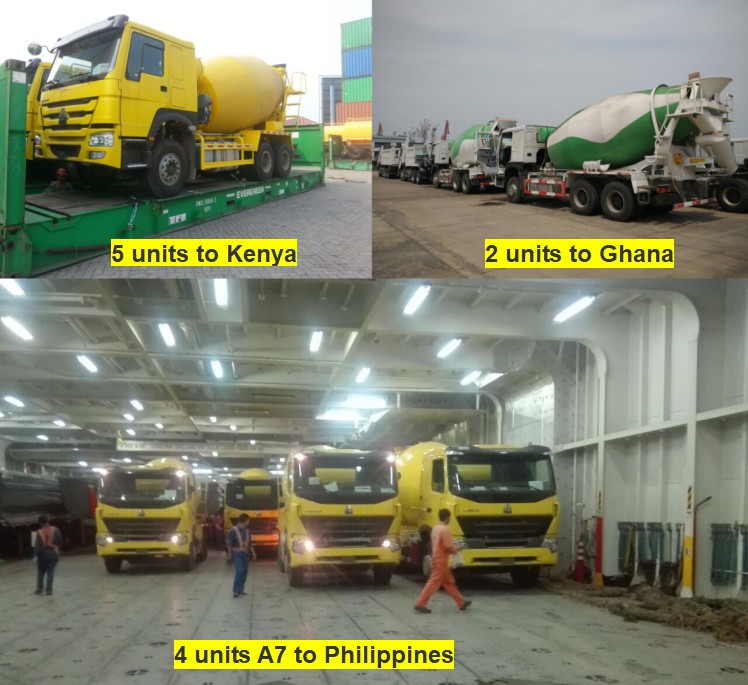

Mixer truck exported to Various companies.
