SPECIFICATION Of HOWO A7 371HP 10m3 6x4 wheeler Concrete Mixer Truck
Chassis model | ZZ1257N4047V (Overall dimension: 8560x2496x3900mm) |
Engine | D10.38.43, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm. |
Cabin | A7-W, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper. |
Clutch | ∮430 diaphragm spring clutch, hydraulic control air power assisted. |
Transmission | HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m |
Drive Axle | HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8. |
Front Axle | HF9, 9ton, drum brake |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO |
| Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer |
| Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel |
| Fuel tank: 300 L capacity, with locking fuel cap |
Steering | ZF8118, hydraulic steering with power assistance, LHD |
Brake system | Service brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust. |
Tyre | 12.00R20 Radial plus one spare tyre (11 units) |
Mixing Tank | Effective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm |
Other Specification | With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor |

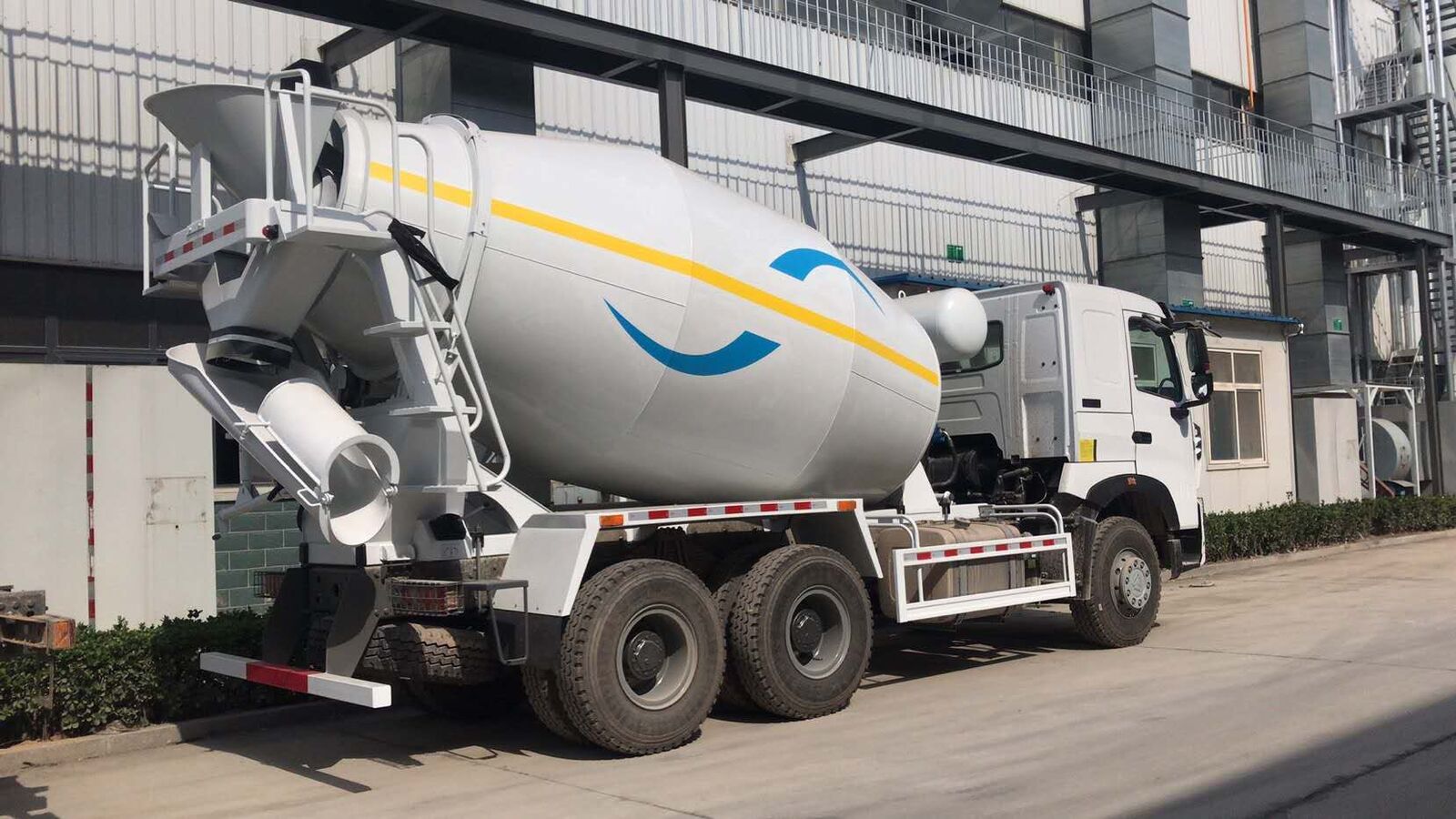

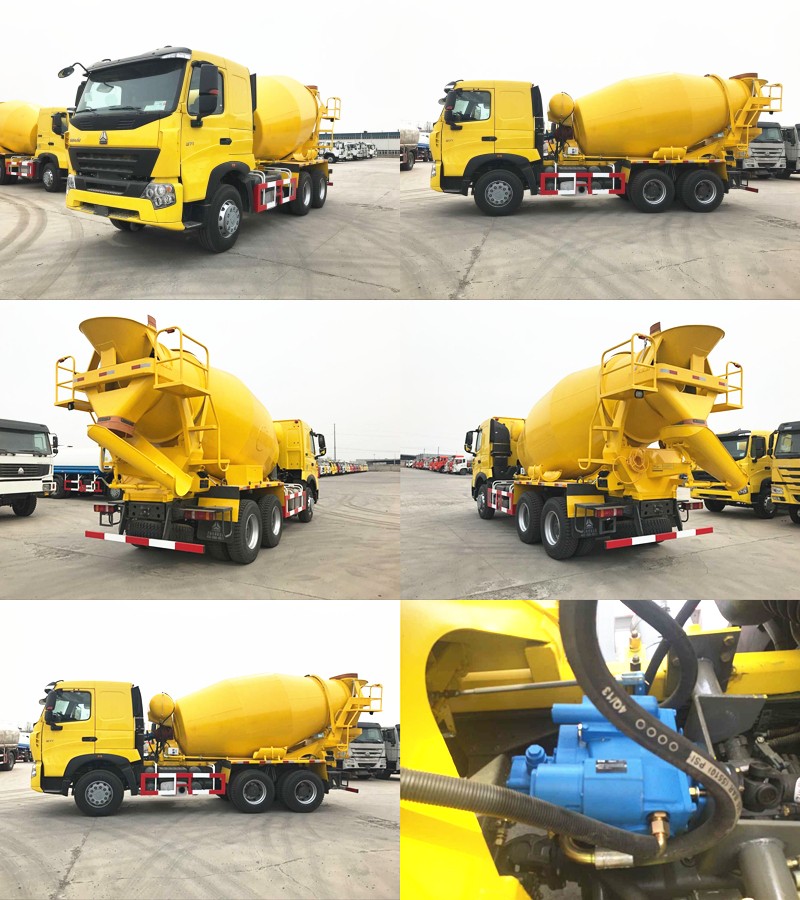

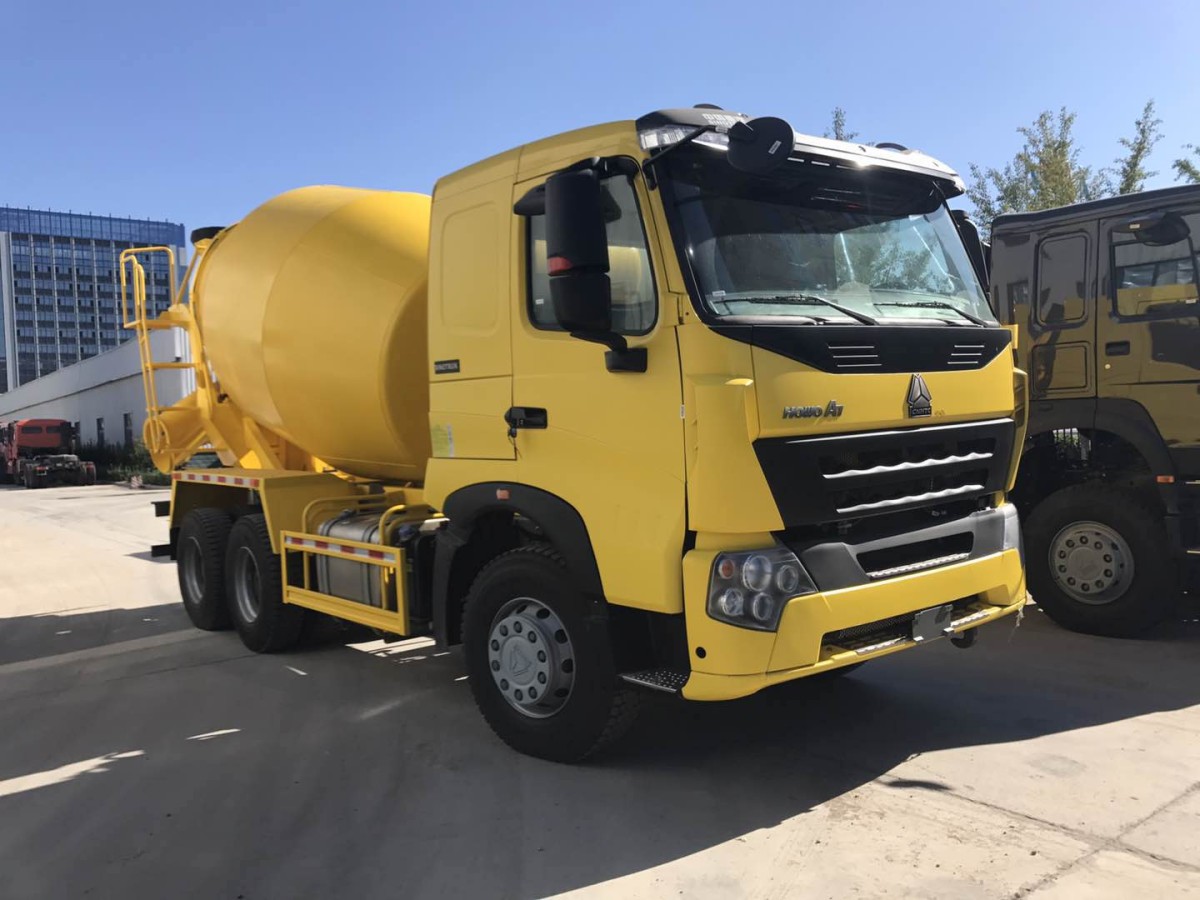

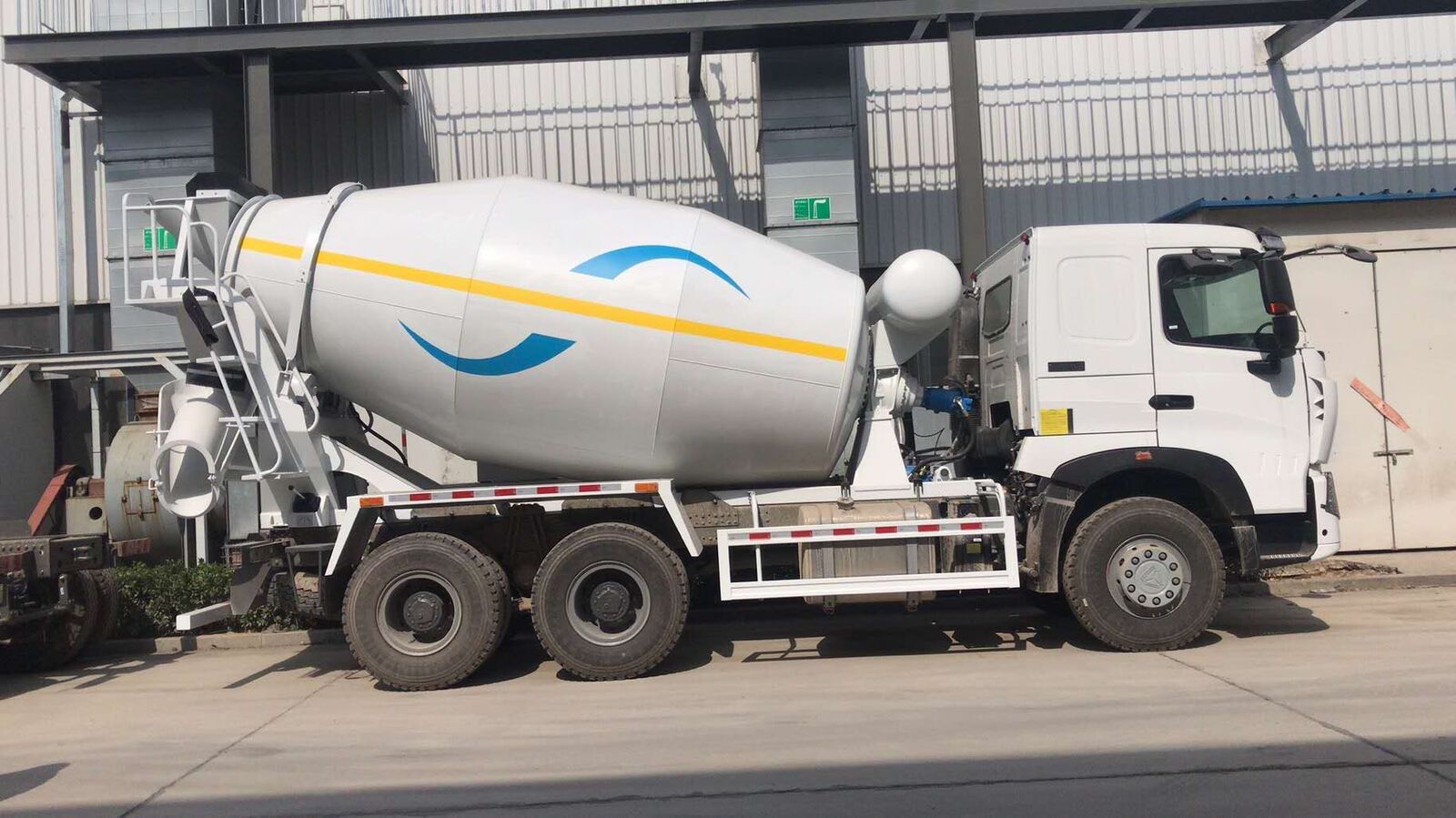

There are our pictures for your reference only.

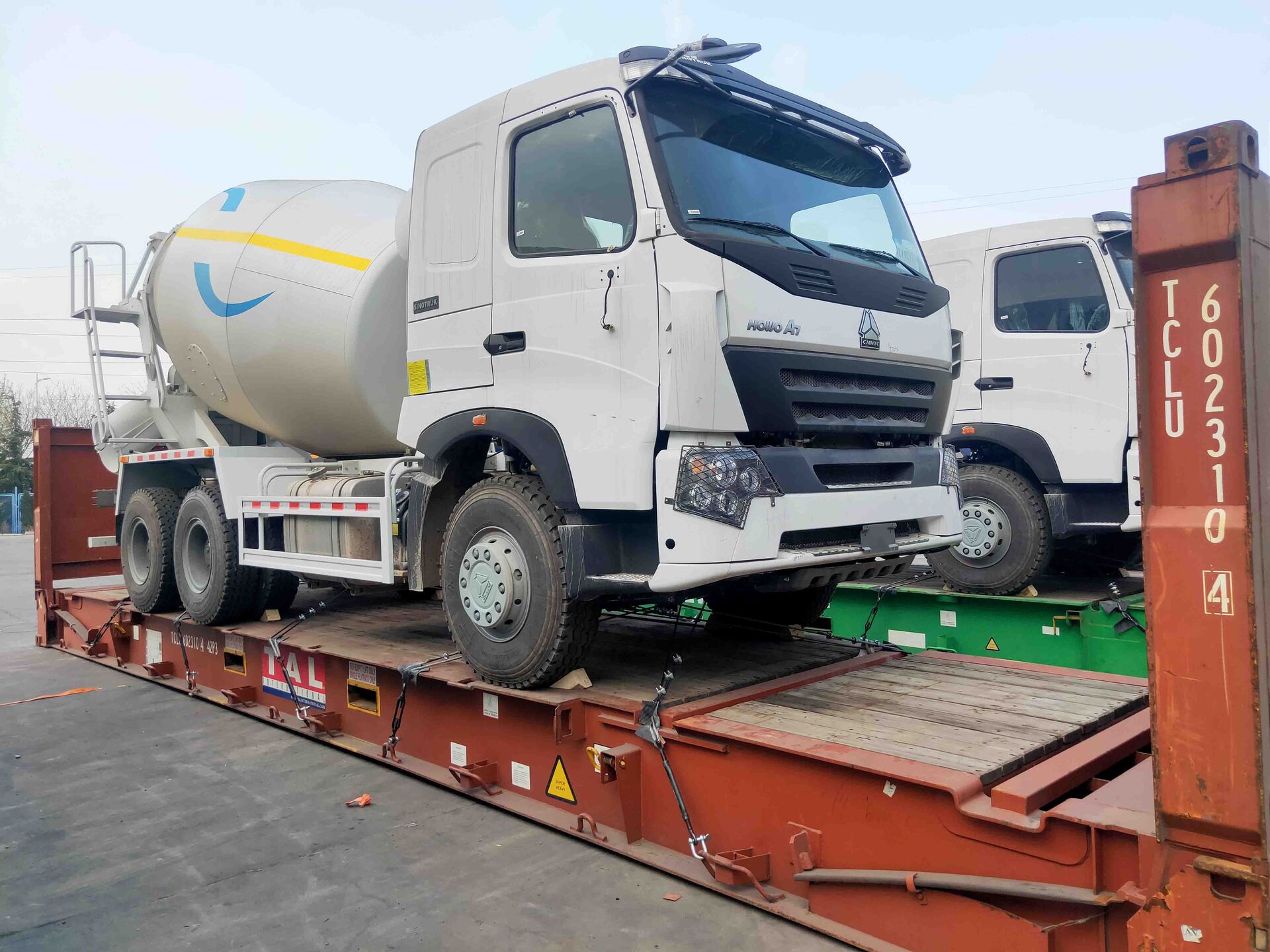

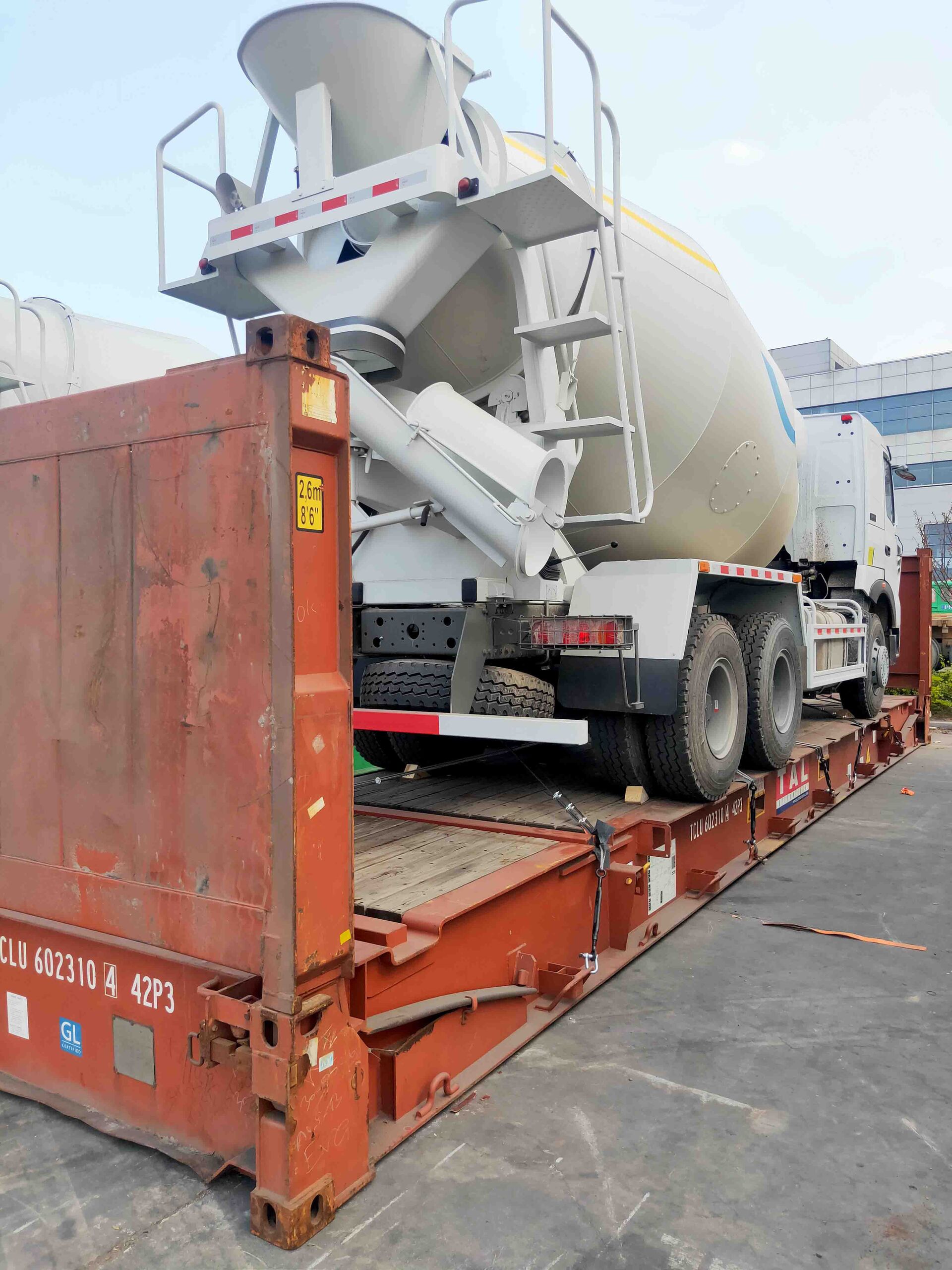

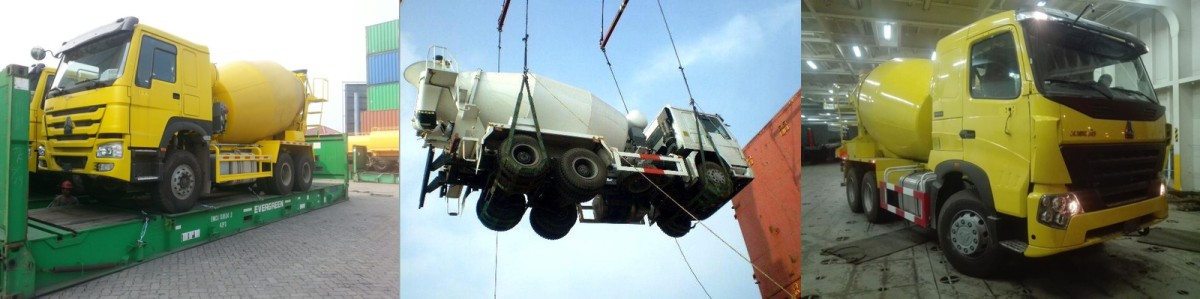

Shipping by flat rack by bulk cargo ship by roro ship

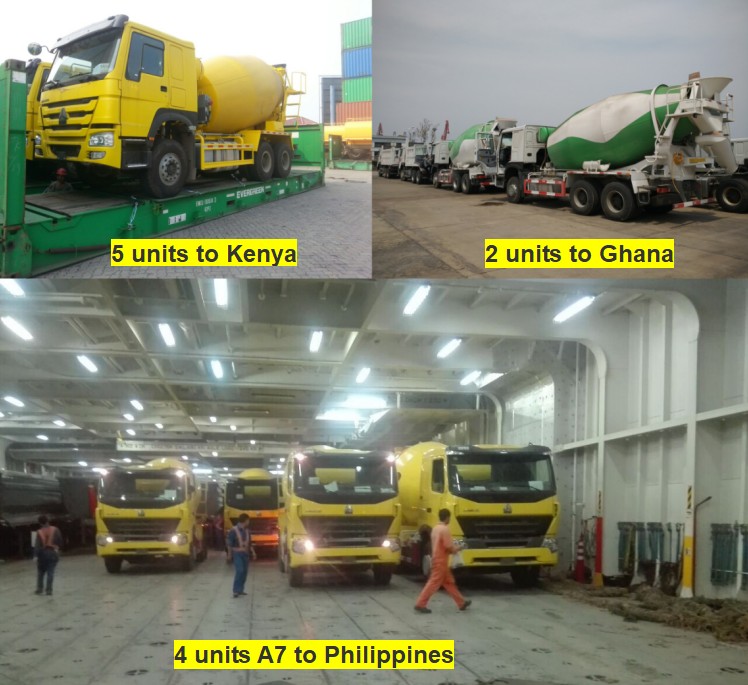

Mixer truck exported to Various countries.
