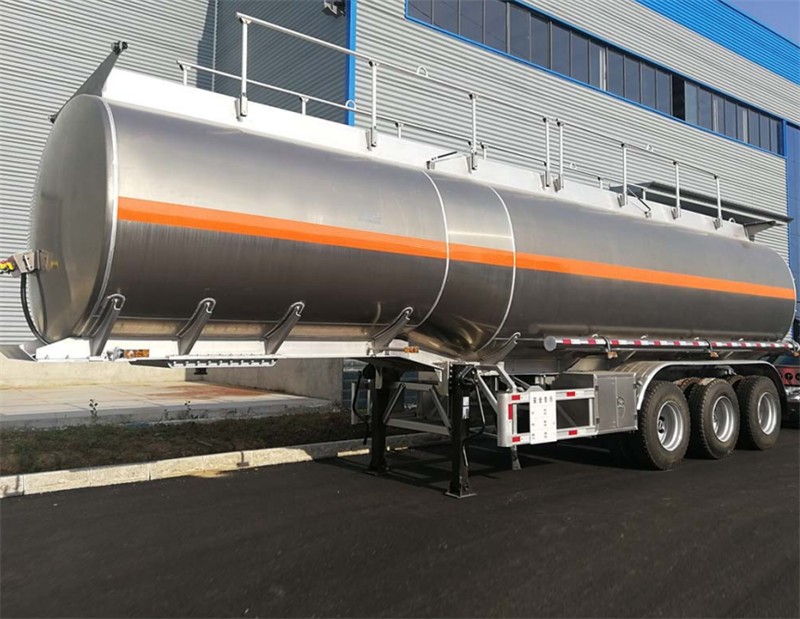

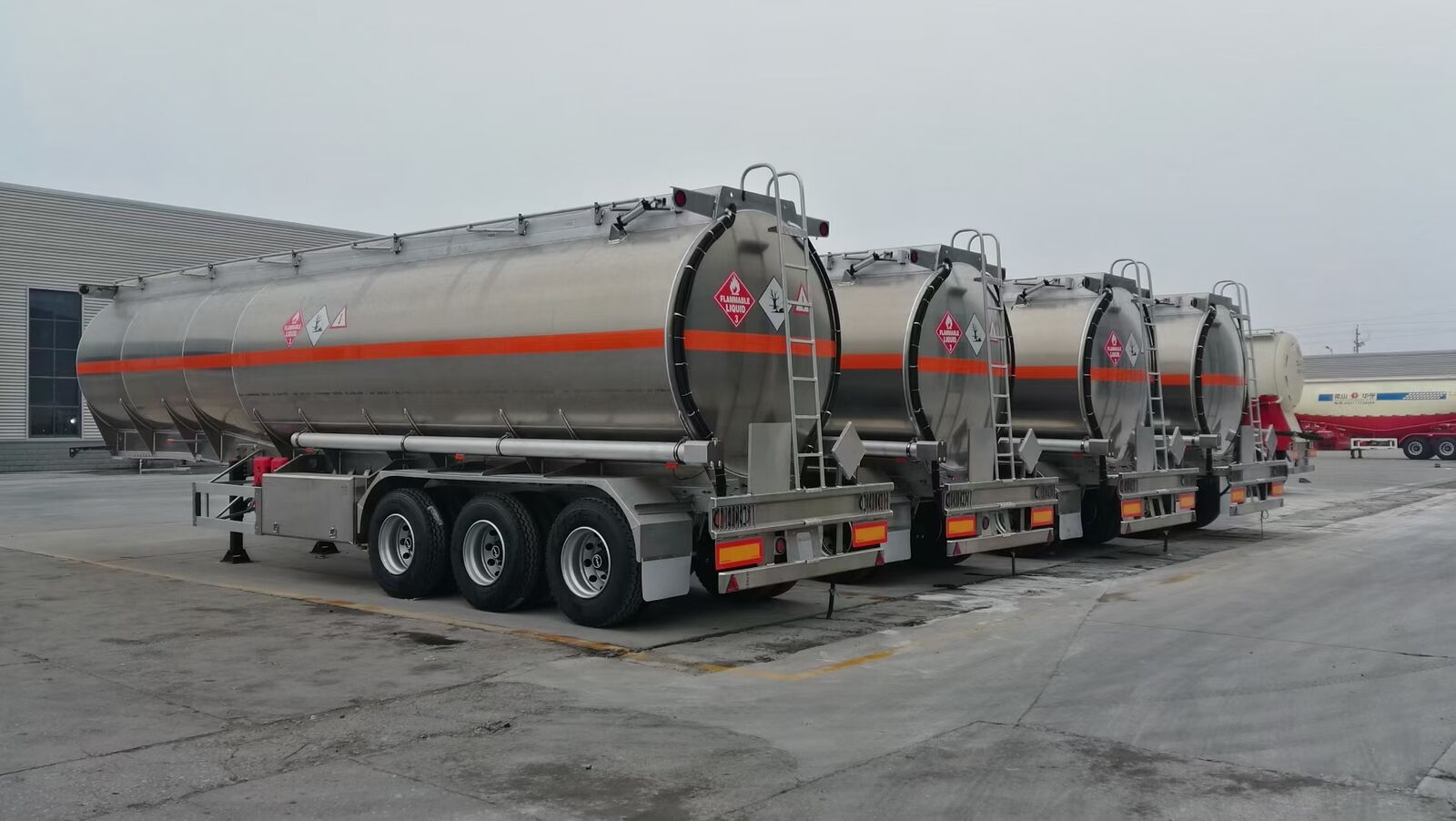

3 Axles 45000L aluminium Tank Trailer
Specification
| Trailer Model | 3 axles 45000L aluminium Oil tank semi trailer |
| Material | aluminium |
| Overall Dimension（mm） | 11900x2500x3950mm |
| Function | Transport oil, fuel etc |
| Thickness(mm) | Tank body: Q235/6mm aluminium End plate: Q235/6mm aluminium |
| Volume | 45000 L |
| Axle | 14Ton, L1 brand |
| Axle Number | Three |
| Compartment | 6 compartments |
| Manhole cover | 6pcs, 500mm, aluminium |
| Discharge valve | 3〞disc valve , 6units |
| Discharge pipe | 3〞seamless steel tube |
| Suspension system | Mechanical Suspension |
| Bottom valve | 6 units |
| Tire Type and quantity | 12R22.5 12 units Triangle brand |
| Traction Pin | 50mm/90mm |
| Landing Gear | Standard brand 28ton external |
| Spare wheel carrier | 2pcs |
| Paint | Sand blasting,A layer of anti-rust paint,two-layer finish.Waxed |
| Tool box | 1pcs, One crank and one shaft head wrench |
| Electrical System | Chinese standard 24V lighting system |
| Brake | Dual Lines Pneumatic Brake System. T30/30 Air Chamber; Parking Brake,T30/30 type on each axle |
| Brake air chamber | Six big chamber |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core standard Cable. |
| Ladder and walkway | With Front ladder and also the mechanic ladder on the top walk way anti skip |
| Discharge hose | Plastic 6m hose |
| Packing | Nude, Polish with wax before shipping |
More details

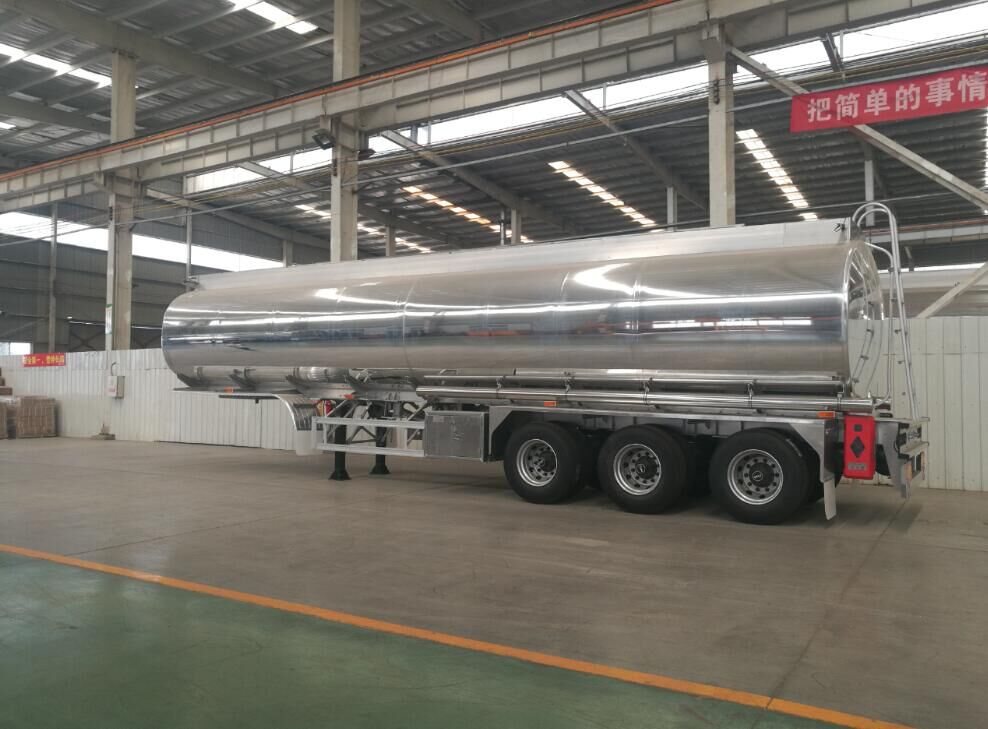

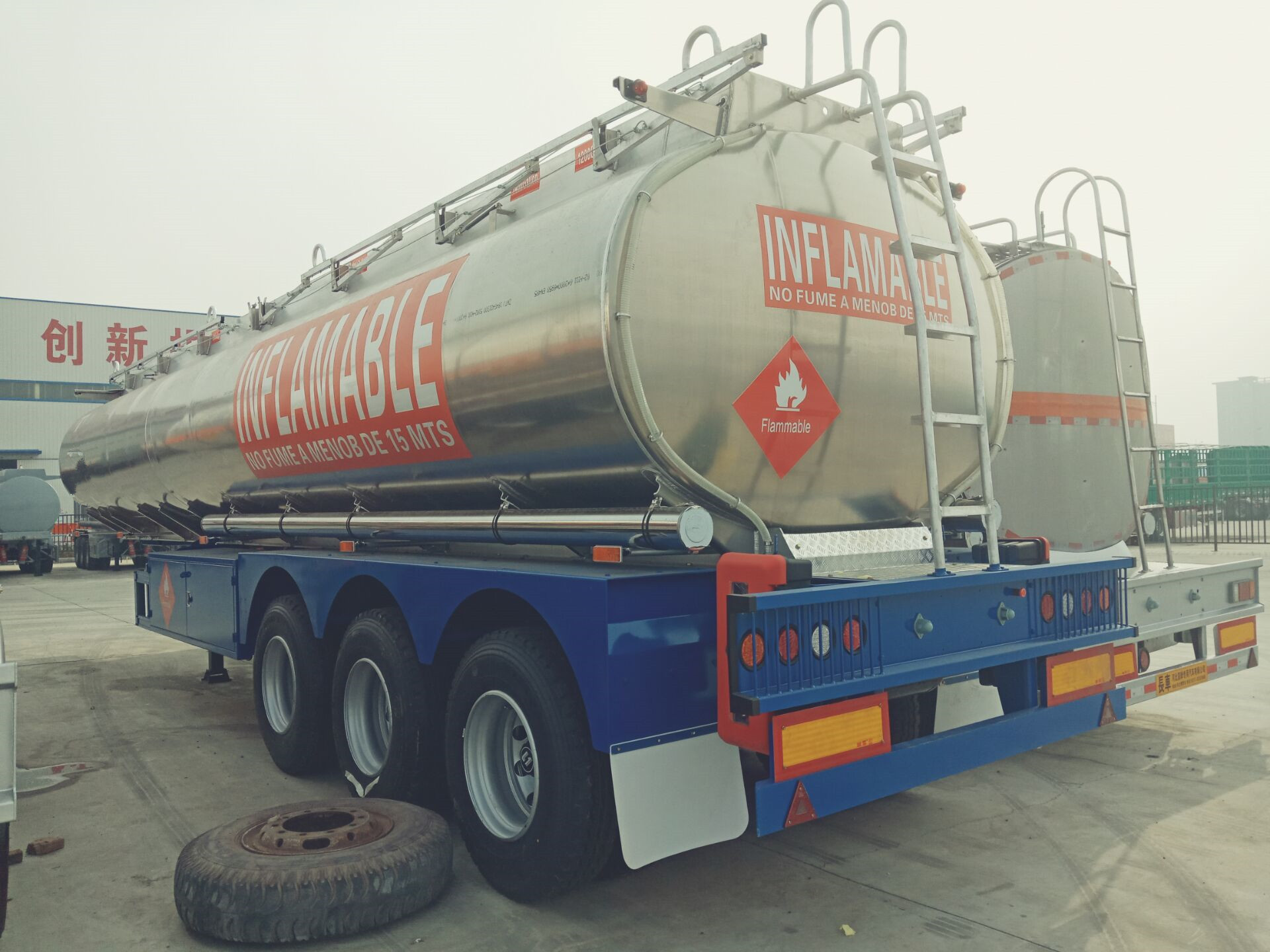

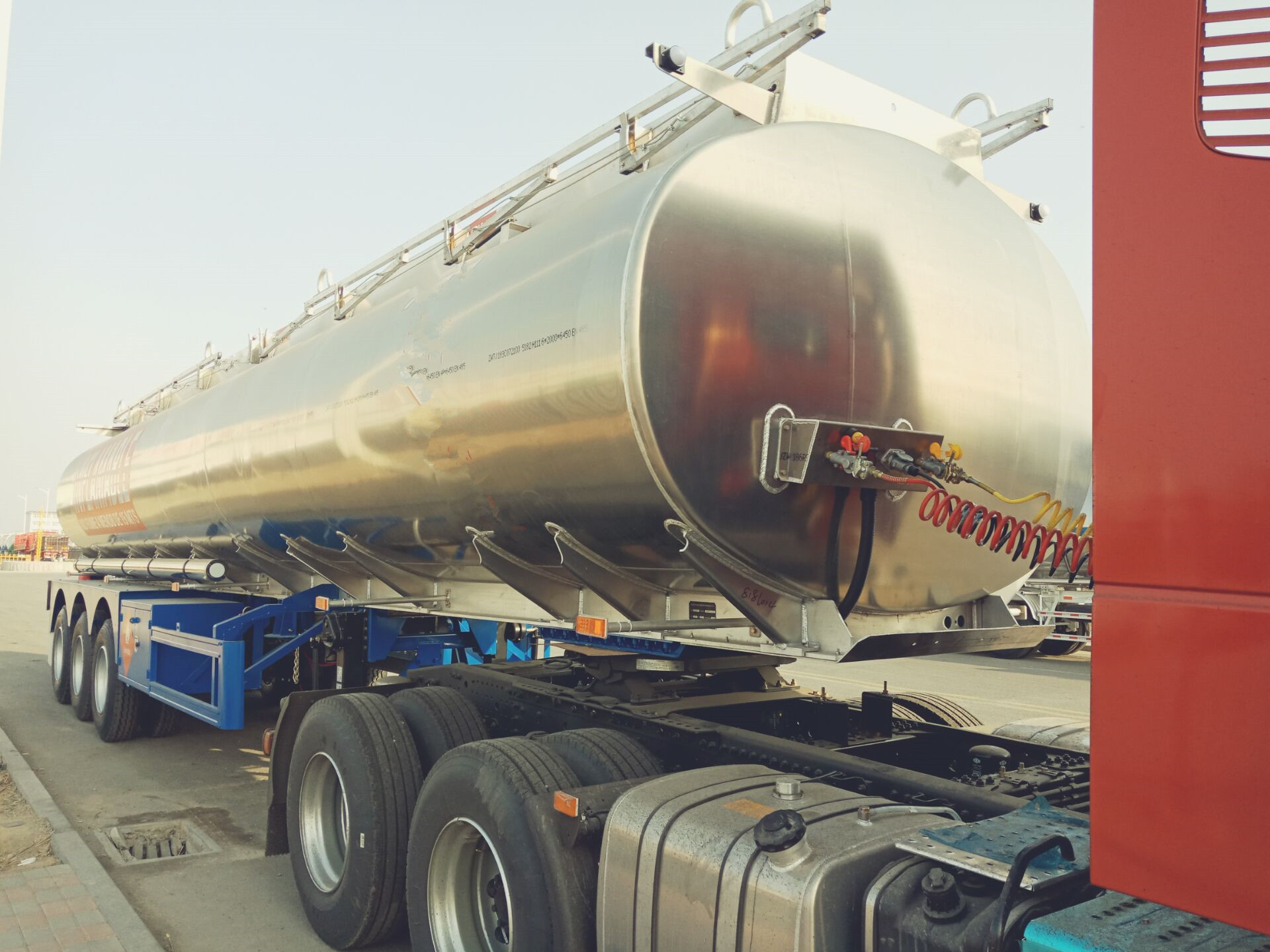

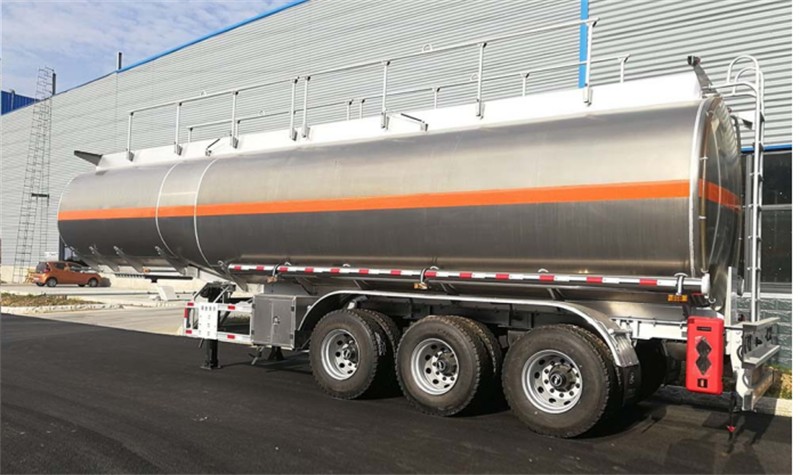

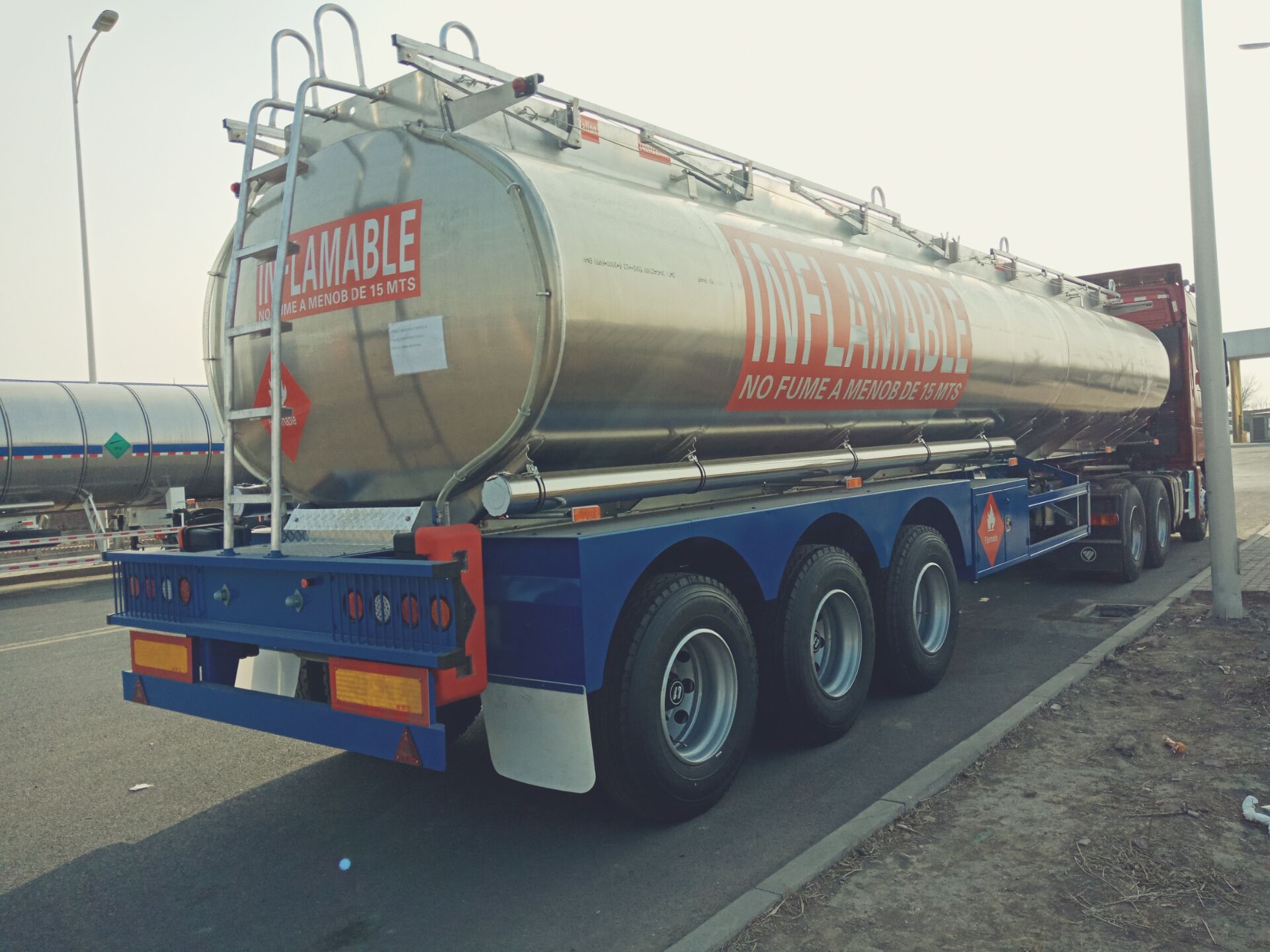

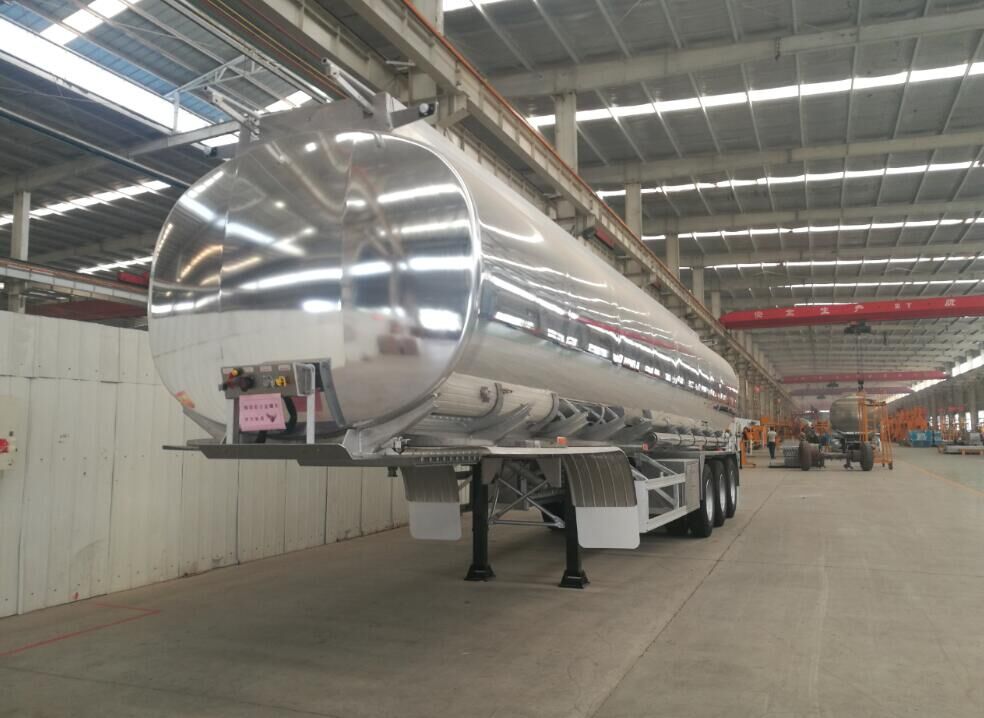

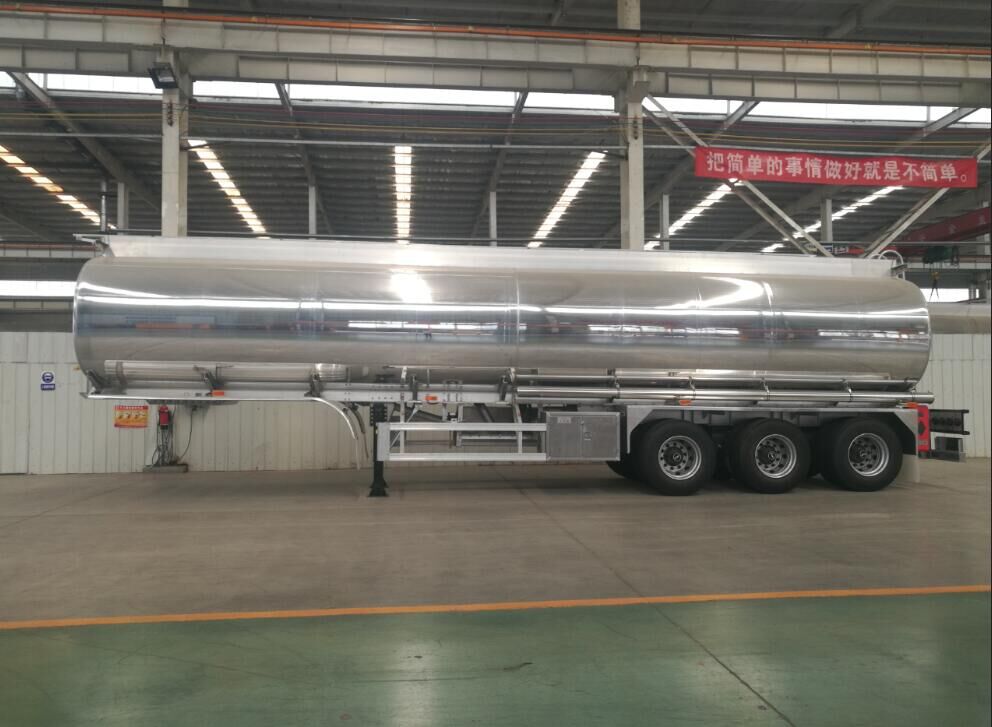

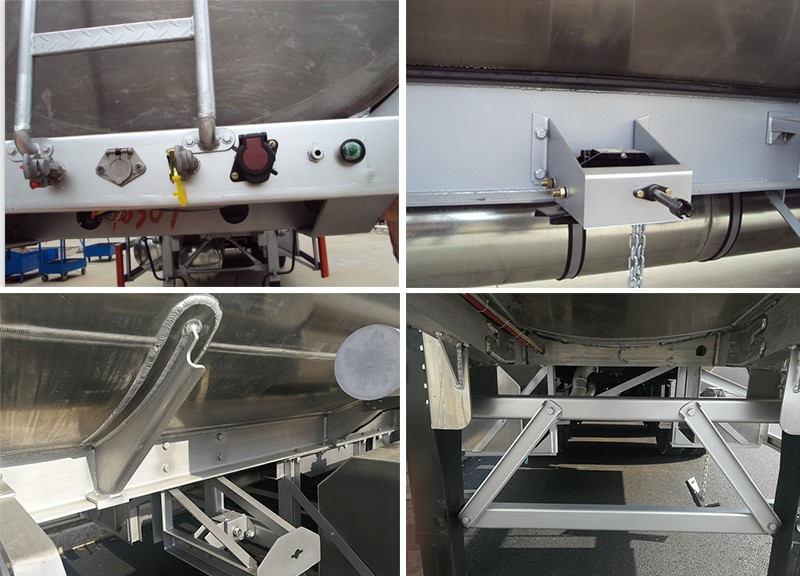

Details of the aluminium tank trailer
Tank trailer welding process, compared with the normal circular welding method,

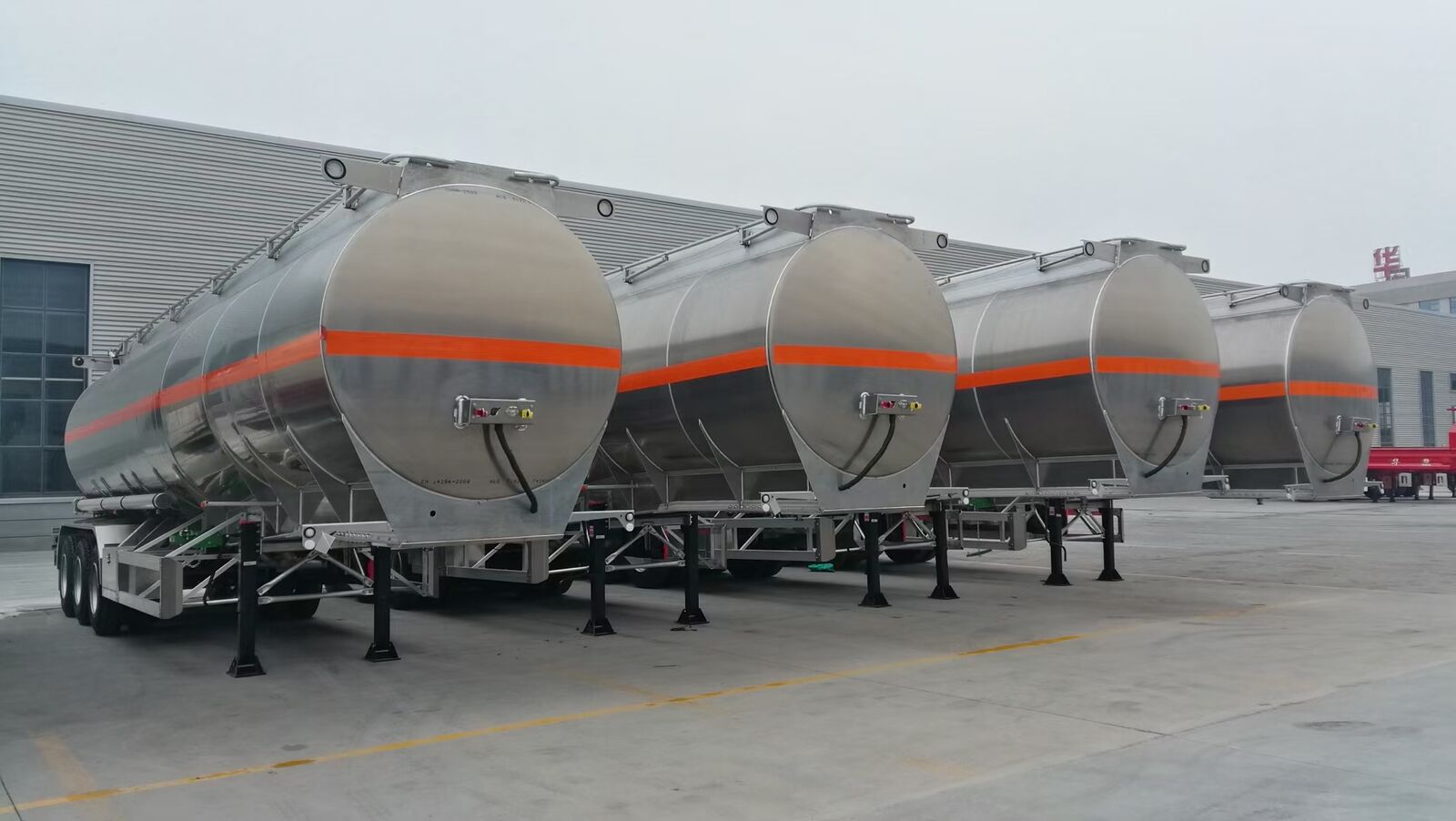

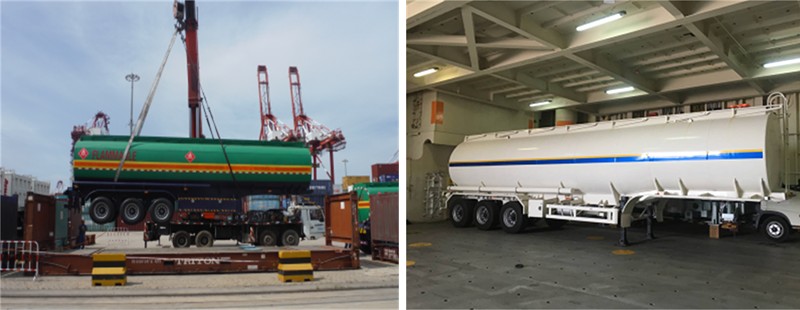

Shipping of the fuel tank trailer
