3 Axles 42000L Fuel Tank Trailer

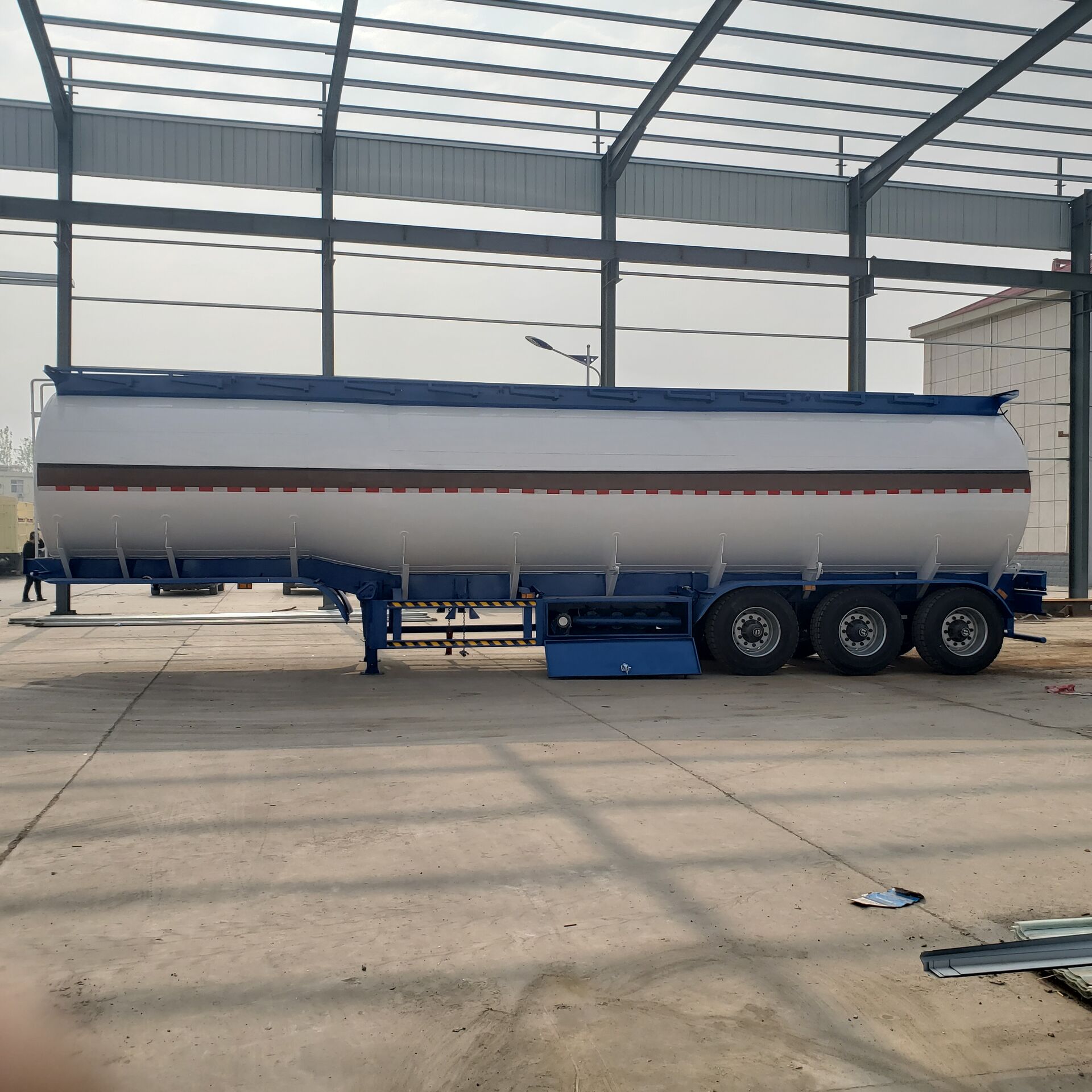

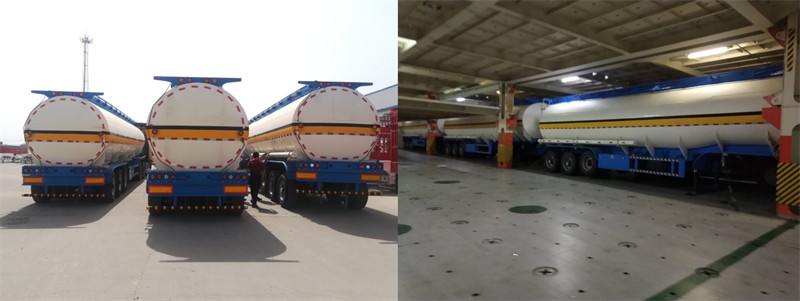

![图片26.png 图片26.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_577,limit_0)
Specification
Dimension and Weight |
Overall Dimension(mm) | 11800x2500x3900mm |
Wheelbase | 7,500mm+1,310mm+1,310mm |
Payload | 50,000kg |
Tare weight | 10,000kg |
G.V.W.R. | 60,000kg |
Function | transport Fuel, Oil, Diesel |
Tank |
Volume | 42000L |
Thickness(mm) | Material Q235 carbon steel Tank body and separate compartment plate: 5mm Dish end plate: 6mm |
Welding standard | All welding are to be done by qualified welder per applicable national standard |
Compartment | 3 compartments ( 3*16000L ) |
Manhole cover | 3 units Safety manhole with breath valve, Aluminum, diameter 500mm. |
Discharge valve | 3units 3” API valve with dust cover, aluminum Henghe Brand |
Bottom valve | 3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand |
Discharge pipe | 3〞seamless steel tube, 6m |
Tanker body test | Hydrostatic test to 5 psi (35 Kpa) on each compartment |
Running System |
Axle | 13Ton, ZY brand |
Axle Number | Three |
Tire | 12R22.5, 12 pcs. Taitong brand |
Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
Suspension system | Mechanical Suspension |
Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
Electrical System | Chinese standard 24V lighting system |
Brake system: | Dual line pneumatic brake, SAE hose and connector,no ABS |
Brake air chamber | 6 units T30/30 spring brake chambers |
Emergency relay valve | Wabco relay valve |
Tire Type and quantity | 1200R22.5 12units |
Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
Landing Gear | Zhenhua brand 28ton external two speed telescopic manual operation |
Accessories: |
Tool box | 1pcs, One crank and one shaft head wrench |
Fire extinguisher | 2 units per trailer |
Handrail | 800mm height, pneumatic controlling |
Mud guard | Steel mud guard and front mudguard |
Walkway | Anti-skid walk way from rear to first manhole |
Ladder | High folding ladder as CIMC standard |
Spare wheel carriers | 2 pcs |
bumper | Rear bumper with adjustable height |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
One set 6-core electric cable protected by PVC conduit on main frame |
Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed |
Packing | Nude, Polish with wax before shipping |

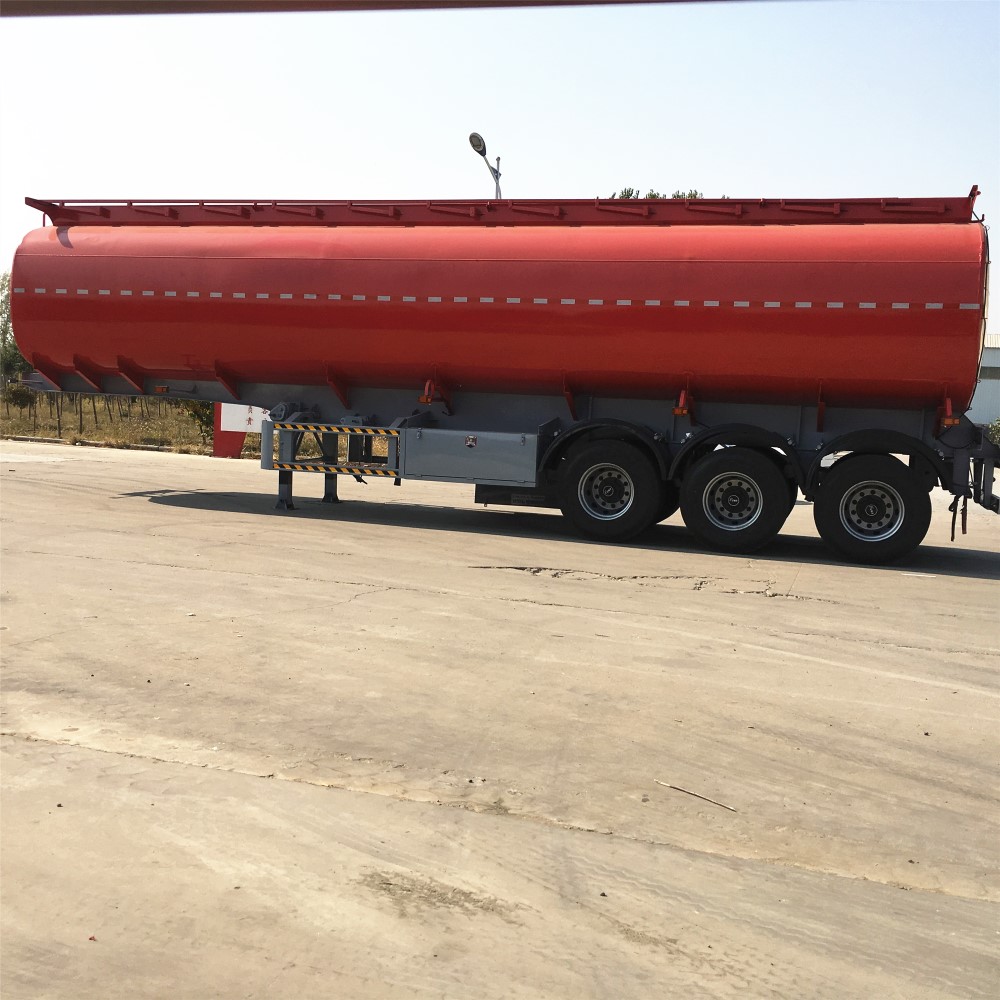

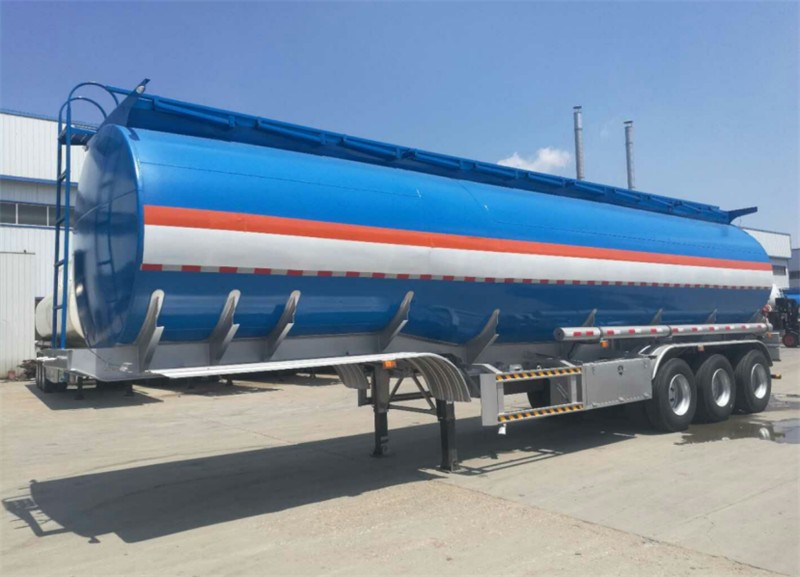

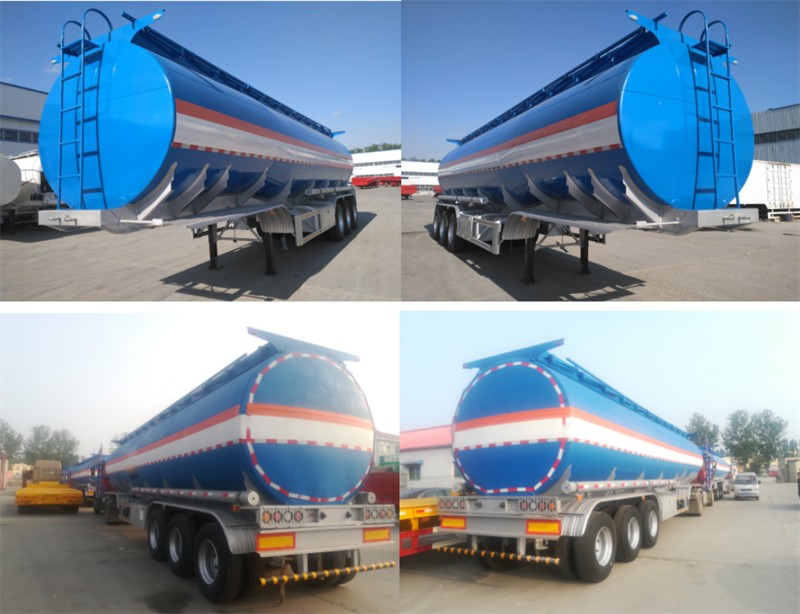

More view of the fuel tanker trailer

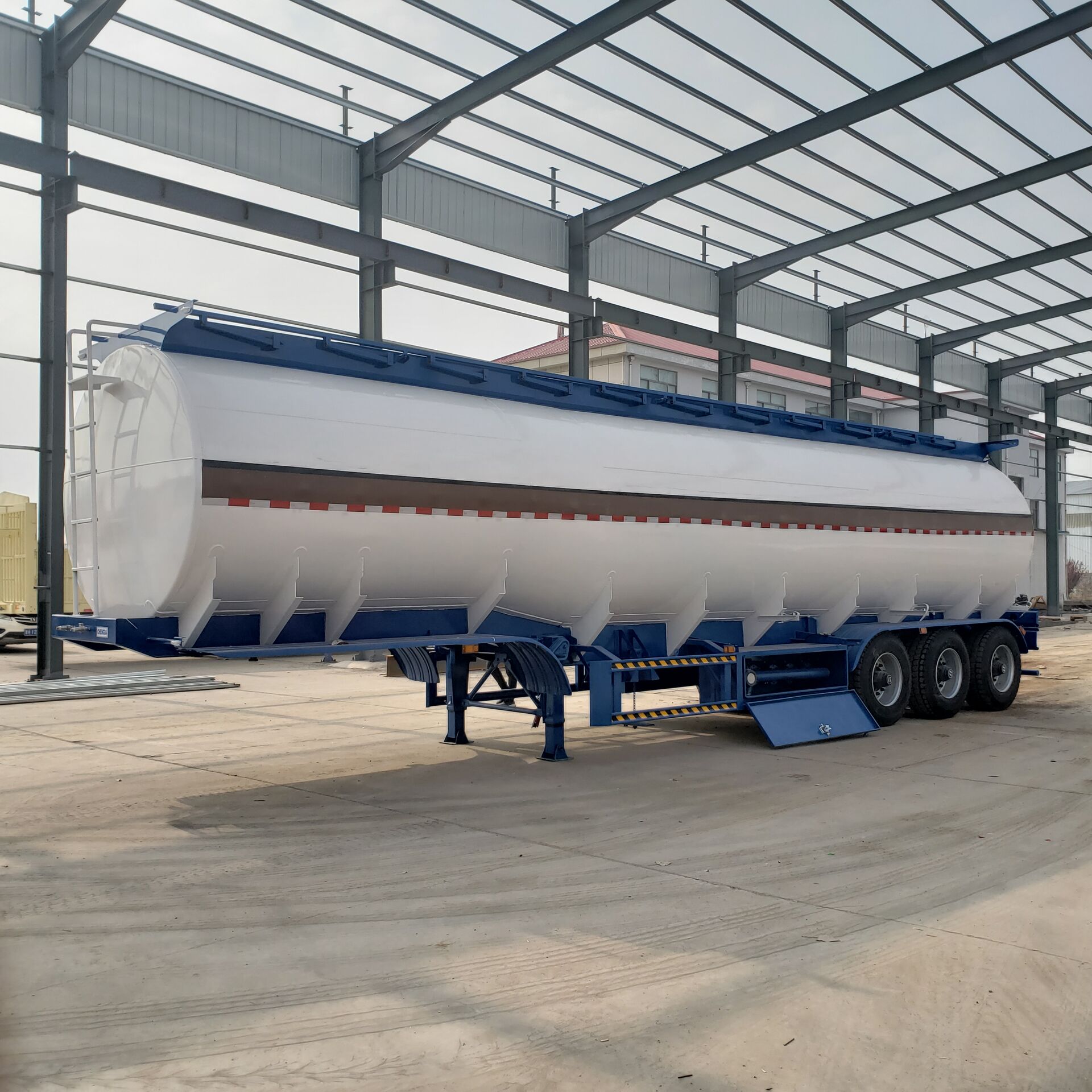

![图片27.png 图片27.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_614,limit_0)

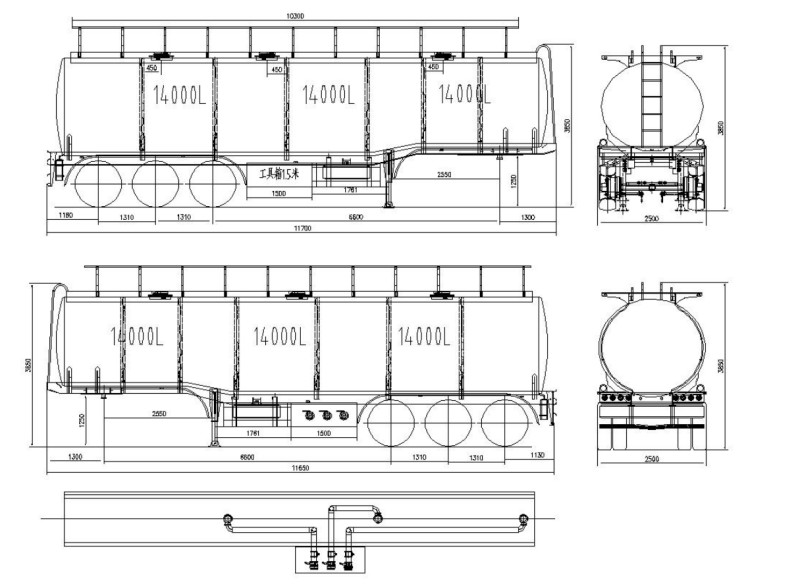

Drawing for the fuel tanker

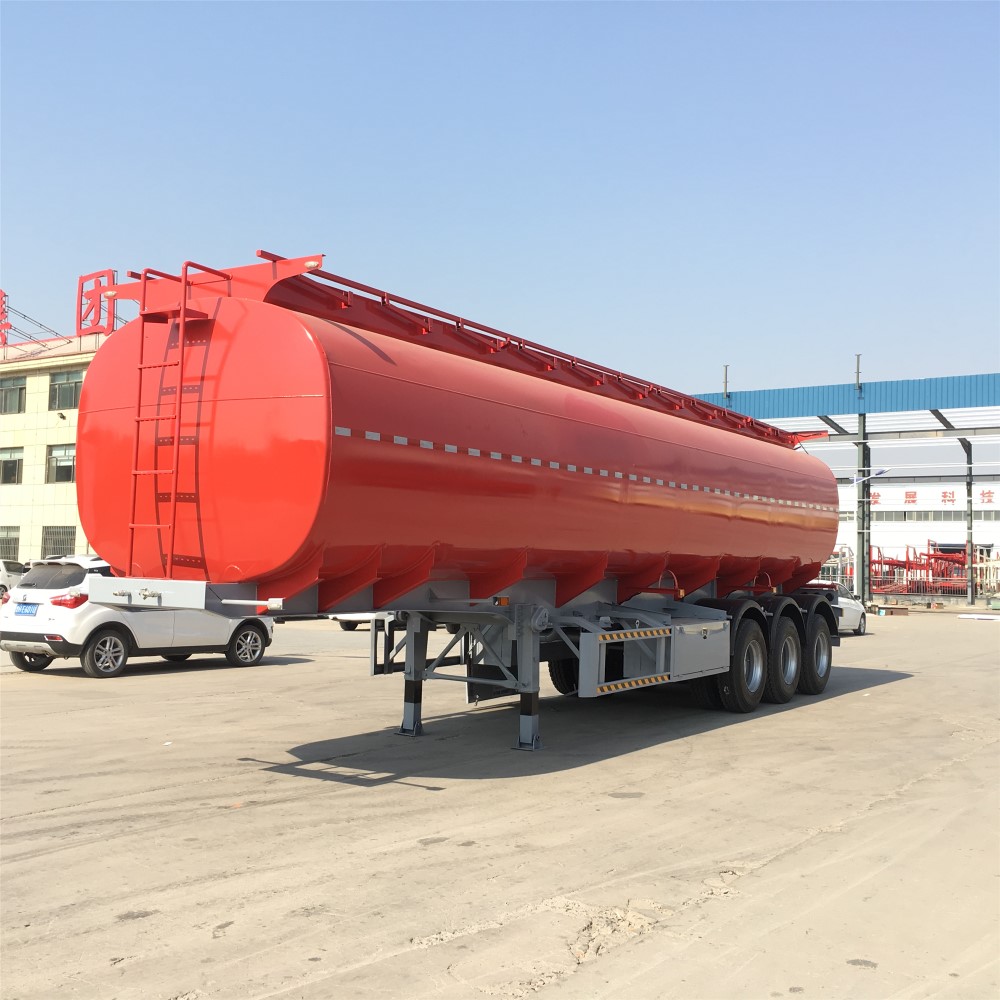

![图片28.png 图片28.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_584,limit_0)

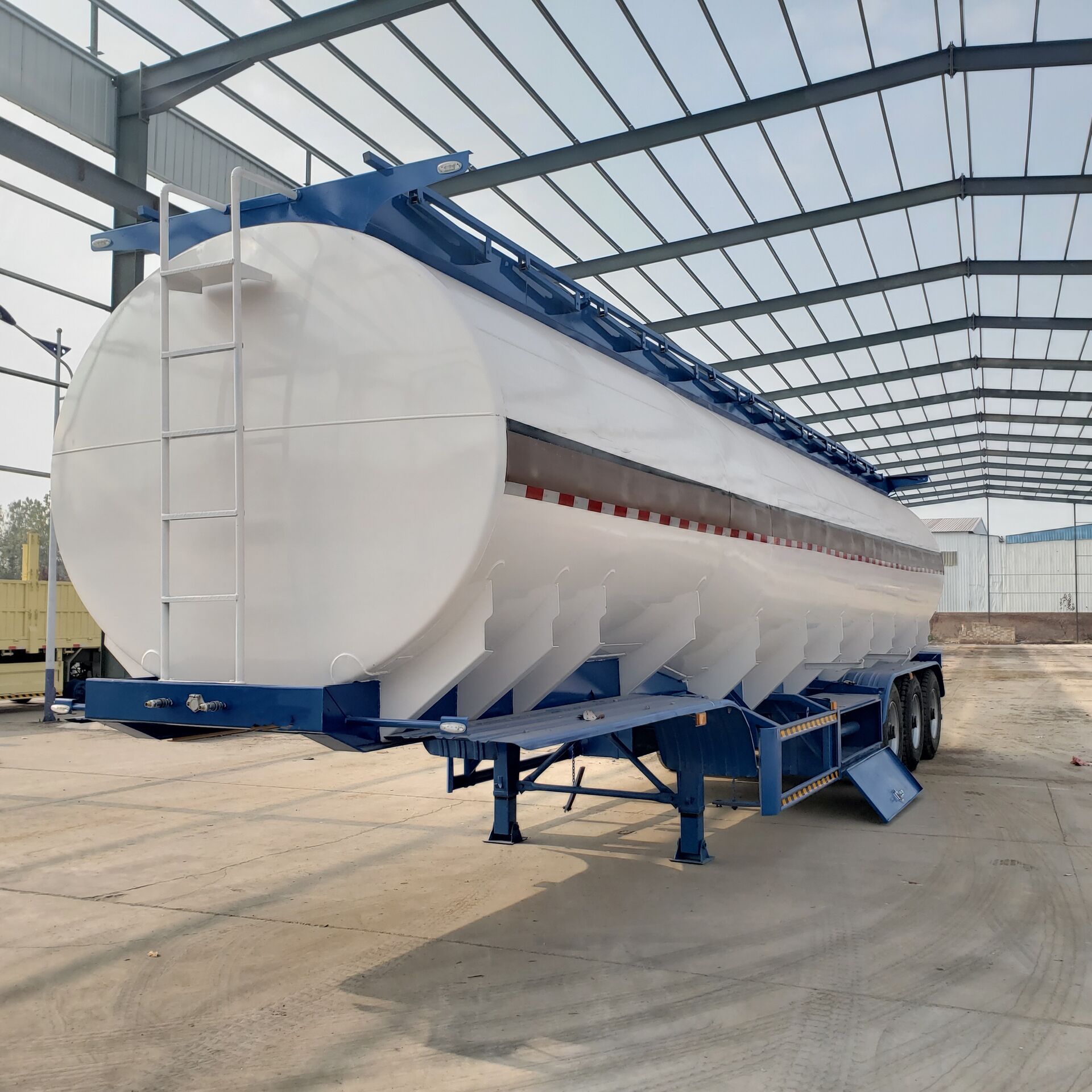

More details of the fuel tank trailer

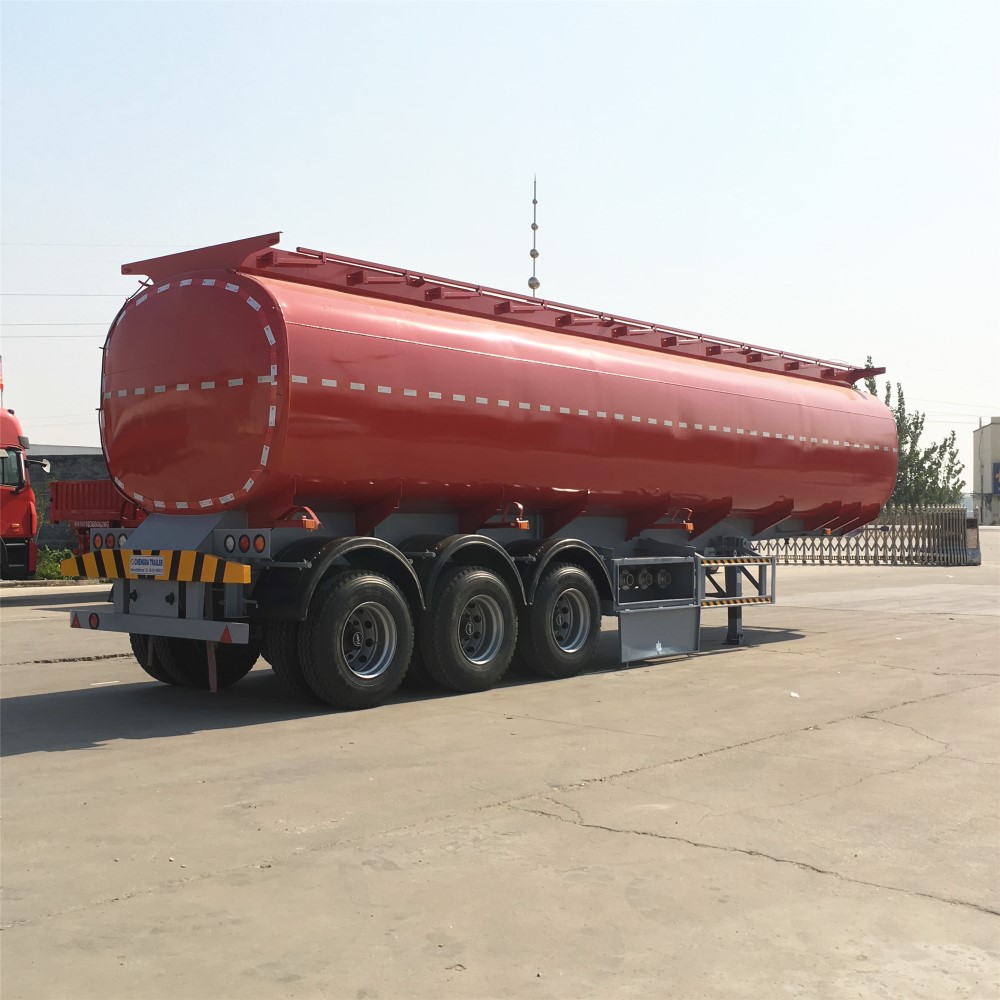

![图片29.png 图片29.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_472,limit_0)
Oil tank trailer using monoblock welding process, compared with the normal circular welding method, Monoblock is more beautiful and less risk for leaking oil.

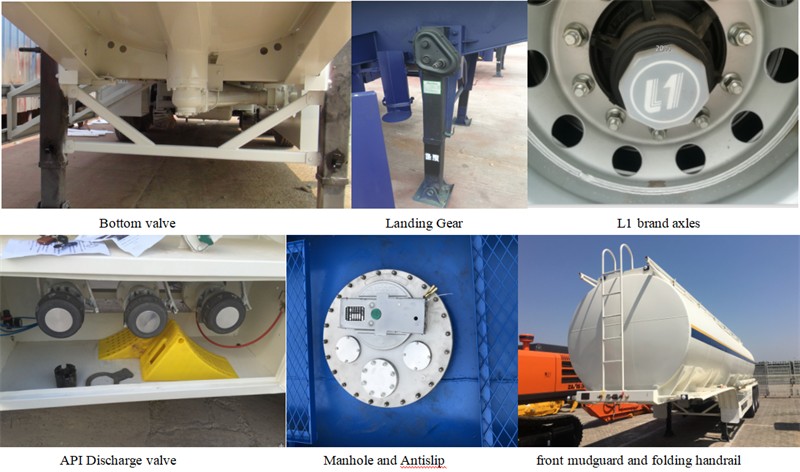

![图片30.png 图片30.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_567,limit_0)

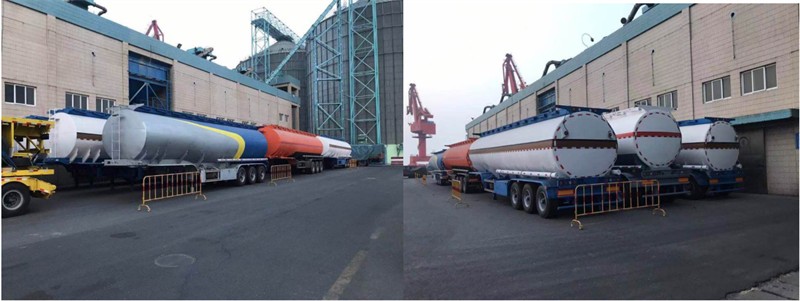

Shipment of the fuel tank trailer

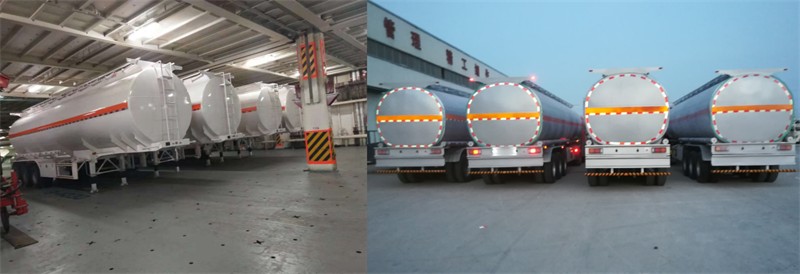

![图片31.png 图片31.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_323,limit_0)
10 units of fuel tank trailer exported to Malawi, totally exported to Malawi 900 units tankers in Malawi ,Totally 2000units exported to Africa

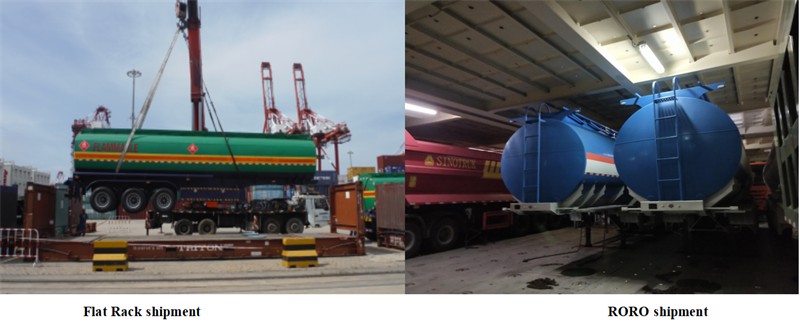

![图片32.png 图片32.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_301,limit_0)
4 units to Philipines and 4 units to Mali
![图片33.png 图片33.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_274,limit_0)
6 Units to Malawi by roro shipment
![图片34.png 图片34.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_301,limit_0)
Customer good feedback for our fuel tanker trailer .We are honest supplier, quality is our life and with us both quality and your money are safe.

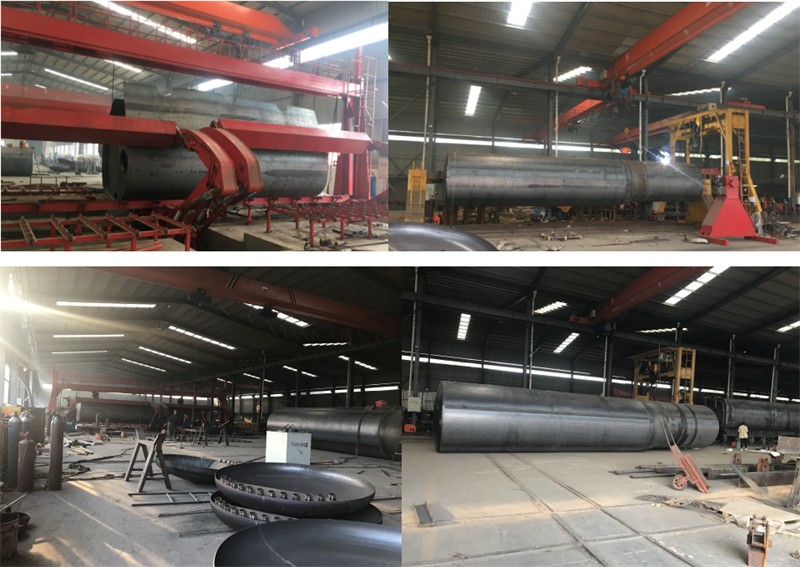

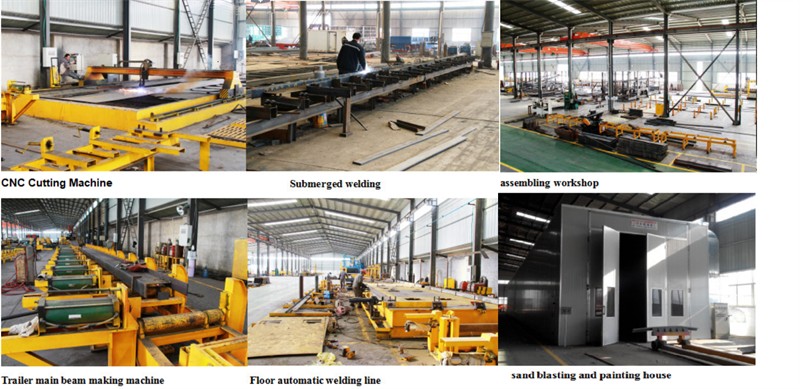

Our Advanced Production Equipments
