Product Introduction

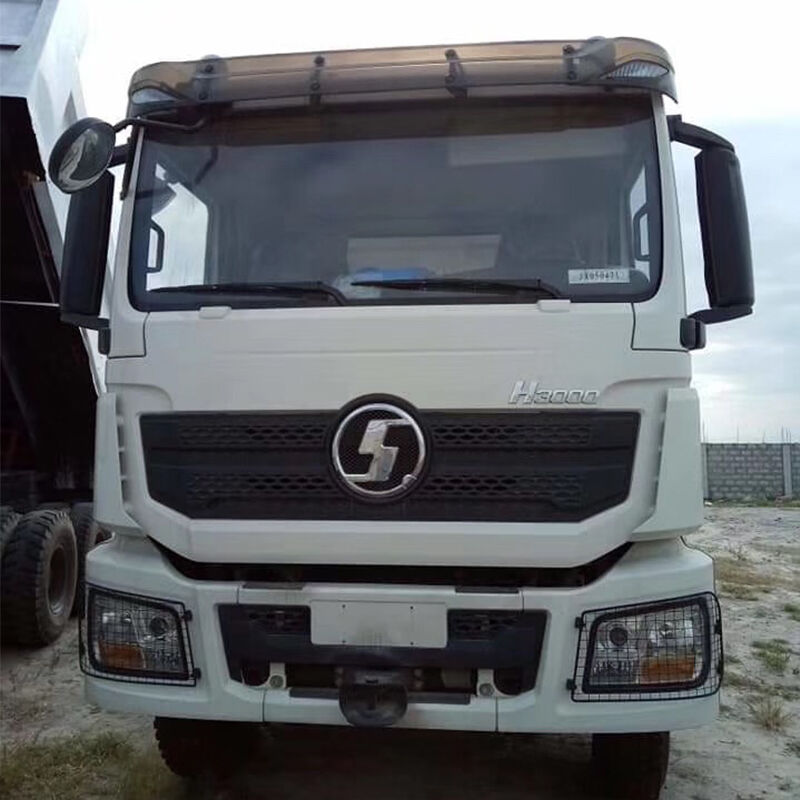

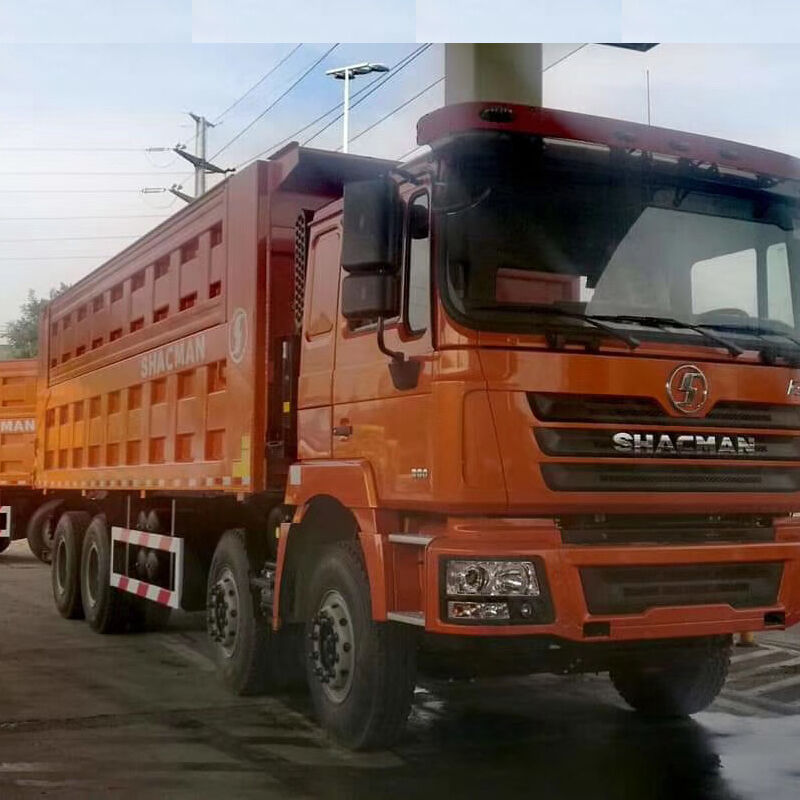

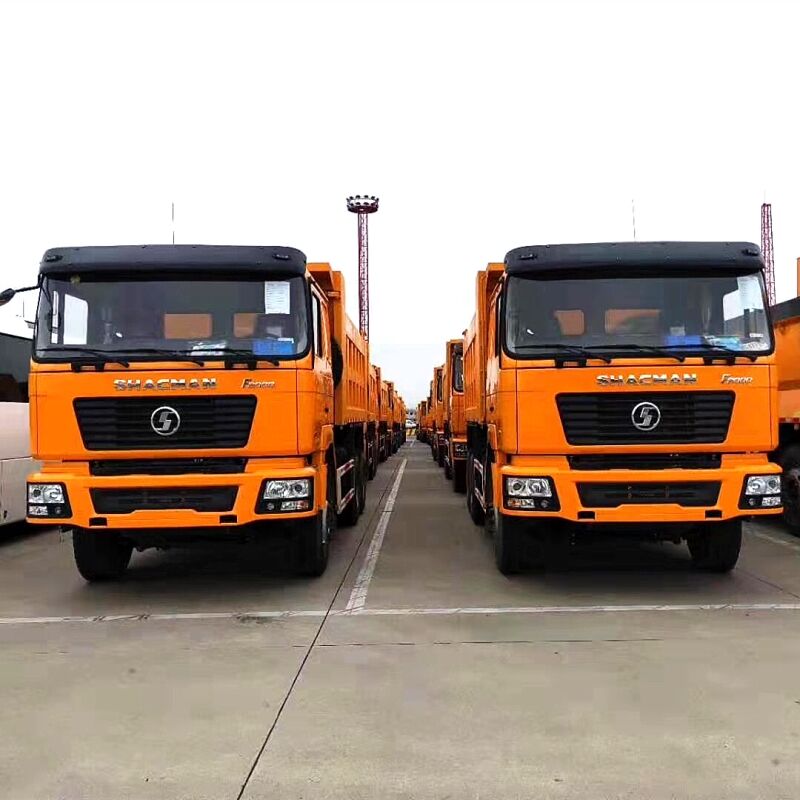

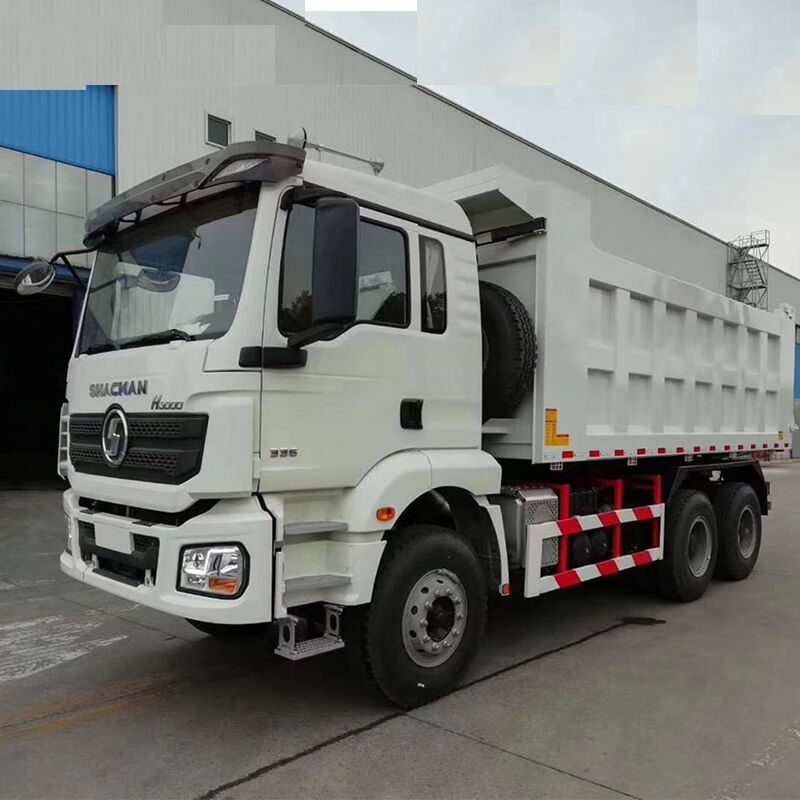

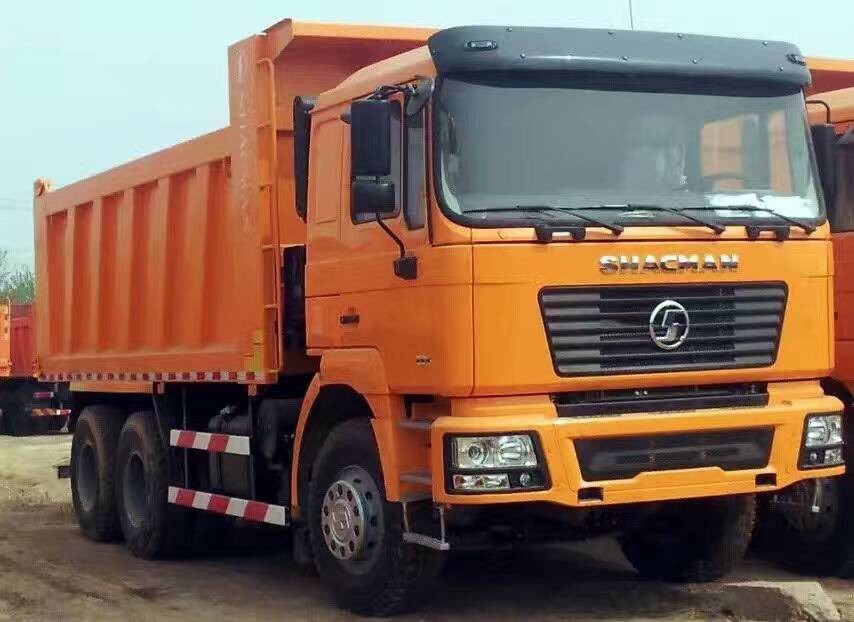

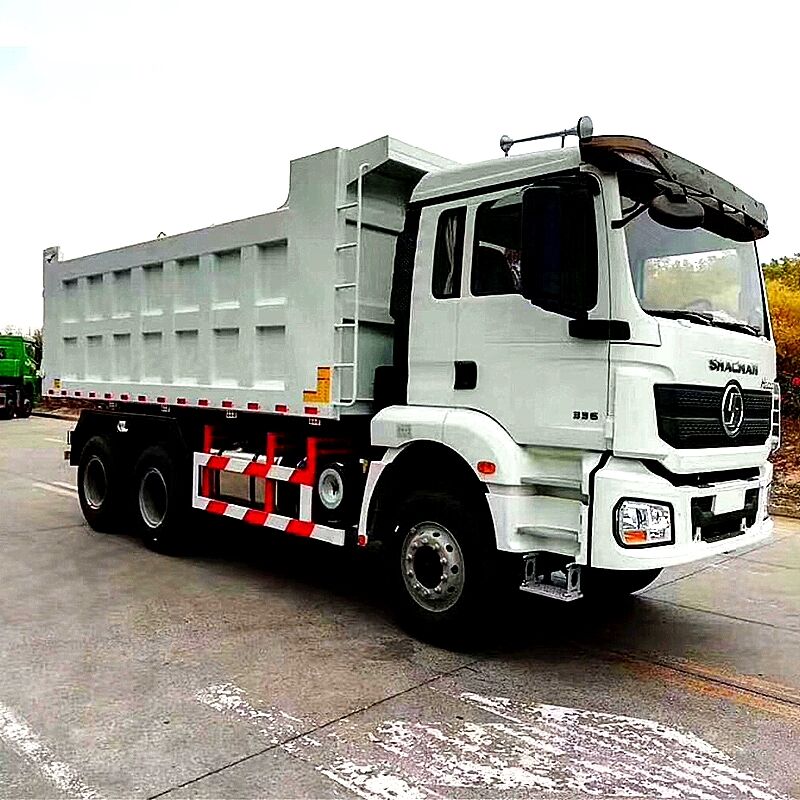

SHACMAN   tipper  truck   SX3255DT384


Item                                             SHACMAN
Specification     tipper  truck   SX3255DT384
Drive type 6×4
Cab  F2000 flat roof cab, rear window , hydraulic driver seat, four point hydraulic suspension cab, single sleeper , auto air conditioner , manu window, manu cab turning -off , metal  bumper ,165Ah battery , radio with MP3 ,F2000
Transmission  FAST -10JSD160  +QH50 (10-forward,2-reverse speeds )
Engine /Horsepower weichai power  WP12.380E32      380hp
Steering ZF tech left hand drive
Emission Standard Euro III
Chassis 850*300(8+7) mm
Suspension  Front and rear multi spring leaf with 4-U bolts
rear  overhang 850 mm
Front Axle MAN 7.5 Ton front axle
Rear Axle STR 16 Ton Double Reduction ,speed ratio 5.73
Wheelbase 3775+1400mm

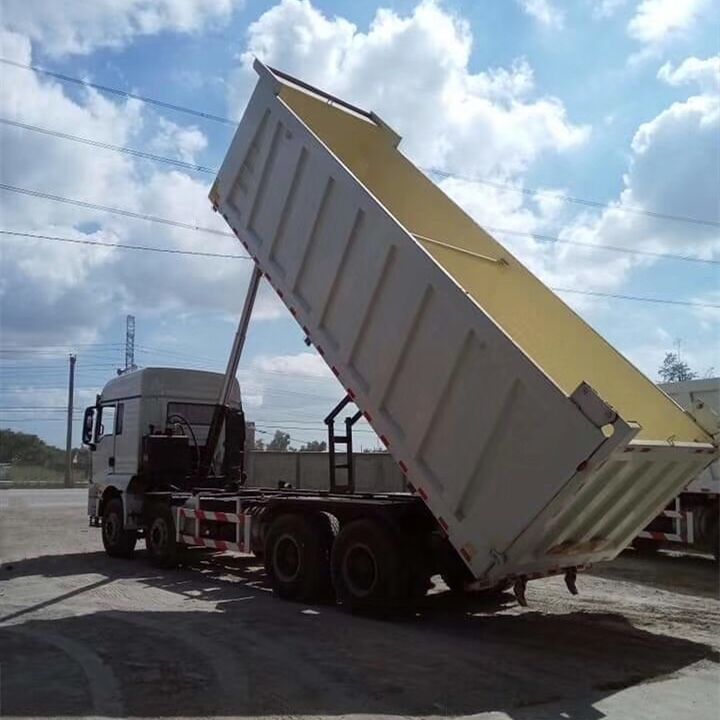

lifting system front lifting system  Φ180
Body Dimensions (max) 8535*2490*3450mm 74CBM

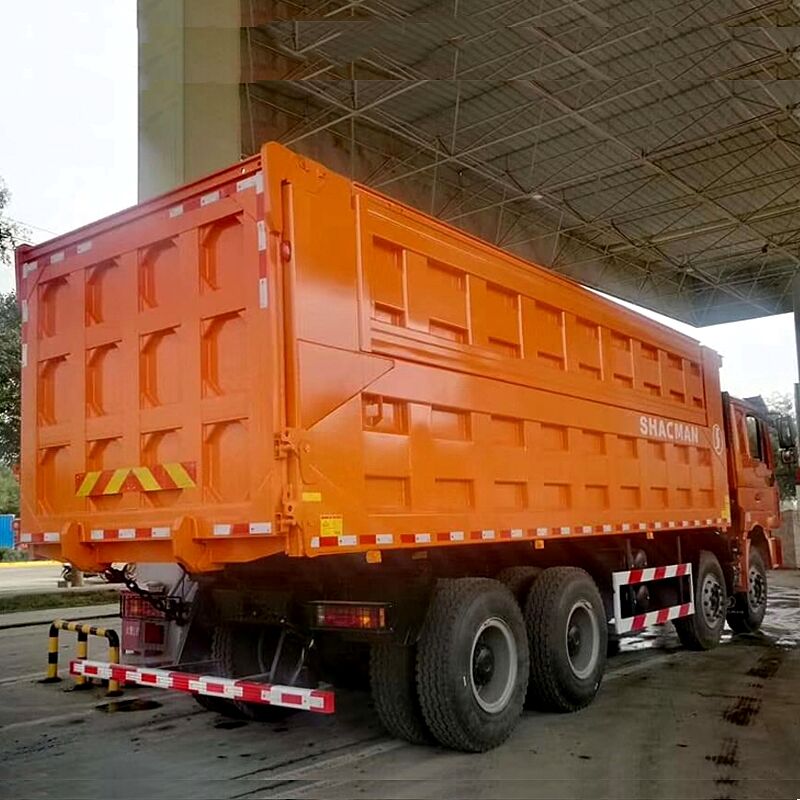

upper body size 5800*2300*1500mm   20CBM
thickness bottom 8 mm  side 6mm
Tyre 12.00R20
color (optional) optional
Fuel Tank 380L metal
Note 30 working days
