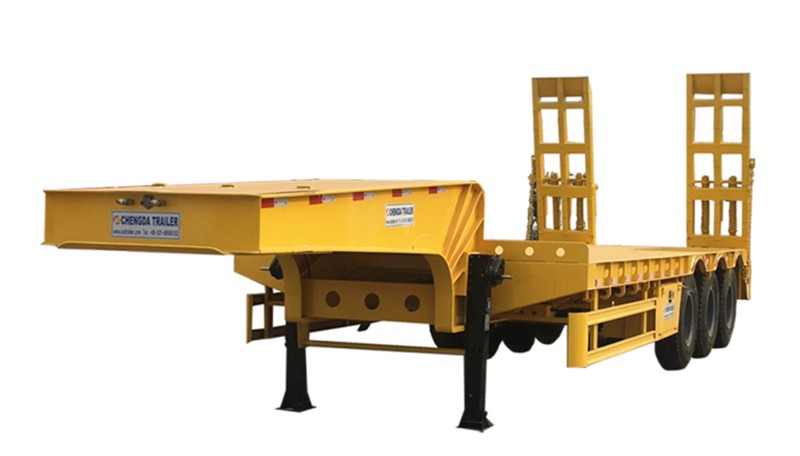

3 Axles 60T Low Bed Semi Trailer
Specification
| Dimension and Weight |
| Overall Dimension（mm） | 13000x3000x1650mm |
| Working Deck Dimension（mm） | 9000x3000x1350mm |
| Platform thickness（mm） | 4mm |
| Main Beam | “H”main beam design,Q345B carbon steel,the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. |
| Wheelbase | 7,650mm+1,310mm+1,310mm |
| Payload | 60,000kg |
| Tare weight | 9,000kg |
| G.V.W.R. | 69,000kg |
| Function | To transport bulk goods or heavy equipment like loader or excavator，60 ton common good or 30-40ton vehicles or machinery with wheels or tracks(concentrated stress on the trailer) |
| Running System |
| Axle | 13Ton, ZY brand one hundred fifty thousand Kilometers no need maintenance |
| Axle Number | Three |
| Tire | 1100R20, 12 pcs Taitong brand |
| Rim | 8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| Suspension system | Common Mechanical Suspension |
| Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
| Electrical System | Chinese standard 24V lighting system |
| Brake system: | Dual line pneumatic brake, SAE hose and connector,optional ABS |
| Brake air chamber | 6 units T30/30 spring brake chambers |
| Emergency relay valve | Wabco relay valve |
| Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing Gear | Zhenhua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location |
| Accessories: |
| Tool box | 1pcs, One crank and one shaft head wrench |
| Ramp | Heavy duty trailer ramp |
| Spare wheel carriers | 2 pcs |
| bumper | Rear bumper |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core electric cable protected by PVC conduit on main frame |
| Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed |
| Packing | Nude, Polish with wax before shipping |

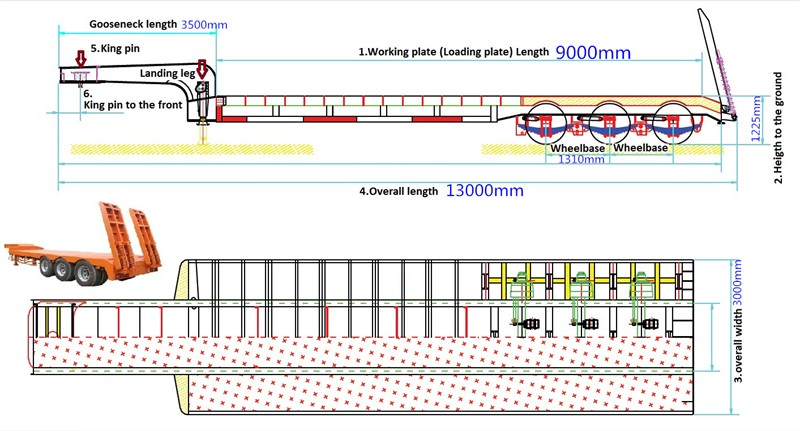

1/ Drawing for 3 axles 60T low bed semi trailer

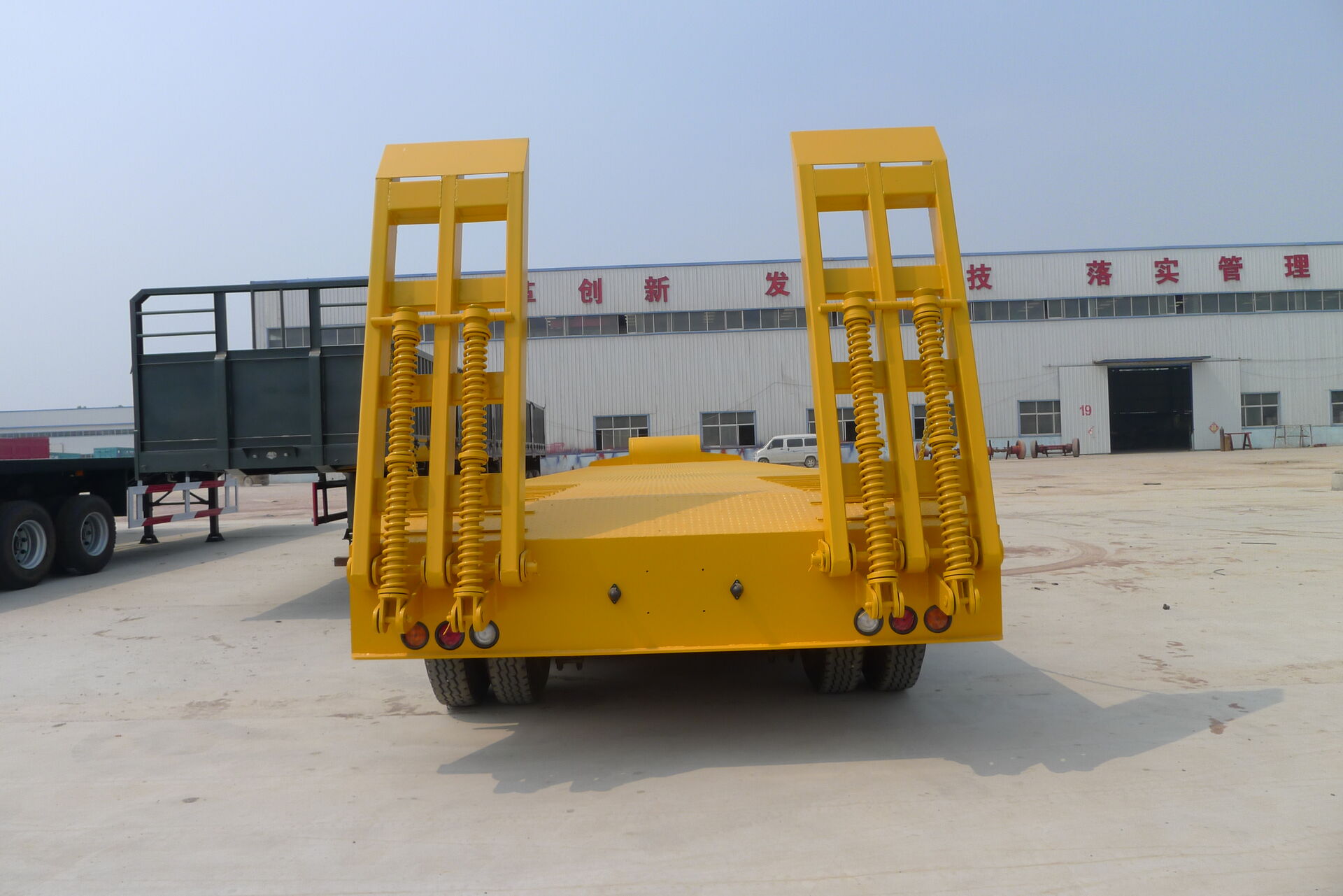

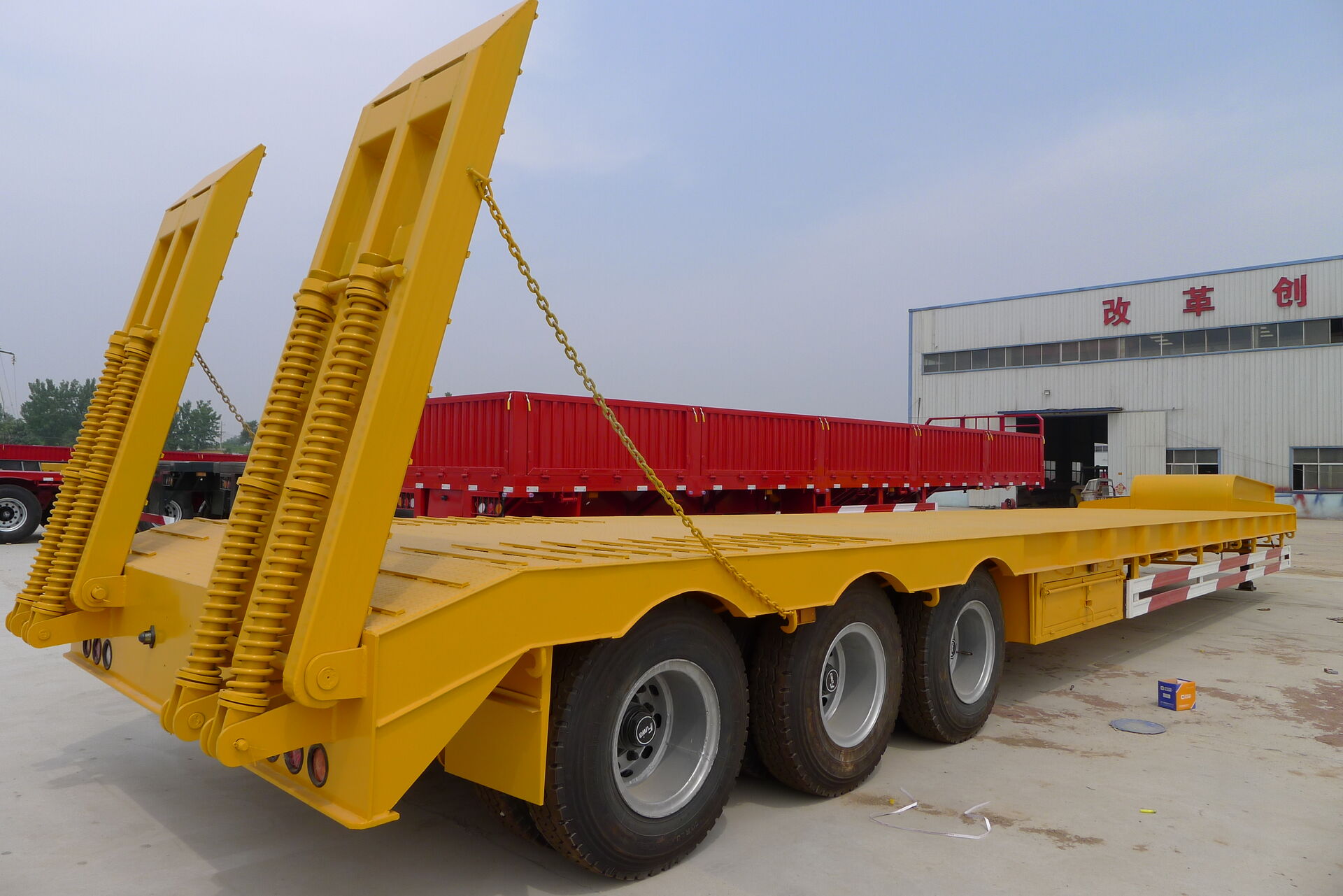

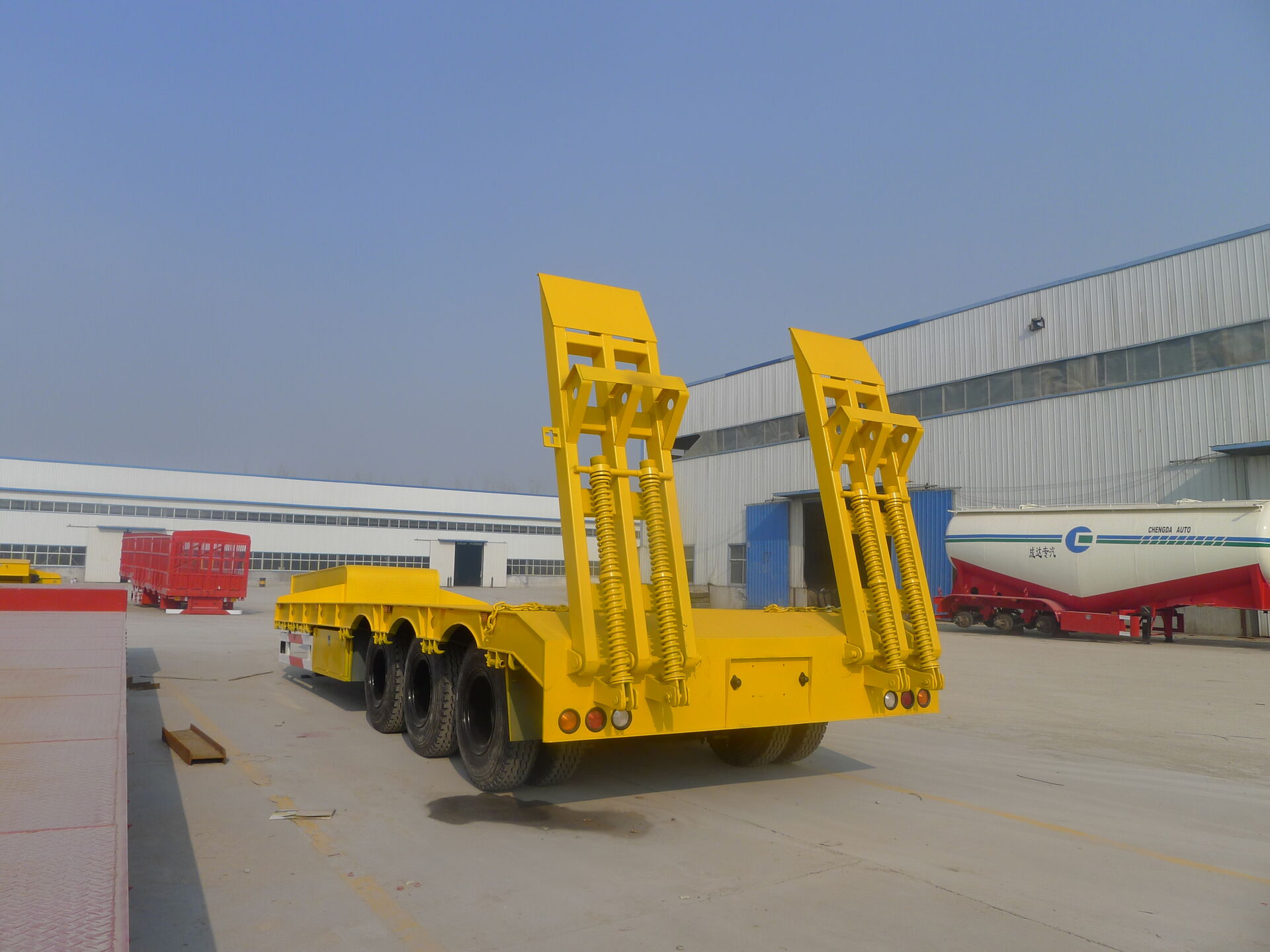

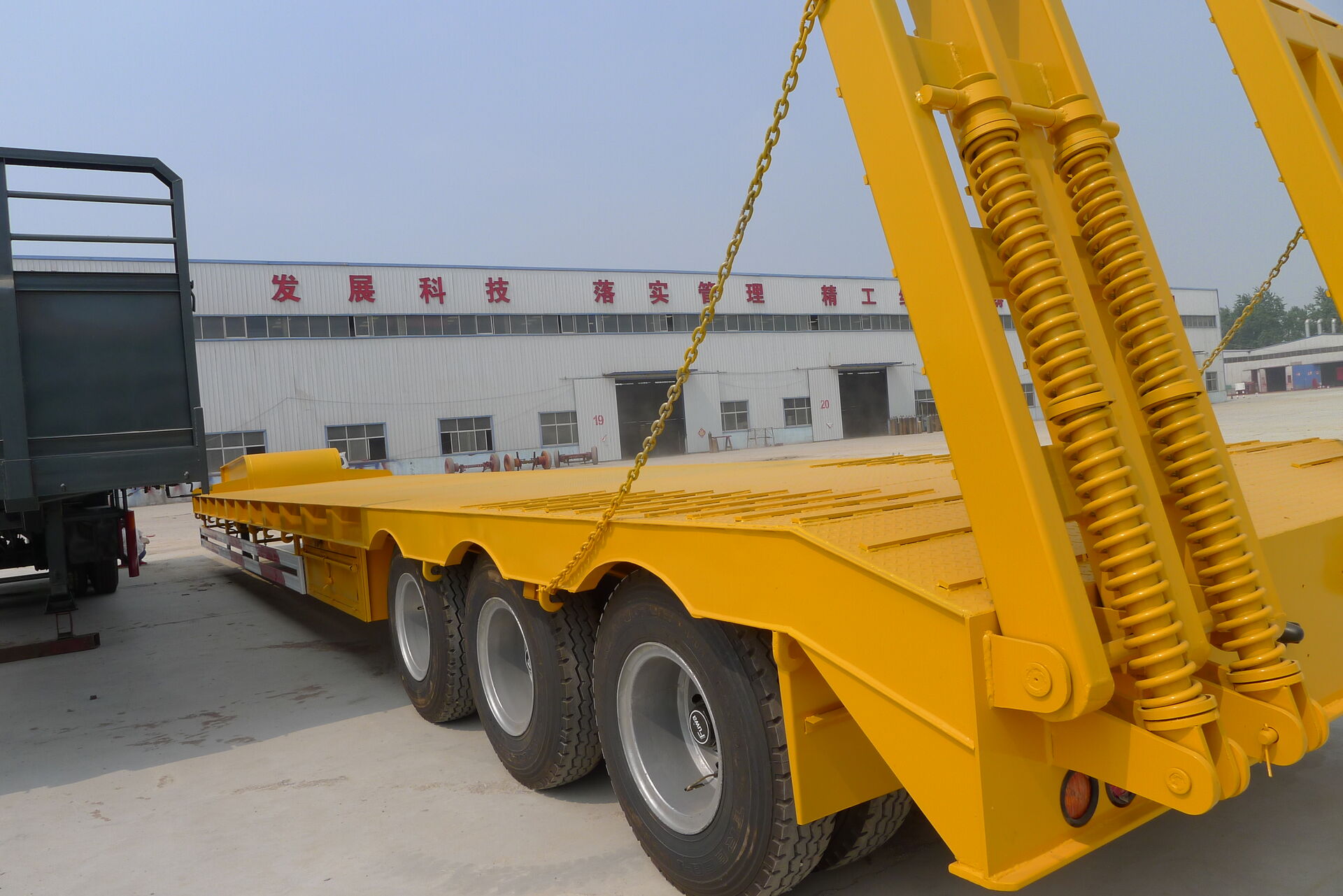

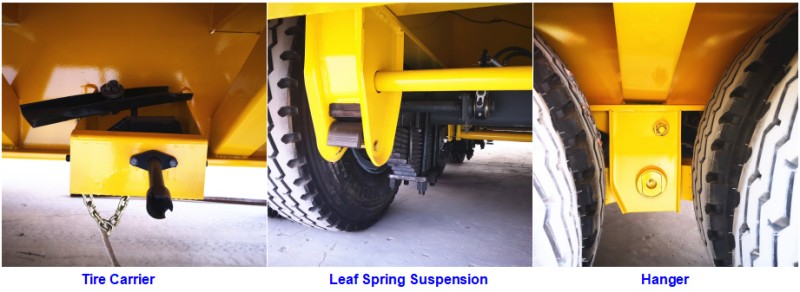

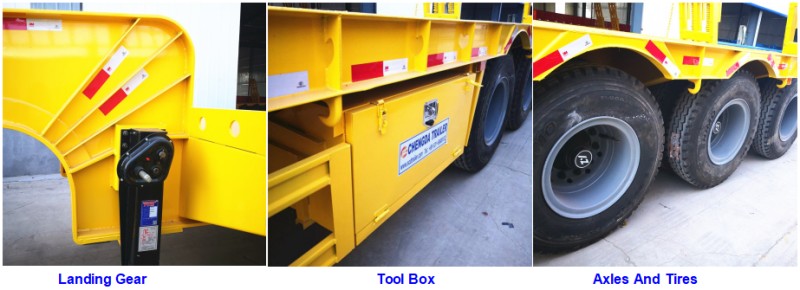

2/ Details for low bed trailer

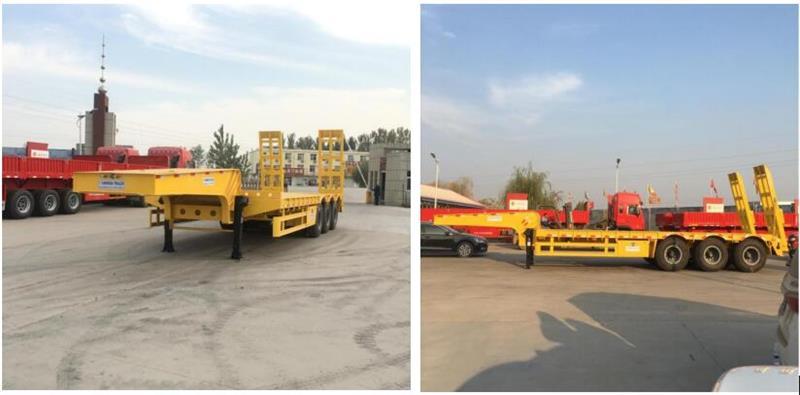

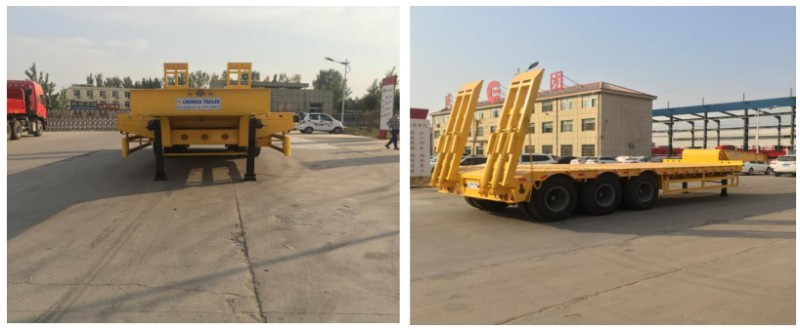

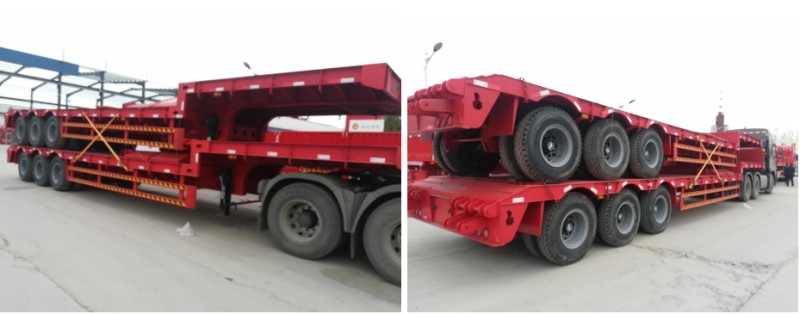

3/ Finish Production And Details

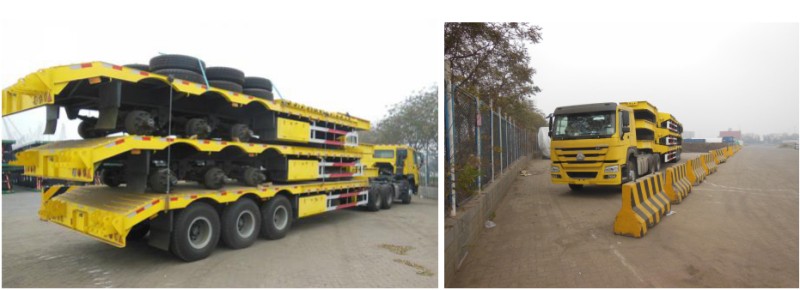

4/ Shipment method: the low bed trailer can be shipped by bulk ship, roro ship.

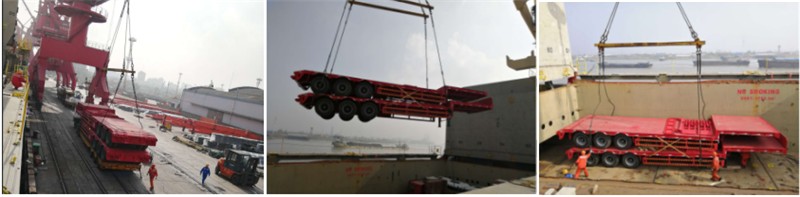

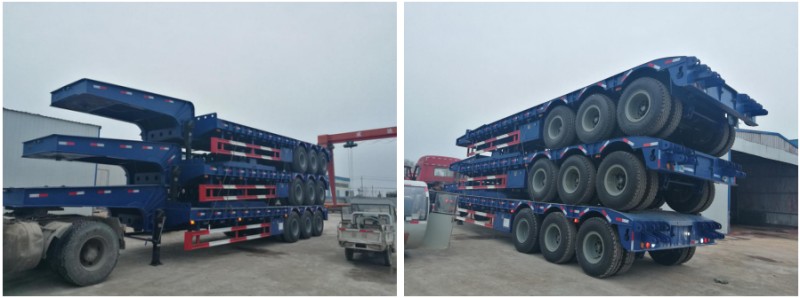

4-1 Shipping by bulk ship

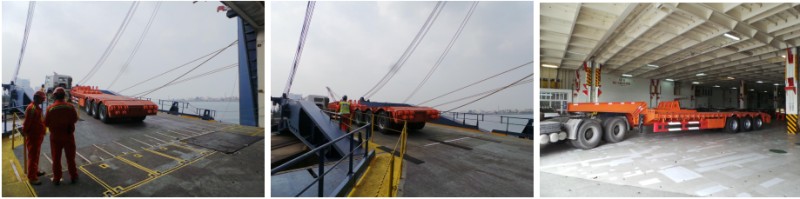

4-2/ Shipping by RORO ship

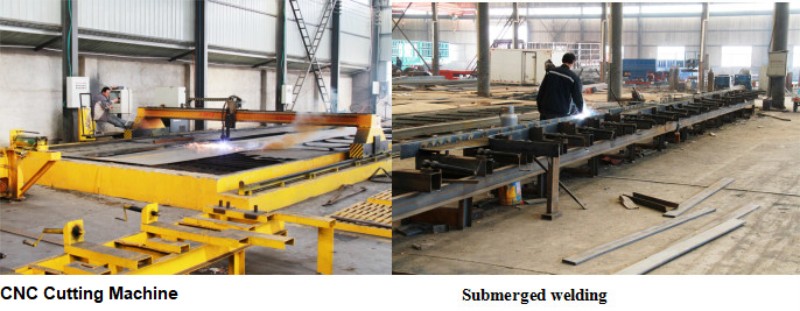

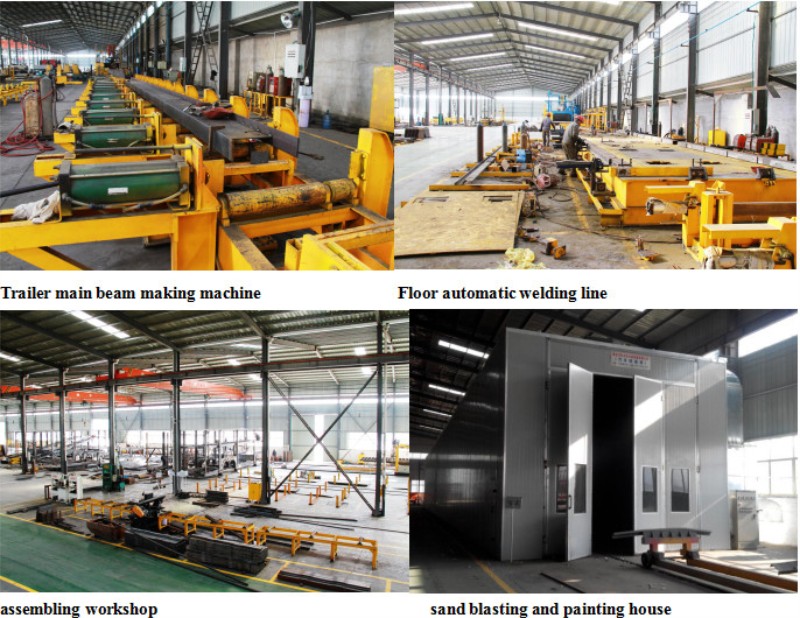

5/ Our factory and workshop
6/ Our certificates

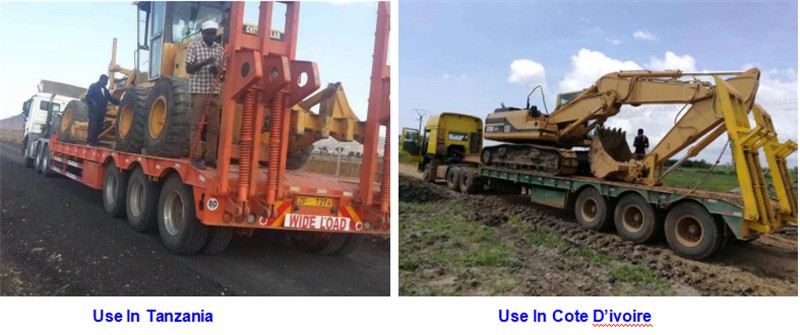

7-1/ trailers to Mozambique
7-2/ 6 trailers to Nigeria
7-3/ 3 trailers to Tanzania
8/ Customers put our cement tank trailers into use
