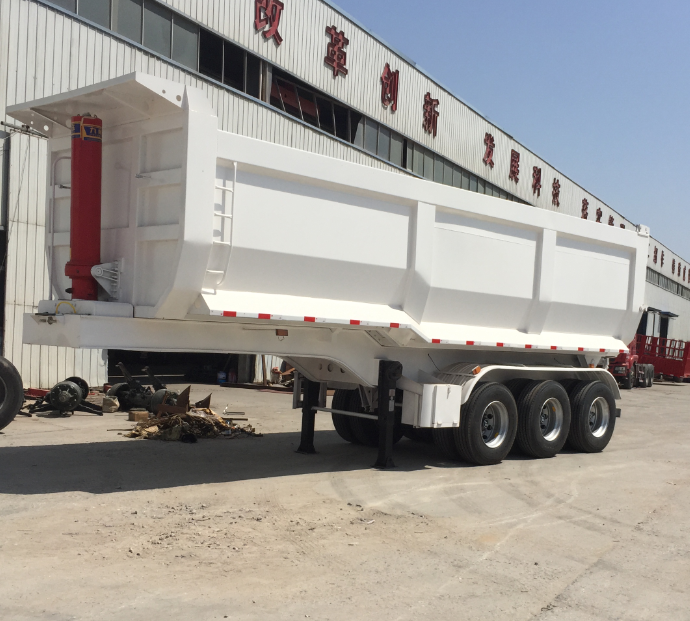

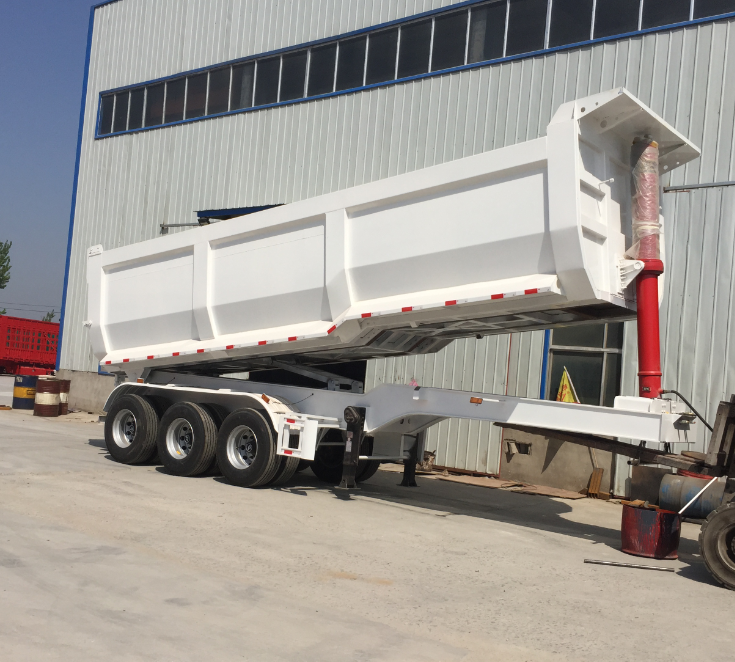

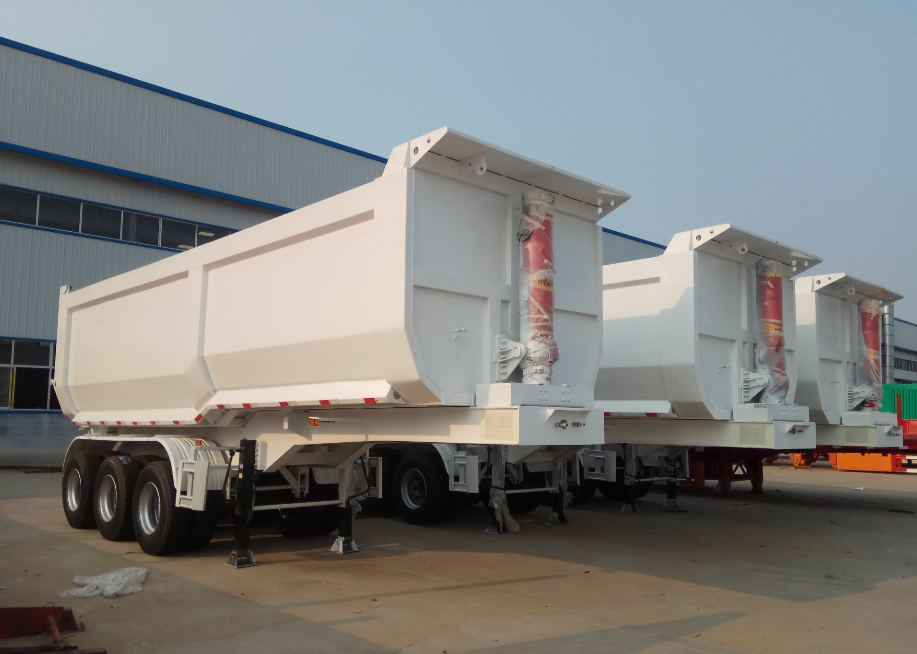

3 axle 35m3 rear dump trailer
![图片17.png 图片17.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_416,limit_0)
Detail specification |
Model | 3 axle 40m3 dump trailer |
Function | Transport sand, stone, gravel |
Dimension |
Overall Size (L×W×H)mm | 9800×2550×3860mm |
Inner Size (L×W×H)mm | 8500×2330×1850mm |
Wheel base | 6870+1310+1310mm |
weight |
Payload | 50,000kg |
Tare weight | Approx12,000kg |
G.V.W.R. | Approx 80,000kg |
Body details |
Main beam | Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 10+10mm. |
Body thickness | 6mm |
Bottom thickness | 8mm |
Hydraulic System | Full set of china Hydraulic System 202 |
Frame |
Axle | heavy duty, 3×13Ton capacity, ZY brand |
Suspension | Leaf spring suspension, 90mm×16mm×10pcs |
Tire | 12R22.5 12units Chengda Brand |
Kingpin | 50mm/90mm removable |
Landing gear | Yahua brand, 28ton, double speed, heavy duty |
Tool box | 1pcs |
Spare wheel carrier | 2pcs |
Electrical system |
Voltage | 24Volt |
Receptacle | 7 way socket SAE standard,China |
Front marker lamp | white |
Side marker lamp | white&red |
Rear lamp | red |
Turn signal lamp | Amber |
Wiring | Electric cable protected by PVC conduit on main frame |
Brake system |
Brake | Dual line pneumatic brake,SAE hose and connector,no ABS |
Brake air chamber | Six big chamber |
Painting | Shot blast at Standard SA 2.5 prior to application of primer,polyurethane top coat.Total DFT not less than 100um |
Color | As customer requirement |

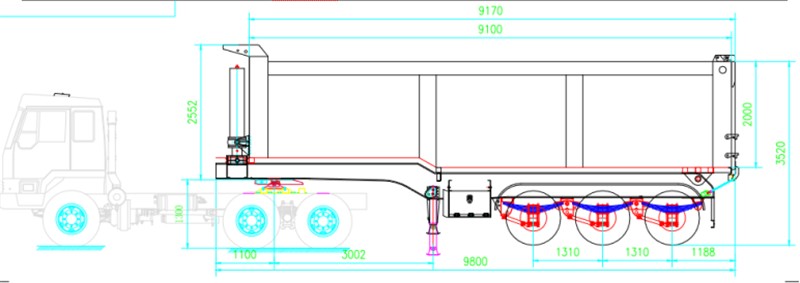

Drawing
![图片18.png 图片18.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_283,limit_0)

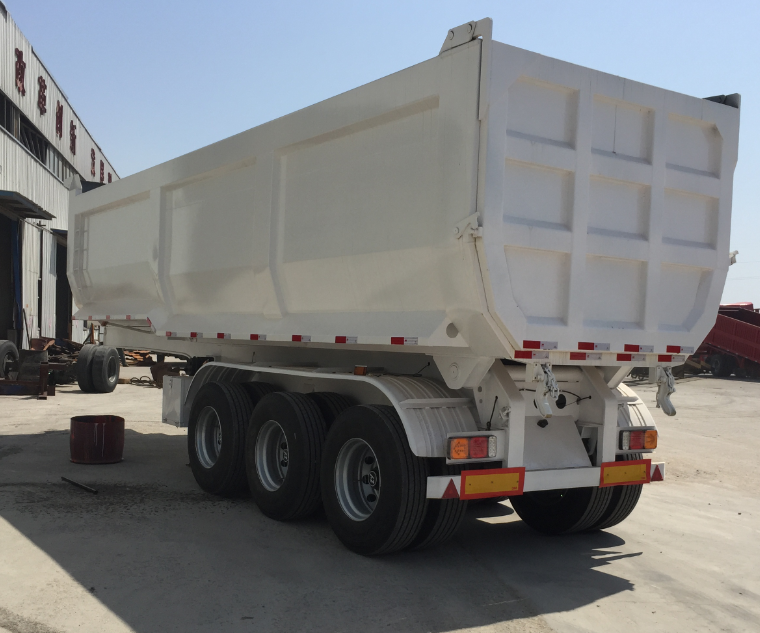

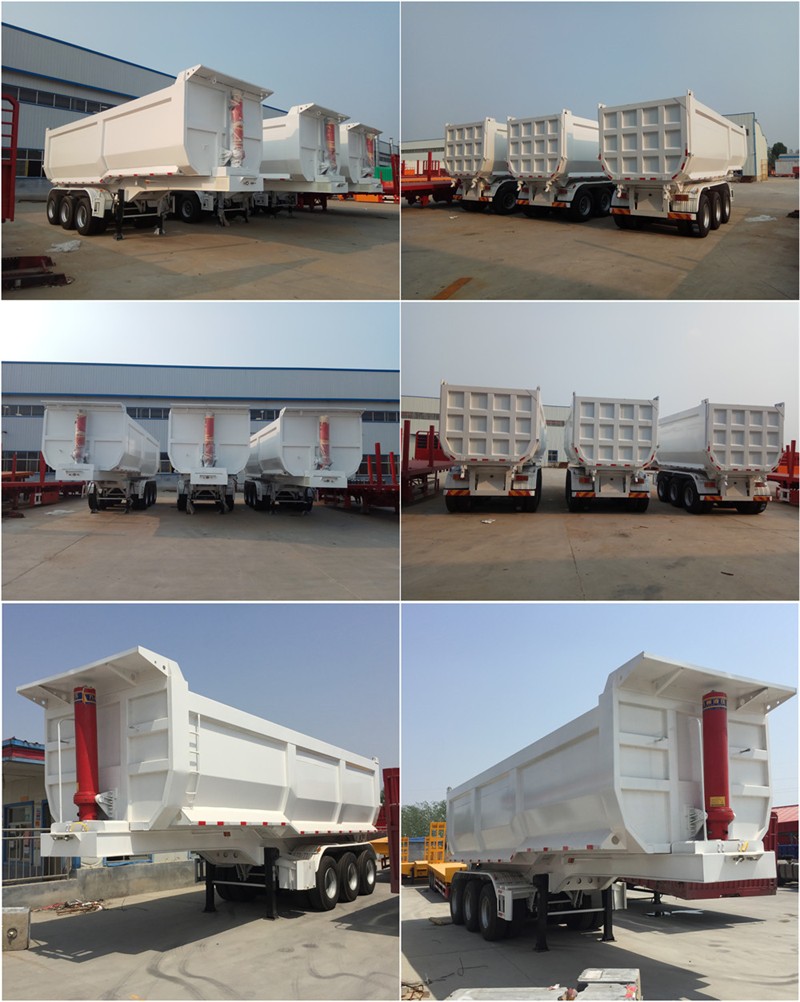

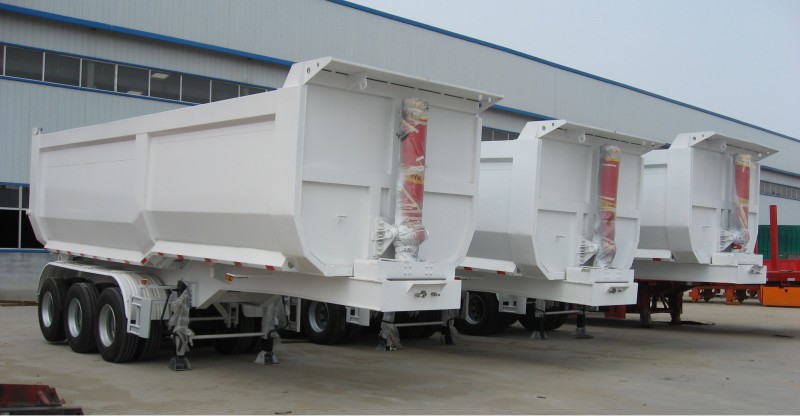

More view of the dump semi trailer
![图片19.png 图片19.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_1002,limit_0)

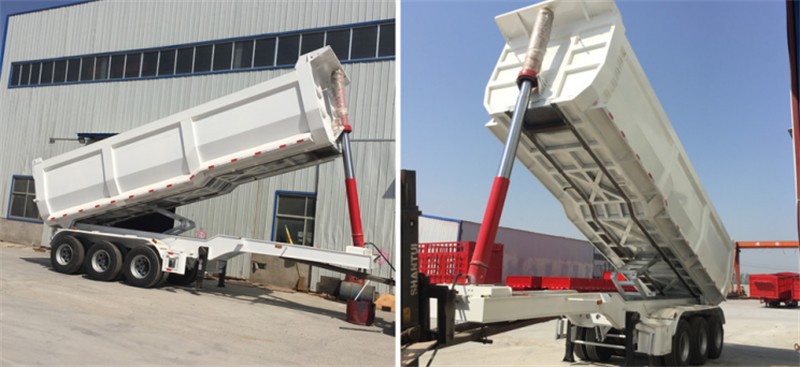

Testing
![图片20.png 图片20.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_367,limit_0)

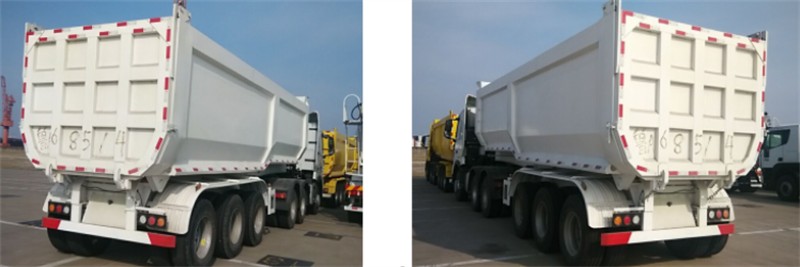

On port
![图片21.png 图片21.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_267,limit_0)

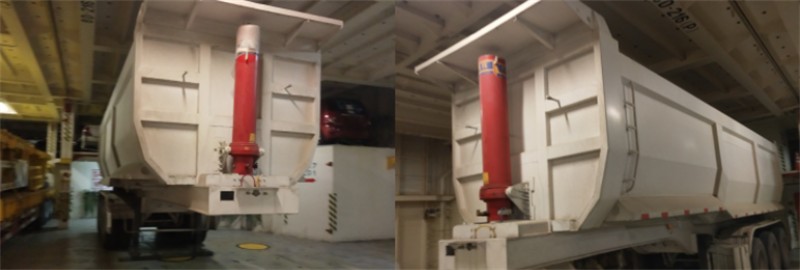

Shipping
![图片22.png 图片22.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_270,limit_0)

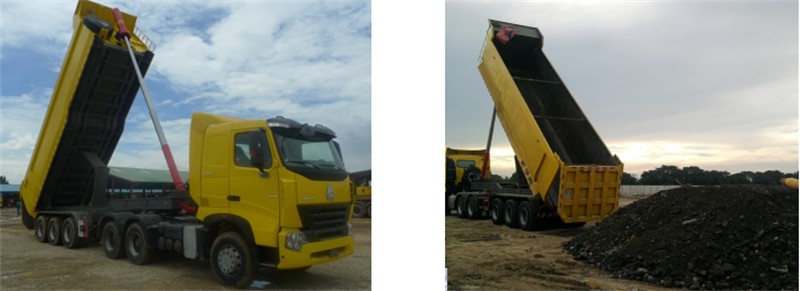

Use in Africa
![图片23.png 图片23.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_291,limit_0)
5units export to Burundi

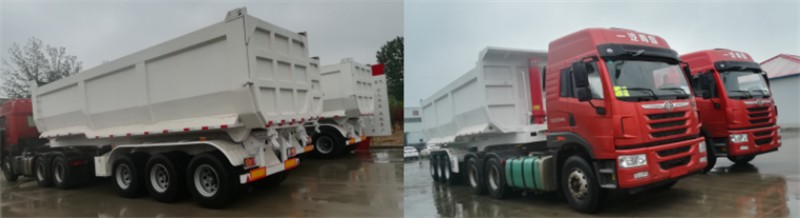

![图片24.png 图片24.png](//usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_800,h_218,limit_0)

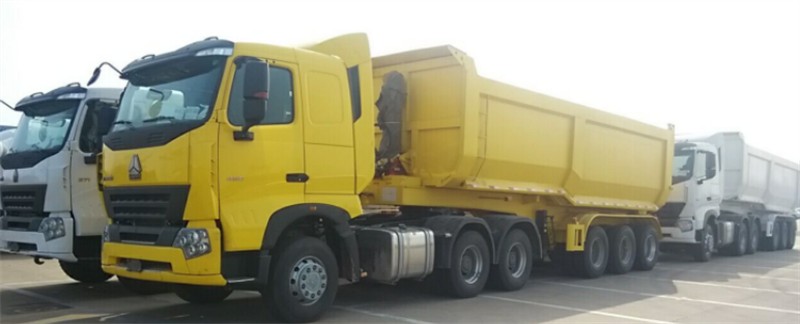

4units export to Philippines
