Product Introduction

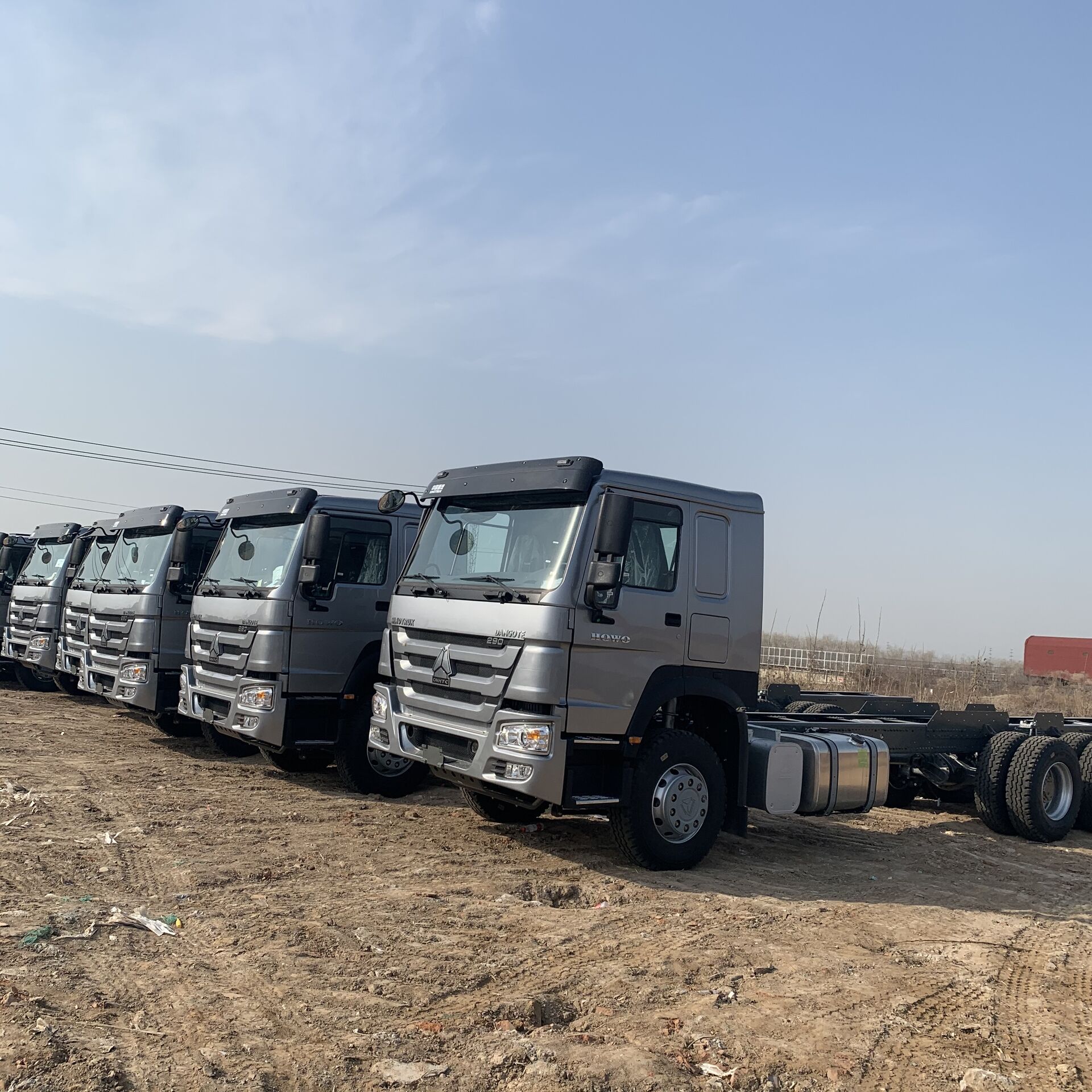

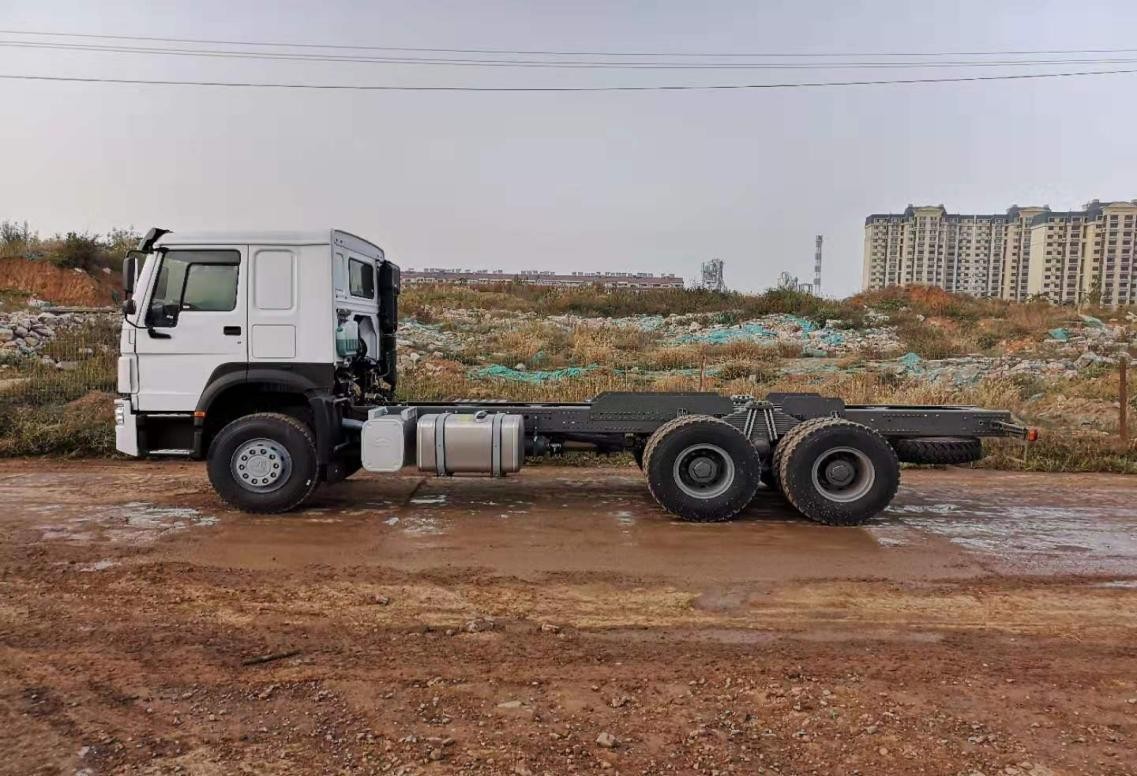

SINOTRUCK HOWO 371HP 6X4 CARGO CHASSIS



Truck ModelZZ1257N4647
Truck BrandHOWO
Dimension(Lx W x H)(unloaded)(mm)10350x2596x3490
Approaching angle/Departure angle(°)16/12
Overhang(front/rear) (mm)1500/2900
Wheel base (mm)4600+1350
Max speed(km/h)90
Curb weight(kg)11360
Loading Weight(kg)30,000
Fuel tanker capacity(L)300
ClutchSingle-plate dry clutch Φ430mm
Engine Model Fuel type   Diesel

Horse Power, max(kw/rpm)371HP

EmissionEURO II

ModelWD615.47,water-cooled,four strokes,6 cylinders in line with water cooling , electric injection
TransmissionModelHW19710, 10 forwards and 2 reverse
Brake system Service brakeDual circuit compressed air brake

Parking brakespring energy, compressed air operating on rear wheels

Auxiliary brakeEngine exhaust brake
Steering system ModelZF8118 hydraulic steering with power assistance
Front axleHF9 , Steering with double T-cross section beam
Rear axleHC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
ColorOptional (White ,Red ,yellow )
Tyre12.00R20 radial tires, 10+1pcs tr691
Electrical system Battery2X12V/165Ah

Alternator28V-1500kw

Starter7.5Kw/24V
CabHOWO76 cab, single sleeper with air conditioner,forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen withcasted-inradioaerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension

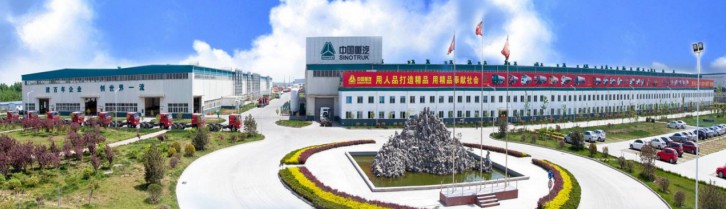

SINOTRUK -- THE CRADLE OF CHINESE HEAVY-DUTY TRUCK

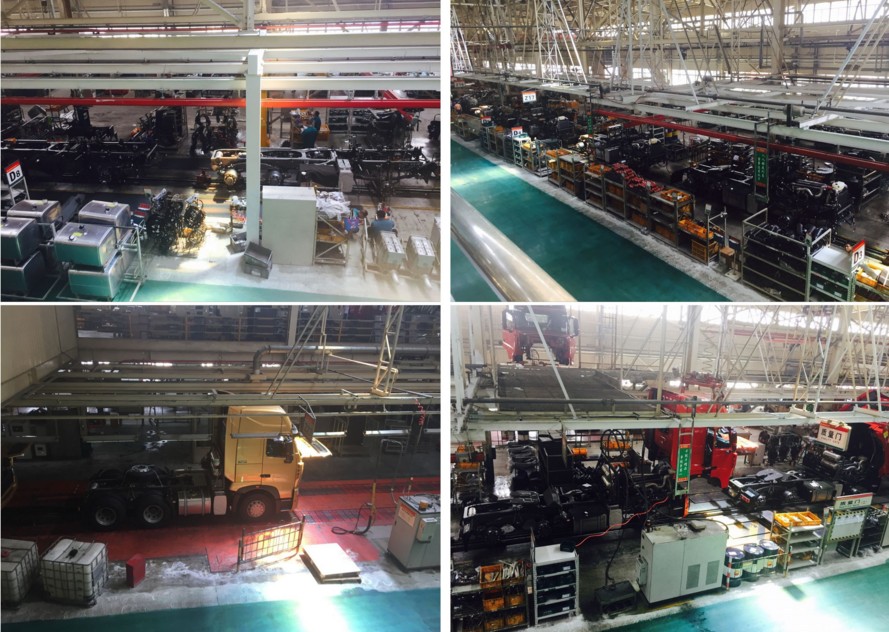

CHASSIS MANUFACTURE
